Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2012 GMC Acadia
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $293.75. Current price is $257.48.You save $36.27 (12%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Aug 13 - Sun, Aug 16
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
These durable custom hitches are manufactured for 2008-2017 Buick Enclave, 2009-2017 Chevrolet Traverse, 2007-2016 GMC Acadia, 2017-2017 GMC Acadia Limited, 2007-2009 Saturn Outlook and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | GMC Acadia | — |

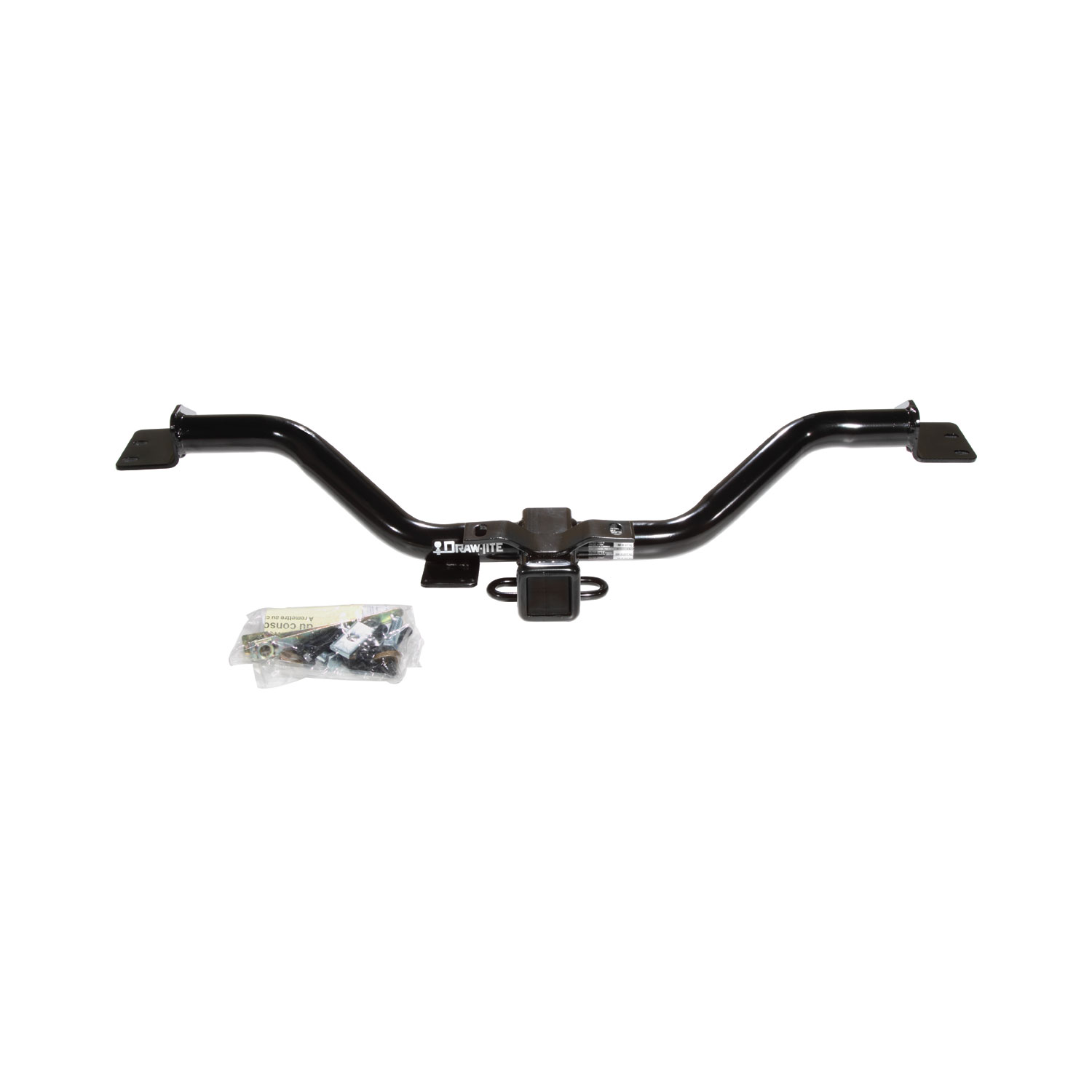

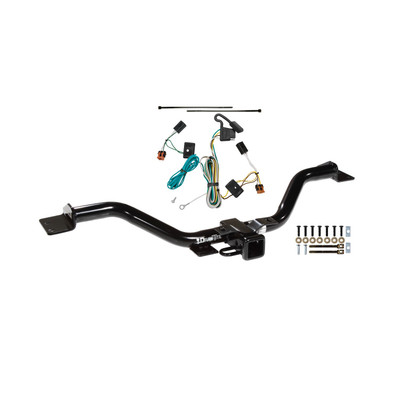

The 2007-2012 GMC Acadia Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75528-118451) fits 2007-2012 GMC Acadia models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2007-2012 GMC Acadia Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75528-118451) is designed to fit the 2007-2012 GMC Acadia.
The 2007-2012 GMC Acadia Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75528-118451) fits the following vehicles: 2007-2012 GMC Acadia. Always verify your specific year, make, and model before ordering.
The 2007-2012 GMC Acadia Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75528-118451) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The 75528 hitch is designed for 2009-current Chevrolet Traverse models. However, the manual recommends visiting the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
Yes. The 75528 is compatible with 2008-current Buick Enclave models.
Yes. The 75528 is compatible with 2007-2009 Saturn Outlook models.
No. The 75528 hitch is designed for 2007-current GMC Acadia models only. Your 2006 model is not listed as compatible.
The 75528 is available in two configurations: Weight Carrying (5000 lb maximum gross trailer weight, 750 lb maximum tongue weight) and Weight Distributing (7500 lb maximum gross trailer weight, 750 lb maximum tongue weight). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
The maximum tongue weight is 750 lb (341 kg) for both Weight Carrying and Weight Distributing configurations.
You will need: ratchet, torque wrench, safety glasses, sockets (7 mm, 18 mm, 3/4"), star drivers (T15), and a flat head screwdriver. Plastic trim tools are also shown in the manual illustration.
The fastener kit (75528F) includes: (6) M12 x 1.75 x 45 mm hex bolts CL 10.9; (2) spacers (.250 x 1 x 2); (6) 1/2" conical washers; (2) 1/2"-13 handle nuts; and (2) 1/2"-13 x 1-3/4" hex bolts GR 5.
Only if your vehicle is equipped with integrated rear fascia exhaust outlets. If equipped, you must remove the rear fascia before lowering the exhaust. If your vehicle does not have integrated rear fascia exhaust outlets, skip the fascia removal step and proceed directly to lowering the exhaust.
Yes. You must detach the rubber exhaust hangers and lower the rearward portion of the exhaust (2 on single exhaust or 4 on dual exhaust) to allow the hitch to be positioned over the exhaust pipes. The exhaust must be supported to prevent damage during this process.
1. Remove fascia door. 2. If equipped with integrated rear fascia exhaust outlets, remove rear fascia (otherwise skip). 3. Lower exhaust and support it. 4. Raise hitch into position over exhaust pipes, aligning slots with frame rail weldnuts. 5. Loosely install side fasteners (M12 bolts and 1/2" conical washers). 6. Install central fasteners with spacers. 7. Torque all fasteners. 8. Raise exhaust back into position. 9. If fascia was removed, reinstall it.
Fasteners should be installed loosely first. In step 5, loosely install the side fasteners (M12 bolts and 1/2" conical washers). In step 6, install the central fasteners. All fasteners are then tightened together in step 7 using a torque wrench.
Install fasteners in the central receiver bracket, sandwiching one spacer for each hole between the bracket and bumper. If your bumper has weldnuts, use (2) M12 bolts and (2) 1/2" conical washers. If your bumper does not have weldnuts, use (2) 1/2" bolts, (2) conical washers, and (2) handle nuts. Install handle nuts through the rectangular access hole.
All M12 CL10.9 fasteners must be tightened to 92 ft-lbs (125 N-m) using a torque wrench.
All 1/2-13 GR 5 fasteners must be tightened to 50 ft-lbs (68 N-m) using a torque wrench.
The conical washer teeth side must be placed against the hitch.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Support the exhaust to prevent damage. Do not use a torch to cut access or attachment holes. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required.
The maximum tongue weight is 750 lb (341 kg) for both Weight Carrying and Weight Distributing configurations. Do not exceed this limit or your vehicle manufacturer's towing rating, whichever is lower.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
No. Do not cut, weld, or modify this receiver. Modifications will compromise the structural integrity and safety of the hitch.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
Yes, if your vehicle is 2007-current GMC Acadia, 2008-current Buick Enclave, 2009-current Chevrolet Traverse, or 2007-2009 Saturn Outlook. Check the manufacturer's website for the most current year and trim level information.
You need a ratchet, torque wrench, safety glasses, sockets (7 mm, 18 mm, 3/4"), star drivers (T15), and a flat head screwdriver.
Yes. You must lower the exhaust (detach rubber hangers and lower the rearward portion) to allow the hitch to be positioned over the exhaust pipes. The exhaust is then raised back into position after the hitch is installed.
M12 CL10.9 fasteners: 92 ft-lbs (125 N-m). 1/2-13 GR 5 fasteners: 50 ft-lbs (68 N-m). Use a torque wrench for all fasteners.
Wear safety glasses during installation. Always wear your seatbelt when towing. Load the trailer heavier in front. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas and hold the steering wheel steady—do not brake or accelerate.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is essential to keep the hitch secure when towing.

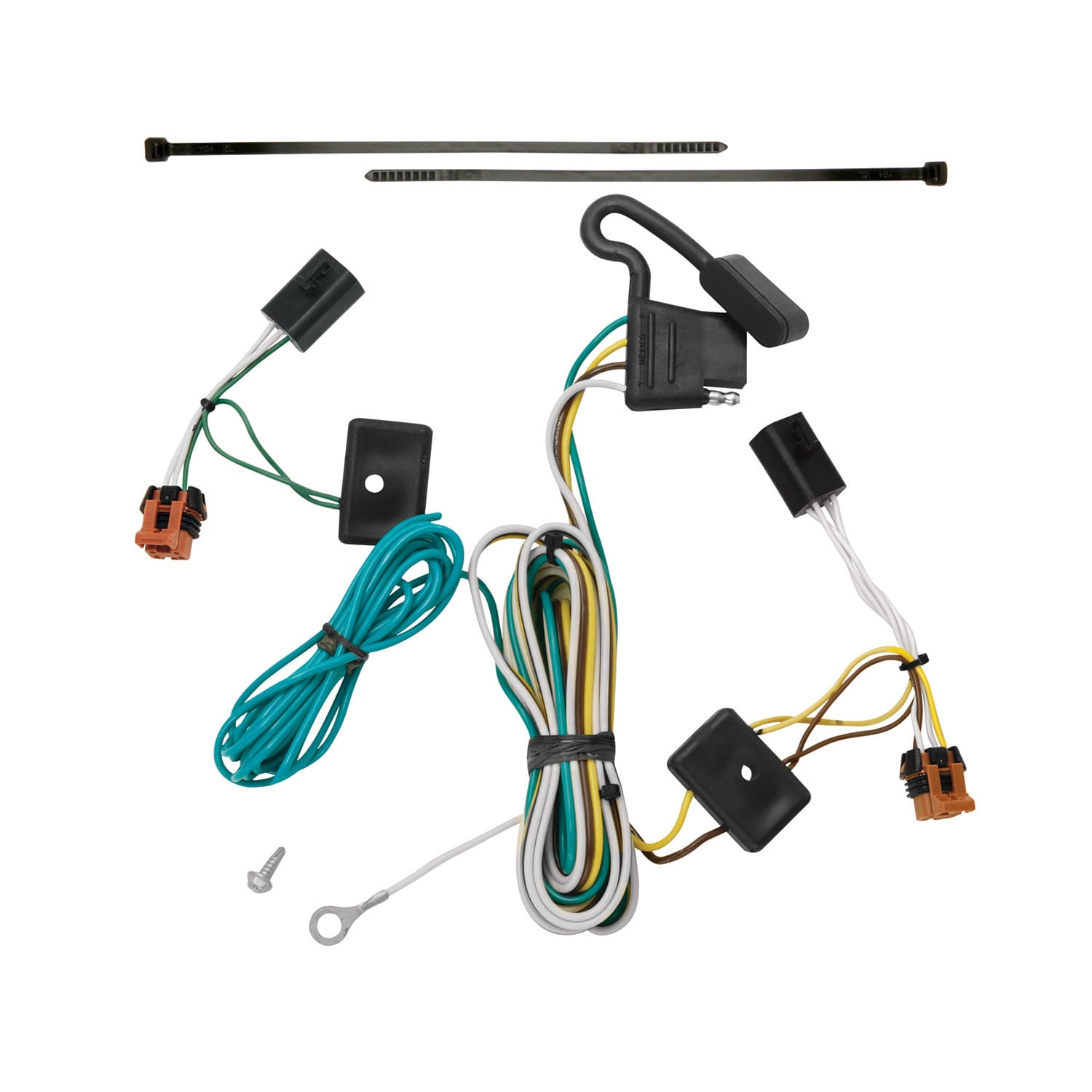

Yes, this T-Connector is designed for the GMC Acadia. The installation instructions are specific to this vehicle model.
You will need: a drill with a 3/32" drill bit, a Phillips head screwdriver, and a 7mm socket and ratchet or 7mm wrench. These tools are required to remove the taillight housings and secure the ground wire.
The manual does not specify whether battery disconnection is required. Contact the manufacturer or consult your vehicle's owner's manual before beginning installation.
Open the rear door. Remove both taillight housing assemblies by removing the two bolts for each light using a 7mm socket and ratchet or wrench, then carefully pry the housing away from the vehicle. Be careful not to break the alignment tabs during removal.
On the driver's side, disconnect the vehicle wiring harness from the taillight socket. Plug the T-Connector end with the yellow wire in between the mating plugs on the driver's side taillight socket and the vehicle wiring harness.
On the driver's side, route the T-Connector end with the green wire and the 4-Flat connector wire down through the opening between the vehicle bumper and body. Then route the green wire end to the passenger's side and route the 4-Flat underneath the bumper. Finally, route the green wire end up through the opening on the passenger side. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Locate a suitable grounding point near the connector such as the vehicle's frame or cross member. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area, then drill a 3/32" hole. Secure the white wire using the eyelet and screw provided. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into any exposed surfaces.
A 3/32" drill bit is required to drill the hole for securing the white ground wire.
Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would cut or pinch the wire.
Mount the 4-Flat connector in a suitable location under the vehicle. A bracket is not included with this product, so you will need to source an appropriate mounting solution separately.
Do not exceed the lower of your towing manufacturer's rating or: maximum 7.5 amps for stop/turn lights, and maximum 7.5 amps for tail lights. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. Ensure all wiring is properly connected and routed before testing.
When reinstalling the taillight housing assemblies, position the vehicle wiring harness between the housing and the vehicle body. This ensures proper alignment and protection of the wiring.
Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Also avoid areas that could damage the wiring when routing through the vehicle body.
This T-Connector is designed for the GMC Acadia.
You need a drill with 3/32" bit, Phillips head screwdriver, and 7mm socket/ratchet or wrench.
Yes, you must drill a 3/32" hole to secure the white ground wire to the vehicle frame or cross member.
Maximum 7.5 amps for stop/turn lights and 7.5 amps for tail lights. Do not exceed the lower of your vehicle's towing manufacturer rating or these limits.
Yes, you must remove both taillight housing assemblies by removing the two 7mm bolts for each light and carefully prying them away from the vehicle.
No, a bracket is not included. You must source a suitable mounting location and bracket separately.
Test and verify the installation with a test light or trailer once all connections are complete and the harness is secured.
