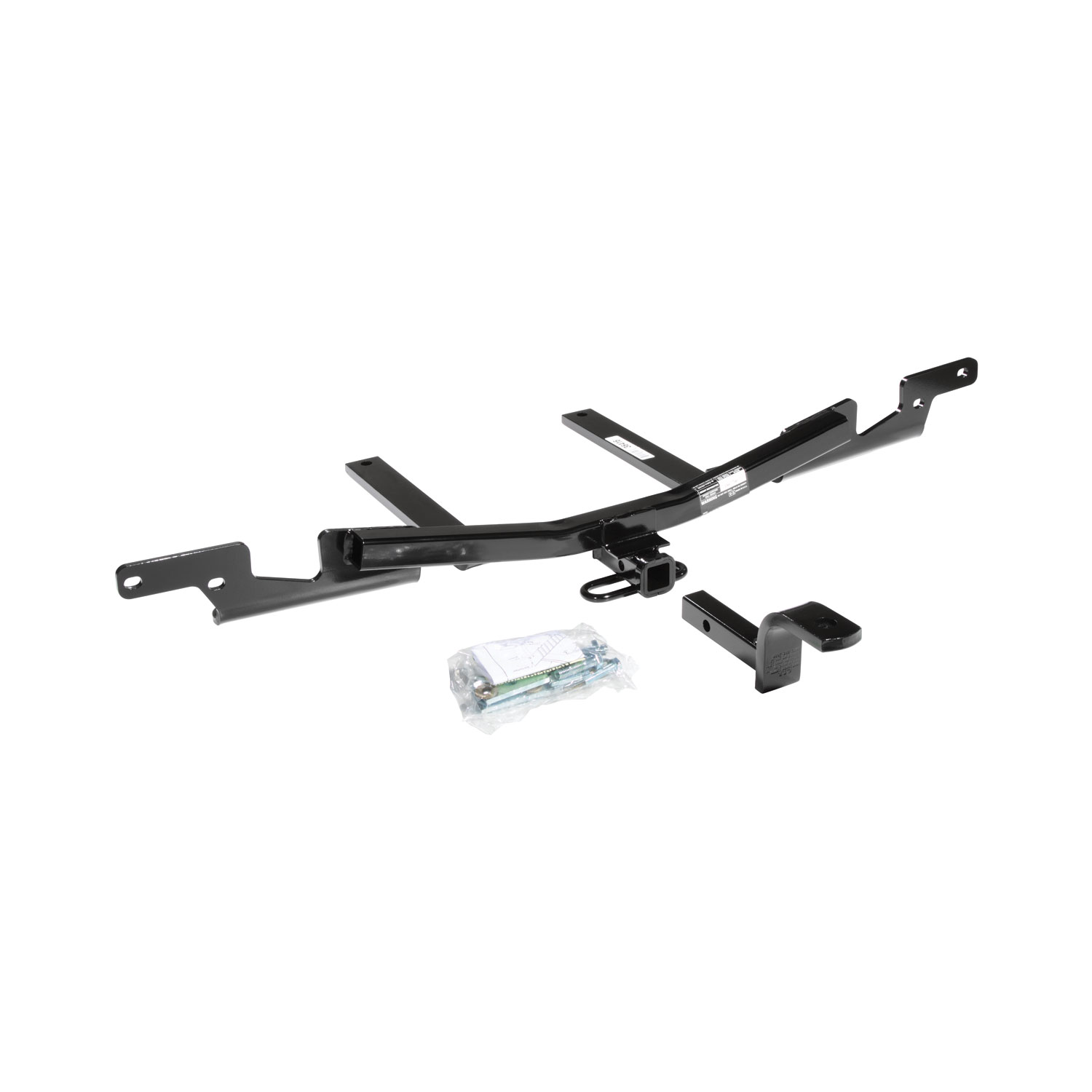

These dependable custom hitches are manufactured for 2007-2012 Lexus ES350, 2007-2011 Toyota Camry, 2007-2011 Toyota Camry Hybrid and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

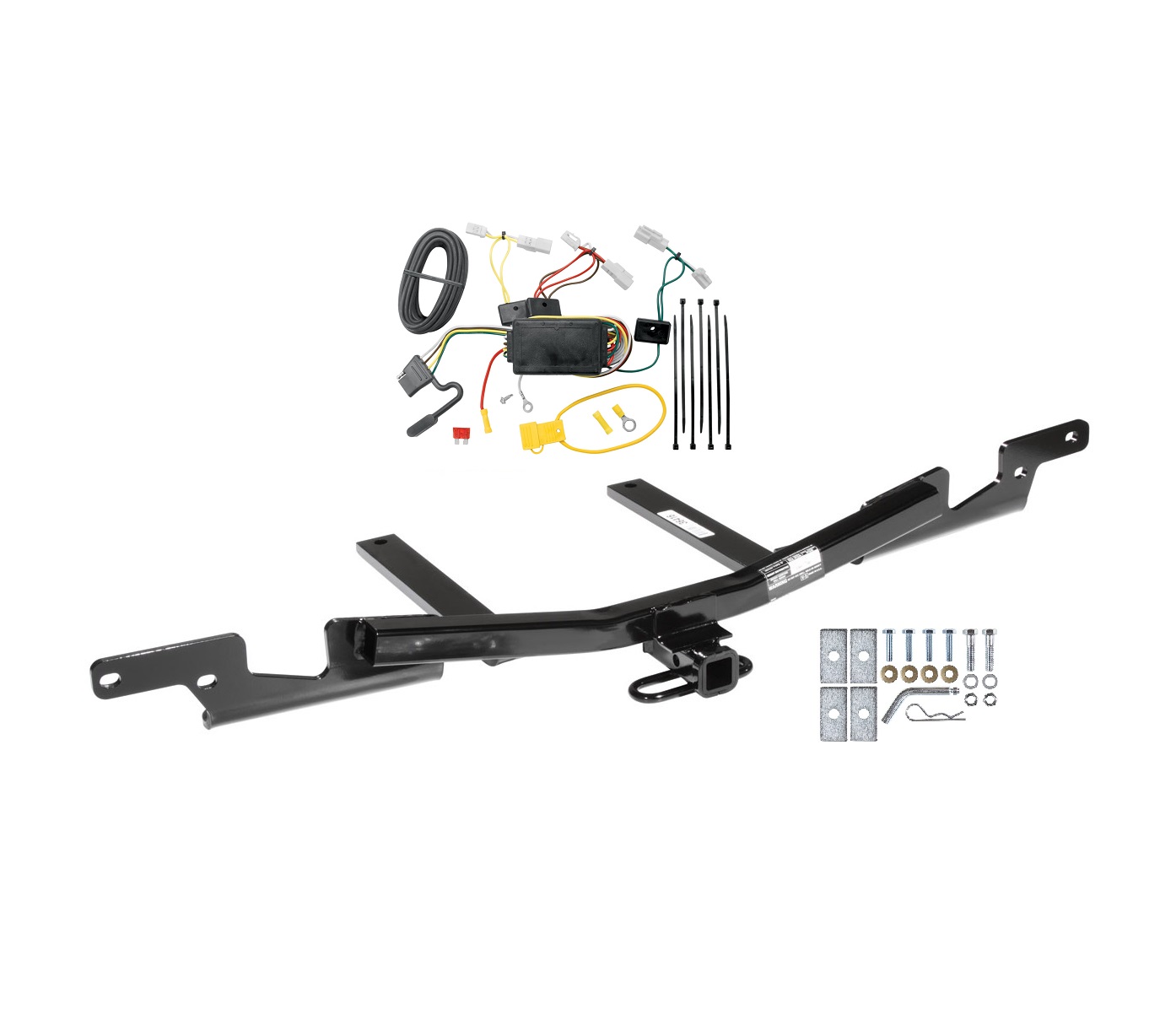

Call 888-634-9494The 2007-2009 Toyota Camry Sedan, Except Hybrid Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36416-118405) fits the following vehicles: 2003 Toyota Camry. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2009 Toyota Camry Sedan, Except Hybrid Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36416-118405) is designed to fit the 2003 Toyota Camry.
The 2007-2009 Toyota Camry Sedan, Except Hybrid Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36416-118405) fits 2003 Toyota Camry models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2009 Toyota Camry Sedan, Except Hybrid Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36416-118405) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36416 fits Toyota Camry models from 2006, 2007, 2009, 2011, and 2015. It also fits Toyota Camry Hybrid and Lexus ES350 of the same model years. The manual covers these specific years only; fitment for other model years is not documented.
Yes, part number 36416 is compatible with Toyota Camry Hybrid models from 2006, 2007, 2009, 2011, and 2015. However, Hybrid installation requires additional steps: you must remove the plastic fascia covering the driver's side frame rail and return it with screws to the vehicle owner. Newer model Hybrids also require removal of a plastic fin attached to the bottom of the trunk pan on the passenger's side.
Yes, part number 36416 fits Lexus ES350 models from 2006, 2007, 2009, 2011, and 2015. The installation procedure is the same as for the Toyota Camry, except that Hybrid-specific steps do not apply.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). However, you must not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating. Always consult your vehicle's owner manual for its specific towing capacity.
This hitch requires a 1/2" pin and clip.
You will need wrenches in the following sizes: 10mm, 12mm, 14mm, and 17mm. You will also need a 1/2" drill bit and a torque wrench to tighten fasteners to the specified values.

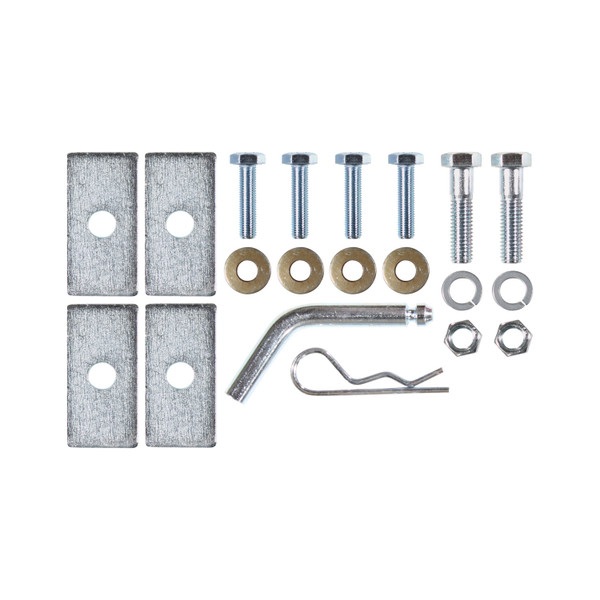

The hitch includes: (4) M10 X 40 X 1.25 CL8.8 hex bolts, (4) 3/8" conical toothed washers, (2) M10 X 1.25 hex nuts, (2) 7/16" washers, (4) blocks (1/4 X 1.50 X 3.00), (2) 1/2-13 X 2.00 GR5 hex bolts, (2) 1/2" lockwashers, and (2) 1/2" hex nuts. If existing weldnuts are not present on the passenger side of the vehicle frame, the provided nuts and washers will be used instead of the vehicle's existing fasteners.
Yes, the drawbar kit (part number 36071) is sold separately and is not included with the hitch. You will need to purchase it if you want to use a drawbar with this hitch.
Yes. The first installation step is to remove the spare tire from the inside of the trunk. After the hitch is installed, you will reinstall the spare tire inside the trunk in step 9.
Yes. Step 2 requires you to lower the vehicle exhaust by removing the rubber exhaust hangers. After installation is complete, you will reattach the rubber exhaust hangers in step 10.
The existing bracket is shown in Figure 2 and is located on the driver's side vehicle frame rail and the rear end panel. You must remove this bracket in step 4 and return it to the vehicle owner. The fastener and bracket location are illustrated in Figure 2.
You need to remove fascia rivets from the fascia tabs between the trunk pan and the rear fascia in step 3. If present, you must also remove the plastic under covering located under the trunk pan. After installation, you will reinsert the fascia rivets back into the fascia tabs in step 10. For Toyota Camry Hybrid models, you must also remove the plastic fascia covering the driver's side frame rail and return it with screws to the vehicle owner.
Yes. In step 6, you must use the hitch as a template to drill two holes through the trunk pan of the vehicle. You will need a 1/2" drill bit. In step 7, you must then scrape the foam rubber material away from the inside surface of the trunk pan around the holes drilled in step 6.
A 1/2" drill bit is required to drill the two holes through the trunk pan.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." You must use a 1/2" drill bit to create the required holes.
All M10 CL8.8 fasteners must be tightened with a torque wrench to 42 Lb.-Ft. (57 N*M).
All 1/2-13 GR5 fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N*M).
In step 5, raise the hitch into position and install the M10 hex bolts and 3/8" conical toothed washers into the existing weldnuts in the vehicle. If no weldnuts are present on the passenger side, use the nuts and washers provided instead. These fasteners must be tightened to 42 Lb.-Ft. (57 N*M).
In step 8, install the 1/2" hex bolts, blocks, lockwashers, and nuts through the holes you drilled in the trunk pan. The blocks (1/4 X 1.50 X 3.00) go between the bolt head and the trunk pan. These fasteners must be tightened to 75 Lb.-Ft. (102 N*M).
The drawbar must be used in the Rise position only. Do not use it in any other position.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes that this is an ongoing maintenance requirement, not a one-time check.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, part 36416 fits 2006, 2007, 2009, 2011, and 2015 Toyota Camry, Camry Hybrid, and Lexus ES350 models.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg), but do not exceed your vehicle manufacturer's towing rating.
Wrenches (10mm, 12mm, 14mm, 17mm), 1/2" drill bit, and a torque wrench.
Yes, you must drill two 1/2" holes through the trunk pan using the hitch as a template.
M10 CL8.8 fasteners: 42 Lb.-Ft. (57 N*M). 1/2-13 GR5 fasteners: 75 Lb.-Ft. (102 N*M).
Yes, remove the spare tire from the trunk and lower the exhaust by removing rubber hangers before installation. Reinstall both after the hitch is mounted.
Maximum gross trailer weight is 3500 lb, maximum tongue weight is 300 lb. The drawbar must be used in the Rise position only.

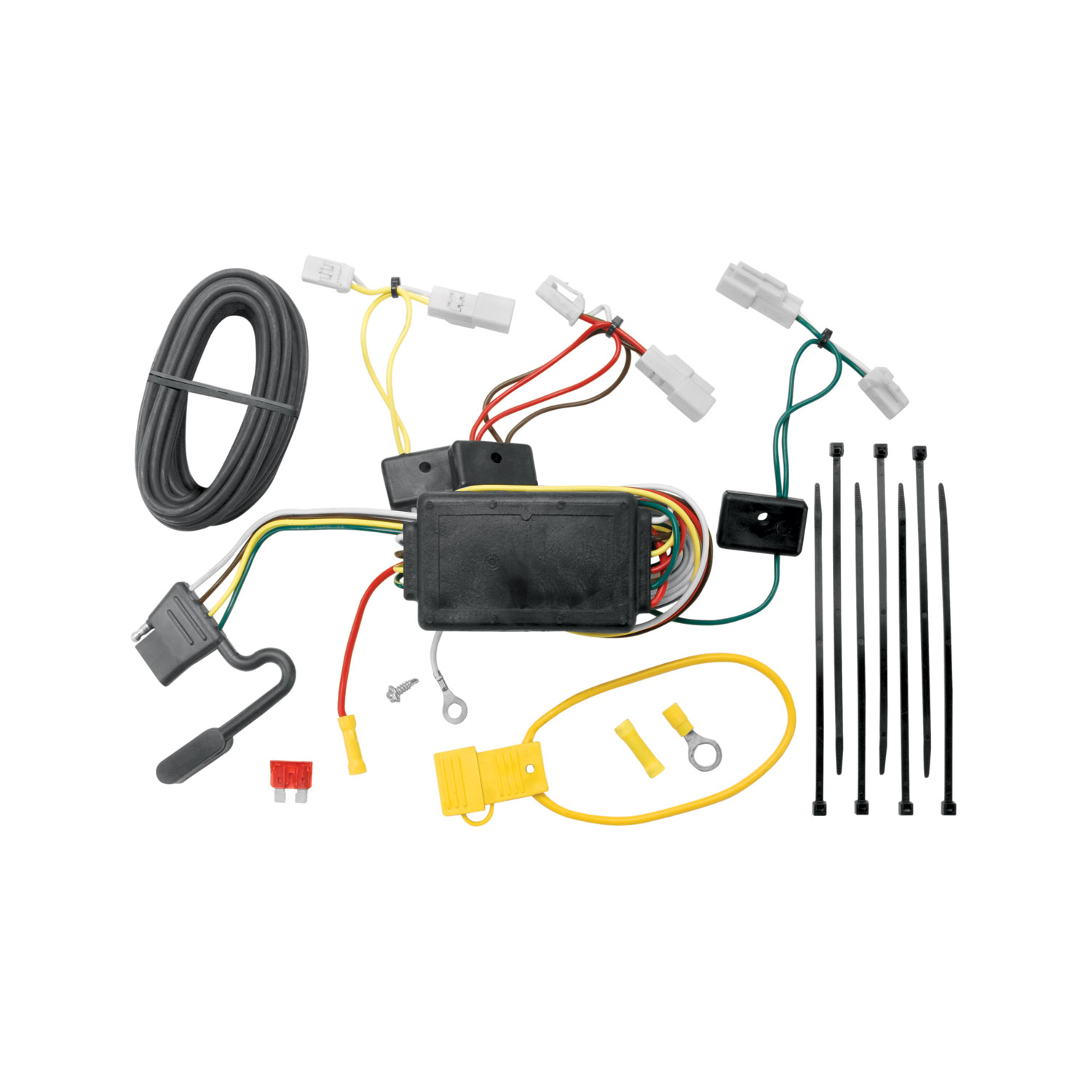

The T-Connector is a trailer wiring adapter that allows you to connect a trailer to your vehicle's electrical system. It taps into your vehicle's existing taillight wiring to provide power for trailer lights. The product includes a black box connector, wiring harnesses with colour-coded wires (red, yellow, green, black, and white), a fuse holder with a 10 amp fuse, butt connectors, an eyelet, a screw, foam-padded tape, double-sided tape, and cable ties.
The T-Connector 18405-037 is designed for Mazda 6 Sedan and Coupe, Toyota Camry, Mazda CX-7, and Toyota FJ Cruiser. Each vehicle has specific installation instructions. If your vehicle is not listed, this product will not fit.
Yes. The Toyota FJ Cruiser has significantly different installation instructions that begin on page 4 of the manual. The FJ Cruiser installation involves removing the jack storage compartment door, threshold plate, trim panels, and access panels. If your vehicle is equipped with an optional subwoofer unit on the passenger side, additional removal steps are required. The wiring connection points and routing are also different from the other supported vehicles.
You will need: a drill with a 3/32" drill bit, a Phillips head screwdriver, a 10mm socket and ratchet or 10mm wrench, wire crimpers, wire cutters, and a trim panel remover tool. These tools are required for the standard installation on Mazda 6, Toyota Camry, and Mazda CX-7. The Toyota FJ Cruiser installation requires the same tools.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery cable. This is done in step 7 of the installation. After all wiring connections are complete, you reconnect the negative battery cable in step 8 and install the 10 amp fuse.
Drilling is required only for the grounding connection (step 5). You must drill a 3/32" hole to secure the white ground wire using the supplied eyelet and screw. However, if your vehicle has an existing ground stud, you can use that instead by loosening the bolt, placing the screw eyelet on the stud, and re-tightening the bolt. Before drilling, you must verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
Yes, depending on your vehicle. For Toyota Camry and Mazda CX-7, you must carefully slit a rubber grommet to route the black 12 gauge wire out underneath the vehicle. For Mazda 6 Sedan and Coupe, the wire is routed through the taillight socket opening instead. For Toyota FJ Cruiser, you must cut a hole in the rubber grommet located near the wheel well to route the black wire through.
The T-Connector uses colour-coded wires for different functions: Red wire connects to the driver's side taillight for stop/turn signals; Yellow wire connects to the driver's side taillight for additional stop/turn signals; Green wire connects to the passenger's side taillight for stop/turn signals; Black wire connects to the vehicle's positive battery through a 10 amp fuse for power; White wire is the ground connection to the vehicle's chassis or frame.
The 10 amp fuse protects the circuit from overload. It is installed in the yellow fuse holder provided with the T-Connector. The fuse holder is connected between the black 12 gauge wire (which runs from the vehicle's positive battery terminal) and the black wire from the T-Connector black box. The fuse must be installed in step 8 after all other connections are complete.
Approximately 2 feet (0.60 meters) of black 12 gauge wire is routed into the trunk area. The remaining wire is routed through the opening in the taillight socket and behind the bumper (for Mazda 6), or out underneath the vehicle (for Toyota Camry and Mazda CX-7), or along the frame rail and through a grommet near the wheel well (for Toyota FJ Cruiser).
The T-Connector has the following maximum load limits: Max. stop/turn light: 1 per side (2.1 amps); Max. tail lights: (4.2 amps). Do not exceed the lower of your towing manufacturer's rating or these limits. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific towing capacity.
After installation is complete, test and verify the installation with a test light or by connecting an actual trailer. All connections must be complete for the T-Connector to function properly. The manual emphasizes that testing is essential before using the T-Connector with a trailer.
After installation, verify that: all wiring connectors are fully inserted with locking tabs in place; the taillight housing is properly seated on its alignment tab (Mazda 6); the black wire is positioned between the taillight housing gasket and foam-padded tape (Mazda 6); all cable ties are secure and wires are protected from pinching or cutting; the T-Connector black box is securely mounted with double-sided tape; the 10 amp fuse is installed in the fuse holder; the negative battery cable is reconnected; and the installation functions properly with a test light or trailer.
The T-Connector black box is mounted on the driver's side on the floor of the rear cargo area. The area must be cleaned with a mixture of rubbing alcohol and water before mounting. The black box is secured using the double-sided tape provided with the T-Connector. After mounting, the trunk threshold and felt trunk liner are replaced.
The black 12 gauge wire must be routed carefully from the vehicle's positive battery terminal to the T-Connector black box. You must avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. For Mazda 6, Toyota Camry, and Mazda CX-7, the wire is routed underneath the bumper and into the engine compartment. For Toyota FJ Cruiser, the wire is routed from the front of the vehicle along the frame rail rearward to the rear driver's side, then through a rubber grommet near the wheel well.
No. Only the Mazda 6 Sedan and Coupe require removal of the driver's side taillight housing. For Toyota Camry and Mazda CX-7, the taillight housing is not removed; instead, you access the wiring through the trunk area and route the black wire through a rubber grommet. For Toyota FJ Cruiser, the taillight connectors are accessed by removing interior trim panels and access panels, but the taillight housing itself is not removed.
The foam-padded tape is applied to the driver's side taillight socket area (Mazda 6 only) to cover any sharp edges on the sheet metal. The black 12 gauge wire is positioned between the taillight housing gasket and the foam-padded tape to protect the wire from being pinched or damaged. The area must be cleaned with a mixture of rubbing alcohol and water before applying the tape.
The yellow butt connector is used to join two wires together. In the T-Connector installation, it is used in two places: (1) to connect the black 12 gauge wire and the red wire from the T-Connector black box (step 4), and (2) to connect the fuse holder to the black 12 gauge wire from the battery (step 7). The yellow butt connector is supplied with the T-Connector kit.
The T-Connector has separate harnesses with colour-coded wires that plug into the vehicle's existing taillight connectors. On the driver's side, attach the T-Connector harnesses containing the red and yellow wires to the connection points on the back of the driver's side taillight housing. On the passenger's side, attach the T-Connector harness containing the green wire to the connection points on the back of the passenger's side taillight housing. Ensure that all connectors are fully inserted with locking tabs in place. For Toyota FJ Cruiser, the connections are made to the vehicle's 3-pin and 2-pin rear tail lamp connectors.
The 4-flat connector should be stored in the rear cargo area (trunk) when not in use. This keeps it protected and readily available when you need to connect a trailer.
The cable ties are used to secure the remainder of the T-Connector harness to prevent damage or rattling. They must be applied carefully to avoid any areas that would cut or pinch the wire. Proper cable tie placement protects the wiring from being damaged during vehicle operation.
If your Toyota FJ Cruiser is equipped with an optional subwoofer unit on the passenger side, you must remove it before installing the T-Connector. The subwoofer removal involves: removing the access panel below the subwoofer; removing the front trim/grill assembly (8 clips); removing four 10mm bolts (an extension is needed for the two upper bolts); disconnecting the wiring harness; and carefully removing the subwoofer unit. After the T-Connector installation is complete, you must reinstall the subwoofer unit and ensure its connection plug is fully inserted.
For Toyota FJ Cruiser: (1) Locate the trailer wiring harness on the driver's side and route the red and yellow wire harnesses behind the trim panel to the access panel location; (2) Locate the vehicle's 3-pin rear tail lamp connector, separate it, and plug the red wire harness between the separated halves; (3) Locate the vehicle's 2-pin rear tail lamp connector, separate it, and plug the yellow wire harness between the separated halves; (4) Route the green wire harness to the passenger's side by routing it out of the driver's side trim panel, along the rear threshold area, behind the passenger's side trim panel, to the access panel location; (5) Repeat the 2-pin connector connection using the green wire harness on the passenger's side.
On the Toyota FJ Cruiser, the white ground wire with the ring terminal is connected to the bolt on the left side of the jack inside the jack storage compartment. You remove the bolt using a 10mm socket, place the ring terminal on the bolt, and re-tighten the bolt to secure the ground connection.
Yes. Disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery terminal. Reconnect it after all wiring is complete and the 10 amp fuse is installed.
The T-Connector uses a 10 amp fuse installed in the yellow fuse holder provided. This fuse protects the circuit from overload. Do not exceed the maximum load limits: 1 stop/turn light per side (2.1 amps) or max. tail lights (4.2 amps).
Max. stop/turn light: 1 per side (2.1 amps); Max. tail lights: (4.2 amps). Do not exceed the lower of your towing manufacturer's rating or these limits. Overloading can cause fires.
Verify that all connections are complete and fully inserted. Check that all T-Connector harnesses are properly connected to the vehicle's taillight connectors with locking tabs in place. Verify that the black 12 gauge wire is properly connected to the red wire from the T-Connector black box using the yellow butt connector. Verify that the white ground wire is properly secured to a ground point. Verify that the fuse holder is properly connected to the vehicle's positive battery terminal and that the 10 amp fuse is installed. Verify that the negative battery cable is reconnected. Test the installation with a test light or trailer to confirm proper operation.
Ensure that the black 12 gauge wire is positioned correctly between the taillight housing gasket and the foam-padded tape. Verify that the foam-padded tape is properly applied to the taillight socket area and covers any sharp sheet metal edges. Carefully replace the taillight housing, ensuring it is properly seated on its alignment tab. Replace the two 10mm nuts and tighten them securely. The taillight housing should sit flush against the vehicle body with no gaps.
For Toyota FJ Cruiser, the tail lamp plug area is very small and may be difficult to reach with your hands. Long nose pliers may be used to assist in the removal and connection of the plugs. Ensure that you are inserting the connectors straight and fully, with locking tabs properly engaged. Do not force the connectors, as this may damage the locking tabs.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Toyota Camry | Sedan, Except Hybrid |
