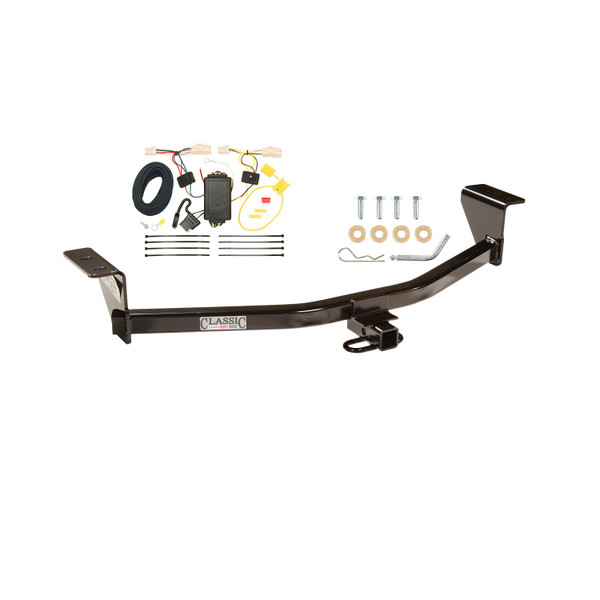

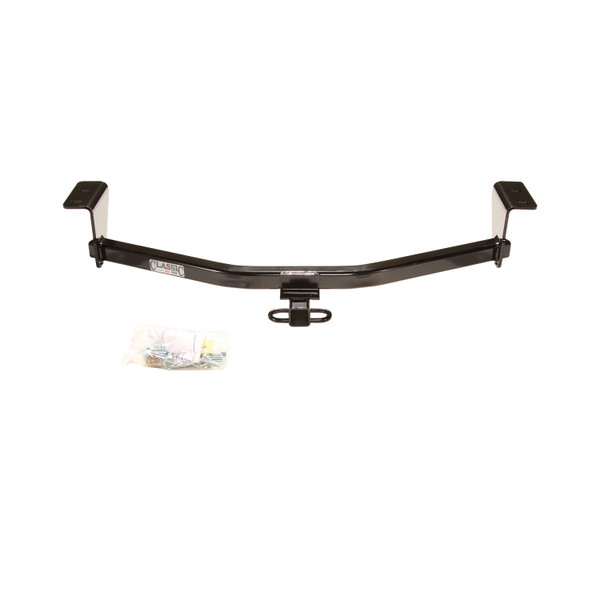

These dependable custom hitches are manufactured for 2011-2013 Scion tC, 2008-2013 Scion xB and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Scion xB | Except Release Series |
Yes, part number 24815 fits Scion xB models, excluding the Release Series. If you have a Release Series xB, this hitch is not compatible.
Yes, part number 24815 is compatible with Scion tC models.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need a 17mm wrench, a 19mm wrench, and a torque wrench. All fasteners must be tightened to 68 Lb.-Ft. (92 N*M) using the torque wrench.

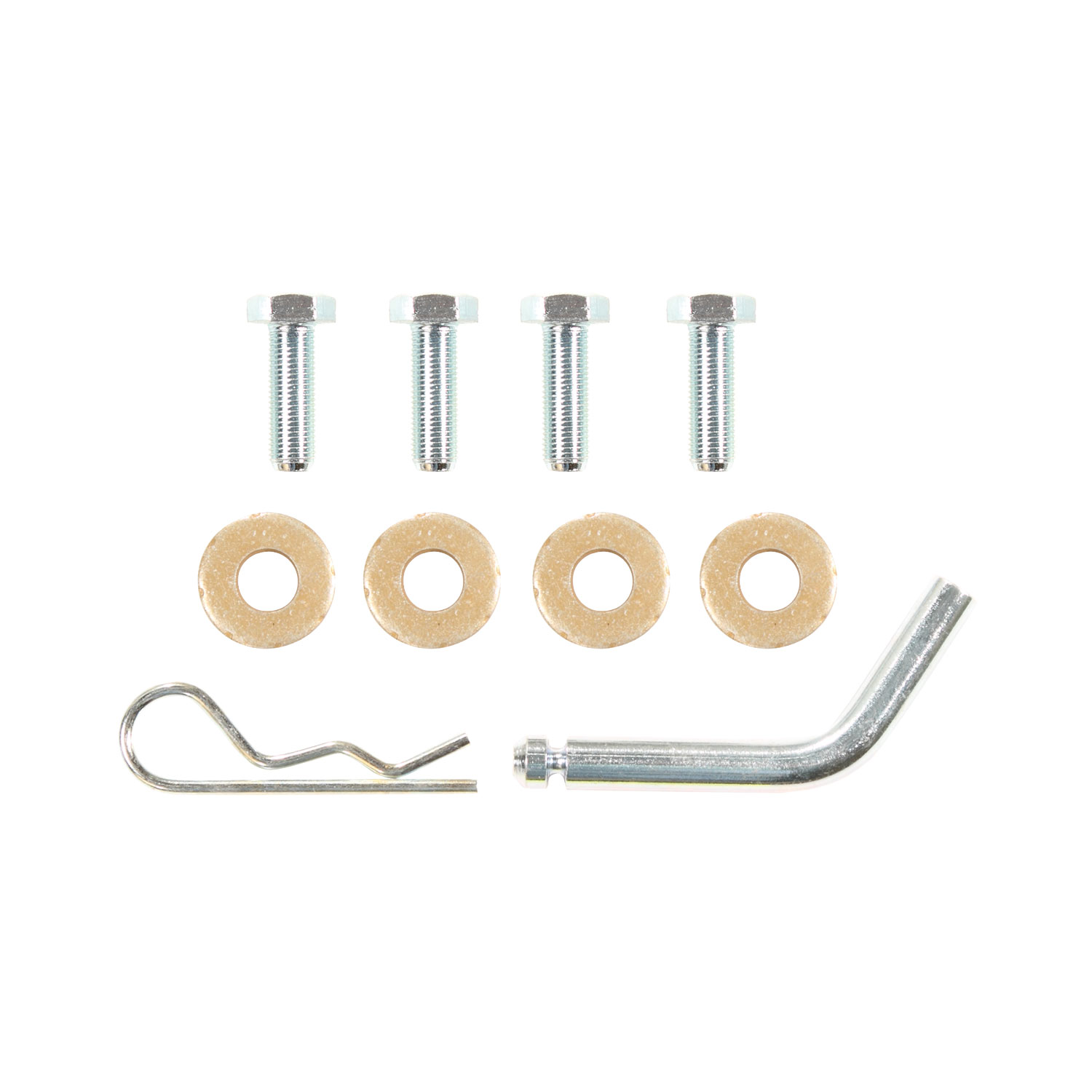

The hitch uses four M12 X 1.25 X 35 CL8.8 hex bolts and four conical washers. These fasteners attach the hitch to the existing weldnuts on the vehicle frame rails. A separate fastener kit 24815F is available if additional fasteners are needed.
If tie-down brackets are present on the vehicle frame rail, they must be removed before installation. Return the bolts and tie-down bracket to the vehicle owner.
1. If present, remove the tie-down brackets from the vehicle frame rail and return bolts and bracket to the owner. 2. Raise the hitch into position and install the four fasteners (M12 X 1.25 X 35 CL8.8 hex bolts with conical washers) as shown in the diagram. 3. Tighten all fasteners with a torque wrench to 68 Lb.-Ft. (92 N*M).
All M12 CL8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N*M) using a torque wrench.

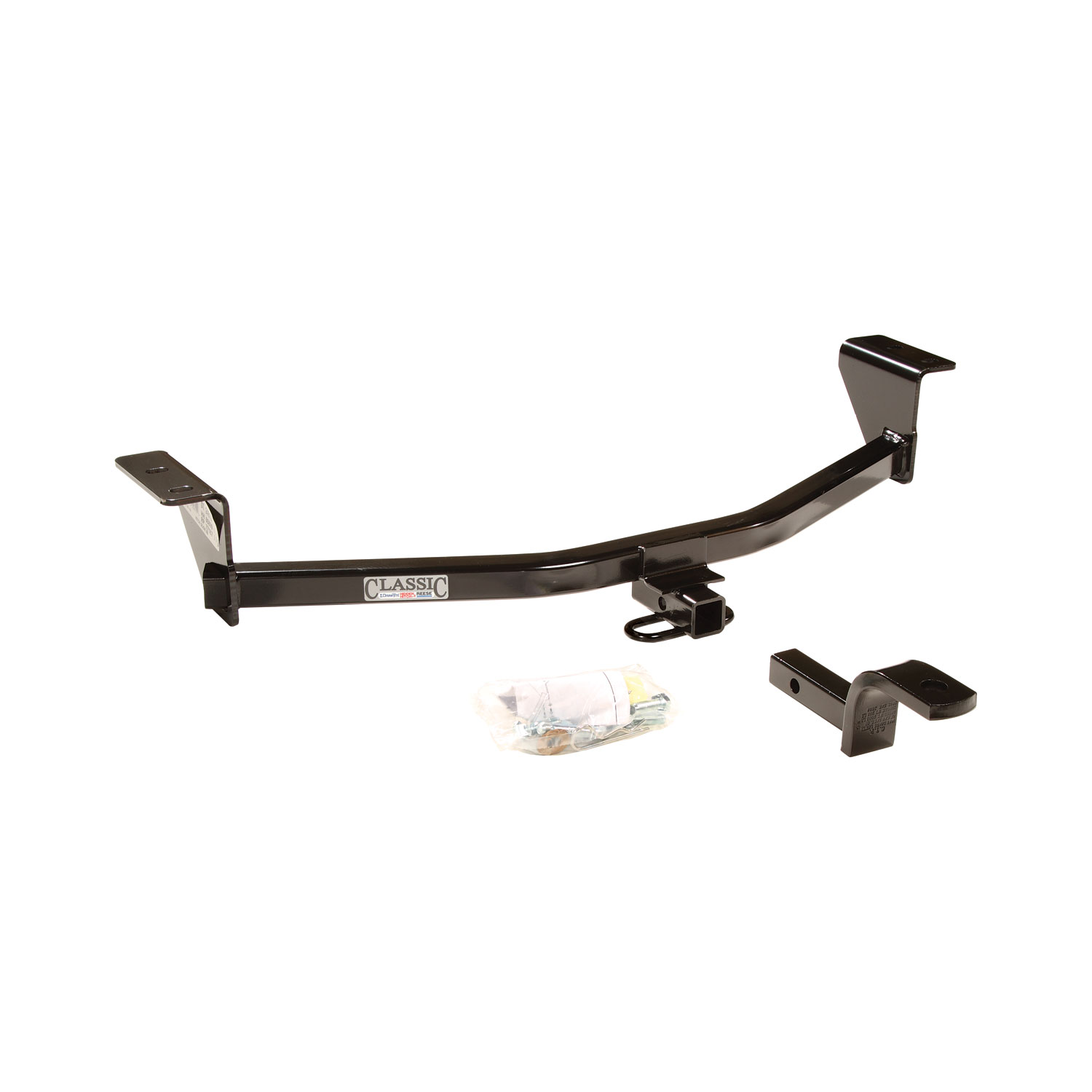

The hitch assembly itself can be installed without a drawbar. However, a drawbar kit (part number 3593) is required for towing and is sold separately. The drawbar must be used in the RISE position only.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted and that no fasteners have loosened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
The 24815 fits Scion xB (excluding Release Series) and Scion tC models.
Maximum gross trailer weight is 2000 lb (908 kg); maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need 17mm and 19mm wrenches and a torque wrench. All fasteners must be tightened to 68 Lb.-Ft. (92 N*M).
If tie-down brackets are present on the frame rail, they must be removed before installation.
The manual does not specify whether professional installation is required. Contact the manufacturer or an authorized installer for guidance.
The drawbar must be used in the RISE position only.
The T-Connector is a trailer wiring adapter for the Scion xB that allows you to connect a trailer's lighting system to your vehicle's electrical system. It intercepts the vehicle's taillight wiring and provides a 4-flat connector for the trailer. The system includes a converter box, wiring harness with yellow and green ends, grounding wire, fuse holder with 10 amp fuse, and cable ties for routing and securing the installation.
Yes, the T-Connector is designed for the Scion xB. The manual does not specify model year ranges, so contact the manufacturer or your retailer to confirm compatibility with your specific vehicle year.
You will need: a drill with 3/32" drill bit, Phillips head screwdriver, test probe, trim panel puller, wire crimpers, and wire cutters. These tools are required to remove interior panels, disconnect and reconnect wiring, drill the ground hole, and crimp wire connections.

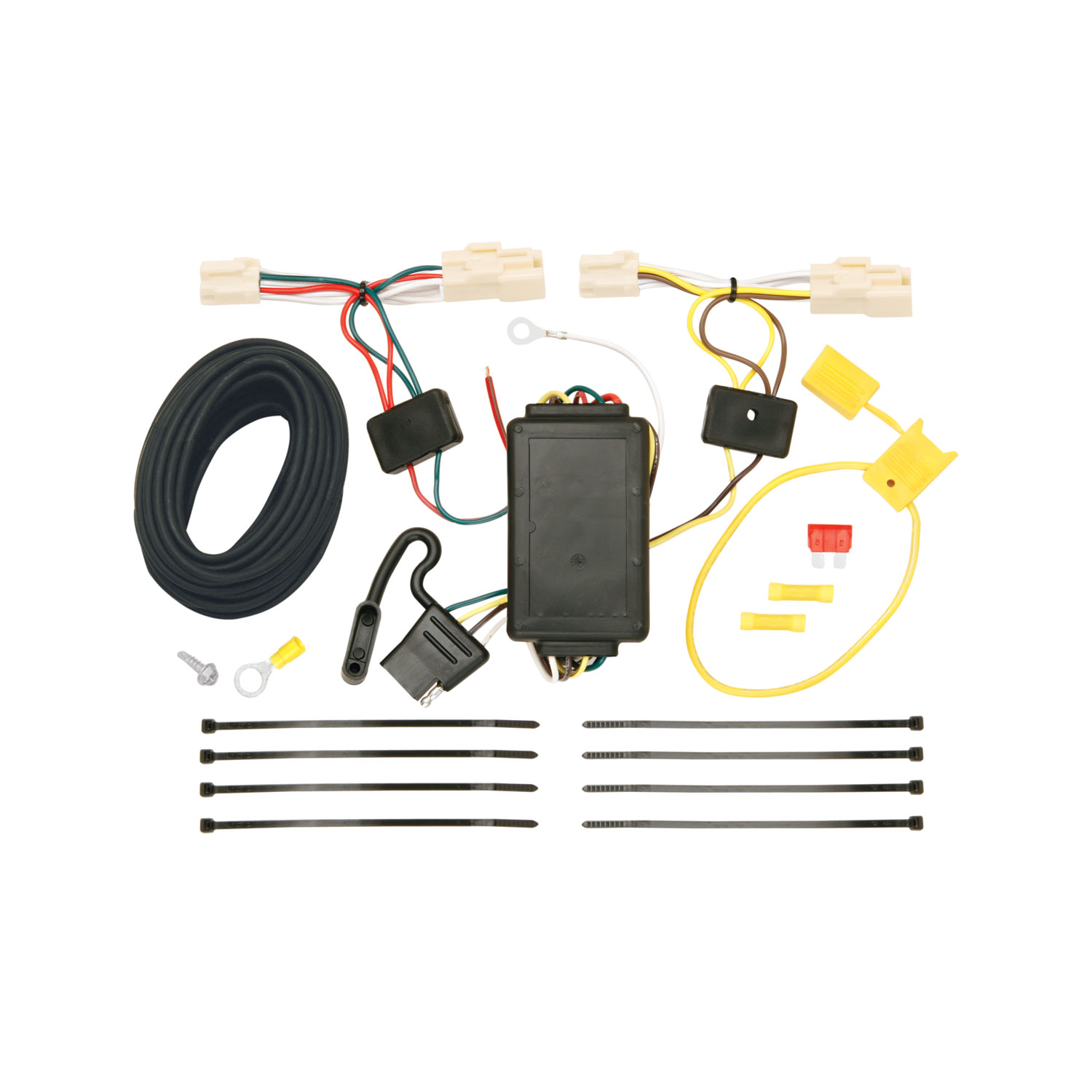

The T-Connector includes: two connector ends (one with yellow wire, one with green wire), a black converter box, white ground wire with eyelet and screw, black 12 gauge wire, red wire, yellow butt connectors, yellow fuse holder with 10 amp fuse, cable ties, and double-sided tape for mounting the converter box.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery terminal (step 8). After all connections are complete, you reconnect the negative battery cable and install the 10 amp fuse (step 9).
You must temporarily remove the rear hatch, rear threshold plate, storage covers, and floor covering. You also need to partially remove the rear interior trim panels on both the driver and passenger sides to access the taillight wiring harness. Set aside all removed items carefully to avoid damage, and reinstall them after the T-Connector installation is complete.
Locate the vehicle's taillight wiring harness on both driver and passenger sides (step 3). On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place, ensuring the locking tabs are fully engaged (step 4). Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold, then repeat the connection process (step 5). Ensure all connector surfaces are clean and free of dirt before connecting.
Yes. You must drill a single 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector on the vehicle's frame or cross member—do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area, drill the hole, and secure the white wire using the eyelet and screw provided. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
From inside the vehicle, connect the black 12 gauge wire and red wire from the T-Connector black box using the supplied yellow butt connector (step 7). You have two routing options: either route the black wire through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Choose the route that avoids areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, and other points that may pinch or break the wire.
Disconnect the vehicle's negative (-) battery cable first (step 8). If not already removed, remove the fuse from the yellow fuse holder. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery terminal. Connect the other end of the fuse holder to the black 12 gauge wire using the supplied yellow butt connector. After all connections are complete, reconnect the negative battery cable and install the 10 amp fuse into the fuse holder (step 9). Read and follow all warnings and cautions printed on the vehicle's battery.
Use a 10 amp fuse in the yellow fuse holder provided with the T-Connector. This fuse protects the circuit and must be installed after all other connections are complete and the negative battery cable is reconnected.
Mount the black converter box on the driver's side of the vehicle on a flat surface in an out-of-the-way place using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage, rattling, and to avoid areas that would cut or pinch the wire.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps) and maximum tail lights (5.6 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information on your specific towing capacity.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting a trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. This ensures all connections are working correctly before towing.
Store the 4-flat connector in the rear cargo area when not in use.
Yes, the T-Connector (118468-037) is designed for the Scion xB. Confirm your specific model year with the manufacturer.
You need a drill with 3/32" bit, Phillips head screwdriver, test probe, trim panel puller, wire crimpers, and wire cutters.
Yes, disconnect the negative battery cable before connecting to the positive terminal. Reconnect it after all connections are complete and the 10 amp fuse is installed.
The T-Connector uses a 10 amp fuse in the yellow fuse holder provided.
Do not exceed 1 stop/turn light per side (2.1 amps) or maximum tail lights (5.6 amps). Do not exceed your towing manufacturer's rating. Overloading can cause fires.
Verify that all connections are complete. The manual states that all connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. Check that the 10 amp fuse is installed in the fuse holder, the negative battery cable is reconnected, and all connector locking tabs are fully engaged on both the driver and passenger side taillight connections.
