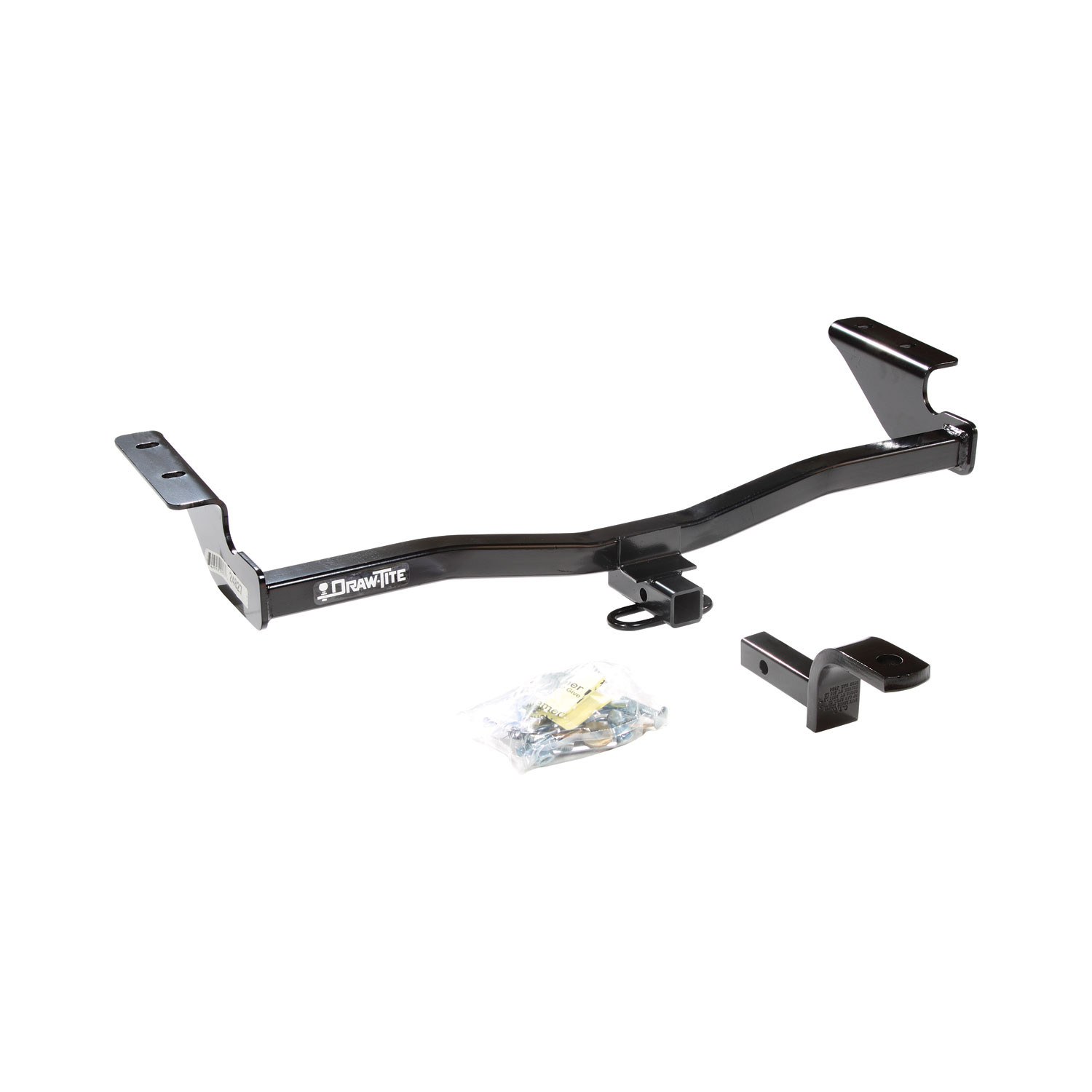

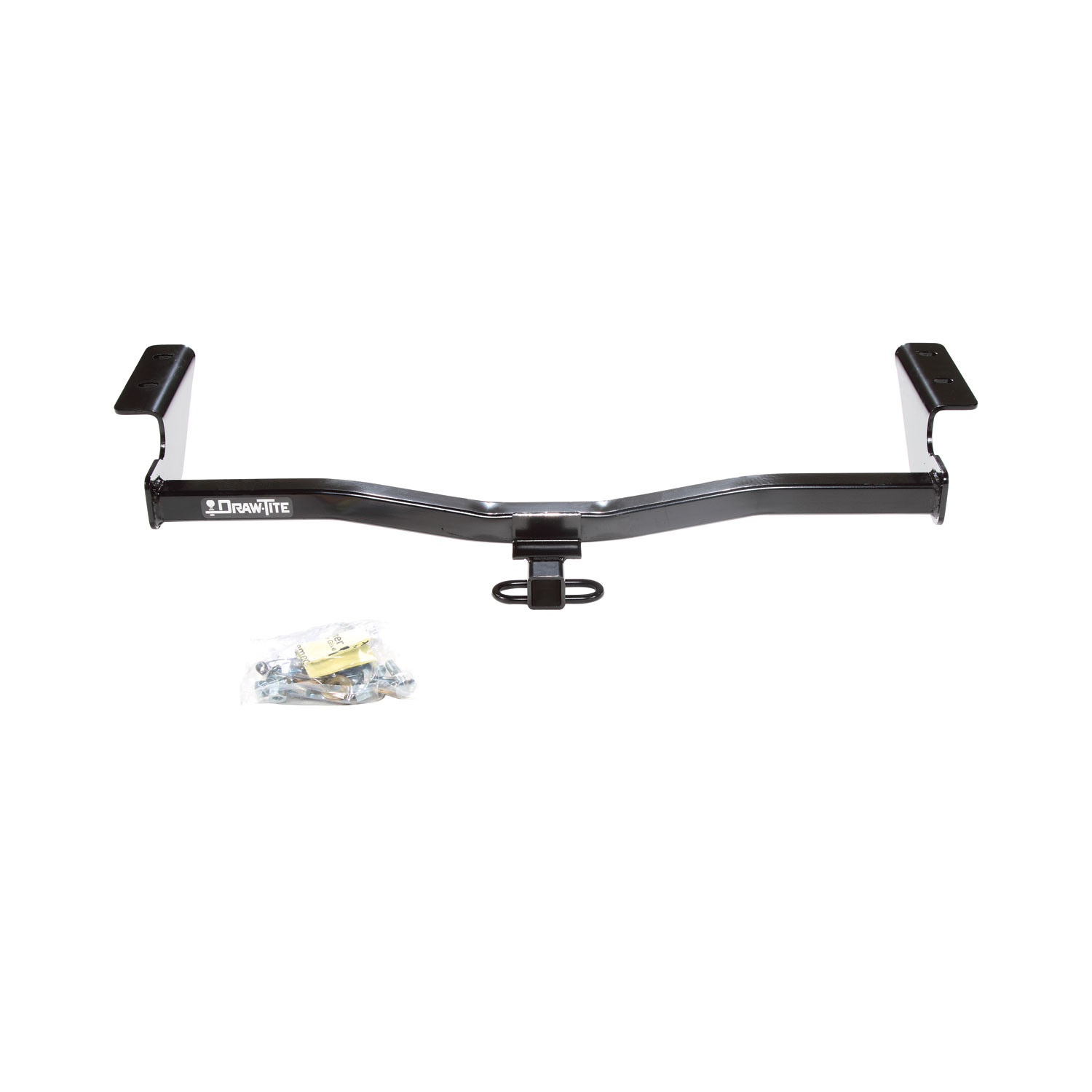

These dependable custom hitches are manufactured for 2005-2010 Scion tC and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Scion tC | — |
Yes, part number 24827 is designed for the Scion tC. The manual confirms fitment for 2008 and 2015 model years. If your vehicle is a different year, contact the manufacturer or a fitment specialist to confirm compatibility.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.

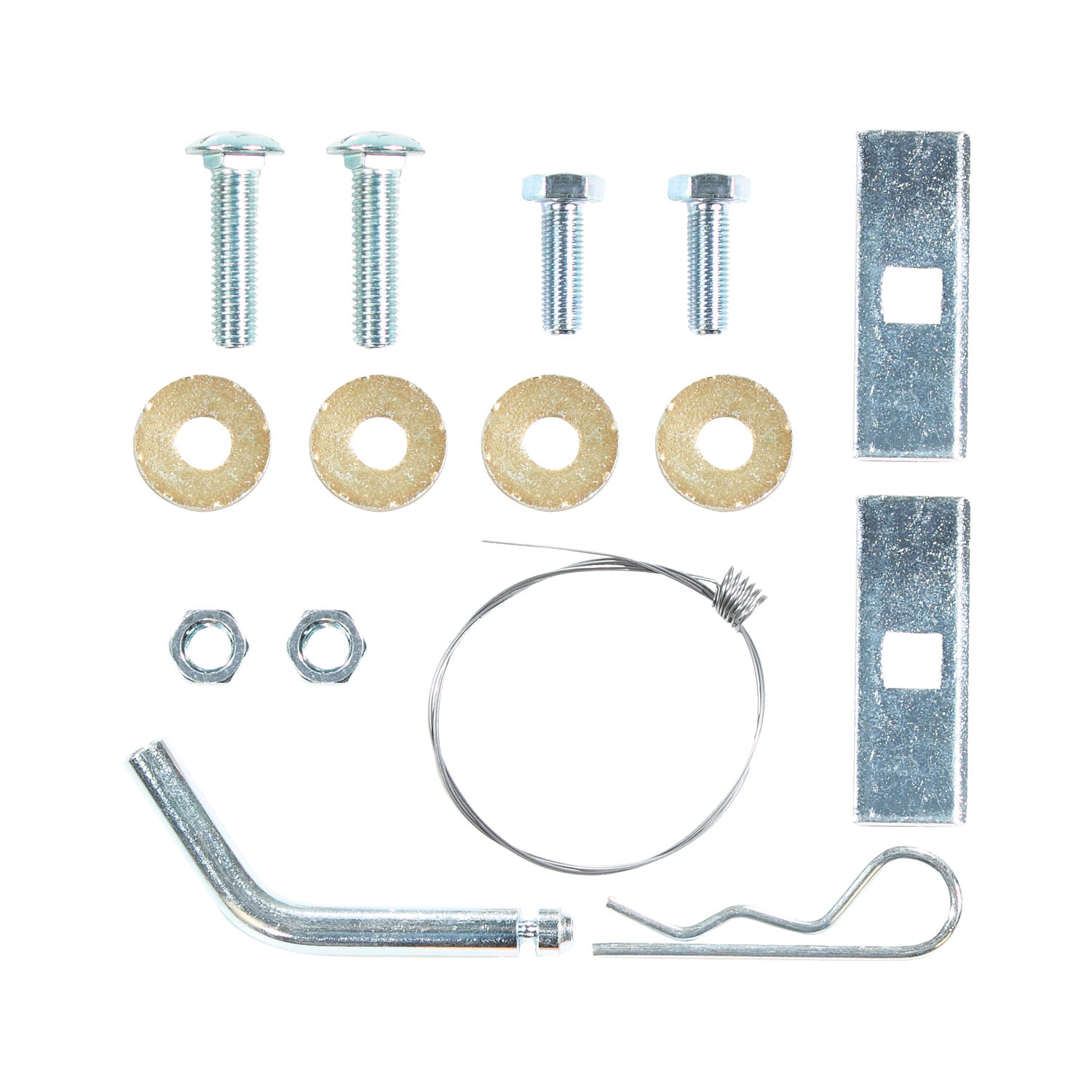

The hitch includes: 2 carriage bolts 7/16-14 X 1.75 GR5, 2 hex nuts 7/16-14, 2 spacers, 2 hex bolts M10 X 1.25 X 30 CL8.8, 4 conical washers 7/16", and 2 pull wires 7/16. Additional fasteners are available in the Fastener Kit 24827F.
You will need: wrenches in 17mm and 11/16" sizes, a 3/8" drill bit, and a torque wrench. The torque wrench is essential because fasteners must be tightened to specific torque values: M10 CL8.8 bolts to 59 Lb.-Ft. (80 N·M) and 7/16-14 GR5 bolts to 50 Lb.-Ft. (68 N·M).
If tie-down brackets are present on the vehicle frame rail, they must be removed before installation. Return the bolts and tie-down bracket to the vehicle owner. This is step 1 of the installation process.
Yes. You must enlarge the access holes in the vehicle passenger frame rail only to accept the spacer. The existing holes are 3/4" diameter; they are enlarged using a 3/8" drill bit to create the access hole modification shown in Figure 2. This is a permanent modification to the vehicle.
Drilling and hole enlargement must be performed on the passenger side frame rail only. The manual explicitly states 'Passenger side only' for the access hole modification.
1. Remove tie-down brackets if present. 2. Remove the 2 plastic rivets from the fascia tabs. 3. Enlarge the access holes in the passenger frame rail. 4. Feed the pull wire through the enlarged hole, attach spacer and bolt, and feed them into the frame rail one at a time; leave pull wire attached. 5. Paint any exposed metal. 6. Raise the hitch into position, feed pull wires through adjacent holes in the hitch, remove pull wires, and attach conical washers and nuts finger tight only. 7. Check that the hitch is centered on the vehicle. 8. Torque all fasteners to specifications. 9. Reinstall the plastic rivets into the bumper fascia.
The pull wires are used to guide the spacer and bolt through the enlarged access hole in the frame rail and into the frame. After the hitch is raised into position and the pull wires are fed through the adjacent holes in the hitch, the pull wires are removed. The pull wires are not permanent parts of the installation.
After raising the hitch into position and attaching the conical washers and nuts, tighten them finger tight only. Hand tighten next. Do not use a torque wrench at this stage. Only after the hitch is centered on the vehicle should you torque all fasteners to their final specifications using a torque wrench.
After raising the hitch into position and hand tightening the fasteners, visually check to assure the hitch is centered on the vehicle before final torque. The manual does not provide specific measurement tolerances for centering.
Tighten all M10 X 1.25 X 30 CL8.8 hex bolts with a torque wrench to 59 Lb.-Ft. (80 N·M).
Tighten all 7/16-14 X 1.75 GR5 carriage bolts with a torque wrench to 50 Lb.-Ft. (68 N·M).
Yes. After feeding the pull wire, spacer, and bolt into the frame rail, paint any exposed metal to prevent corrosion. This is step 4 of the installation process.
Yes. After torquing all fasteners to specifications, reinstall the plastic rivets back into the bumper fascia. These rivets were removed in step 2 to access the fascia tabs.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. When working under the vehicle, use appropriate lifting equipment and support.
The drawbar must be used in the Rise position only. The drawbar kit (part number 3593) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that this is an ongoing maintenance requirement, not a one-time check.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents corrosion and contamination of the vehicle interior.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Yes, part number 24827 fits the Scion tC (2008, 2015 model years). Maximum towing capacity is 2000 LB gross trailer weight and 200 LB tongue weight.
You will need 17mm and 11/16" wrenches, a 3/8" drill bit, and a torque wrench. A torque wrench is essential for tightening fasteners to 59 Lb.-Ft. (M10 bolts) and 50 Lb.-Ft. (7/16-14 bolts).
Yes. You must enlarge the access holes in the passenger side frame rail only using a 3/8" drill bit to accept the spacer. This is a permanent modification.
Yes. Remove the 2 plastic rivets from the fascia tabs and any tie-down brackets if present on the frame rail.
M10 CL8.8 hex bolts: 59 Lb.-Ft. (80 N·M). 7/16-14 GR5 carriage bolts: 50 Lb.-Ft. (68 N·M). Use a torque wrench and tighten after the hitch is centered.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball.
