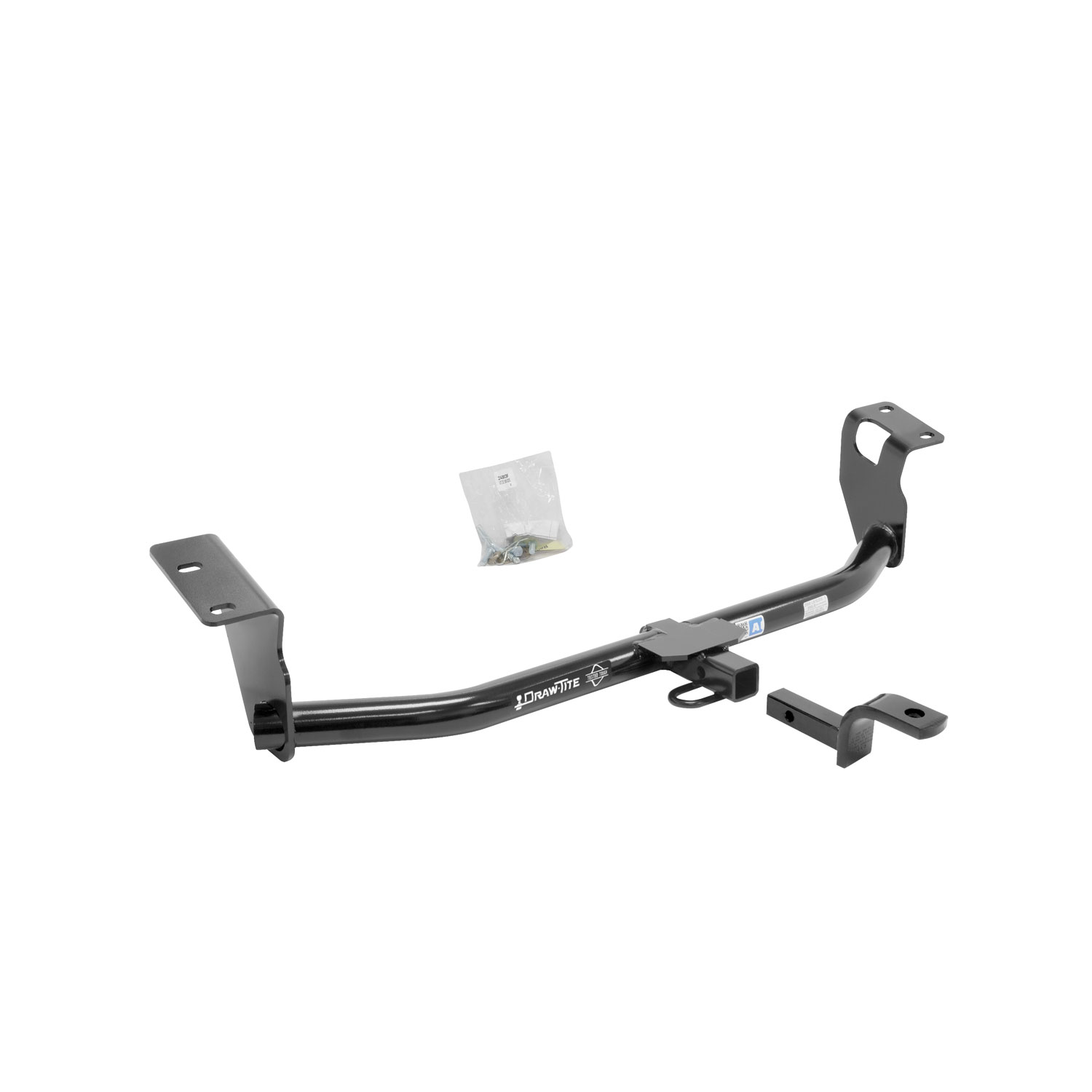

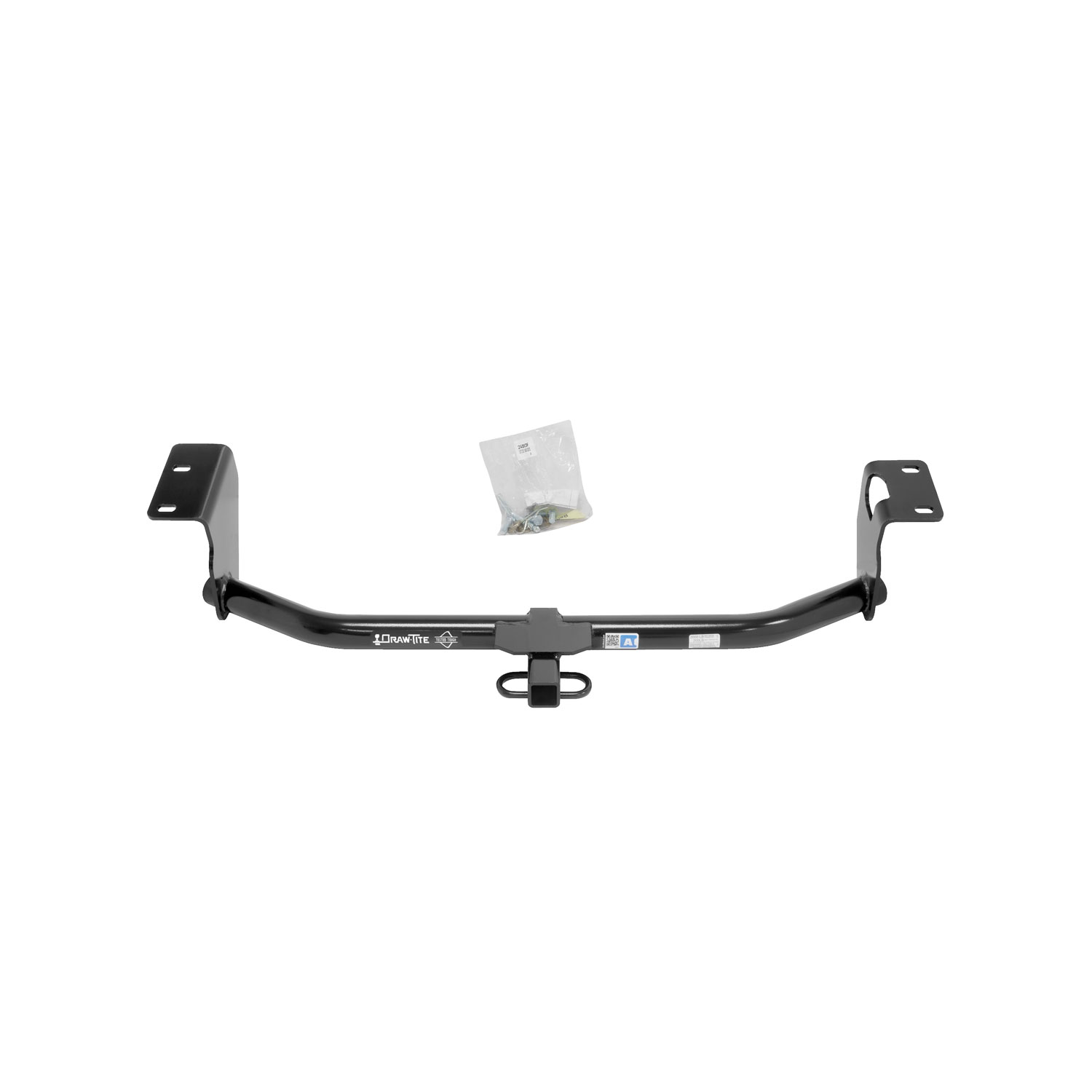

These dependable custom hitches are manufactured for 2003-2019 Toyota Corolla and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

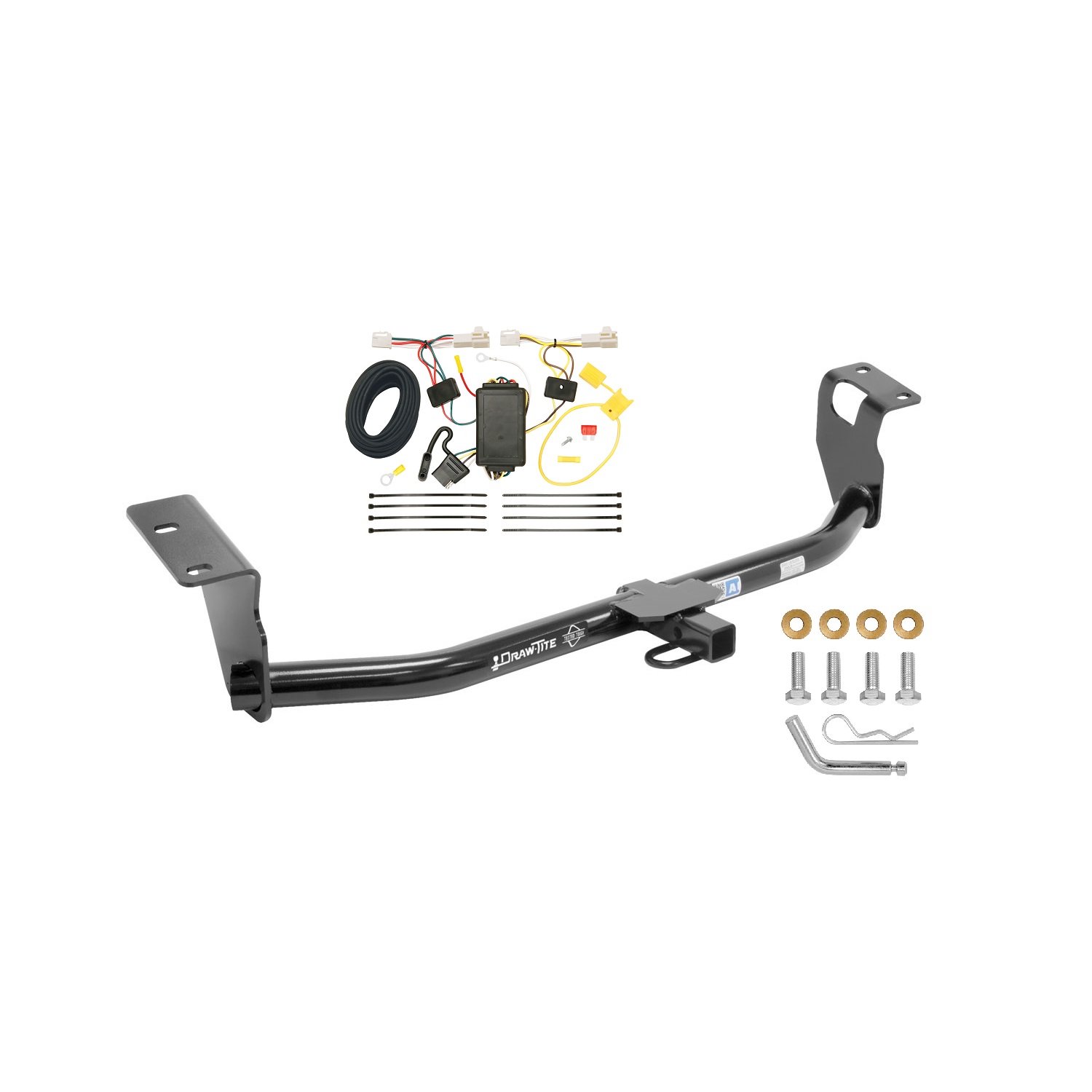

Call 888-634-9494The 2009-2013 Toyota Corolla Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24913-118459) fits 1999-2000 Toyota Corolla models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2013 Toyota Corolla Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24913-118459) fits the following vehicles: 1999-2000 Toyota Corolla. Always verify your specific year, make, and model before ordering.
Yes, the 2009-2013 Toyota Corolla Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24913-118459) is designed to fit the 1999-2000 Toyota Corolla.
The 2009-2013 Toyota Corolla Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24913-118459) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual shows fascia variants for 2003-08, 2009, 2014, and 2015 Toyota Corolla models, indicating compatibility with these years. However, the manual does not explicitly state the complete range of compatible model years. Contact the manufacturer or your retailer to confirm fitment for your specific Corolla generation.
The maximum gross trailer weight is 2000 LB (908 Kg) and the maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need 17mm and 19mm wrenches and a torque wrench. The hitch uses existing weldnuts on the vehicle frame rails, so no additional fastening hardware is required beyond what is included or already present on the vehicle.
Only if your vehicle has an appearance panel covering the trunk pan. The manual states: 'For vehicles with appearance panel: Remove appearance panel which covers the trunk pan.' If your vehicle does not have this panel, you can proceed directly to hitch installation. The appearance panel and its fasteners should be returned to the vehicle owner after installation.
The plastic rivets fasten the fascia tabs to the vehicle. To remove them, use a screwdriver to remove the center of each rivet. The manual specifies there are 2 rivets of 10mm size. These rivets must be reinstalled after hitch installation.
If tie-down brackets are present on the vehicle frame rail, they must be removed before installing the hitch. Return the bolts and tie-down bracket to the vehicle owner. The manual states this as a conditional step: 'If present, remove the tie down brackets from vehicle frame rail.'
1. If present, remove tie-down brackets from the vehicle frame rail and return them to the owner. 2. Remove the appearance panel (if equipped) and the 2 plastic 10mm rivets fastening the fascia tabs. 3. Raise the hitch into position and install the 4 M12 X 1.25 X 35 CL8.8 hex bolts and 4 conical washers using the existing weldnuts on the frame rails. 4. Tighten all fasteners with a torque wrench to 68 Lb.-Ft. (92 N*M). 5. Reinstall the plastic rivets and appearance panel.
All M12 CL8.8 fasteners must be tightened with a torque wrench to 68 Lb.-Ft. (92 N*M). This applies to all 4 hex bolts used to attach the hitch to the vehicle frame.

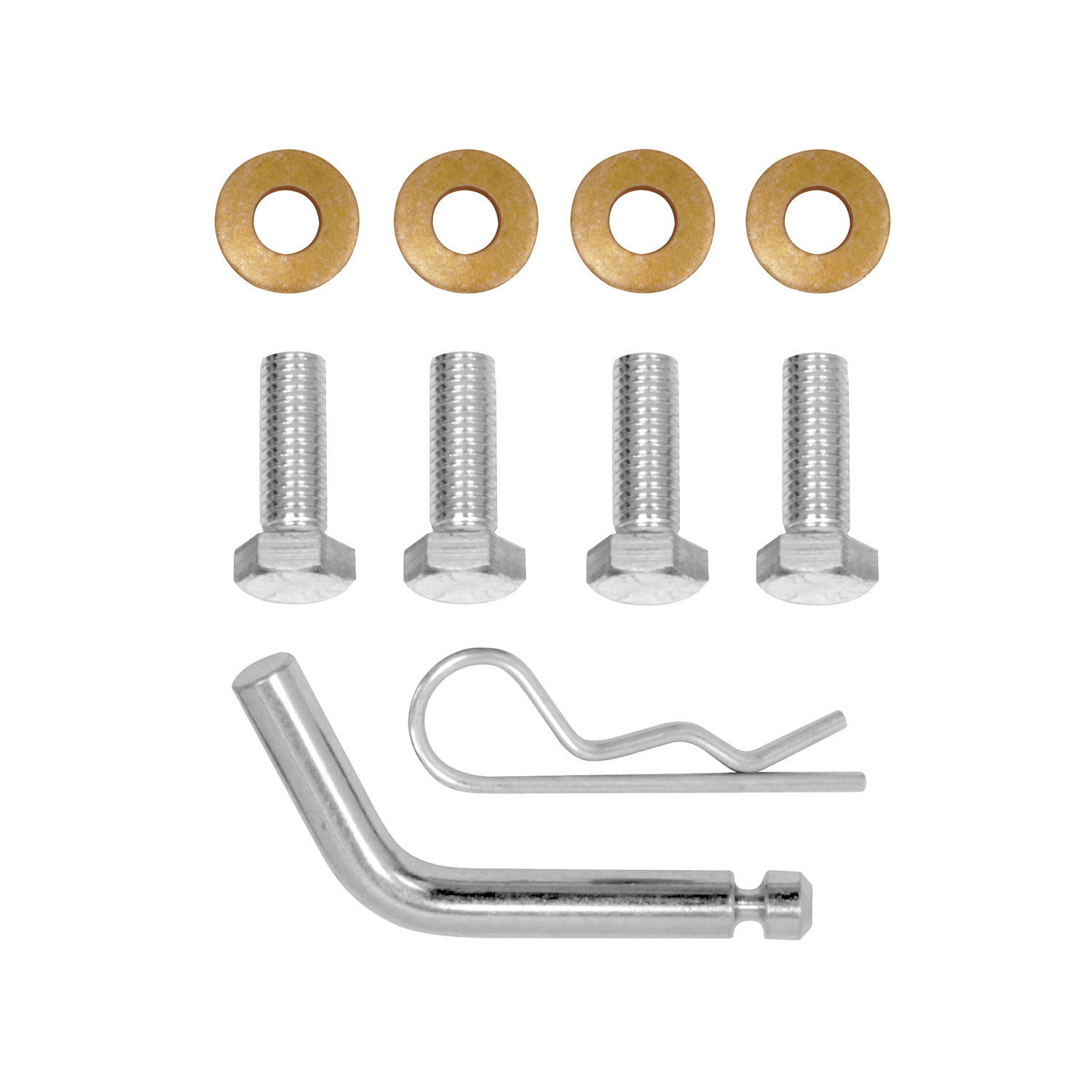

The hitch uses 4 M12 X 1.25 X 35 CL8.8 hex bolts and 4 conical washers. These fasteners attach to existing weldnuts on the vehicle frame rails. An optional Fastener Kit 24913F is available separately if additional fasteners are needed.
The Drawbar Kit 3593 is an optional accessory sold separately. The manual lists it as an available kit but does not specify whether it is required for basic hitch operation. Contact the manufacturer or your retailer to determine if this kit is necessary for your application.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes this as an ongoing maintenance requirement, not just a one-time post-installation check.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This is important for protecting the vehicle's interior and preventing damage.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using damaged components.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch, as this creates safety hazards and may damage the vehicle.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York V.E.S.C. Regulation V-5 and SAE J684.
The wiring access location is at PC3, 4. However, the manual does not provide detailed instructions on wiring connections or routing. Consult the manufacturer or a professional installer for specific wiring guidance.
The hitch is designed for Toyota Corolla models 2003-2015 based on available fascia variants. Confirm your specific model year with the manufacturer or retailer before purchasing.
You need 17mm and 19mm wrenches and a torque wrench. No drilling or cutting is required.
If present, remove tie-down brackets from the frame rail. If your vehicle has an appearance panel covering the trunk pan, remove it and the 2 plastic 10mm rivets fastening the fascia tabs. Reinstall these after hitch installation.
Tighten all M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 Kg) and maximum tongue weight is 200 LB (90.8 Kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Yes, this T-Connector is designed for the Toyota Corolla. The manual does not specify which model years are compatible, so contact the manufacturer or check the product packaging to confirm your specific year and generation.

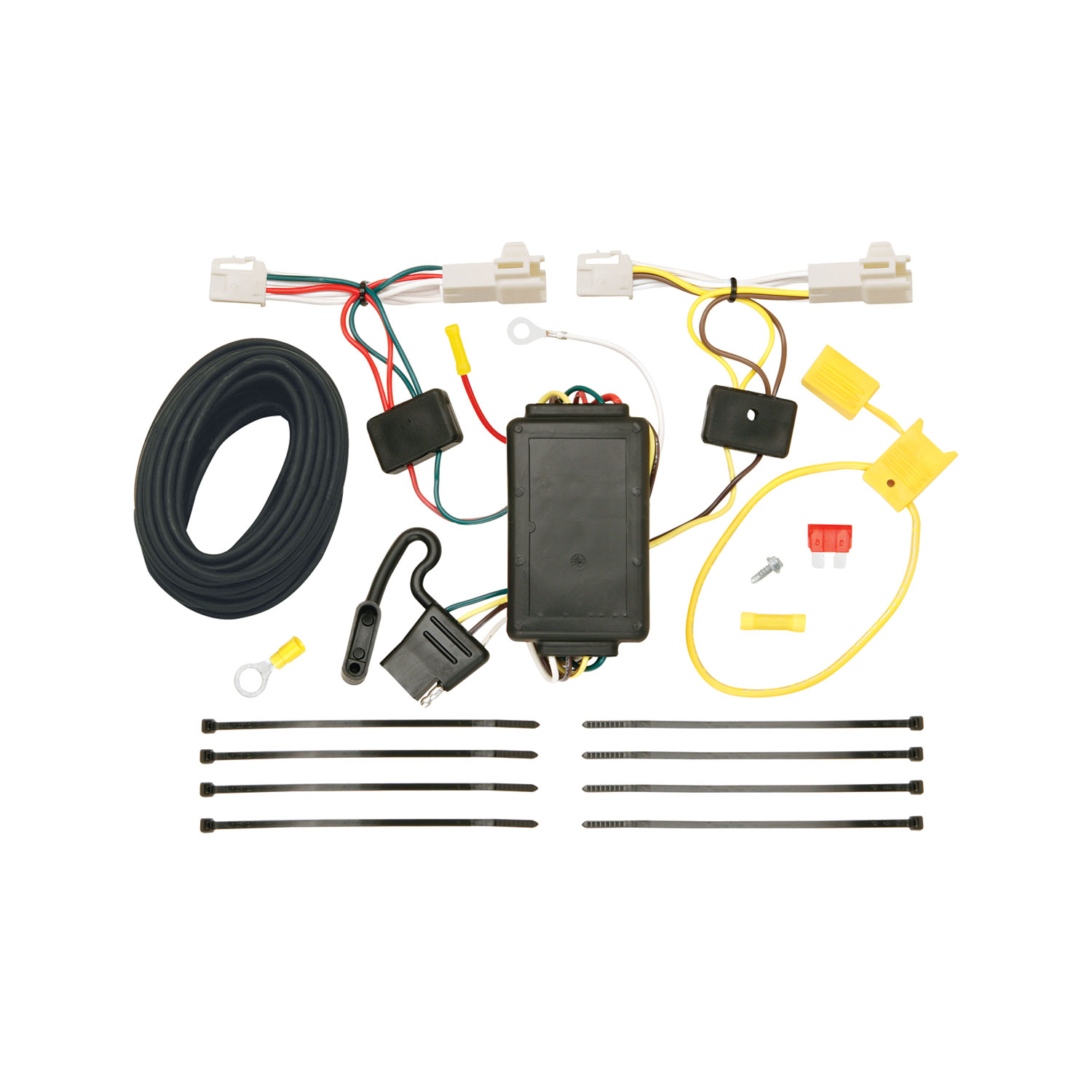

The T-Connector is a trailer wiring adapter that connects between your vehicle's existing taillight wiring harness and a 4-flat trailer connector. It allows you to plug a trailer into your vehicle's electrical system without permanently modifying the factory wiring.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe.
The kit includes a yellow fuse holder with a 10 amp fuse, a yellow butt connector, a T-Connector harness with yellow and green wires, a black converter box with double-sided tape, and a 4-flat connector for storage in the trunk when not in use.
Yes. You must disconnect and isolate the vehicle's negative (-) battery terminal before beginning installation. Reconnect it only after all wiring connections are complete and the 10 amp fuse is installed in the fuse holder.
Wear safety glasses during installation. Read and follow all vehicle warnings and installation instructions before beginning. Read and follow all warnings and cautions printed on the tow vehicle's battery. Ensure all connector surfaces are clean and free of dirt before connecting.
Open the trunk and remove the threshold panel and floor coverings. Partially remove the corner felt trunk liner on both sides to expose the vehicle's taillight wiring harness.
Behind each taillight, separate the vehicle's wiring connectors carefully without breaking the locking tabs. Plug the T-Connector harness (yellow wire on driver's side, green wire on passenger's side) between the vehicle's mating connectors. Ensure all connector surfaces are clean and free of dirt.
Locate the existing ground stud in the vehicle. Loosen the nut, place the T-Connector white wire with ring terminal on the stud, and retighten the nut. Verify that all existing ground connections remain attached.
Route the black 12 gauge wire out of the engine compartment either along the exterior frame through a grommet or through the interior following existing wiring to the rear of the vehicle. Route carefully to avoid hot pipes, heat shields, fuel tank, or any points that may pinch or break the wire.
The yellow fuse holder is a safety device that protects the circuit. If not already removed, remove the fuse from the yellow fuse holder. Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided.
Install a 10 amp fuse in the fuse holder. This fuse protects the circuit from overload.
From inside the trunk, connect the black 12 gauge wire and the red wire from the T-Connector black box using the supplied yellow butt connector.
On the driver's side, locate a flat surface in an out-of-the-way place and mount the T-Connector's black converter box using the double-sided tape provided.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Do not exceed the lower of the towing manufacturer rating or: maximum stop/turn light 1 per side (2.1 amps); maximum tail lights (4.2 amps). Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-flat connector in the trunk area when not in use.
Yes. After installation is complete, replace the trunk threshold panel, floor coverings, and felt trunk liner that were removed during installation.
Yes, this T-Connector is designed for the Toyota Corolla. Confirm your specific model year with the manufacturer.
You need: trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
A 10 amp fuse is installed in the yellow fuse holder provided with the kit.
Do not exceed: 1 stop/turn light per side (2.1 amps) or maximum tail lights (4.2 amps). Overloading can cause fires.
Mount the black converter box on the driver's side in an out-of-the-way location using the double-sided tape provided.
Verify that all connections are complete. Check that the 10 amp fuse is installed in the fuse holder. Test the installation with a test light or trailer. Reset the vehicle electrical system by temporarily removing the ignition key. If the problem persists, check that all connector surfaces are clean and free of dirt, and that the locking tabs on the connectors are fully engaged.
