These durable custom hitches are manufactured for 2010-2015 Lexus RX350, 2010-2015 Lexus RX450h and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2015 | Lexus RX450h | — |
On Sale Today
You save $4.64
Free Shipping
Ships free on all orders
Authorized DealerFREE ShippingFREE SHIPPING
Estimated delivery Sun, Aug 9 - Wed, Aug 12
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

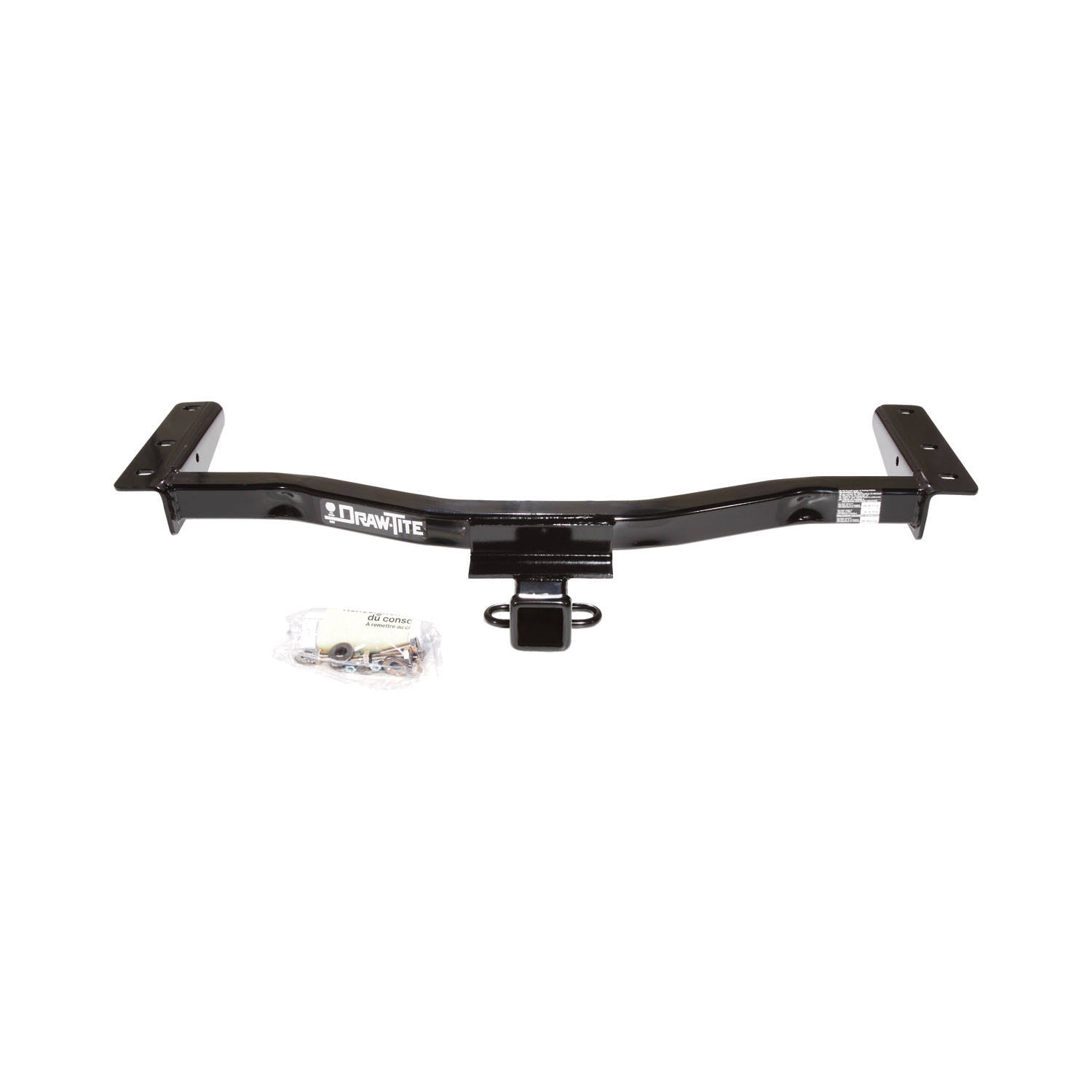

Yes, the 2010-2015 Lexus RX450h Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75676-2-118255) is designed to fit the 2010-2015 Lexus RX450h.
The 2010-2015 Lexus RX450h Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75676-2-118255) fits the following vehicles: 2010-2015 Lexus RX450h. Always verify your specific year, make, and model before ordering.
The 2010-2015 Lexus RX450h Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75676-2-118255) fits 2010-2015 Lexus RX450h models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2010-2015 Lexus RX450h Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75676-2-118255) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. This hitch is designed for the Lexus RX 350 and Lexus RX 450h (2009–2012 model years), but the RX 350 F Sport is explicitly excluded from compatibility.
This hitch (part number 75676) fits the Lexus RX 350 and Lexus RX 450h from 2009 to 2012. The RX 350 F Sport is excluded.
The hitch has two capacity ratings depending on the ball mount type: Weight Distributing ball mount supports a maximum gross trailer weight of 5,000 lb (2,270 kg) and tongue weight of 500 lb (227 kg). Weight Carrying ball mount supports a maximum gross trailer weight of 4,000 lb (1,816 kg) and tongue weight of 400 lb (182 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.
Required tools: tape measure, utility knife, wrenches in sizes 10mm, 12mm, 14mm, 17mm, and 19mm, small screwdriver, large screwdriver, and a torque wrench. The torque wrench is essential for tightening fasteners to specification.

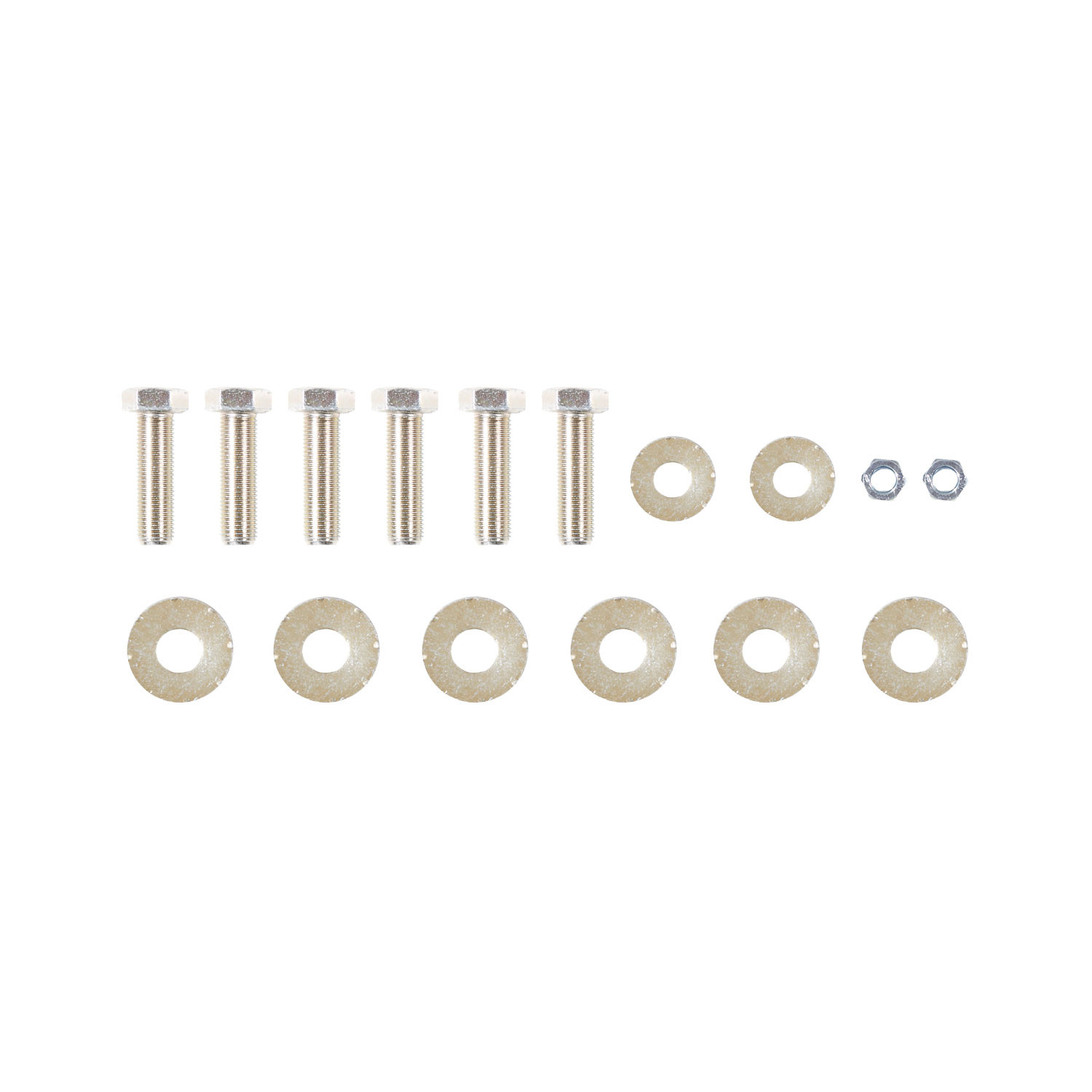

The fastener kit (75676F) includes: 6 hex bolts M12 × 1.25 × 40mm CL10.9, 2 M8 × 1.25 nuts, 6 conical washers 1/2", and 2 conical washers 3/8". The installation also reuses 2 existing M8 bolts from the vehicle's exhaust hanger.
Yes. The appearance panel that covers the trunk pan must be removed first. It is held by 8 fasteners (10mm socket) and 3 plastic rivets. The panel is reinstalled after the hitch is in place and trimmed. Vehicle owner approval is required before trimming the panel.
Remove the center of each rivet using a small screwdriver. Then apply slight pressure while using a large screwdriver to remove the final attachment. One plastic rivet is located behind the wheel well liner.
Yes. The 2 M8 bolts holding the exhaust hanger in place must be removed and retained for reinstallation. The hitch is then raised over the exhaust into position, and the exhaust hanger is reattached to the hitch bracket using the existing M8 bolts, new conical washers, and a new nut from the fastener kit.
Remove the plastic plug in the frame rails and any tie-downs if present on both frame rails. These items should be returned to the vehicle owner along with the fasteners.
Install the M12 bolts and conical washers as shown in the diagram, then hand tighten only. Check that the hitch is centered on the vehicle before proceeding. Once centered, torque all M12 fasteners to 76 Lb.-Ft. (103 N·M) using a torque wrench.
After hand tightening the M12 bolts and conical washers, visually check that the hitch is centered on the vehicle before final torque. The manual does not provide specific measurement tolerances for centering.
All M12 CL10.9 fasteners must be tightened to 76 Lb.-Ft. (103 N·M) using a torque wrench.
All M8 CL10.9 fasteners must be tightened to 20 Lb.-Ft. (27 N·M) using a torque wrench.
No drilling is required. The hitch bolts into existing weld nuts on the frame rails. However, the appearance panel must be trimmed in 2 places to allow the hitch to fit properly. Vehicle owner approval is required before trimming.
The appearance panel must be trimmed in 2 places as shown in the diagram. The manual specifies approximate dimensions of 8" and 4" for the trim areas, but exact measurements should be determined by the diagram provided in the installation instructions. Vehicle owner approval is required before cutting.
Use a utility knife to trim the appearance panel. Do not use a torch to cut access or attachment holes.
Yes. The appearance panel must be trimmed in 2 places to complete the installation. This is a permanent modification. Vehicle owner approval is required before trimming.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch capacity rating.
Check that the hitch is centered on the vehicle before final torque. After installation, check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
No. This hitch is designed for the Lexus RX 350 and RX 450h (2009–2012), but the RX 350 F Sport is excluded.
You need a tape measure, utility knife, wrenches (10mm, 12mm, 14mm, 17mm, 19mm), small and large screwdrivers, and a torque wrench.
No drilling is required. The hitch bolts into existing weld nuts on the frame rails. However, the appearance panel must be trimmed in 2 places, and vehicle owner approval is required before trimming.
M12 bolts: 76 Lb.-Ft. (103 N·M). M8 bolts: 20 Lb.-Ft. (27 N·M). Use a torque wrench for all fasteners.
Weight Distributing: 5,000 lb trailer / 500 lb tongue. Weight Carrying: 4,000 lb trailer / 400 lb tongue. Do not exceed the lower of the vehicle manufacturer's rating or these limits.
Yes. Remove the 2 M8 bolts holding the exhaust hanger, raise the hitch over the exhaust, then reattach the hanger to the hitch bracket using the existing bolts, new washers, and a new nut.
Wear eye protection when working beneath the vehicle. Do not use a torch to cut holes. Do not exceed the hitch capacity or vehicle manufacturer's towing rating. Check fasteners and ball frequently after installation.

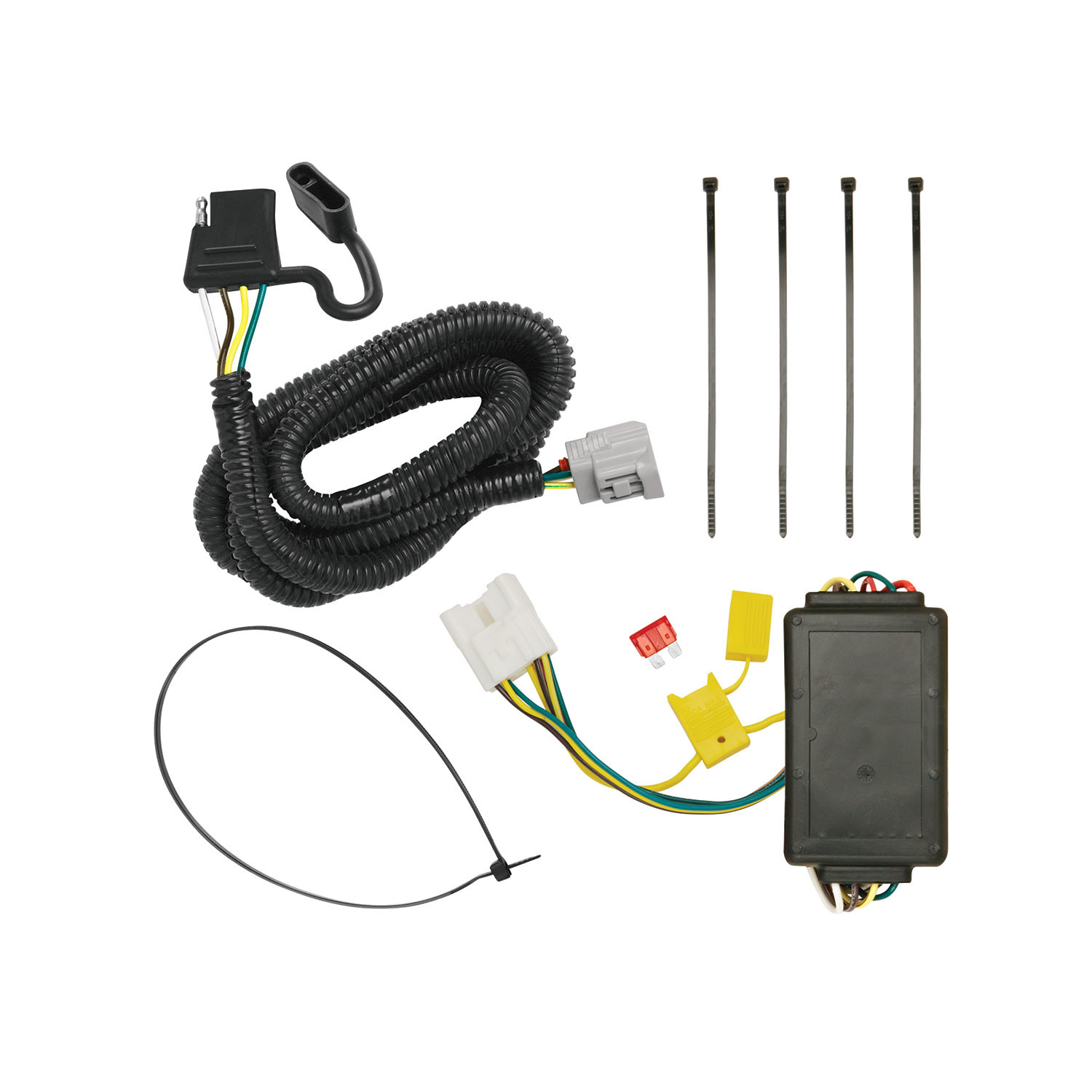

Yes, the T-Connector 118255-037 is designed for the Lexus RX 350. Your vehicle must have a factory tow harness connector behind the bumper and a 10-pin connector behind the rear interior trim panel on the passenger side for this T-Connector to be compatible.
Yes, the T-Connector 118255-037 is designed for the Lexus RX 450h. Your vehicle must have a factory tow harness connector behind the bumper and a 10-pin connector behind the rear interior trim panel on the passenger side for this T-Connector to be compatible.
A test-probe is the only tool listed as required for installation. You will also need basic tools to remove and reinstall trim panels and fasteners, though specific types are not detailed in the manual.
On the passenger side of the vehicle, you must temporarily remove: the rear threshold plate, floor covers, storage tray, and partially remove the rear interior trim panel. Set aside all removed items carefully to avoid damage. The 10-pin connector is located behind this rear interior trim panel.
The vehicle's 10-pin connector is located behind the rear interior trim panel on the passenger side of the vehicle. You will need to partially remove this trim panel to access it.
The vehicle's factory tow harness connector is located behind the bumper. This connector will mate to the end of the tow plug.
Insert the 10-pin tow plug adapter into the vehicle's 10-pin connector and lock it into place. Be careful not to damage the locking tabs and ensure that the connector is fully inserted with the locking tabs in place.
First, remove the factory tow harness protective cap and check that the mating surface is clean and free of dirt; clean if necessary. Then insert the tow plug into the connector. Be careful not to damage the locking tabs and ensure that the connector is fully inserted with the locking tabs in place.
Secure all loose wires and mount the Trailer Tow Harness in an accessible location using a bracket or electrical box (not included). When reinstalling trim panels and other components, be careful not to pinch or cut the wires.
The maximum stop/turn light/backup amperage is 1 per side (2.1 amps total per side). Do not exceed this rating or the lower of your towing manufacturer's rating, as overloading the circuit can cause fires.
The maximum tail light amperage is 5.6 amps. Do not exceed this rating or the lower of your towing manufacturer's rating, as overloading the circuit can cause fires.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Wear safety glasses and use all safety precautions during installation. Be careful not to damage the locking tabs on connectors when inserting them. Do not pinch or cut wires when reinstalling trim panels and other components. Avoid overloading the circuit, as this can cause fires.
The T-Connector 118255-037 fits the Lexus RX 350 and Lexus RX 450h.
A test-probe is required to test the installation.
Yes. On the passenger side, you must temporarily remove the rear threshold plate, floor covers, storage tray, and partially remove the rear interior trim panel to access the 10-pin connector.
Maximum stop/turn light/backup: 1 per side (2.1 amps). Maximum tail lights: 5.6 amps. Do not exceed these ratings or your towing manufacturer's lower rating.
