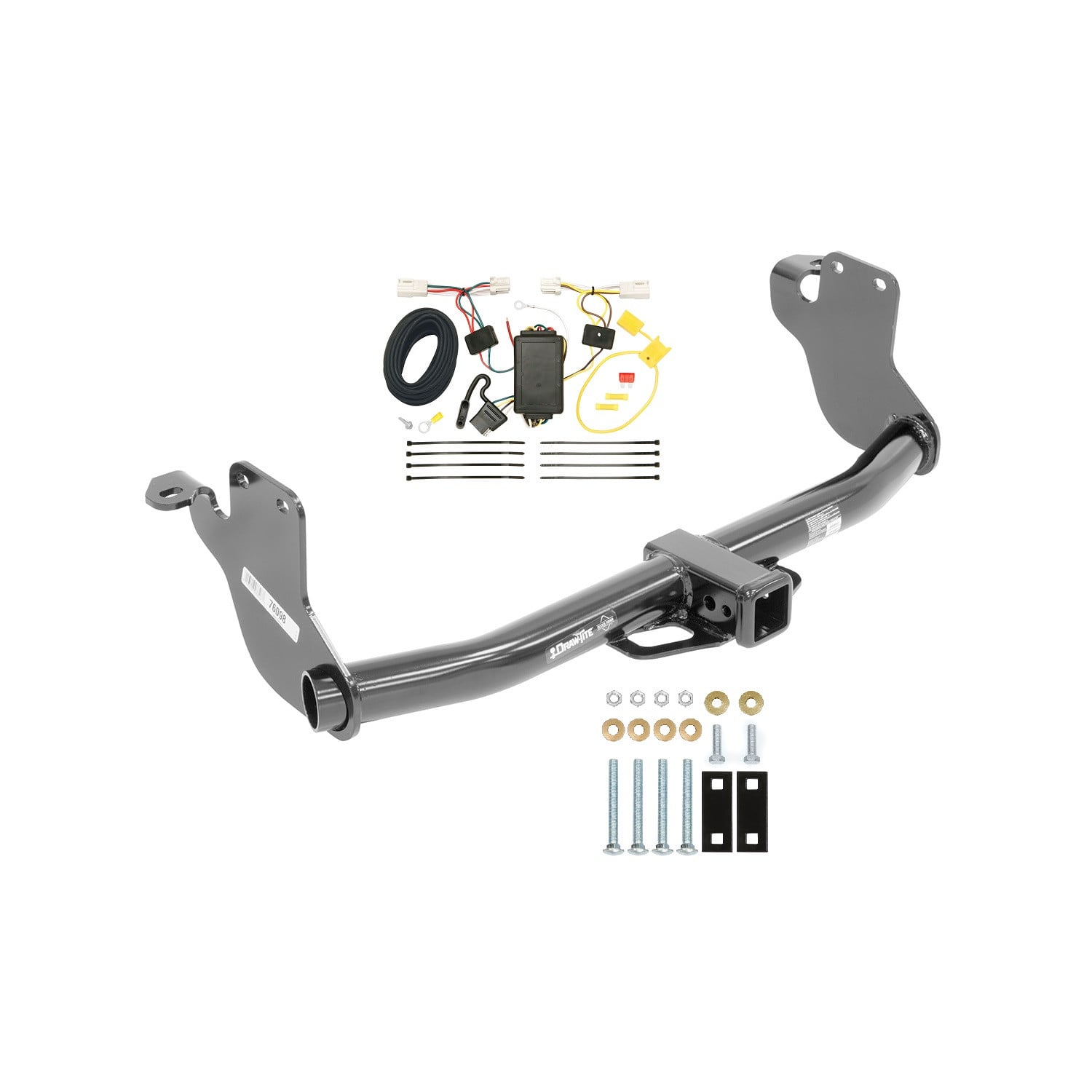

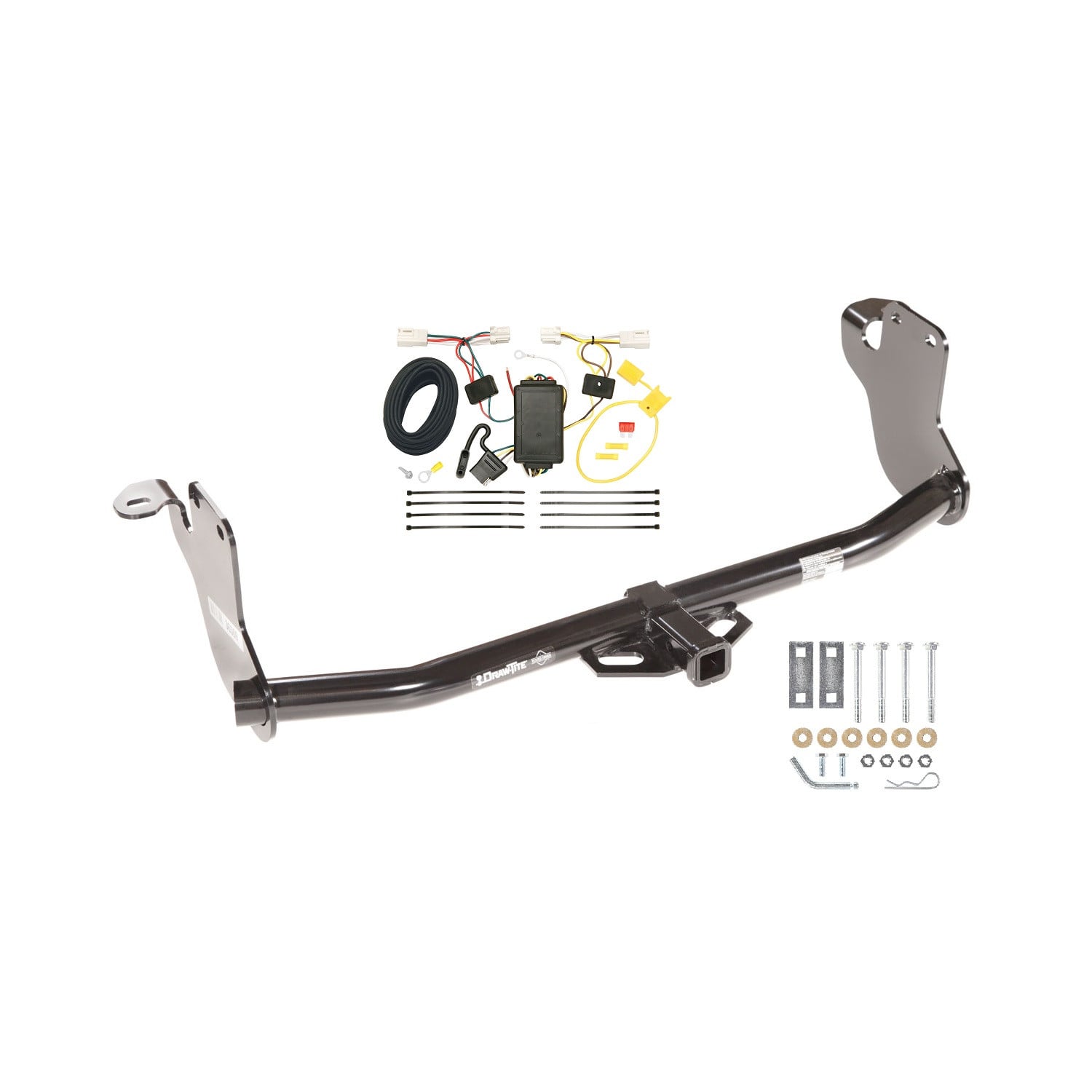

These dependable custom hitches are manufactured for 2011-2021 Mitsubishi Outlander Sport, 2011-2014 Mitsubishi RVR and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1992 - 2000 | Mitsubishi RVR | (Canada Only) |
The 2011-2014 Mitsubishi RVR (Canada Only) Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36509-2-118538) fits the following vehicles: 1992-2000 Mitsubishi RVR. Always verify your specific year, make, and model before ordering.
The 2011-2014 Mitsubishi RVR (Canada Only) Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36509-2-118538) fits 1992-2000 Mitsubishi RVR models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2011-2014 Mitsubishi RVR (Canada Only) Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36509-2-118538) is designed to fit the 1992-2000 Mitsubishi RVR.
The 2011-2014 Mitsubishi RVR (Canada Only) Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36509-2-118538) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

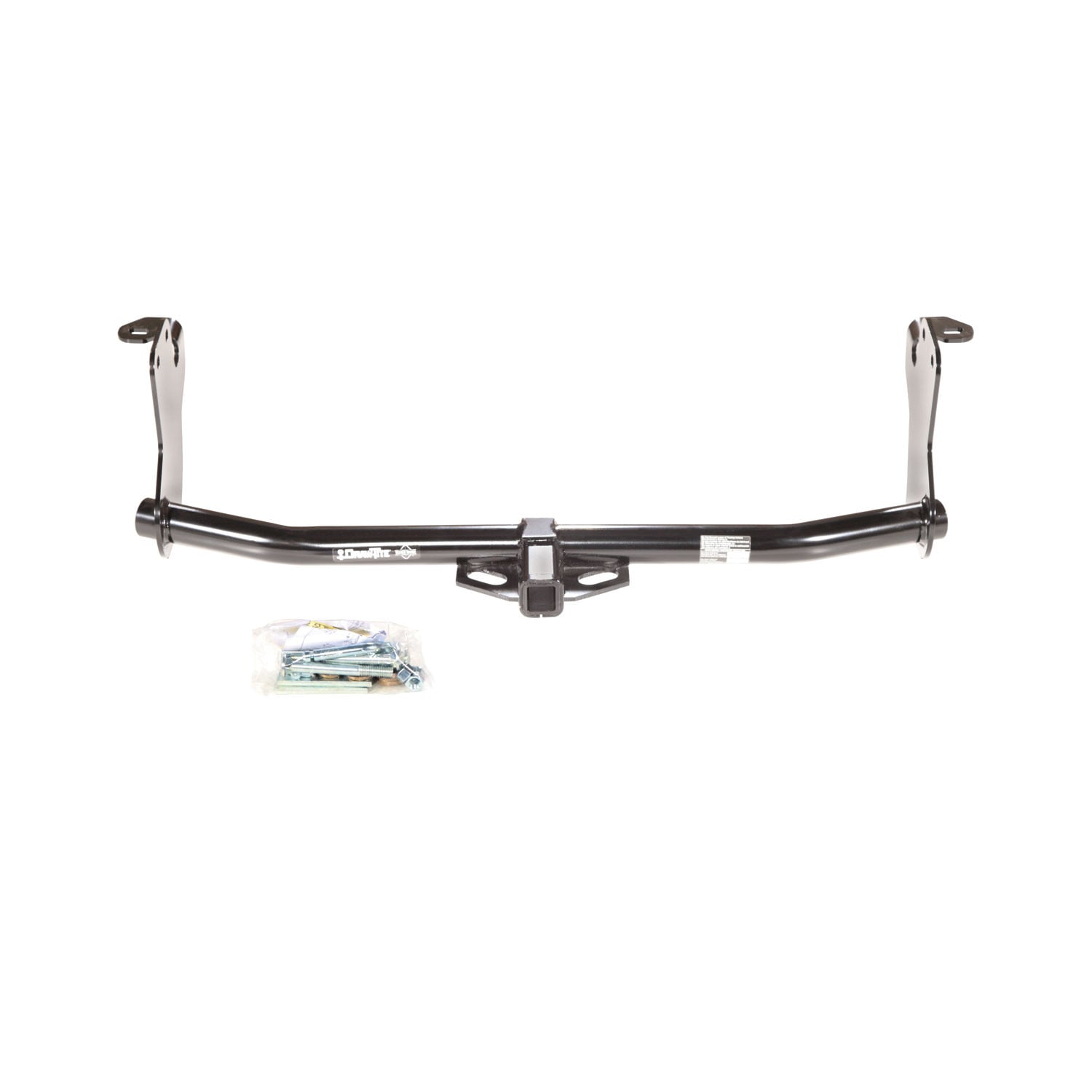

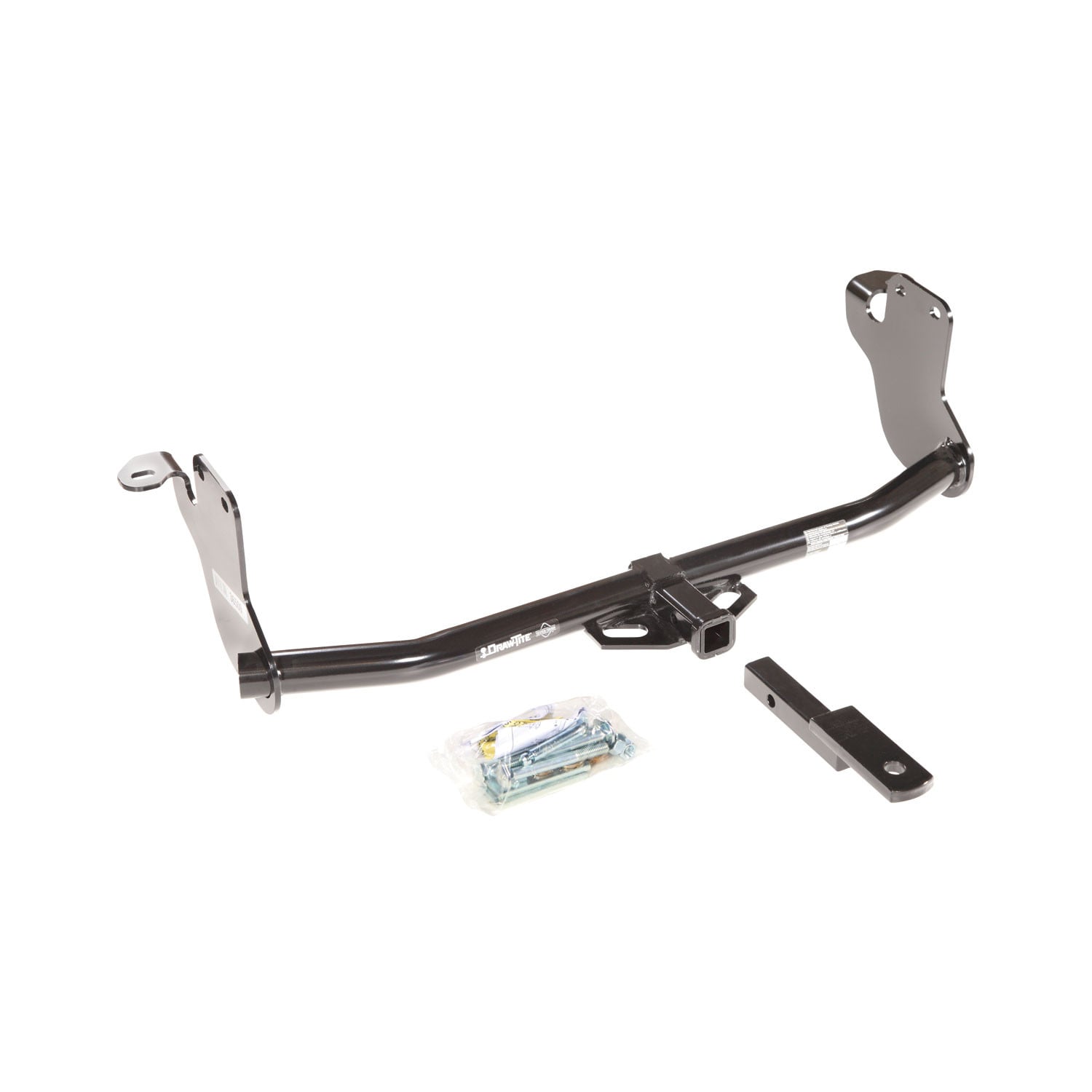

Yes, hitch part number 36509 is designed for Mitsubishi Outlander Sport and RVR vehicles. The installation instructions are specific to these models.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in the following sizes: 14mm, 17mm, ¾ inch, and 7/8 inch. A torque wrench is also required to tighten fasteners to specification.
The hitch includes: (2) blocks 0.250 x 1.50 x 4.00 with 2 square holes each; (4) carriage bolts ½-13 x 4.50 long Gr5; (4) ½ inch conical washers; (2) M10 x 1.25 x 30mm CL8.8 bolts; (2) 7/16 inch conical washers; and (4) ½-13 hex nuts. Additional fastener kits are available separately as part number 36509F.
Yes. You must remove the three bolts and factory tow loop from the passenger's side frame rail. Return the bolts and tow loop to the vehicle owner. The factory tow loop is sold separately if it needs to be replaced.
First, tighten all ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M). Then, tighten all M10-1.25 CL8.8 bolts to 42 Lb.-Ft. (57 N·M). Use a torque wrench for both steps.
Tighten all ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Tighten all M10-1.25 CL8.8 bolts to 42 Lb.-Ft. (57 N·M) using a torque wrench.
No. During installation, loosely install the ½ inch conical washers and hex nuts onto the carriage bolts (step 3), and loosely install the M10 hex bolts with 7/16 inch conical washers into the weld nuts (step 4). Tighten all fasteners to specification only after the hitch is positioned and all bolts are inserted.
Raise the driver's side of the hitch first, guiding the flange on the side bracket around the carbon canister. Then raise the passenger's side into position. This sequence makes installation easier.
Adjust the carriage bolts to be flush with the inside of the frame rails. On the driver's side, the carriage bolts are installed by reaching between the bumper fascia and over the top of the carbon canister.
The drawbar must be used in the rise position only. Do not use it in any other position.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. This should be done regularly throughout the life of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Yes, hitch 36509 is designed specifically for Mitsubishi Outlander Sport and RVR models.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need wrenches in 14mm, 17mm, ¾ inch, and 7/8 inch sizes, plus a torque wrench. No special equipment is required.
Tighten ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M) and M10-1.25 CL8.8 bolts to 42 Lb.-Ft. (57 N·M). Tighten carriage bolts first, then M10 bolts.
The drawbar must be used in the rise position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.

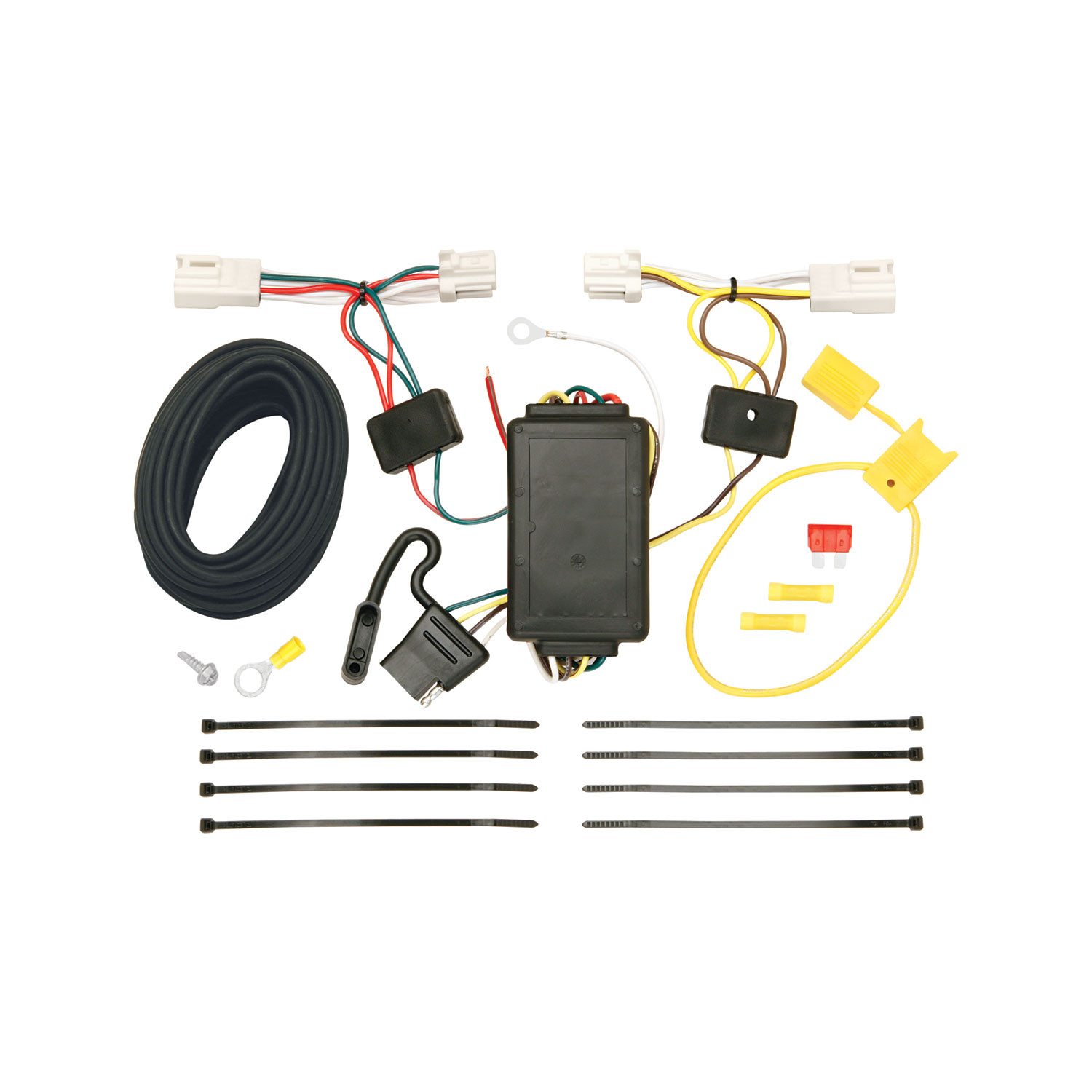

The T-Connector is a wiring harness that integrates with your Mitsubishi Outlander Sport's taillight system to provide trailer lighting connections. It intercepts the vehicle's taillight wiring and routes power to a 4-flat connector for trailer use. The system includes a fused power supply connected to the vehicle battery.
Yes, the T-Connector part 118538-037 is designed for the Mitsubishi Outlander Sport. The installation instructions are specific to this vehicle model.
Required tools are: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe.
The T-Connector kit includes: T-Connector box with yellow and green wire ends, red 12 ga. power wire, black 12 ga. wire, white ground wire with eyelet, yellow fuse holder with 10 amp fuse, yellow butt connector, mounting screw for ground eyelet, and cable ties for securing the harness.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the positive battery terminal. This is done in step 9 before attaching the fuse holder ring terminal to the positive cable. Reconnect the negative cable in step 10 after the fuse holder is installed.
You must remove: both taillights (driver and passenger side), grommets on both sides, all floor coverings and cargo trays from the rear cargo area, and partially remove the rear interior trim panels on both sides. Set all removed items aside carefully to avoid damage.
Locate the vehicle's taillight wiring harness connectors on both driver and passenger sides. These connectors match the ends of the T-Connector. Separate the vehicle's connectors carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt. Insert the T-Connector ends (yellow wire on driver's side, green wire on passenger's side) between the vehicle wiring connectors and lock into place, ensuring locking tabs are fully seated.
Route the T-Connector end with yellow and brown wires through the grommet on the driver's side from the cargo compartment. Route the green wire end to the passenger's side behind the panels and along the threshold. The black 12 ga. power wire should be routed through the taillight socket opening and behind the bumper, then along the exterior frame or following existing wiring along thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire.
Yes. You must drill one 3/32" hole on the driver's side near the connectors to secure the white ground wire with an eyelet using the screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
Drill a 3/32" hole on the driver's side near the connectors to secure the white ground wire with the eyelet and screw provided.
The T-Connector uses a 10 amp fuse. This fuse is installed in the yellow fuse holder that connects the power wire from the T-Connector box to the vehicle's positive battery cable.
The power wire from the T-Connector box is red 12 ga. (gauge). The black wire provided for connection is also 12 ga. The white ground wire is provided with an eyelet for secure connection.
The T-Connector has: yellow wire (driver's side taillight connection), green wire (passenger's side taillight connection), brown wire (routed with yellow wire), red 12 ga. power wire (from T-Connector box to fuse holder), black 12 ga. wire (from fuse holder to vehicle battery positive terminal), and white wire (ground connection to vehicle frame).
The red 12 ga. power wire from the T-Connector box is connected to a black 12 ga. wire provided in the kit. This black wire is routed through the engine compartment to the vehicle's positive (+) battery cable. A ring terminal is attached to the black wire and secured to the positive battery cable. A yellow fuse holder with a 10 amp fuse is installed between the black wire and the positive battery connection using a yellow butt connector.
The white ground wire is secured to a suitable grounding point on the driver's side near the connectors using an eyelet and screw provided. A 3/32" hole is drilled at the grounding location, and the eyelet is fastened with the provided screw.
Always wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into exposed surfaces. Be careful not to damage locking tabs when connecting the T-Connector to the vehicle's taillight harness. Avoid routing wires through areas that may pinch, cut, or melt the wire. Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Read and follow all warnings printed on the vehicle battery.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid areas that would pinch, cut, or melt the wire. Reinstall all plastic trim panels, threshold, cargo trays, and taillamps that were removed during installation, being careful not to pinch or cut the wires. Store the 4-flat connector in the rear cargo area when not in use.
Do not exceed the lower of: the towing manufacturer rating stated in your vehicle owner's manual, or the specific amperage ratings stated on the T-Connector product. Overloading circuits can cause fires. Refer to your vehicle owner's manual and the product documentation for the specific amperage rating.
Yes, part 118538-037 is designed specifically for the Mitsubishi Outlander Sport.
You need: trim panel remover, 10mm socket/ratchet or wrench, 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes, you must disconnect the negative battery cable before connecting the power wire to the positive terminal in step 9, then reconnect it in step 10 after the fuse holder is installed.
The T-Connector uses a 10 amp fuse installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer rating or the product's amperage rating. Overloading circuits can cause fires. Always wear safety glasses during installation.
