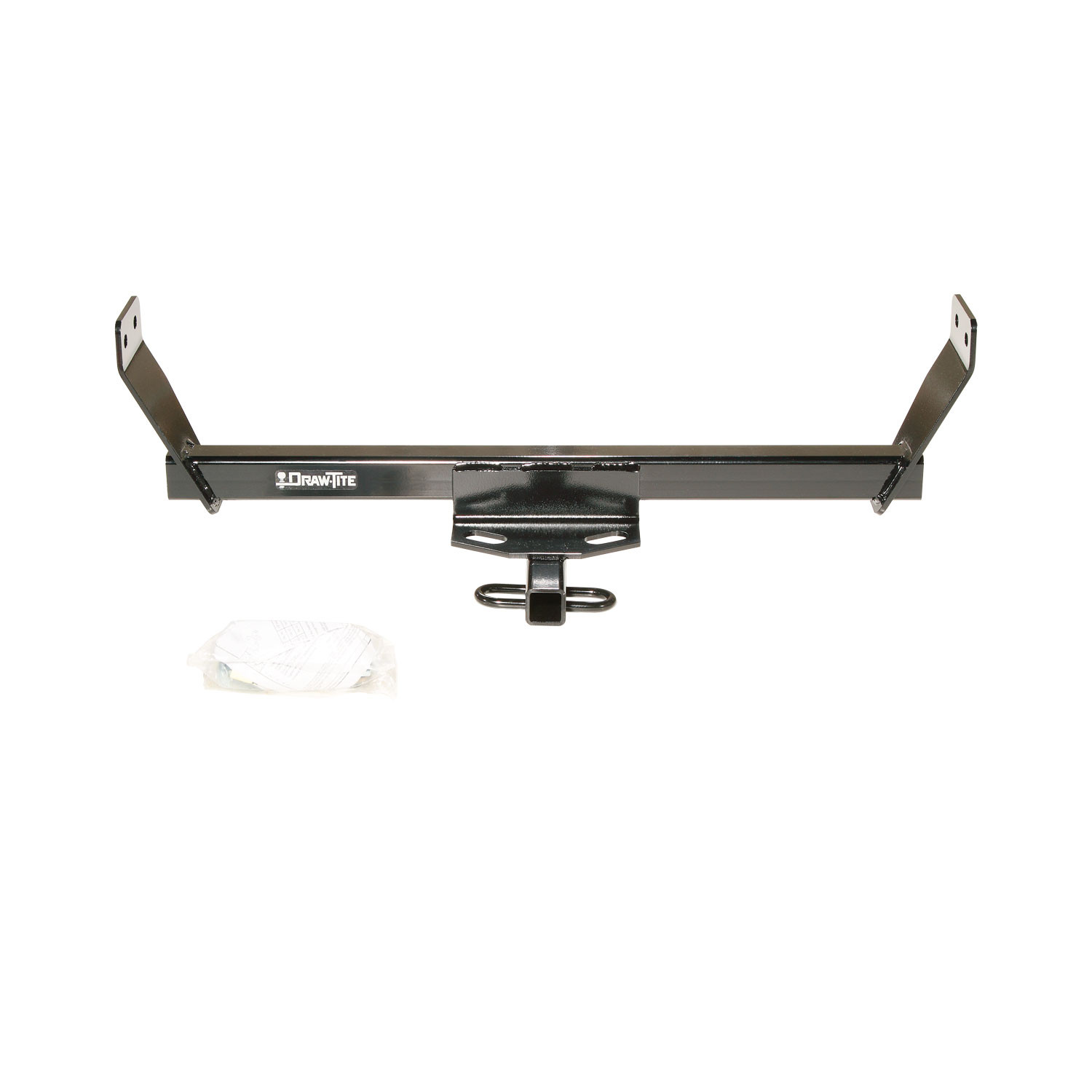

These dependable custom hitches are manufactured for 2011-2014 Chrysler 200, 2007-2010 Chrysler Sebring, 2008-2014 Dodge Avenger and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2012 | Chrysler 200 | Sedan |

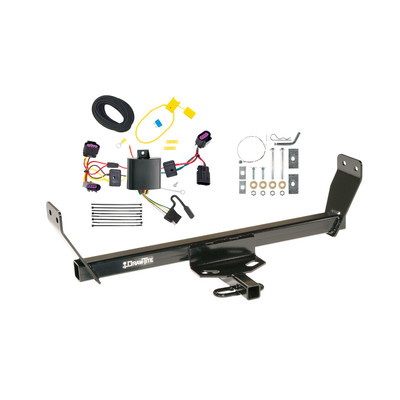

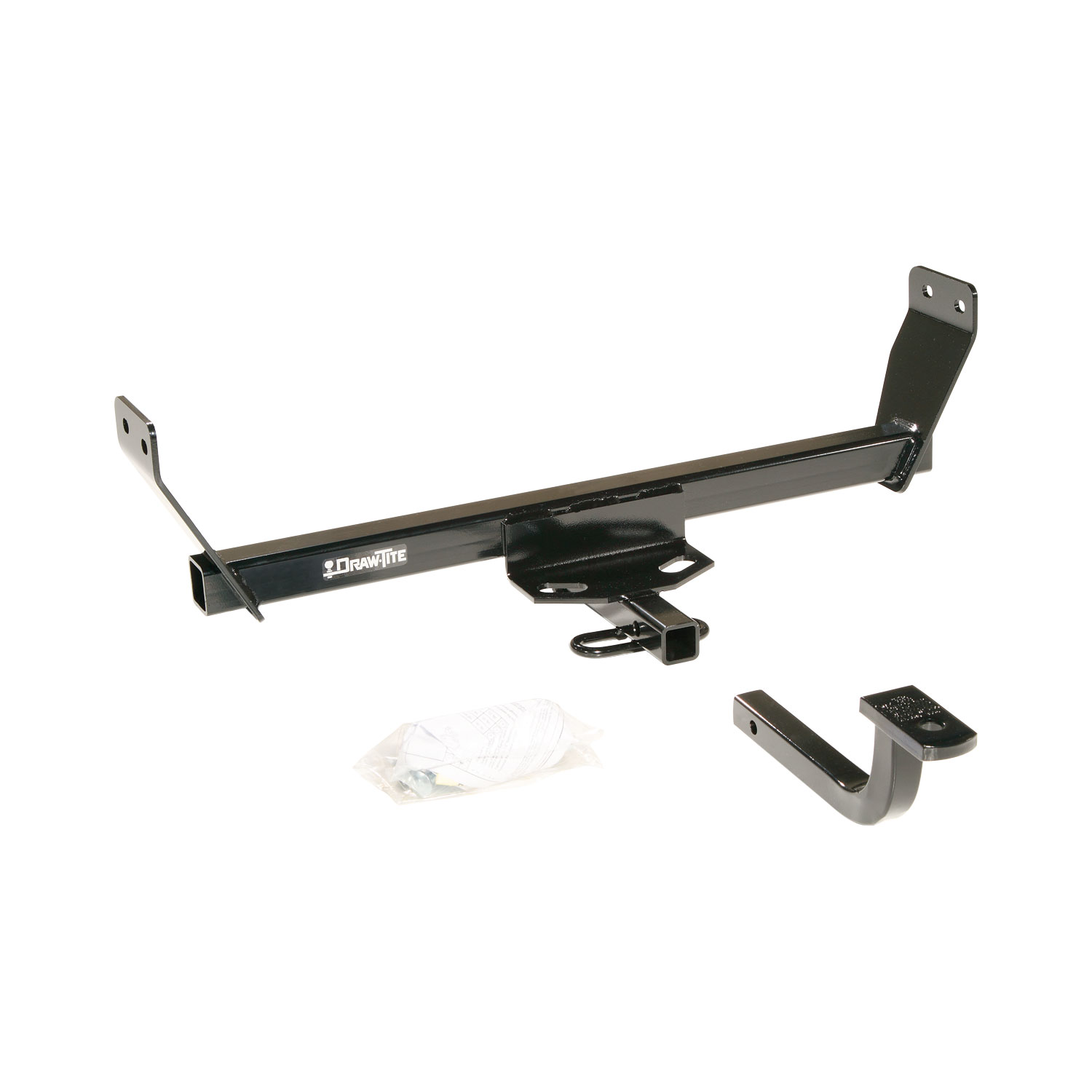

The 2012-2014 Chrysler 200 Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24871-8-118577) fits 2009-2012 Chrysler 200 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2012-2014 Chrysler 200 Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24871-8-118577) fits the following vehicles: 2009-2012 Chrysler 200. Always verify your specific year, make, and model before ordering.
Yes, the 2012-2014 Chrysler 200 Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24871-8-118577) is designed to fit the 2009-2012 Chrysler 200.
The 2012-2014 Chrysler 200 Sedan Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24871-8-118577) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24871 is designed to fit all Chrysler Sebring models, including convertibles. The hitch is also compatible with Dodge Avenger and Chrysler 200 (all models, including convertibles).
Yes, part number 24871 is compatible with Dodge Avenger. The same hitch assembly is designed for Chrysler Sebring, Dodge Avenger, and Chrysler 200.
Yes, part number 24871 fits all Chrysler 200 models, including convertibles.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (91 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating.
You will need wrenches in 3/4" and 7/8" sizes and a torque wrench. No drill bits are required as no drilling is necessary for this installation.

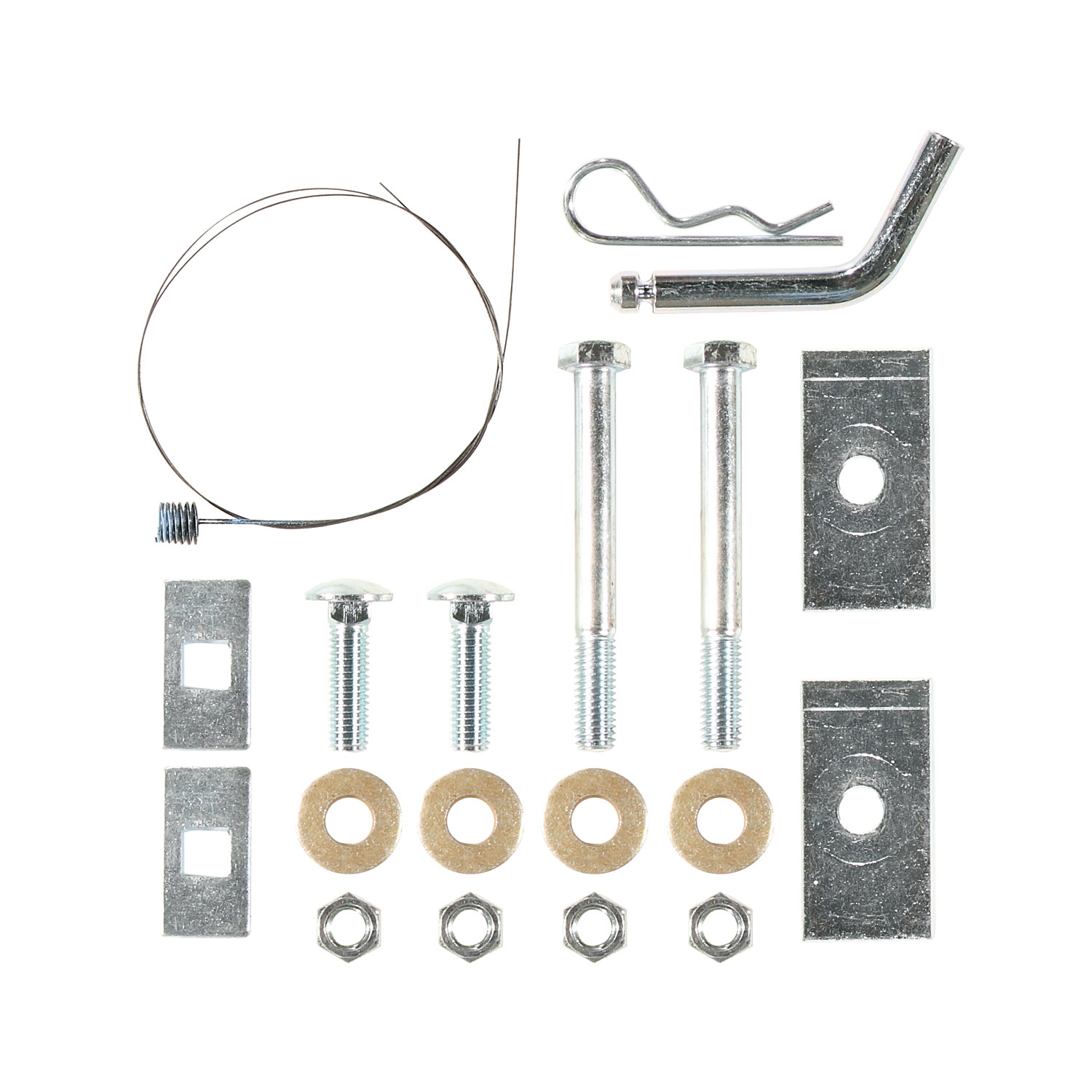

The hitch includes: (2) 1/2"-13 X 4-1/2" Grade 5 hex bolts, (4) 1/2" hex nuts, (4) 1/2" conical washers, (2) 1/2"-13 X 1-3/4" Grade 5 carriage bolts, (4) 1/4" X 1-1/2" X 3" blocks, (2) 1/4" X 1" X 2" blocks, and fishwire for installation. Additional fasteners are available in kit 24871F.
Yes, you must remove the exhaust hangers from both sides of the vehicle before installation. Spraying a lubricant on the metal hanger rod and rubber isolator will help with removal.
1. Remove exhaust hangers both sides (spray lubricant on the rod and isolator to help). 2. Raise hitch into position and insert 4-1/2" bolts and blocks through frame and hitch on both sides; install conical washers and 1/2" nuts; hand tighten only. 3. Use the provided fishwire to install carriage bolt and block through the square hole forward on the frame; keep bolt and block separate until inside the frame; install conical washers and 1/2" nuts; hand tighten only. 4. Tighten all four 1/2" fasteners installed in steps 2 and 3 with a torque wrench.
Tighten all 1/2" hex bolts with a torque wrench to 40 lb-ft.
Tighten all 1/2" carriage bolts with a torque wrench to 75 lb-ft.
No. In steps 2 and 3, hand tighten the fasteners only. All fasteners are tightened with a torque wrench in step 4 after all bolts and blocks are in place.
No, drilling is not required. The equipment required section lists "Drill Bits: None", and the installation uses existing frame holes and a square hole forward on the frame.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No, the wiring harness is sold separately. The manual indicates wiring access locations for each vehicle (Sebring: PC3 & PC4; Avenger: PC1 & PC2; 200: PC1 & PC2) but does not include the harness with the hitch.
Drawbar kit 3594 is sold separately and must be used in the Rise position only. The manual does not specify whether it is required or optional for basic hitch operation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is damaged, it must be removed and replaced. The manual does not specify retorque intervals.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair it.
Yes, part 24871 is designed for all Chrysler Sebring, Dodge Avenger, and Chrysler 200 models, including convertibles.
Maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of your vehicle manufacturer's rating or the hitch rating.
You need 3/4" and 7/8" wrenches and a torque wrench. No drilling is required.
Yes, remove the exhaust hangers from both sides. Spray lubricant on the metal rod and rubber isolator to help with removal.
Tighten 1/2" hex bolts to 40 lb-ft and 1/2" carriage bolts to 75 lb-ft using a torque wrench.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. Plug all holes if the hitch is removed to prevent water and exhaust fume entry.
Check frequently that all fasteners and the ball are properly tightened.
Yes, the T-Connector is designed for Dodge Avenger and Chrysler 200 vehicles.
Wire cutters, trim panel remover, drill with 3/32" bit, Phillips head screwdriver, test probe, and wire crimpers.
Yes. Disconnect the vehicle's negative (-) battery cable before working on the electrical connections, specifically before attaching the fuse holder to the positive battery cable in step 7.
Yes. A 3/32" hole must be drilled to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor, bed, or exposed surfaces. Verify what is behind any surface before drilling.
A 10 amp fuse is required. It is installed into the fuse holder after the battery is reconnected.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
The T-Connector package includes the T-Connector harness with yellow and green wires, a black box, a 4-Flat connector end, double-sided tape, cable ties, a ring terminal, an eyelet, a screw, a yellow fuse holder, and yellow butt connectors. A bracket or electrical box for mounting the 4-Flat end is not included.
The manual specifies the T-Connector is designed for Dodge Avenger and Chrysler 200. Compatibility with other vehicles is not addressed in the manual.
Yes. You must open the trunk and remove the vehicle's taillight assemblies by locating and removing the plastic wing nuts (2 per side) located on both sides in the trunk behind the taillights. Carefully pry the housings away from the vehicle without breaking the alignment tabs.
On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place. Repeat this process on the passenger's side using the T-Connector containing the green wire.
Route the harness containing the green wire and the 4-Flat down the opening behind the taillight on the driver's side. Route the 4-Flat harness underneath and to the center of the vehicle. Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger's side taillight. Route all wires carefully to avoid hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Mount the T-Connector black box on the driver's side using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would cut or pinch the wire.
Mount the 4-Flat end in an accessible location with a bracket or electrical box. Note that a bracket or electrical box is not included with the product and must be obtained separately.
Locate a suitable grounding point near the connector on the vehicle. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor, bed, or exposed surfaces.
Disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Route the black wire out of the engine compartment to the rear driver's side and connect it to the red power wire on the T-Connector's black box using another yellow butt connector.
The T-Connector uses yellow wire on the driver's side connector, green wire on the passenger's side connector, white wire for ground, black 12 ga. wire for power, and red power wire on the black box.
Before drilling, verify what is behind any surface to avoid damage to the vehicle and/or personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. Ensure the area is clean and free of dirt and rustproofing.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Route wires carefully to avoid hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire. Do not exceed the stated product ratings or the towing manufacturer rating.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual does not specify the exact amperage rating of this T-Connector model.
Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body. Ensure the alignment tabs are properly seated.
Reconnect the vehicle's negative (-) battery cable and install the 10 amp fuse into the fuse holder. Then test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Verify that all connections are complete. Test and verify the installation with a test light or trailer. Reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure the 10 amp fuse is properly installed in the fuse holder. Check that the T-Connector ends are fully inserted into the taillight harness connectors with locking tabs in place.
Secure the T-Connector harness with the cable ties provided to prevent damage or rattling. Ensure the black box is mounted securely on the driver's side using the double-sided tape provided. Be careful to avoid any areas that would cut or pinch the wire.
