Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494The 2015-2020 Toyota Sienna Except SE Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36513-118648) fits 1996-1999 Toyota Sienna models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2020 Toyota Sienna Except SE Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36513-118648) fits the following vehicles: 1996-1999 Toyota Sienna. Always verify your specific year, make, and model before ordering.
Yes, the 2015-2020 Toyota Sienna Except SE Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36513-118648) is designed to fit the 1996-1999 Toyota Sienna.
The 2015-2020 Toyota Sienna Except SE Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36513-118648) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36513 fits Toyota Sienna models 2011, 2012, 2013, and 2015. If your Sienna is a different model year, this hitch may not be compatible. Verify your vehicle's year before purchasing.
The manual lists compatibility for 2011, 2012, 2013, and 2015 model years only. The 2014 model year is not listed. Contact the manufacturer or a fitment database to confirm whether this hitch is compatible with 2014 Sienna models.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). However, do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: 10mm wrench, 19mm wrench, 6-inch ratchet extension, and a large screwdriver. No drill bits are required.
The fastener kit 36513F includes: 6 hex bolts M12 x 1.25 x 40mm (CL10.9), 6 lock washers 1/2 inch, and 6 flat washers 1/2 inch. These fasteners attach the hitch to the frame rails.
For vehicles with an appearance panel covering the trunk pan, you must remove it before installation. The panel will need to be trimmed or not reinstalled on the vehicle. Ask the vehicle owner their choice before starting installation. See Figure 2 for the areas to be trimmed.
Lowering the exhaust may ease installation. The manual notes that spraying a lubricant on the metal hanger rod and rubber isolator helps with removal. If you lower the exhaust, you must raise it back into position after the hitch is installed.

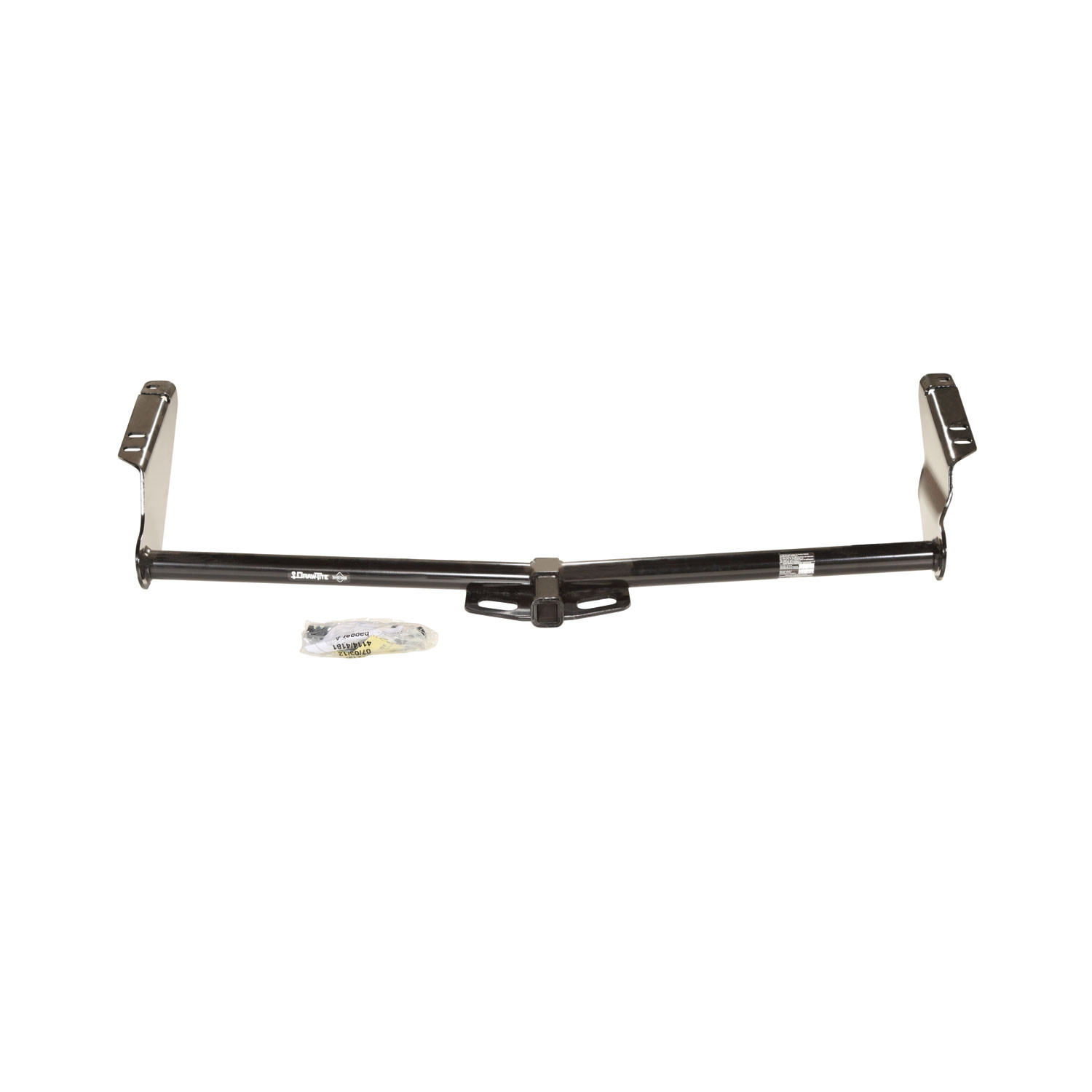

Raise the hitch into position over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the bottom of the frame rails. There are 3 weldnuts on each side (6 total). Once aligned, install and torque the fasteners.
All M12 CL10.9 fasteners must be tightened with a torque wrench to 75 lb-ft (102 N-m).
1. Remove plastic plugs from existing holes (if present). 2. Raise hitch into position over exhaust pipes, aligning slots with weldnuts in frame rails. 3. Install fasteners as shown. 4. Torque all fasteners to 75 lb-ft (102 N-m). 5. Raise exhaust back into position if lowered. 6. Reinstall trimmed cover panel or return untrimmed panel to vehicle owner.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection to maintain proper installation.
The drawbar kit 36051 is available separately and must be used in the Rise position only. Additional ball options (part numbers 39611-UHaul and 06137) are also sold separately.
The wiring access location is SUV1, 2, indicating the specific points on the vehicle where wiring harness connections are made.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Yes, plastic plugs may be present in the existing holes in the frame rails. These must be removed before raising the hitch into position and aligning it with the weldnuts.
The hitch is positioned over the exhaust pipes. The manual notes that lowering the exhaust may ease installation. After the hitch is installed and fastened, the exhaust must be raised back into position. There should be no permanent interference once properly installed.
The appearance panel covers the trunk pan. For vehicles with this panel, it must be removed before hitch installation. The panel will need to be trimmed or not reinstalled on the vehicle, depending on the vehicle owner's choice.
Yes, if your Sienna is a 2011, 2012, 2013, or 2015 model. Other model years are not listed as compatible.
You need 10mm and 19mm wrenches, a 6-inch ratchet extension, and a large screwdriver. No drilling is required.
Yes, for vehicles with an appearance panel covering the trunk pan. The panel must be removed and either trimmed or not reinstalled, depending on the owner's preference.
All M12 CL10.9 fasteners must be torqued to 75 lb-ft (102 N-m) using a torque wrench.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. Plug all holes after installation to prevent water and exhaust fume entry.
Lowering the exhaust may ease installation. If lowered, raise it back into position after the hitch is installed. Lubricating the hanger rod and rubber isolator helps with removal.
The T-one® Connector is a trailer wiring interface for the Toyota Sienna that allows you to connect a trailer to your vehicle's electrical system. It taps into the vehicle's taillight wiring harness and provides a 4-flat connector for trailer use. The system includes a black box module, multiple wire connectors in different colours (green, brown, red, yellow, white, and black), a 15 amp fuse, and cable management hardware.
Yes, the T-one® Connector part number 118648-037 is designed for the Toyota Sienna. The installation instructions are specific to this vehicle model.
You will need: 10 mm socket and ratchet or 10 mm wrench; 12 mm socket and ratchet or 12 mm wrench; Phillips head screwdriver; test probe; drill with 3/32" drill bit; wire crimpers; wire cutters; and a trim panel remover tool.

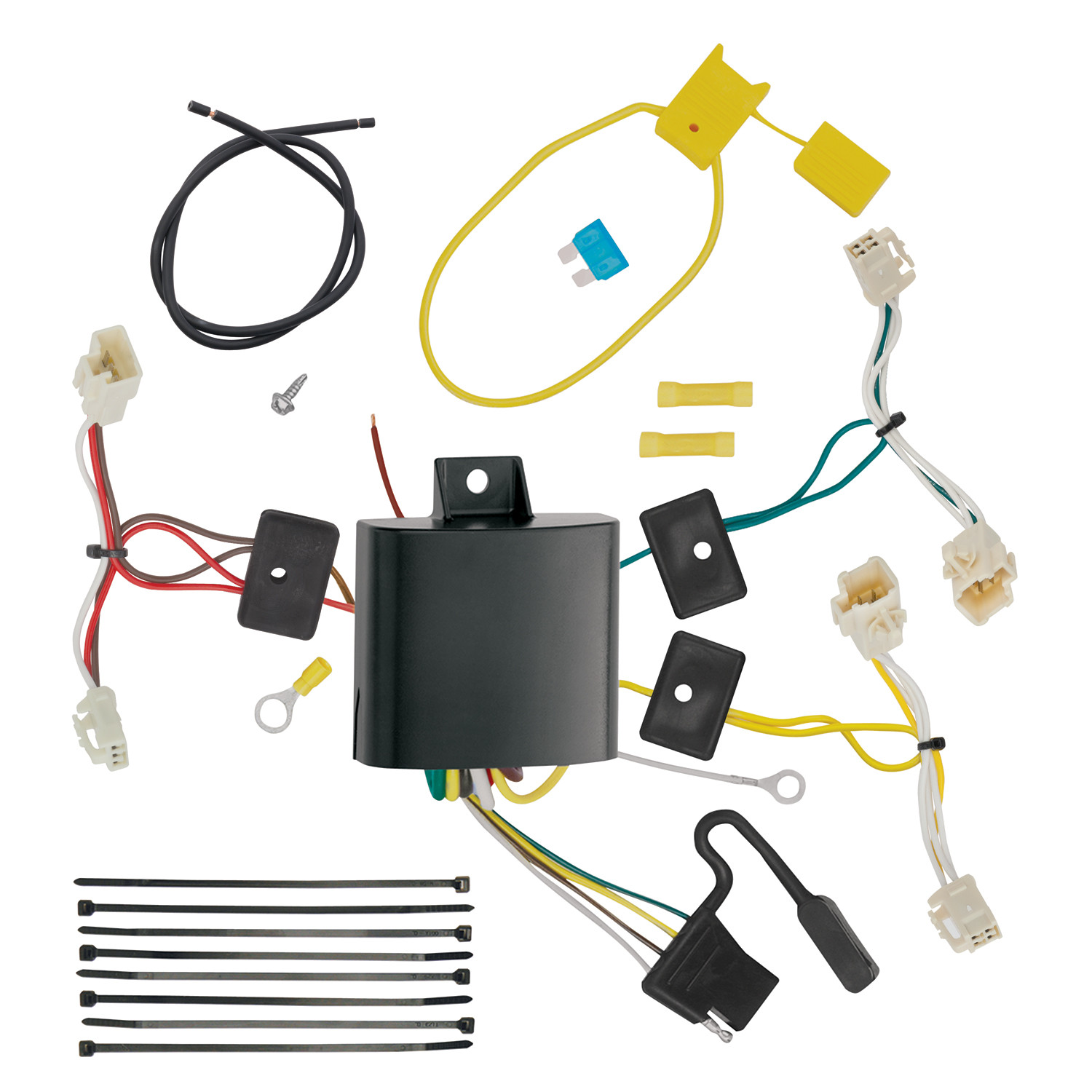

The kit includes: a black box module; two sets of connectors (one with green wires, one with brown and red wires); a connector with a yellow wire; a white ground wire with ring terminal; a black 12 ga. power wire; a yellow fuse holder with 15 amp fuse; yellow butt connectors; self-tapping screws; double-sided tape; and cable ties.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the battery's positive (+) terminal. This is a critical safety step performed in step 9 of the installation.
You must remove: both taillight housings (accessed by opening the rear tailgate and removing two bolts on each side); the threshold plate (by removing cargo clips); the jack storage compartment door on the passenger side; and interior trim panels on both the driver's and passenger's sides using a trim panel remover tool.
Mount the black box on the passenger's side of the vehicle using the double-sided tape provided. This is done after removing the interior trim panels and jack storage compartment door on that side.
On the passenger's side, attach two connector sets from the T-one® Connector (one with green wires, one with brown and red wires) between the vehicle's taillight wiring harness connectors. On the driver's side, insert the T-one® Connector end with the yellow wire into the vehicle's taillight connector and lock it into place. All connector surfaces must be clean and free of dirt before connecting.
Drilling may be required for the ground wire connection. You must ground the white ground wire by placing its ring terminal under an existing screw attached to a clean metal surface, or by drilling a 3/32" hole and using one of the self-tapping screws provided. Drilling is optional if a suitable existing ground point is available.
The T-one® Connector uses a 15 amp fuse. This fuse is installed in the yellow fuse holder after the power wire is connected to the vehicle's positive battery terminal.
Disconnect the vehicle's negative battery cable first. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and secure it. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. The black wire is then routed to the T-one® Connector black box.
The black power wire is 12 ga. (12 gauge). Route it either through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire.
Place the ring terminal of the white ground wire under an existing screw attached to a clean metal surface, or drill a 3/32" hole and use one of the self-tapping screws provided to secure it to a clean metal surface on the vehicle.
Always wear safety glasses and follow all safety precautions during installation. Read and follow all warnings and instructions included with the product and in your vehicle's owner's manual. Read all warnings printed on the vehicle's battery. Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Ensure all ground connections are secure when removing and reattaching the ground stud.
Overloading circuits can cause fires. Do not exceed the stated product ratings. Read your vehicle's owner's manual and the T-one® Connector instruction sheet for additional information on safe amperage limits.
All connections must be complete for the T-one® Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Store the 4-flat connector in the jack storage compartment when not in use. When in use, route the 4-flat harness through the rear tailgate/door seal.
Secure all loose wires with the cable ties provided. Be careful not to pinch or cut the wires when reinstalling taillight assemblies and other removed items.
After all wiring connections are complete, reconnect the vehicle's negative (−) battery cable and install the 15 amp fuse into the fuse holder. Then test the installation with a test light or trailer, and reset the vehicle's electrical system by temporarily removing the key from the ignition.
Yes, part number 118648-037 is designed specifically for the Toyota Sienna.
The T-one® Connector uses a 15 amp fuse. Required tools include 10 mm and 12 mm sockets/wrenches, Phillips screwdriver, test probe, 3/32" drill bit, wire crimpers, wire cutters, and trim panel remover.
Yes, you must disconnect the vehicle's negative battery cable before connecting the power wire to the positive terminal.
Drilling may be required for the ground wire connection if no suitable existing ground point is available. A 3/32" hole is drilled and a self-tapping screw is used.
The power wire is 12 ga. black wire routed either through a grommet along the exterior frame or along existing thresholds to the engine compartment, avoiding areas that may pinch or break it.
Do not exceed the product's stated amperage ratings or the towing manufacturer's rating. Overloading circuits can cause fires. Wear safety glasses during installation.
Test with a test light or trailer once all connections are complete. Reset the vehicle's electrical system by temporarily removing the ignition key.
Verify that all connections are complete. Check that the taillight wiring harness connectors are properly seated and locked. Ensure the T-one® Connector sets (green wires and brown/red wires) are fully inserted between the vehicle's taillight connectors on the passenger's side. Verify the yellow wire connector is locked into the driver's side taillight connector. Confirm the black power wire is properly connected to both the vehicle's positive battery terminal (via the fuse holder) and the T-one® Connector black box. Verify the white ground wire is securely attached to a clean metal surface. Test with a test light or trailer, and reset the vehicle's electrical system by temporarily removing the ignition key.
A repeatedly blown fuse indicates an overloaded circuit or a short circuit. Verify that you are not exceeding the product's stated amperage rating or the towing manufacturer's rating. Check all wire connections for proper seating and insulation. Inspect the black 12 ga. power wire for damage, cuts, or pinching along its entire route from the battery to the T-one® Connector black box. Ensure the ground wire is securely attached to a clean metal surface and that no other ground connections have been disturbed. If the fuse continues to blow after these checks, discontinue use and consult the manufacturer.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 1999 | Toyota Sienna | Except SE |
