Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2021 Land Rover Range Rover Sport
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

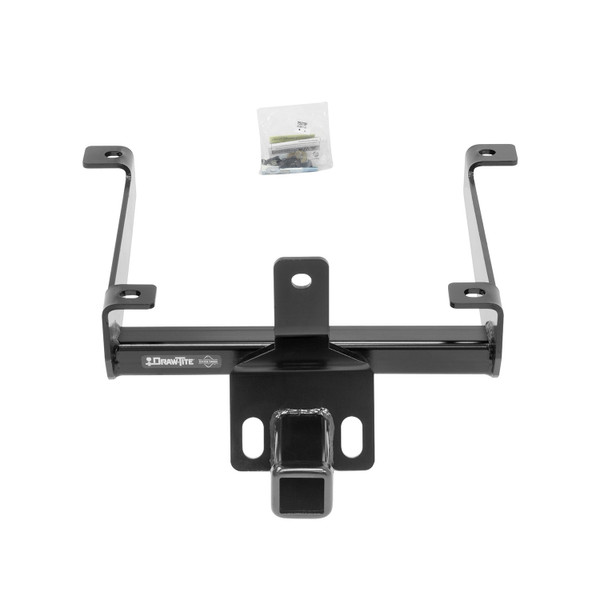

These durable custom hitches are manufactured for 2015-2021 Land Rover Range Rover Sport and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 4 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2021 | Land Rover Range Rover Sport | — |
Yes, the 2015-2021 Land Rover Range Rover Sport Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75229-118681) is designed to fit the 2015-2021 Land Rover Range Rover Sport.
The 2015-2021 Land Rover Range Rover Sport Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75229-118681) fits the following vehicles: 2015-2021 Land Rover Range Rover Sport. Always verify your specific year, make, and model before ordering.
The 2015-2021 Land Rover Range Rover Sport Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75229-118681) fits 2015-2021 Land Rover Range Rover Sport models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2021 Land Rover Range Rover Sport Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75229-118681) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 75229, 87693, and 44781 are designed for 2015-current Land Rover Range Rover Sport. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
You will need: ratchet, torque wrench, safety glasses, 10 mm and 19 mm sockets, flat head screwdriver, Phillips screwdriver, and utility knife. A torque wrench is essential to tighten all fasteners to the correct specification.
No drilling is required. The hitch uses existing vehicle cross frame weldnuts and bumper beam attachment points. You will need to trim the lower appearance panel as shown in Figure 4.
All fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
This is a weight-carrying hitch with a maximum gross trailer weight of 8000 lb. (3632 kg) and maximum tongue weight of 800 lb. (363 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.

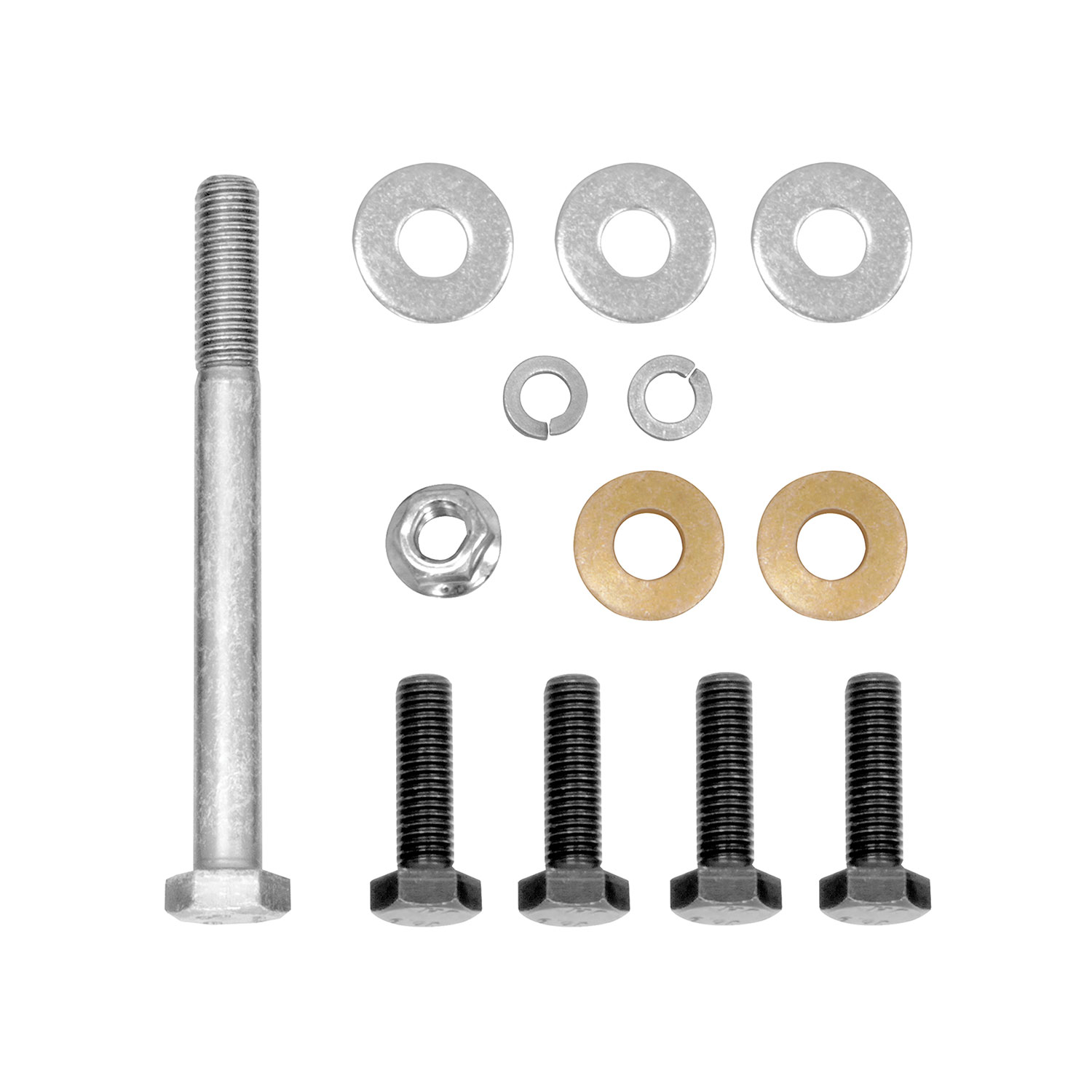

The fastener kit 75229F includes: (4) M12 bolts 1.75×35 CL 10.9, (2) conical washers ½", (3) flat washers ½", (2) lock washers ½", (1) bolt ½-13-5 GR5, and (1) flange nut ½-13 GR5. These fasteners attach the hitch to the vehicle cross frame weldnuts and bumper beam.
No. Part numbers 75229, 87693, and 44781 are designed for 2015-current Land Rover Range Rover Sport models only. For older model years, contact Cequent at 1-800-632-3290 or visit www.cequentgroup.com for alternative products.
1. Remove the upper appearance panel by removing (2) plastic rivets with a flat head screwdriver. 2. Remove the lower appearance panel by removing (4) bolts with a 10 mm socket and Phillips screwdriver. 3. Raise the hitch into position and loosely install the M12 bolts with washers at the rear and front vehicle cross frame weldnuts. 4. Loosely insert the ½-13-5 bolt and flat washer into the bumper beam and secure with the flange nut. 5. Tighten all fasteners to 75 Lb.-Ft. (102 N·M) with a torque wrench. 6. Trim the lower panel as shown in Figure 4. 7. Reinstall the upper and lower appearance panels.
The lower appearance panel must be trimmed according to Figure 4. The trim dimensions are: 7" width, 5.5" height, 1.5" from the edge, and 4.0" from the bottom. Additional trimming may be needed depending on your specific vehicle. Use a utility knife for trimming.
Leave all fasteners loose during initial installation. First, raise the hitch into position and loosely install the M12 bolts at the vehicle cross frame weldnuts and the ½-13-5 bolt at the bumper beam. Only after all fasteners are in place should you tighten them to 75 Lb.-Ft. (102 N·M) using a torque wrench.
You will need 10 mm and 19 mm sockets. The 10 mm socket is used to remove the (4) bolts from the lower appearance panel. The 19 mm socket is listed in the equipment required, though the manual does not specify its exact use in the installation steps.
If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain control until the sway subsides.
Load the trailer heavier in front. This helps maintain stability and control while towing. Always ensure the tongue weight does not exceed 800 lb. (363 kg) and the total gross trailer weight does not exceed 8000 lb. (3632 kg).
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is essential for safe towing. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue towing with a damaged hitch or ball, as this compromises safety.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Use proper lifting and support equipment when raising the vehicle or hitch.
Cequent Performance Products provides a Limited Lifetime Warranty to the original consumer purchaser. The product is warranted to be free from material defects in material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used according to instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, with your model number and purchase receipt. Product replacement is the sole remedy; Cequent is not responsible for service or labor charges.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Slow down when towing and never exceed any posted speed limit. Reduce your normal driving speed to improve control and stability while towing a trailer.
The average installation time is 45 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
No. This is a weight-carrying hitch only. Weight-distributing capability is listed as N/A. If you need a weight-distributing hitch, contact Cequent at 1-800-632-3290 for alternative products.
Check all fasteners periodically to ensure they remain tight. If fasteners have loosened, use a torque wrench to retighten them to 75 Lb.-Ft. (102 N·M). Loose fasteners can compromise the security of the hitch and create a safety hazard while towing.
If the hitch has been removed or holes have been created in the trunk pan or body panels, plug all holes immediately to prevent entry of water and exhaust fumes. If water or fumes have already entered, inspect the vehicle for damage and consult a professional mechanic.

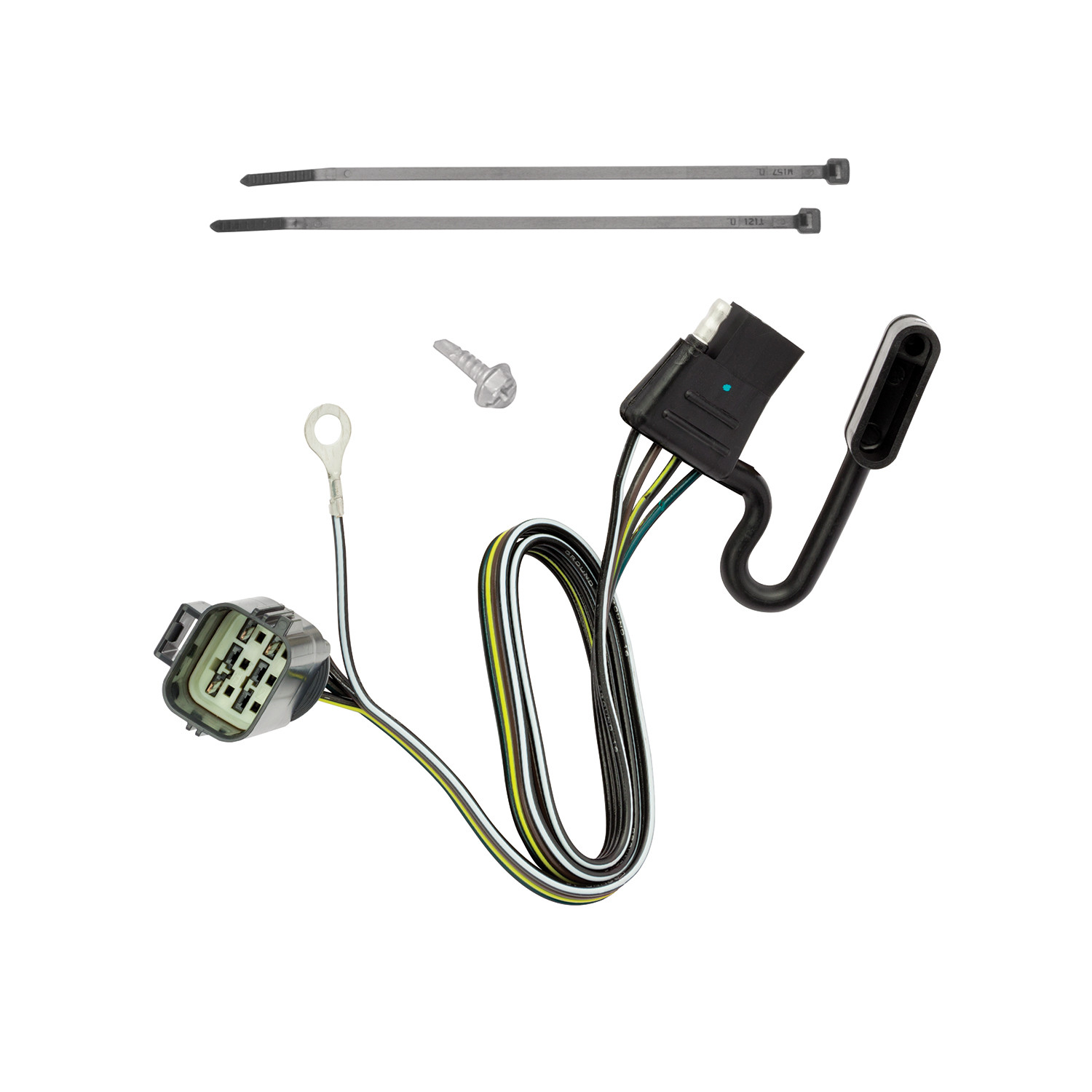

The T-One® T-Connector is a towing harness adapter that connects a trailer to your vehicle's electrical system. It allows you to control trailer lights (stop, turn, and tail lights) from your vehicle's electrical circuits. The connector includes a 6-Pin tow plug adapter that interfaces with your vehicle's factory tow harness, a white ground wire, cable ties for securing the harness, and a 4-Flat end connector for trailer connection.
Yes, the T-One® T-Connector part number 118681-037 is designed for the Range Rover Sport. The installation accesses the grey 6-Pin connector located behind the access cover in the vehicle's rear bumper area.
You will need: Trim Panel Puller, Drill with 3/32" Drill Bit, Philips Head Screwdriver, Flat Screwdriver, and Test-probe. The manual also recommends safety glasses and all standard safety precautions during installation.
The T-One® T-Connector includes: a 6-Pin tow plug adapter, a white ground wire with eyelet and screw for grounding, cable ties for securing the harness, and a 4-Flat end connector. The 4-Flat end mounting bracket or electrical box is not included and must be sourced separately.
The manual does not specify whether battery disconnection is required before installation. Contact the manufacturer or your installer for guidance on this safety step.
The access cover is located in the vehicle's rear bumper area. You will unfasten two clips holding the cover to the vehicle using a screwdriver to access the grey 6-Pin connector behind it.
First, remove the factory tow harness protective cap and verify the mating surface is clean and free of dirt; clean if necessary. Then insert the 6-Pin tow plug adapter and lock it into place. Ensure the connectors are fully inserted with locking tabs in place.
Drilling may be required for the ground wire connection. The manual instructs you to locate a suitable grounding point near the connector, such as an existing ground stud. If no existing ground stud is available, you must drill a 3/32" hole and secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed.
Use a 3/32" drill bit. Before drilling, verify what is behind the surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces.
Secure the remainder of the harness with the cable ties provided. Route the harness carefully to avoid any areas that would pinch, cut, or melt the wire. This prevents damage, rattling, and potential electrical hazards.
Mount the 4-Flat end in an accessible location with a bracket or electrical box. The bracket or electrical box is not included with the T-One® T-Connector and must be sourced separately.
Yes. After completing all other installation steps, replace the cover that was removed during installation to restore the vehicle's rear bumper area to its original condition.
All connections must be complete before testing. Test and verify installation using either a test light or by connecting an actual trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. This ensures all connections are functioning properly before towing.
Do not exceed the lower of your vehicle manufacturer's rating or: Maximum stop/turn light: 7.5 amps; Maximum tail lights: 7.5 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific vehicle's electrical capacity.
Wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor, bed, or any exposed surfaces. When securing the harness with cable ties, avoid areas that would pinch, cut, or melt the wire. Ensure all connections are complete and test the installation before towing.
Yes, part 118681-037 is designed for the Range Rover Sport. It connects to the grey 6-Pin connector in the rear bumper area.
No. The bracket or electrical box for mounting the 4-Flat end is not included and must be sourced separately.
Maximum 7.5 amps for stop/turn lights and 7.5 amps for tail lights. Do not exceed the lower of your vehicle manufacturer's rating or these limits, as overloading can cause fires.
