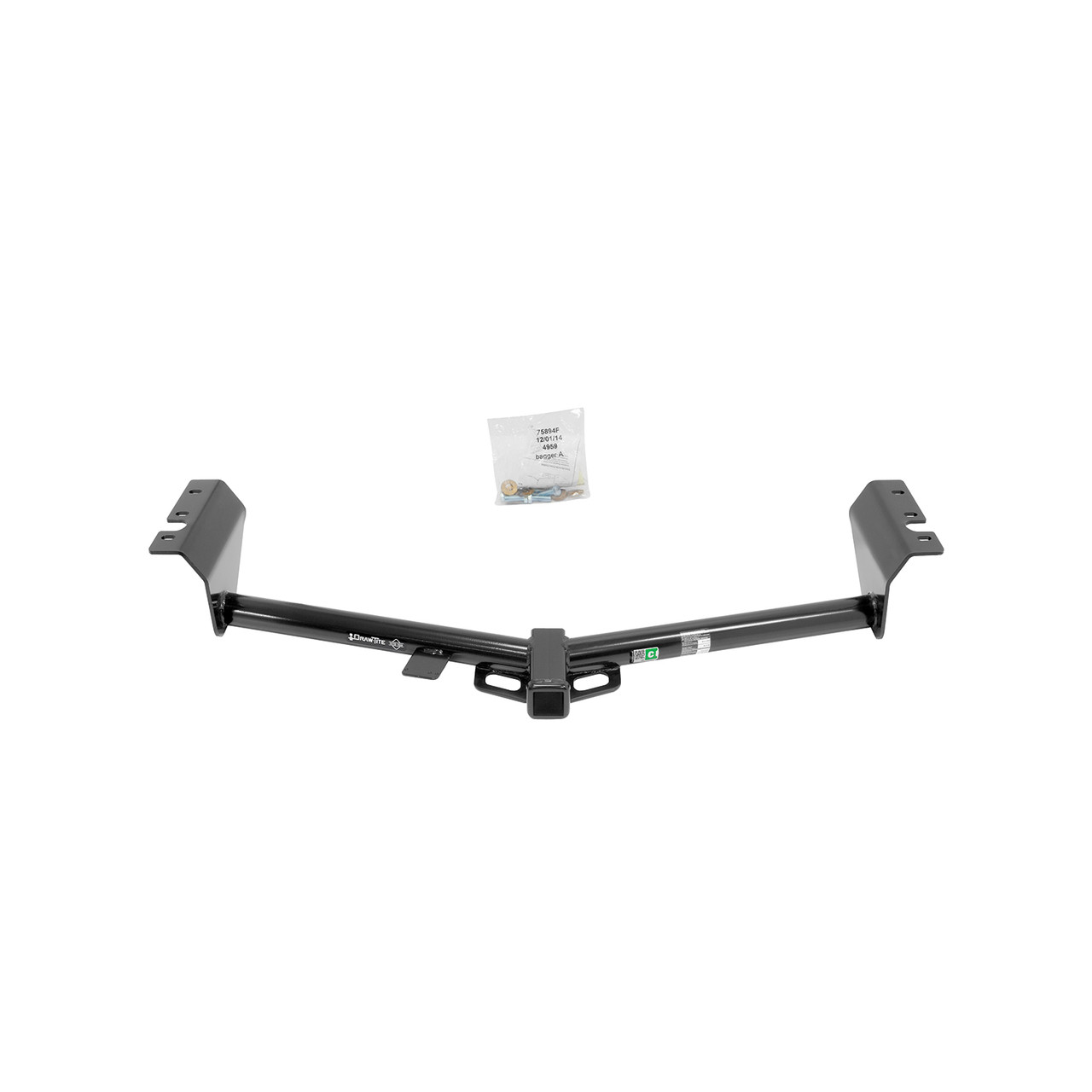

These durable custom hitches are manufactured for 2015-2021 KIA Sedona and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2021 | Kia Sedona | — |

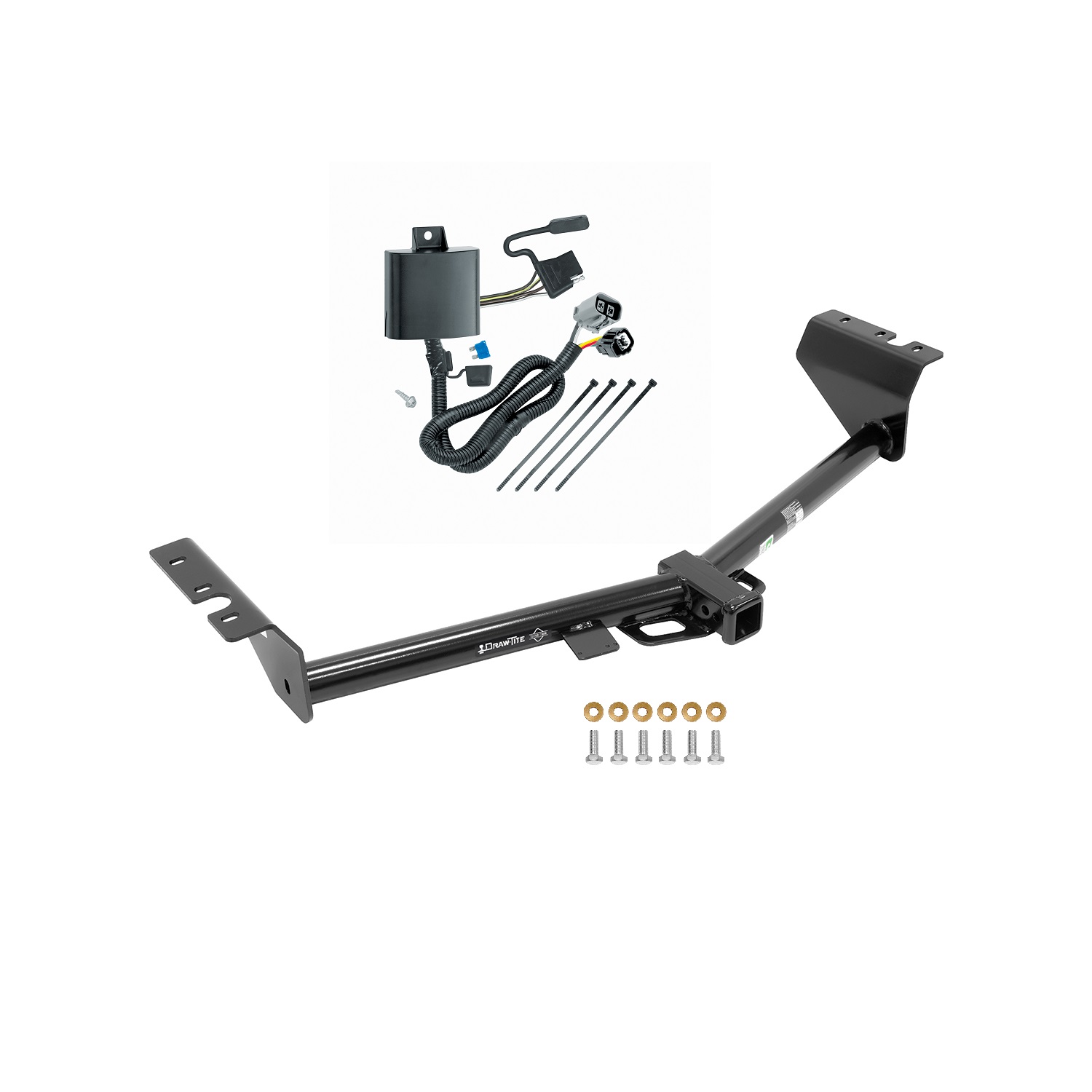

Yes, the 2015-2021 KIA Sedona Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75894-118269) is designed to fit the 2015-2021 Kia Sedona.
The 2015-2021 KIA Sedona Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75894-118269) fits the following vehicles: 2015-2021 Kia Sedona. Always verify your specific year, make, and model before ordering.
The 2015-2021 KIA Sedona Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75894-118269) fits 2015-2021 Kia Sedona models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2021 KIA Sedona Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75894-118269) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75894 is designed for the Kia Sedona. However, the manual does not specify which model years are compatible. Contact the manufacturer or your retailer to confirm fitment for your specific year.
The maximum gross trailer weight is 4000 lb (1816 kg) and the maximum tongue weight is 400 lb (182 kg). However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
You will need a small Phillips tip screwdriver, a 19mm wrench, lubricant or soapy water, and a spiral wire brush. No drill bits are required because no drilling is necessary for this installation.

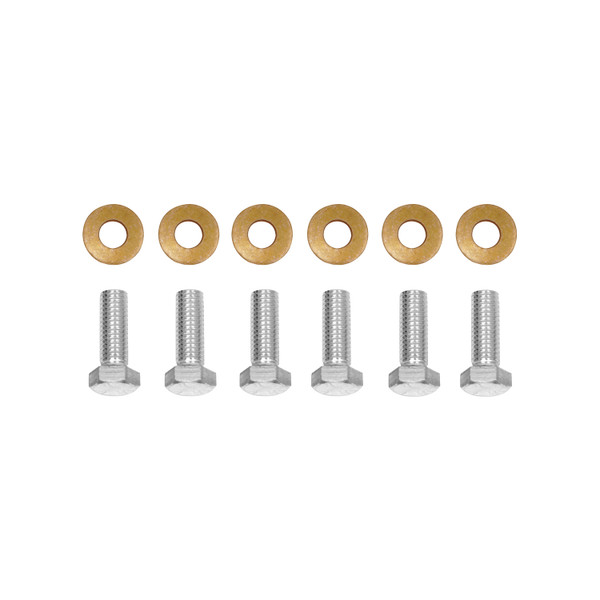

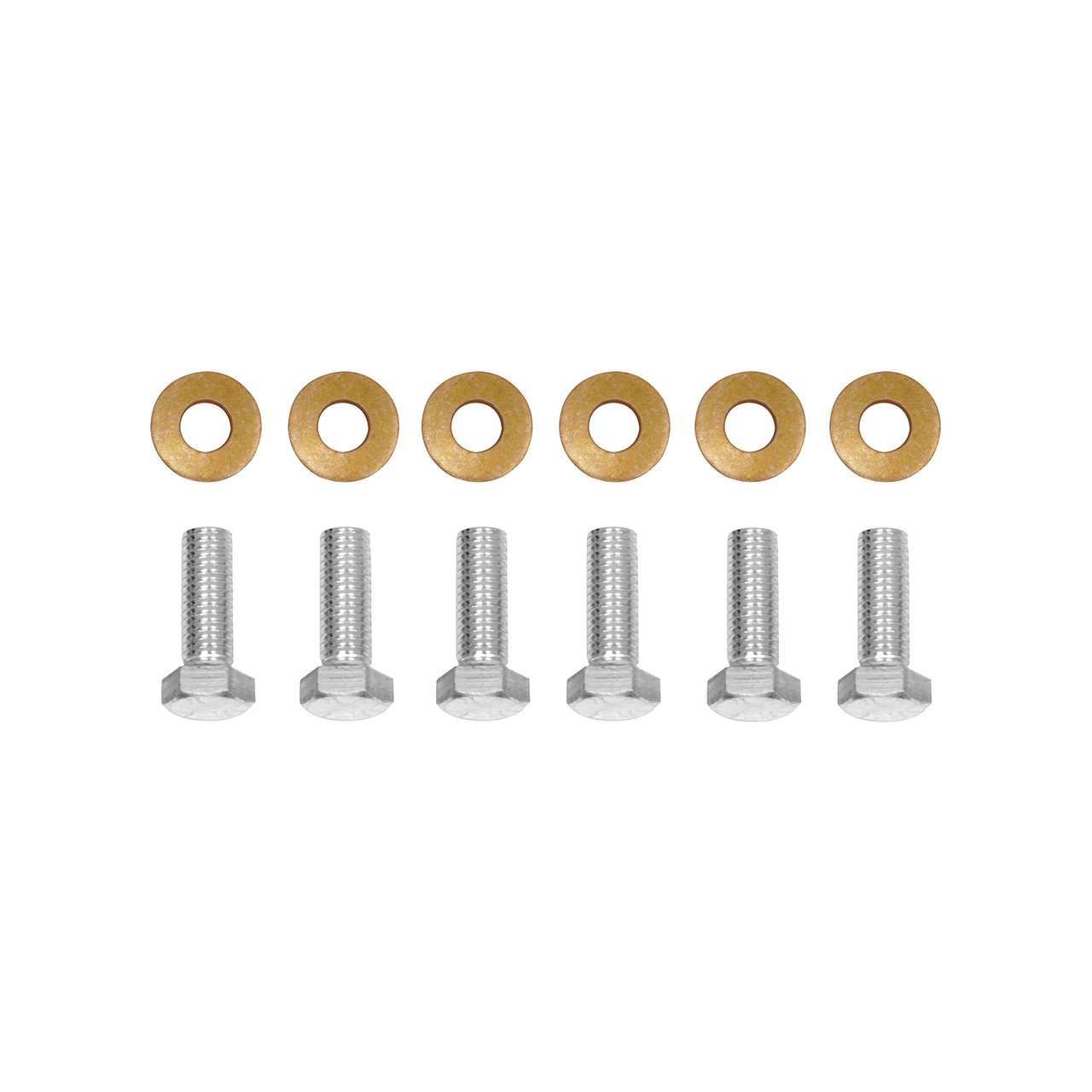

The fastener kit 75894F includes 6 hex bolts M12×1.25×35 CL8.8 and 6 conical washers 1/2 inch. These bolts attach the hitch to the existing weldnuts on the vehicle frame.
The appearance panel on the driver's side must be removed if present. It is held by plastic rivets and plastic screws. Use a small Phillips screwdriver to unscrew the plastic screws, then pull out the remaining plastic rivets. Return these parts to the vehicle owner after installation.
Yes. The exhaust must be lowered by removing the rubber isolators from the muffler hangers. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The hitch is then raised over the exhaust pipe and rotated into position. After installation, the exhaust hangers are reattached.
1. Remove the driver's side appearance panel if present. 2. Lower the exhaust by removing rubber isolators from muffler hangers. 3. Raise the hitch on the passenger side over the exhaust pipe and rotate it into position. 4. Loosely install all bolts. 5. Center the hitch on the vehicle, ensuring clearance with the exhaust. 6. Tighten all fasteners to the required torque specification. 7. Reattach the exhaust hangers.
All M12 CL8.8 fasteners must be tightened to 76 lb-ft (103 N·m) using a torque wrench.
Yes. If necessary, clean the threads on the existing weldnuts. Carefully run the M12 bolts into the weldnuts, or use a spiral wire brush to clean the threads before installation.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
No. The manual specifies that no drill bits are required. The hitch uses existing weldnuts on the Kia Sedona frame for attachment.
Both weight distributing and weight carrying configurations have the same maximum gross trailer weight (4000 lb / 1816 kg) and maximum tongue weight (400 lb / 182 kg). The manual does not provide further details on the functional differences between these types.
Yes, the 75894 is designed for the Kia Sedona. Confirm your model year with the manufacturer.
You need a small Phillips screwdriver, 19mm wrench, lubricant or soapy water, and a spiral wire brush. No drilling is required.
Tighten all M12 CL8.8 bolts to 76 lb-ft (103 N·m) with a torque wrench.
Maximum gross trailer weight is 4000 lb (1816 kg) and maximum tongue weight is 400 lb (182 kg), but do not exceed your vehicle manufacturer's rating.
Yes, remove the rubber isolators from the muffler hangers to lower the exhaust, then raise the hitch over the exhaust pipe and rotate it into position. Reattach the hangers after installation.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry. Wear eye protection and observe safety precautions when working beneath the vehicle.
Yes, the T-Connector is designed for the Kia Sorento. Your vehicle must have a factory tow-plug harness underneath the vehicle on the passenger's side frame rail near the rear tire. The manual does not specify which model years are compatible, so confirm with the manufacturer or your dealer if your vehicle has the factory tow-plug harness.
Yes, the T-Connector is designed for the Hyundai Veracruz. Your vehicle must have a factory tow-plug harness underneath the vehicle on the passenger's side frame near the rear tire. The manual does not specify which model years are compatible, so confirm with the manufacturer or your dealer if your vehicle has the factory tow-plug harness.
No. The T-Connector requires a factory tow-plug harness to function. It connects directly to the vehicle's existing tow-plug harness, which is located underneath the vehicle on the passenger's side frame rail near the rear tire. If your vehicle does not have this factory harness, the T-Connector cannot be installed.
Yes. On the Kia Sorento, you must lower the spare tire to gain access to the vehicle wiring. This is the first step in the installation process.
On the Hyundai Veracruz, the access hole is located inside the bumper support channel, above the passenger side exhaust. Route the T-Connector harness plugs through this hole to access the vehicle's tow-plug harness.
The required tools are: trim panel remover, wire cutters, 10 mm socket and ratchet or 10 mm wrench, Phillips head screwdriver, and test-probe.

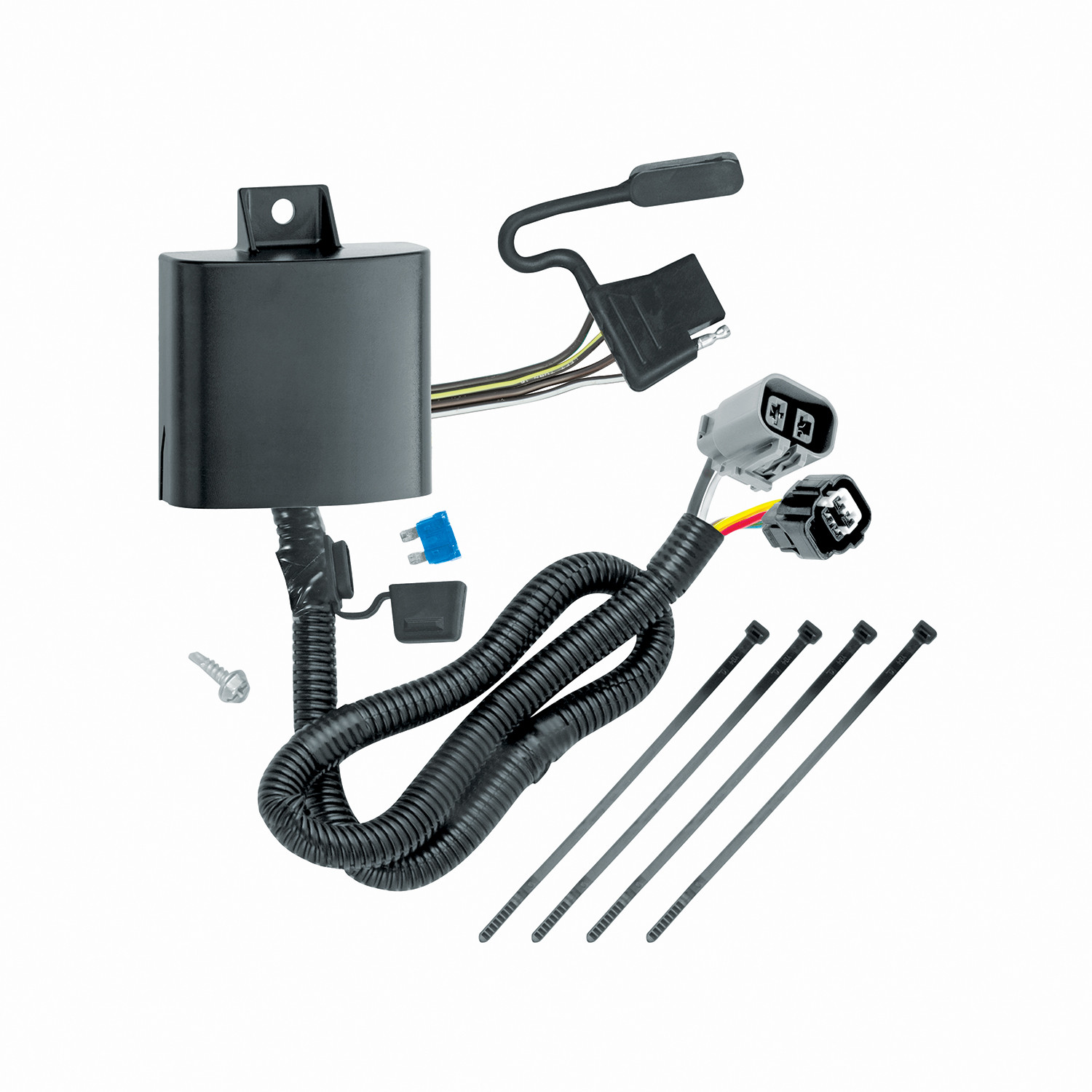

The package includes the T-Connector harness, a black box (control module), double-sided tape for mounting, and cable ties for securing loose wires. A bracket or electrical box for mounting the 4-Flat connector end is not included and must be sourced separately.
1. Locate the vehicle's tow-plug harness underneath the vehicle on the passenger's side frame rail near the rear tire. 2. Remove the protective cap carefully without breaking the locking tabs. 3. Ensure all connector surfaces are clean and free of dirt. 4. Insert the T-Connector harness into the vehicle's tow-plug harness and lock into place. 5. Verify that connectors are fully inserted with locking tabs in place. 6. Return the protective caps to the customer.
Route the T-Connector harness rearward to the back of the bumper fascia. Then route it along the inside of the bumper toward the center of the vehicle. Avoid routing near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle. Mount the 4-Flat end in an accessible location with a bracket or electrical box (not included). Avoid routing near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Mount the T-Connector black box using the double-sided tape provided onto the bottom of the bumper support channel. Secure all loose wires with the cable ties provided.
On some Kia Sorento vehicles, the vehicle wiring harness is located behind a protective cover on the driver's side frame rail. Remove the plastic trim fasteners securing the protective cover to access the vehicle's wiring harness.
1. Ensure all connections are complete. 2. Reset the vehicle electrical system by temporarily removing the key from the ignition. 3. Test and verify the installation with a test light or by connecting a trailer once installed.
Do not exceed the lower of your vehicle's towing manufacturer rating or: Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
Wear safety glasses during installation. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire. Remove protective caps carefully without breaking the locking tabs. Keep all connector surfaces clean and free of dirt. Read and follow all vehicle warnings and installation instructions before beginning.
All connector surfaces must be clean and free of dirt to ensure proper electrical connection and function of the T-Connector. Dirt or debris can prevent the connectors from seating fully and may cause electrical faults.
The T-Connector fits Kia Sorento and Hyundai Veracruz models equipped with a factory tow-plug harness. Confirm your vehicle has the factory harness before purchasing.
You need: trim panel remover, wire cutters, 10 mm socket and ratchet (or 10 mm wrench), Phillips head screwdriver, and test-probe.
Yes, you must lower the spare tire on a Kia Sorento to gain access to the vehicle wiring.
Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits, as overloading can cause fires.
