Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2023 Chrysler 300
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $335.00. Current price is $297.04.You save $37.96 (11%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Total for 4 items:
$134.54$137.05

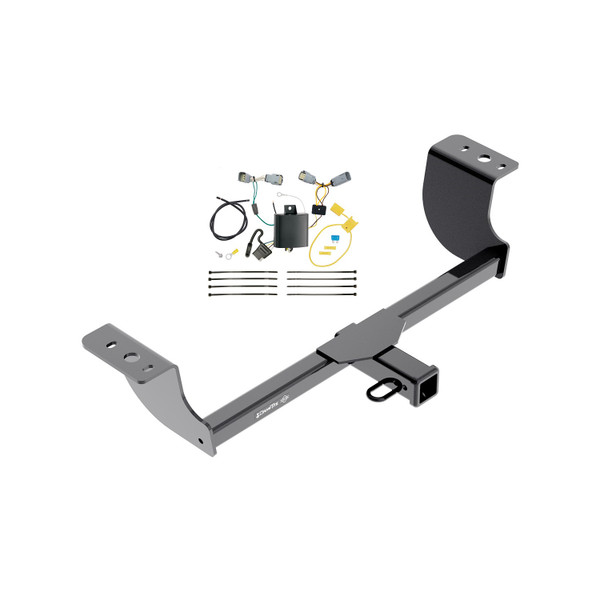

These durable custom hitches are manufactured for 2005-2023 Chrysler 300, 2008-2022 Dodge Challenger, 2006-2023 Dodge Charger, 2005-2008 Dodge Magnum and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2023 | Chrysler 300 | — |
Yes, the 2015-2023 Chrysler 300 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76145-118658) is designed to fit the 2015-2023 Chrysler 300.
The 2015-2023 Chrysler 300 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76145-118658) fits 2015-2023 Chrysler 300 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2015-2023 Chrysler 300 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76145-118658) fits the following vehicles: 2015-2023 Chrysler 300. Always verify your specific year, make, and model before ordering.
The 2015-2023 Chrysler 300 Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76145-118658) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 76145 fits 2008 and newer Dodge Challengers, except those with quad exhaust tips. Verify your vehicle does not have quad exhaust tips before purchasing.
Yes, part 76145 fits 2005 and newer Chrysler 300 models.
No. Part 76145 does not fit Dodge Challengers with quad exhaust tips. The hitch will interfere with the quad exhaust configuration.
No. Part 76145 is designed for 2005 and newer Chrysler 300 models. The 2004 model year is not supported.
Required tools: ratchet, torque wrench, safety glasses, sockets (8 mm, 10 mm, 13 mm, 15 mm, 18 mm, and 3/4 inch), socket extension, universal joint socket, flat-head screwdriver, and plastic trim tools.
For 2011 and newer models, the vehicle must be raised a minimum of 20 inches (measured from bottom of fascia to ground) to allow access to the frame rails and exhaust system.
Torque all ½ inch fasteners to 75 ft-lb (102 N·m). Torque the M12 bolt to 68 ft-lb (92 N·m). Proper torque is critical for safety when towing.
Part 76145 is a weight-carrying hitch with a maximum gross trailer weight of 4500 lb (2041 kg) and maximum tongue weight of 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
No drilling is required. The hitch uses existing weldnuts on the frame rails and existing exhaust hanger attachment points. The manual explicitly states: do not cut access or attachment holes with a torch.
Fascia removal is required only on vehicles with welded exhaust systems where the exhaust tips are riveted to the fascia. On vehicles with separable exhaust (pre-2011 and some 2011+), fascia removal is not necessary. Check your exhaust configuration before starting installation.
Fastener kit 76145F includes: (3) carriage bolts ½"-13 x 1.50 GR5, (3) spacers 1" x 3", (3) hex nuts ½", (4) conical tooth washers ½", (1) bolt M12 CL10.9, and (3) fish wires ½-13. All fasteners are included; no additional hardware is required.
Yes, part 76145 fits 2006 and newer Dodge Chargers.
Yes, part 76145 fits 2005-2008 Dodge Magnum models. Compatibility for 2009 and newer Magnums is not listed in the manual.
The manual does not list 2009 or newer Dodge Magnum models as compatible. Part 76145 is confirmed only for 2005-2008 Magnum models. Contact Cequent at 800-632-3290 or visit their website to verify compatibility for 2009 and newer years.
Pre-2011 vehicles with separable exhaust take approximately 30 minutes to install. 2011 and newer vehicles with welded exhaust assemblies and riveted exhaust tips (requiring fascia removal) take approximately 50 minutes. These times are averages for professional installers.
Muffler removal is required on 2011 and newer models. On pre-2011 models, the muffler is not removed; instead, the exhaust is lowered by removing the exhaust hangers. The hitch slides over the mufflers during installation.
Remove the exhaust hangers using a 13 mm socket. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal. On vehicles with dual exhaust, remove hangers from both sides. On 2011 and newer models, also remove rubber isolators from hangers on exhaust pipes forward of the trunk pan for additional clearance.
Fish wire (½-13) is used to route the ½ inch carriage bolts and spacers through the access holes in the driver and passenger side frame rails. The fish wire pulls the hardware through the existing holes in the frame. The manual shows kinking the fish wire to keep the spacer independent of the bolt.
Two (2) carriage bolts and spacers go through the passenger side frame rail access hole. One (1) carriage bolt and spacer go through the driver side frame rail access hole. Total: three bolts and three spacers.
The conical tooth washer (½ inch) is a locking washer with teeth on one side. Install it with the teeth side facing against the hitch. Four conical tooth washers are included in the fastener kit. They are used under the ½ inch fasteners and under the M12 bolt to prevent loosening during towing.
The spacers (1 inch x 3 inch) are used with the ½ inch carriage bolts to create proper spacing and alignment when fastening the hitch to the frame rails through the access holes. Three spacers are included in the fastener kit.
Run the M12 bolt into the existing weldnut to clean dirt or debris from the weldnut. This is done before raising the hitch into position. Perform this step on both pre-2011 and 2011+ installations.
1. Lower exhaust by removing exhaust hangers (13 mm socket). 2. Clean weldnut with M12 bolt. 3. Fish carriage bolts and spacers through frame rail access holes. 4. Raise hitch over mufflers and loosely install M12 bolt and conical tooth washer into weldnut. 5. Install ½ inch conical tooth washers and nuts. 6. Torque all ½ inch fasteners to 75 ft-lb (102 N·m) and M12 bolt to 68 ft-lb (92 N·m). 7. Reinstall exhaust hangers.
1. Remove plastic appearance panels (Chrysler 300/300C only). 2. Lower exhaust by removing hangers (13 mm socket). 3. Remove muffler (V8: save assembly bolts and springs; V6: save band clamp). 4. Clean weldnut with M12 bolt. 5. Fish carriage bolts and spacers through frame rail access holes. 6. Raise passenger side bracket over passenger muffler, support it, loosely install M12 bolt and conical tooth washer through bracket into driver side frame rail, push passenger muffler up and outward, install ½ inch conical tooth washers and nuts. 7. Torque all ½ inch fasteners to 75 ft-lb (102 N·m) and M12 bolt to 68 ft-lb (92 N·m). 8. Reinstall exhaust hangers. 9. Reinstall wiring and bumper fascia.
On 2011 and newer V8 models, remove and save the (2) assembly bolts and springs from the flange (nut and spring are attached). Carefully remove the muffler from the driver's side. These bolts and springs must be saved for reinstallation after the hitch is installed.
On 2011 and newer V6 models, remove and save the band clamp located just before the "Y" connection on the exhaust. Separate the exhaust pipes and remove the muffler. Carefully remove the muffler from the driver's side. The band clamp must be saved for reinstallation.
Plastic appearance panel removal is required only on Chrysler 300 and 300C models. The panels cover the trunk pan and must be removed to access the frame rails. After installation, return the panels and fasteners to the vehicle owner.
Remove plastic expansion fasteners holding the wheel well liner to the fascia (each side). Pull back the wheel well liner to access the hidden screw (10 mm socket) holding the upper fascia to the quarter panel (each side). Remove remaining screws and plastic expansion fasteners along the bottom of the fascia, including the 10 mm nuts holding the underbody panel to the trunk pan. Gently remove the fascia and unplug wiring. Set the bumper fascia aside.
Loosely install the M12 bolt and conical tooth washer before installing the ½ inch fasteners. This holds the hitch in position. Then install the ½ inch conical tooth washers and nuts. Finally, torque all fasteners to their specified values in the final step. Do not fully tighten fasteners until all are in place.
Torque the M12 bolt to 68 ft-lb (92 N·m). This is the final torque specification after all fasteners are installed.
Torque all ½ inch fasteners (carriage bolts and hex nuts) to 75 ft-lb (102 N·m). This includes the three ½ inch fasteners on the frame rails and the ½ inch conical tooth washers and nuts.
After installation, verify that all fasteners are tight and the hitch is securely mounted to the vehicle. Check the hitch frequently during use to ensure all fasteners and the ball remain properly tightened. Proper torque is critical for safety when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents corrosion and damage to the vehicle interior.
The maximum tongue weight is 675 lb (306 kg). Do not exceed this limit or the lower of your vehicle manufacturer's towing rating.
If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering until the sway subsides.
Load the trailer heavier in front. This means the weight should be distributed so that the front of the trailer (near the tongue) is heavier than the rear. This improves stability and handling when towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks during use to ensure safety when towing.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact Cequent at 800-632-3290 for replacement parts.
Run the M12 bolt into the existing weldnut to clean dirt or debris from the weldnut before raising the hitch into position. This ensures a clean connection and proper torque application.
Spray a lubricant or soapy water on the metal hanger rod and the rubber isolator to ease removal. Allow the lubricant to soak for a few minutes before attempting to remove the hanger again.
Gently push the passenger side muffler up and outward for clearance. If additional clearance is needed, remove the rubber isolators from the exhaust hangers on the exhaust pipes forward of the trunk pan. This provides additional space to position the hitch bracket.
The T-Connector is a trailer wiring adapter for the Chrysler 300 that allows you to connect a trailer to your vehicle's electrical system. It interfaces with your vehicle's taillight wiring harness and provides a connection point for trailer lights. The product includes a black box module, wiring harness with color-coded connectors (green, yellow, and white wires), a 4-flat connector for storage in the trunk when not in use, and all necessary hardware for installation.
Yes, this T-Connector is designed for the Chrysler 300. The installation instructions are specific to this vehicle model. If you have a different vehicle model or year, you should verify compatibility before purchasing, as the manual does not address other applications.
If your vehicle has an optional subwoofer unit on the passenger side, the cargo clip will not be present and the access panel will not be accessible unless you remove the subwoofer unit first. To remove it, use a Torx 30 driver to remove the one bolt holding the subwoofer unit in place. After removal, you can proceed with the T-Connector installation.
You will need: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, test probe, and Torx-15 driver. You will also need a Torx 30 driver if your vehicle has an optional subwoofer unit that needs to be removed.
The T-Connector package includes: a black box module, T-Connector harness with color-coded wires (green, yellow, and white), a 4-flat connector for storage, cable ties, double-sided tape, yellow butt connectors, a yellow fuse holder with a 15 amp fuse, a ring terminal, an eyelet, and a screw for grounding. All fasteners and connectors needed for installation are provided.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wiring to the positive (+) battery terminal. After you have completed the power connections and installed the 15 amp fuse, you reconnect the negative battery cable. This is a critical safety step to prevent electrical shock and short circuits.
The battery is located inside the vehicle's trunk. You will access it from inside the trunk when connecting the black 12 gauge wire and the black wire from the T-Connector black box.
1. Open trunk and remove threshold panel; partially remove corner felt trunk liner on both sides to expose taillight wiring harness. Remove two Torx-25 screws and cargo loops. 2. Separate vehicle's wiring connectors on passenger side and attach T-Connector with green wire. 3. Route yellow wire connector down threshold to driver side and repeat connection. 4. Drill 3/32" hole for grounding point on driver's side and secure white wire with eyelet. 5. Connect black 12 gauge wire and black T-Connector wire to battery with yellow butt connector. 6. Disconnect negative battery cable, remove fuse from yellow fuse holder, cut fuse holder wire, attach ring terminal to positive battery cable, and connect fuse holder to black 12 gauge wire. 7. Reconnect negative battery cable and install 15 amp fuse. 8. Mount black box under trunk threshold with double-sided tape. 9. Secure harness with cable ties. 10. Replace carpet and panels.
Beginning on the passenger side, separate the vehicle's wiring connectors carefully without breaking the locking tabs. You will find connection points that match the ends of the T-Connector adapter. Ensure all connector surfaces are clean and free of dirt. Attach each end to the T-Connector containing the green wire, making sure connectors are fully inserted with locking tabs in place. Then route the connector containing the yellow wire down the threshold to the driver side and repeat the connection process.
Yes, drilling is required. You must drill a 3/32" hole on the driver's side near the connectors to create a grounding point for the white wire. The white wire is then secured to this hole using an eyelet and the screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury, and do not drill into any exposed surfaces.
You need a 3/32" drill bit to create the grounding hole on the driver's side near the connectors.
The T-Connector uses a 15 amp fuse. This fuse is installed in the yellow fuse holder that is provided with the product and must be installed in step 7 after all other connections are complete.
The T-Connector uses a black 12 gauge (12 ga.) wire for the battery connection. This wire connects from the vehicle's battery to the black wire from the T-Connector black box using a yellow butt connector.
The T-Connector harness uses color-coded wires: green wire connects to the passenger-side taillight connector, yellow wire connects to the driver-side taillight connector, white wire is the ground connection (secured with an eyelet to a drilled hole on the driver's side), and black wires connect to the vehicle's battery (12 gauge wire from the battery and black wire from the T-Connector black box).
From inside the trunk, connect the black 12 gauge wire and the black wire from the T-Connector black box to the vehicle's battery using the supplied yellow butt connector. Then disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder (if not already removed), cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector. Finally, reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
Mount the T-Connector black box near the center of the vehicle, below the trunk threshold. First, clean a flat area using a mixture of rubbing alcohol and water, then mount the black box using the double-sided tape provided.
Route the T-Connector harness carefully through the vehicle, pushing wiring between the vehicle body and carpet where applicable. Secure the remainder of the harness with the cable ties provided, being careful to avoid any areas that would pinch, cut, or melt the wire. Ensure wires are not pinched or cut when replacing carpet and other panels.
Always wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into exposed surfaces. Read and follow all warnings and cautions printed on the tow vehicle's battery. Disconnect the negative battery cable before making power connections. Do not exceed the stated product ratings or the towing manufacturer rating, as overloading circuits can cause fires.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. This ensures all connections are working correctly before using the T-Connector with a trailer.
Store the 4-flat connector in the trunk area when the T-Connector is not in use. This protects the connector from damage and keeps it readily accessible for when you need to connect a trailer.
The manual does not specify the maximum amperage rating for the T-Connector itself. However, the product uses a 15 amp fuse, and you must not exceed the lower of either the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Refer to the product labeling and your vehicle's owner's manual for the exact amperage rating.
Yes, the T-Connector is designed specifically for the Chrysler 300. If you have an optional subwoofer unit on the passenger side, you will need to remove it first to access the installation area.
The T-Connector uses a 15 amp fuse installed in the yellow fuse holder provided with the product.
Do not exceed the stated product ratings or the towing manufacturer's rating, as overloading circuits can cause fires. Always wear safety glasses during installation and verify what is behind any surface before drilling.
All connections must be complete for the T-Connector to function properly. Verify that: 1) both taillight connectors (green and yellow wires) are fully inserted with locking tabs in place, 2) the white ground wire is securely fastened with the eyelet to the drilled hole, 3) the black 12 gauge wire and black T-Connector wire are connected to the battery with the yellow butt connector, 4) the ring terminal is securely attached to the positive battery cable, 5) the fuse holder is properly connected to the black 12 gauge wire, and 6) the 15 amp fuse is installed in the fuse holder. After verifying all connections, reset the vehicle's electrical system by temporarily removing the key from the ignition, then test with a test light or trailer.
