These durable custom hitches are manufactured for 2016-2018 Buick Envision and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

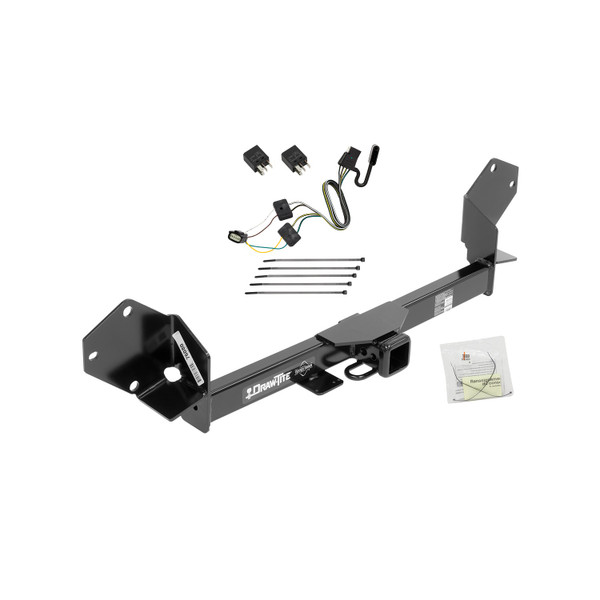

Call 888-634-9494The 2016-2018 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76080-118725) fits 2016-2018 Buick Envision models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2016-2018 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76080-118725) is designed to fit the 2016-2018 Buick Envision.
The 2016-2018 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76080-118725) fits the following vehicles: 2016-2018 Buick Envision. Always verify your specific year, make, and model before ordering.
The 2016-2018 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76080-118725) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 76080 is designed for 2016-current Buick Envision models. However, the manual recommends visiting the Cequent website for the most up-to-date information regarding specific application years and trim levels, as fitment may vary.
The 76080 is a weight-carrying hitch with a maximum gross trailer weight of 4500 lb. (2043 kg) and maximum tongue weight of 675 lb. (306 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: ratchet, torque wrench, safety glasses, sockets (7mm, 15mm, 18mm), T15 and T25 Torx bits, 6-inch socket extension, flat-head screwdriver, tin snips, and plastic trim tools. A torque wrench is essential to achieve the required 38 Lb.-Ft. (52 N·M) fastener torque.
Yes. Installation requires removal of the bumper fascia, taillights, and bumper beam to access the hitch mounting points on the vehicle end panel. The bumper beam is removed by taking out 4 nuts on each side with a 15mm socket. The fascia is then reinstalled in reverse order after the hitch is mounted.
Yes. When pulling off the vehicle bumper fascia, you must disconnect/unplug the electric connector on the passenger side before setting the fascia aside.
The hitch is mounted using existing nuts that are re-used. The hitch is sandwiched between the bumper beam and the vehicle end panel, with the hitch holes aligned to the studs on the end panel. All hitch fasteners must be tightened to 38 Lb.-Ft. (52 N·M) using a torque wrench.
All hitch fasteners must be tightened to 38 Lb.-Ft. (52 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Three (3) screws exposed at the wheel well liner must be removed using a T15 Torx bit. This must be done on both sides of the vehicle.
Two (2) screws are located in the middle underside area of the fascia. These must be removed using a T15 Torx bit on both sides of the vehicle.
A 7mm socket is required to remove the one screw exposed when the body trim piece at the upper wheel well is gently pried off. Plastic body panel removal tools are suggested to ease removal.
Two (2) Phillips screws are located on the fascia inside the liftgate, one on each side, and must be removed.
Two (2) T15 screws are on each taillight, for a total of 4 screws (2 per side). The screw covers must be pried off to expose them.
Four (4) nuts are on each side of the bumper beam, for a total of 8 nuts. Each is removed using a 15mm socket.
You may need to use provided cable ties to attach the fascia to 2 bottom attachments. The manual states this may be necessary, so check fit during reinstallation.
Yes. The vehicle fascia has a removable panel for hitch usage. This panel may be replaced when the hitch is not in use, allowing you to cover the hitch opening.
If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do NOT apply your brakes and do NOT speed up.
Load the trailer heavier in front. This helps with stability and proper weight distribution on the hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to your vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, the 76080 is designed for 2016-current Buick Envision. Check the Cequent website for the most current application information.
Maximum 4500 lb. gross trailer weight and 675 lb. tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. You must remove the bumper fascia, taillights, and bumper beam to access the mounting points.
Ratchet, torque wrench, safety glasses, sockets (7mm, 15mm, 18mm), T15 and T25 Torx bits, 6-inch socket extension, flat-head screwdriver, tin snips, and plastic trim tools.
All hitch fasteners must be tightened to 38 Lb.-Ft. (52 N·M) using a torque wrench.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Yes, the T-One® T-Connector (part 118725-037) is designed for the Buick Envision. The trailer harness connector is located under the vehicle, behind the rear bumper, on the driver's side.

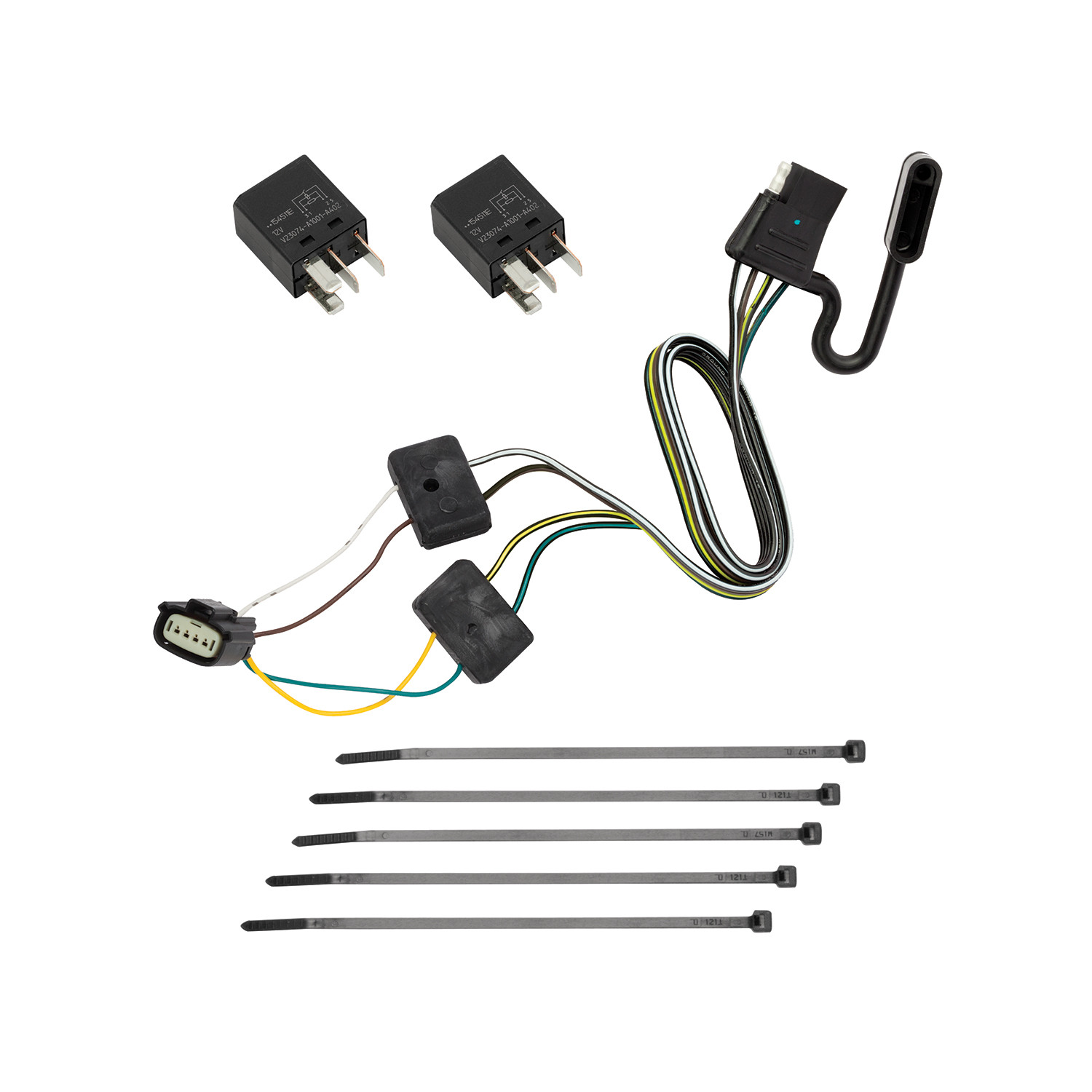

The kit includes a 4-Pin Tow-Plug Adapter, relays with a specific terminal layout (BCD kit), cable ties, and the T-Connector harness with a 4-Flat end. A bracket or electrical box to mount the 4-Flat end is not included and must be purchased separately.
Two tools are required: a Trim Panel Puller and a Test-probe. The Trim Panel Puller is used to access the connector location, and the Test-probe is used to verify the installation.
The trailer harness connector is located under the vehicle, behind the rear bumper, on the driver's side of the vehicle.
Remove the protective cap from the connector and check that the mating surfaces of the connectors are free of dirt. Clean the surfaces if necessary before inserting the adapter.
Secure the remainder of the harness with the cable ties provided. Route the harness carefully to avoid any areas that would pinch, cut, or melt the wire. This prevents damage and rattling.
Mount the 4-Flat end in an accessible location using a bracket or electrical box. The bracket or electrical box is not included with the kit and must be purchased separately.
Open the rear hatch and locate the storage compartment on the driver's side of the cargo area. Insert the relays as shown in the installation diagram.
Always wear safety glasses during installation. Follow all safety precautions and warnings included with the product. Read and understand all warnings and instructions printed on the tow vehicle's battery before beginning work.
Do not exceed the lower of two ratings: the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product itself. Overloading circuits can cause fires.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® T-Connector to function properly.
No. Only replace relays with the same terminal layout as the relays included with the kit (BCD). Using relays with a different terminal layout will prevent the T-One® T-Connector from functioning properly.
Yes. Remove the protective cap from the connector before inserting the 4-Pin Tow-Plug Adapter. Check that the mating surfaces are clean before proceeding.
Ensure that the connectors are fully inserted with locking tabs in place. The adapter should be locked into position before proceeding with the rest of the installation.
Yes, the T-One® T-Connector (118725-037) is designed for the Buick Envision. The trailer harness connector is located under the vehicle behind the rear bumper on the driver's side.
You need a Trim Panel Puller and a Test-probe. A bracket or electrical box to mount the 4-Flat end must be purchased separately.
Do not exceed the stated product amperage ratings or the lower of the towing manufacturer rating in your vehicle owner's manual. Overloading circuits can cause fires.
Test with a test light or trailer after installation. Reset the vehicle electrical system by temporarily removing the ignition key for the initial test. All connections must be complete for proper function.
Open the rear hatch and locate the storage compartment on the driver's side of the cargo area. Insert the relays as shown in the diagram.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2018 | Buick Envision | — |
