These durable custom hitches are manufactured for 2019-2020 Buick Envision and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2020 | Buick Envision | — |

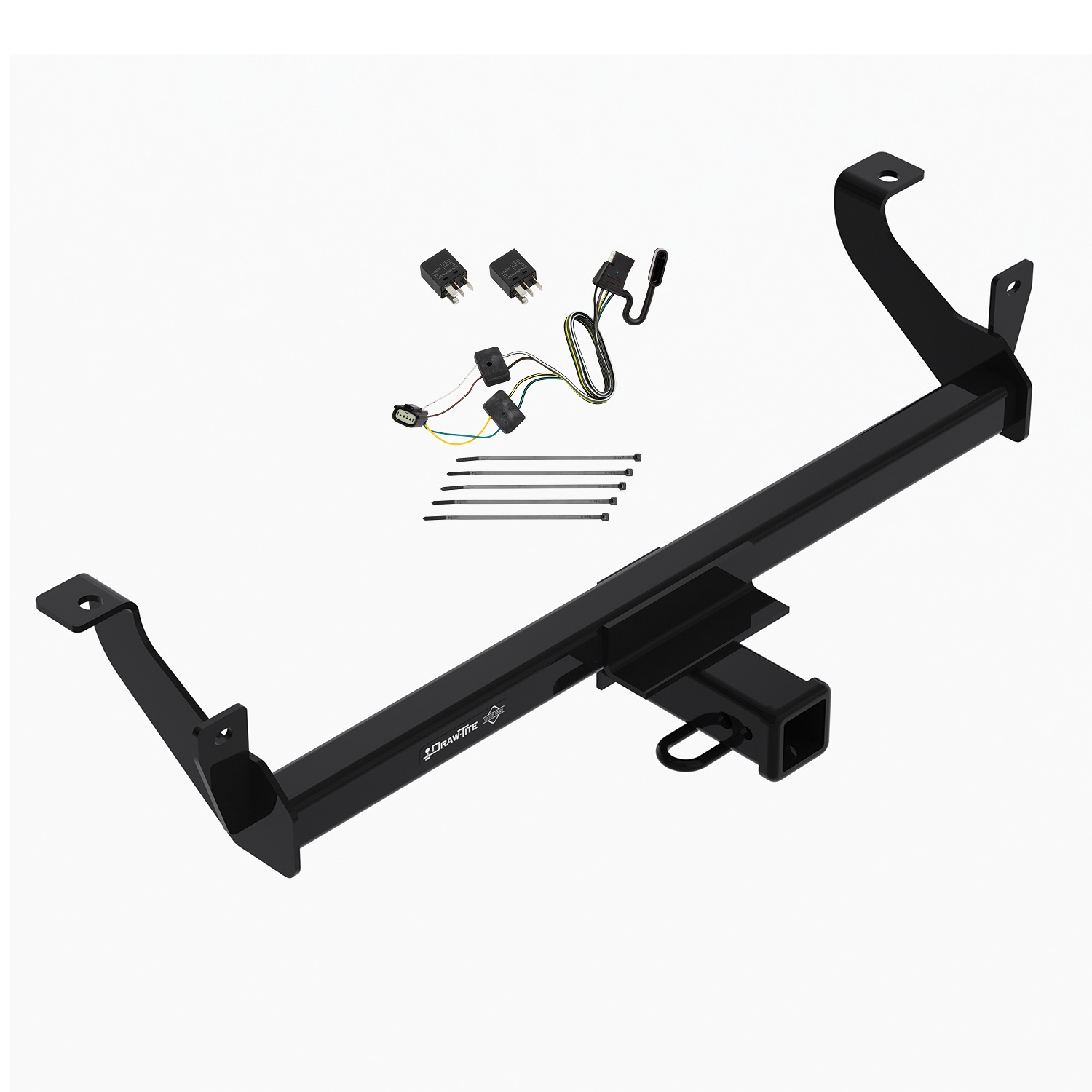

Yes, the 2019-2020 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76300-118725) is designed to fit the 2019-2020 Buick Envision.
The 2019-2020 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76300-118725) fits 2019-2020 Buick Envision models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2019-2020 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76300-118725) fits the following vehicles: 2019-2020 Buick Envision. Always verify your specific year, make, and model before ordering.
The 2019-2020 Buick Envision Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76300-118725) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76300, 84300, and CQT76300 are designed for 2019-Current Buick Envision models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 4500 lb (2042 kg) and the maximum tongue weight is 675 lb (306 kg). However, do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, safety glasses, 1/2" drive sockets (15 mm, 11/16", and 8" socket extension), torque wrench, T15 torxbit socket, and crows foot. A 15 mm deep well socket is also needed to remove the existing M10 nut-washer assembly.
The fastener kit (76300F) includes: (2) carriage bolts 7/16-14 X 1.50 GR5, (2) spacer blocks 1/4 X 7/8 X 3.00 (part no. HE-2370-000), (2) conical washers 7/16 (part no. 01292007), (2) hex nuts 7/16-14, and (2) pull wires 7/16 (part no. 5481).
Yes. You must remove (2) fascia screws from the bottom edge using a T15 torxbit socket and keep them for reinstallation. The fascia is then gently pulled down during hitch installation and the screws are reinstalled after the hitch is secured.
Yes. Using a 15 mm deep well socket, remove (2) M10 nut-washer assemblies (1 per side) from the bottom of the bumper beam attachment before installing the hitch. These are reinstalled after the hitch is positioned.
1. Remove fascia screws using T15 torxbit socket. 2. Remove existing M10 nut-washer assemblies using 15 mm deep well socket. 3. Attach carriage bolts and spacer blocks to pull wires and feed through frame access holes. 4. Position hitch by pulling fascia down and raising hitch while guiding pull wires through bracket mounting holes and pushing hitch onto existing vehicle studs. 5. Install conical washers and hex nuts loosely, then install M10 nut-washer assemblies. 6. Torque all fasteners. 7. Reinstall fascia screws.
Attach the 7/16" carriage bolt and 1/4" spacer block to the coiled end of each pull wire. Feed the other end through the second (middle) access hole and bring it out through the rearmost hole in the bottom of the frame. Pull the fasteners inside the vehicle frame on both sides. Keep spacer blocks and bolts inside the frame to prevent interference. After positioning the hitch, use the pull wires to pull the carriage bolts and spacer blocks into position, then remove the pull wires.
Bend or kink the pull wire where it attaches to the carriage bolt and spacer block assembly. This keeps the spacer block separated from the bolt during installation, preventing them from becoming tangled or misaligned as you pull them through the frame.
Tighten all M10 fasteners to 38 lb-ft (52 N-m) using a torque wrench.
Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N-m) using a torque wrench. On the driver side, use a socket extension and crows foot to tighten the 7/16 nut.
The crows foot is used with a socket extension to reach and tighten the 7/16 hex nut on the driver side, where space or angle constraints prevent direct socket access. This tool allows proper torque application to the fastener.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Check all fasteners periodically to ensure they are tight and the hitch is securely mounted to your vehicle. The manual emphasizes checking the hitch frequently to ensure all fasteners and the ball are properly tightened.
Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
Yes, part numbers 76300, 84300, and CQT76300 fit 2019-Current Buick Envision models. Check the manufacturer's website for specific trim level compatibility.
Maximum gross trailer weight is 4500 lb (2042 kg) and maximum tongue weight is 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, safety glasses, 1/2" drive sockets (15 mm, 11/16", 8" extension), torque wrench, T15 torxbit socket, and crows foot.
Yes. Remove (2) fascia screws from the bottom edge using a T15 torxbit socket, and remove (2) M10 nut-washer assemblies from the bumper beam attachment using a 15 mm deep well socket. Keep these for reinstallation.
Tighten M10 fasteners to 38 lb-ft (52 N-m) and 7/16-14 GR5 fasteners to 50 lb-ft (68 N-m) using a torque wrench.
Always wear safety glasses during installation. Do not cut access holes with a torch. Observe safety precautions when working beneath the vehicle. If the hitch is removed, plug all holes to prevent water and exhaust fume entry.
Check frequently that all fasteners and the ball are properly tightened. Proper torque is essential to keep the hitch secure when towing.
Yes, the T-One® T-Connector (part 118725-037) is designed for the Buick Envision. The trailer harness connector is located under the vehicle, behind the rear bumper, on the driver's side.
The kit includes a 4-Pin Tow-Plug Adapter, relays with a specific terminal layout (BCD kit), cable ties, and the T-Connector harness with a 4-Flat end. A bracket or electrical box to mount the 4-Flat end is not included and must be purchased separately.
Two tools are required: a Trim Panel Puller and a Test-probe. The Trim Panel Puller is used to access the connector location, and the Test-probe is used to verify the installation.
The trailer harness connector is located under the vehicle, behind the rear bumper, on the driver's side of the vehicle.
Remove the protective cap from the connector and check that the mating surfaces of the connectors are free of dirt. Clean the surfaces if necessary before inserting the adapter.
Secure the remainder of the harness with the cable ties provided. Route the harness carefully to avoid any areas that would pinch, cut, or melt the wire. This prevents damage and rattling.
Mount the 4-Flat end in an accessible location using a bracket or electrical box. The bracket or electrical box is not included with the kit and must be purchased separately.
Open the rear hatch and locate the storage compartment on the driver's side of the cargo area. Insert the relays as shown in the installation diagram.
Always wear safety glasses during installation. Follow all safety precautions and warnings included with the product. Read and understand all warnings and instructions printed on the tow vehicle's battery before beginning work.
Do not exceed the lower of two ratings: the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product itself. Overloading circuits can cause fires.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® T-Connector to function properly.
No. Only replace relays with the same terminal layout as the relays included with the kit (BCD). Using relays with a different terminal layout will prevent the T-One® T-Connector from functioning properly.
Yes. Remove the protective cap from the connector before inserting the 4-Pin Tow-Plug Adapter. Check that the mating surfaces are clean before proceeding.
Ensure that the connectors are fully inserted with locking tabs in place. The adapter should be locked into position before proceeding with the rest of the installation.
Yes, the T-One® T-Connector (118725-037) is designed for the Buick Envision. The trailer harness connector is located under the vehicle behind the rear bumper on the driver's side.
You need a Trim Panel Puller and a Test-probe. A bracket or electrical box to mount the 4-Flat end must be purchased separately.
Do not exceed the stated product amperage ratings or the lower of the towing manufacturer rating in your vehicle owner's manual. Overloading circuits can cause fires.
Test with a test light or trailer after installation. Reset the vehicle electrical system by temporarily removing the ignition key for the initial test. All connections must be complete for proper function.
Open the rear hatch and locate the storage compartment on the driver's side of the cargo area. Insert the relays as shown in the diagram.
