These dependable custom hitches are manufactured for 2020-2022 Toyota Corolla and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 2000 | Toyota Corolla | Sedan |

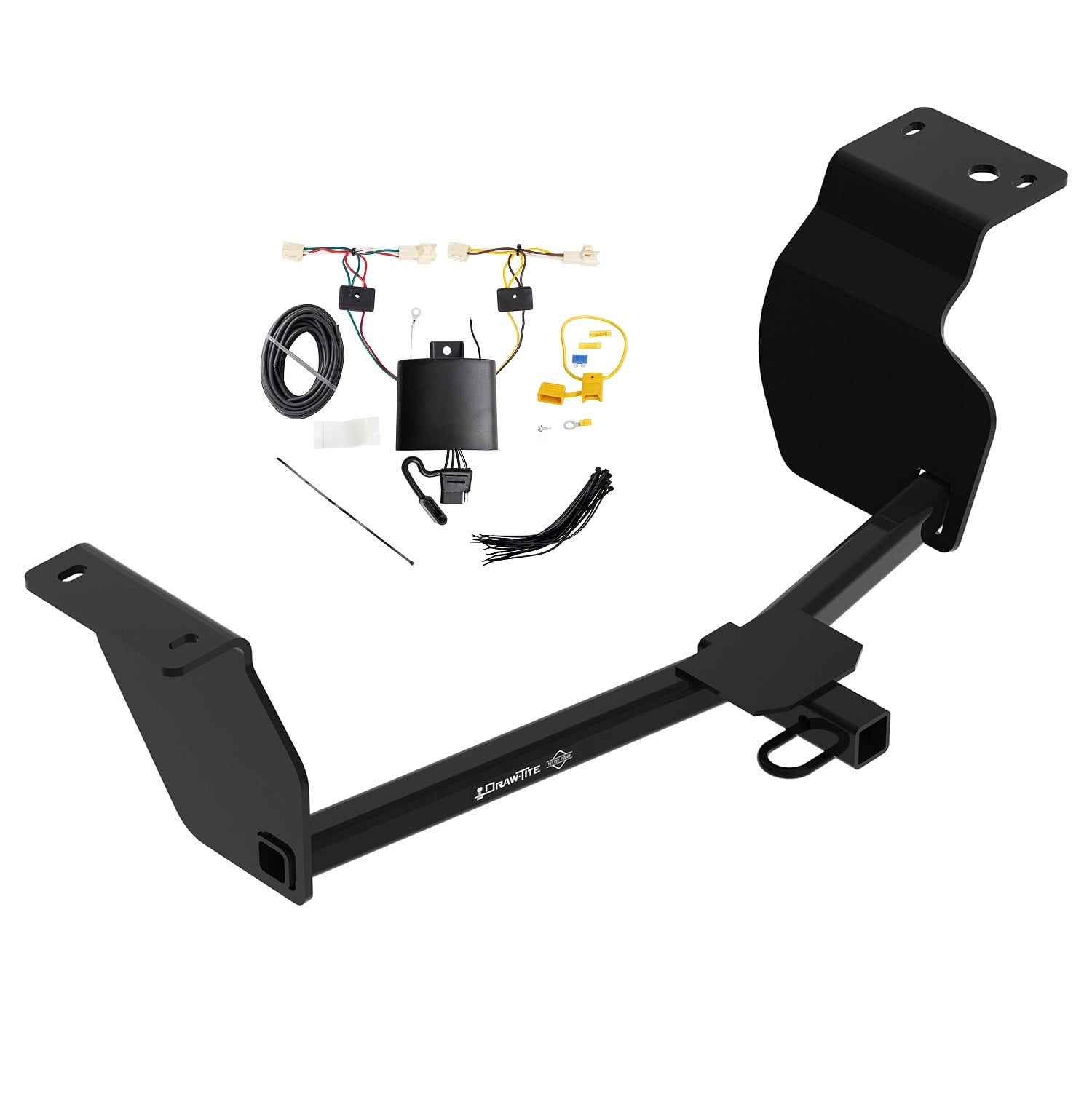

Yes, the 2020-2023 Toyota Corolla SedanDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24983-118810) is designed to fit the 1988-2000 Toyota Corolla.
The 2020-2023 Toyota Corolla SedanDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24983-118810) fits the following vehicles: 1988-2000 Toyota Corolla. Always verify your specific year, make, and model before ordering.
The 2020-2023 Toyota Corolla SedanDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24983-118810) fits 1988-2000 Toyota Corolla models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2023 Toyota Corolla SedanDraw-Tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24983-118810) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, hitch 24983 fits 2020–Current Toyota Corolla models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Fastener kit 24983N includes: 4× carriage bolts 7/16"-14 × 1.50 GR5, 4× spacers (.250 × .875 × 3.00, P/N HE-2370-000), 4× conical washers 7/16" (P/N 01292007), 4× hex nuts 7/16"-14 GR2, and 4× fish wires 7/16" (P/N 5481).
Required tools: ratchet, torque wrench, safety glasses, 13/16" socket, 10mm socket, socket extension, 1" holesaw drill, exhaust removal pliers, tin snips, marker, scraper, and tape measure.
Yes. You must remove the 3 rearmost rubber exhaust hangers to lower the exhaust. Be sure to support the exhaust to avoid damage. After installation, reinstall the 3 exhaust hangers to return the exhaust to its original position.
Yes. You must drill a 1" access/attachment hole in the frame using a 1" holesaw. Do not use a torch to cut this hole. The drilling location is marked by aligning the rearmost hole in the hitch bracket with the rear attachment hole in the frame rail.
Yes. You must trim the heat shield in the area where the hitch contacts the frame rail. The trim area is approximately 7" × 3" (see Figure 2). First, remove the heat shield nuts using a 10mm socket, then trim it, and reinstall it after hitch installation.
All fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Install conical washers with the teeth side facing toward the hitch. This is critical for proper fastener seating and load distribution.
The fish wire technique (shown in Figures 3 and 4) is used to route fasteners through the frame rail access hole. First, use the forward fish wire technique to install the rearmost fastener through the drilled access hole on each side, then use the reverse fish wire technique to install the forward fastener on each side. Leave fish wires attached until the hitch is positioned and ready for final assembly.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Support the exhaust properly when lowering it to avoid damage. Do not use a torch to cut access or attachment holes. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check that all fasteners and the ball are properly tightened. Check the hitch frequently to ensure all fasteners remain tight during use. If the hitch is damaged, it must be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain secure mounting during towing.
No. Hitch 24983 is a weight-carrying hitch only. Weight-distributing capability is not available for this model (marked as 'X' in the specifications table).
The authorized drawbar is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability during towing.
Yes, hitch 24983 is designed for 2020–Current Toyota Corolla. Check the Horizon Global website for specific trim level compatibility.
Maximum 2000 lb gross trailer weight and 200 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Ratchet, torque wrench, safety glasses, 13/16" and 10mm sockets, 1" holesaw, exhaust pliers, tin snips, marker, scraper, and tape measure.
Yes. Trim the heat shield in the area where the hitch contacts the frame (approximately 7" × 3"). Remove it first using a 10mm socket, trim, and reinstall.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Check all fasteners and retighten them to 50 Lb.-Ft. (68 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners remain properly tightened during use. Loose fasteners can compromise hitch security and safety.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair or weld a damaged hitch receiver, as the manual explicitly states 'DO NOT cut, weld or modify this receiver.' Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for replacement options.

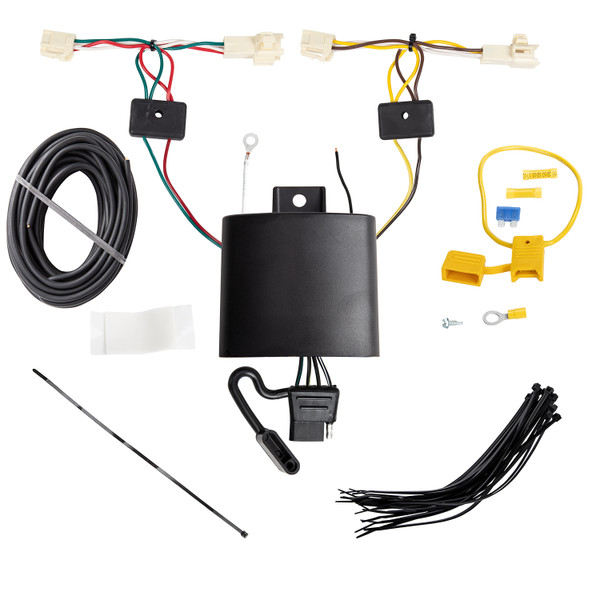

The T-One® Connector is a T-connector that integrates into your vehicle's taillight wiring harness to provide a connection point for trailer lighting. It uses a black box-module mounted in the trunk and connects to both the driver and passenger side taillight wiring, with a dedicated 12 ga. power wire routed to the vehicle battery through a 15 amp fuse.
The manual shows installation on a Toyota Corolla Sedan. The manual does not list other compatible vehicles, years, cab styles, or drivetrains. Contact the manufacturer or check the product fitment database to confirm compatibility with your specific vehicle.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test-probe.
The kit includes: a black 12 ga. power wire, a yellow fuse holder with a 15 amp fuse, a yellow butt connector, a screw eyelet for the ground connection, cable ties, and the T-One® Connector ends with yellow and green wires. A 4-flat connector is also provided and should be stored in the trunk when not in use.
Yes. Step 7 requires you to disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive (+) battery cable. The negative cable is reconnected in Step 8 after the 15 amp fuse is installed in the fuse holder.
Open the trunk, temporarily remove the rear threshold plate, and partially remove the felt trunk liner behind the taillights to access the taillight wiring harness on both sides.
On the driver's side, locate the taillight wiring harness connector and separate it carefully without breaking the locking tabs. Ensure all connector surfaces are clean. Insert the T-One® Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring locking tabs are fully engaged. Route the T-One® Connector end with the green wire to the passenger's side behind the panels and along the threshold, then plug it between the mating plugs on the passenger's side taillight socket and vehicle wiring harness.
On the driver's side, locate the existing ground stud. Loosen the bolt, place the screw eyelet (provided) on the stud, and re-tighten the bolt. Ensure all other ground connections are secure when removing and reattaching the ground stud.
On the driver's side, locate the black 12 ga. power wire from the T-Connector box. Route the black wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the vehicle exterior, carefully avoid hot pipes, heat shields, the fuel tank, or other points that may pinch or break the wire.
Disconnect the vehicle's negative (−) battery cable. If not already removed, remove the fuse from the yellow fuse holder. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector (provided). Reconnect the vehicle's negative (−) battery cable and install the 15 amp fuse into the fuse holder.
The T-One® Connector uses a 15 amp fuse, installed in the yellow fuse holder provided with the kit.
Mount the black box-module on a flat surface in an out-of-the-way place in the trunk to prevent damage or rattling.
Secure the remainder of the T-One® T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. Replace the carpet and any other clips or panels that were removed during installation, being careful not to cut or pinch the wires.
All connections must be complete for the T-One® Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The kit includes a 15 amp fuse. Overloading circuits can cause fires.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Ensure all ground connections are secure when removing and reattaching the ground stud. Avoid routing the power wire through hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Yes. Store the 4-flat connector in the trunk area when not in use.
The manual confirms installation on a Toyota Corolla Sedan. For other vehicles, check the product fitment database or contact the manufacturer.
Trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, and test-probe.
Yes, disconnect the negative battery cable before connecting the fuse holder to the positive battery terminal. Reconnect after the 15 amp fuse is installed.
15 amp fuse, provided in the yellow fuse holder.
The manual lists a drill with 3/32" bit in the required tools, but does not specify where drilling is required. Refer to the installation steps or contact the manufacturer for clarification.
Do not exceed the lower of the towing manufacturer rating or the specific amperage ratings stated on the product. The kit uses a 15 amp fuse.
