These durable custom hitches are manufactured for 2021-2023 Nissan Rogue and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

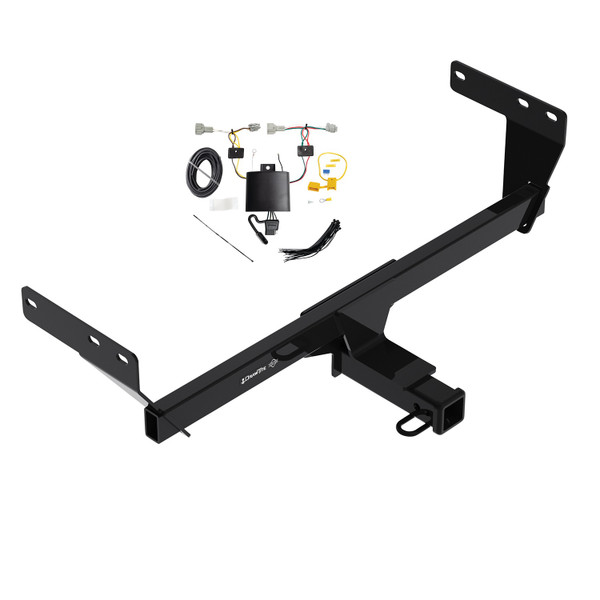

Call 888-634-9494The 2021-2024 Nissan Rogue Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76396-118833) fits 2021-2024 Nissan Rogue models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2021-2024 Nissan Rogue Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76396-118833) fits the following vehicles: 2021-2024 Nissan Rogue. Always verify your specific year, make, and model before ordering.
Yes, the 2021-2024 Nissan Rogue Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76396-118833) is designed to fit the 2021-2024 Nissan Rogue.
The 2021-2024 Nissan Rogue Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76396-118833) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76396, 84396, and CQT76396 are designed for 2021-Current Nissan Rogue models. However, visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, as fitment may vary.
The maximum gross trailer weight is 3500 lb. (1588 kg) and the maximum tongue weight is 525 lb. (238 kg). However, do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
No. This is a weight-carrying hitch only. Weight-distributing capability is listed as N/A in the product specifications.
2021-Current Nissan Rogue. Check www.horizonglobal.com for the most current trim level and year information.
Maximum 3500 lb. gross trailer weight and 525 lb. tongue weight, but do not exceed your vehicle manufacturer's rating.
You will need a ratchet, torque wrench, safety glasses, 19 mm sockets, and an M12x1.25 tap to clean the weldnuts. The manual recommends professional installation if you are not comfortable performing the work yourself.
Ratchet, torque wrench, safety glasses, 19 mm sockets, and M12x1.25 tap.
Fastener Kit 76396F includes six (6) M12 x 1.25 x 35 CL8.8 bolts and six (6) 1/2" conical washers. The hitch mounts to existing weldnuts on the vehicle.
Installation involves three steps: (1) Clean the access holes using an M12x1.25 tap to remove paint and debris from the weldnuts on both sides. (2) Raise the hitch into position, align with the mounting holes, and loosely install six M12 bolts and six 1/2" conical washers. (3) Tighten all M12 fasteners with a torque wrench to 76 Ft.-Lb. (103 N·M). The conical washer teeth side must face against the hitch. Professional installation is recommended if you are not comfortable performing this work.
Yes. The first installation step requires using an M12x1.25 tap to clean the access holes and remove paint and debris from the weldnuts on both sides before installing the hitch.
All M12 fasteners must be tightened to 76 Ft.-Lb. (103 N·M) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
76 Ft.-Lb. (103 N·M) for all M12 fasteners.
The manual instructs you to loosely install all six M12 bolts and six 1/2" conical washers first, then tighten all M12 fasteners together with a torque wrench to 76 Ft.-Lb. (103 N·M). This ensures even, secure mounting.
The conical washer teeth side must face against the hitch. This is shown in Figure 1 of the installation instructions.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Yes, always wear safety glasses when installing the hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing. Periodically verify that all fasteners remain tight.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to your vehicle.
The maximum tongue weight is 525 lb. (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or this limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
The average installation time for professional installers is 30 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 76396 comes with a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used in accordance with the manufacturer's instructions. Product replacement is the sole and exclusive remedy. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com.
The T-One® Connector is a wiring harness that integrates with your vehicle's taillight wiring to provide a connection point for towing equipment. It includes a black box connector unit, a 4-flat connector for storage, wiring with yellow, green, and black leads, a fuse holder with 15 amp fuse, and mounting hardware. The connector allows you to safely tap into your vehicle's electrical system for trailer lighting without cutting or permanently modifying the factory wiring.
The manual shows installation on a Nissan Rogue but does not list other compatible vehicles. Contact the manufacturer or check the product listing to confirm fitment for your specific vehicle make, model, and year before purchasing.
You will need: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are required during installation.
The kit includes: two T-One® Connector ends (one with yellow wire for driver's side, one with green wire for passenger's side), a black box connector unit, a black 12 ga. power wire, a white ground wire with eyelet and screw, a yellow fuse holder with 15 amp fuse, yellow butt connectors, double-sided tape for mounting the black box, cable ties for securing the harness, and a 4-flat connector for storage.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wiring. This is done in step 8, after the connector ends have been inserted into the taillight wiring and the black box is mounted. Reconnect the battery cable in step 11 after the fuse is installed.
You must partially remove the plastic threshold cover, side panels, and cargo trays from the rear cargo area to expose the vehicle's taillight wiring harness. You will also need to remove two 10 mm nuts from the taillight pockets on both the driver's and passenger's sides, and remove 10 mm bolts holding cargo hooks in place.
On the driver's side, insert the T-One® Connector end with the yellow wire between the vehicle's wiring connectors and lock it into place. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs engaged. Repeat the same process on the passenger's side with the T-One® Connector end with the green wire. Route the green wire end behind the panels and along the threshold to reach the passenger's side taillight pocket.
Mount the black box on the driver's side using the double-sided tape provided. Secure the remainder of the T-One® Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid areas that would cut or pinch the wire.
Yes, you must drill a 3/32" hole for the ground wire. Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a new 3/32" hole and secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Clean dirt and rustproofing from the area before securing the ground wire.
Yes. If an existing ground stud is available near the connector, you can secure the white ground wire to it using the eyelet and screw provided. If no suitable ground stud exists, you must drill a 3/32" hole. Do not drill into the vehicle floor or bed.
After disconnecting the vehicle's negative battery cable, remove the fuse from the yellow fuse holder (if not already removed). Cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Route the black 12 ga. wire from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, fuel tank, and any points that may pinch or break the wire. Connect the rear end of the black 12 ga. wire to the black power wire on the T-Connector's black box using the yellow butt connector provided.
The T-One® Connector uses a 15 amp fuse. Install the 15 amp fuse into the yellow fuse holder after all wiring connections are complete and the vehicle's negative battery cable has been reconnected.
The T-One® Connector uses four wire colours: yellow (driver's side connector end), green (passenger's side connector end), black (12 ga. power wire from battery), and white (ground wire). The yellow and green wires connect to the vehicle's taillight wiring on each side. The black wire carries power from the positive battery terminal through the fuse holder. The white wire provides the ground connection.
Beginning from the front of the vehicle, route the black 12 ga. wire rearward along the frame rail. Avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. The wire connects from the fuse holder at the battery to the black power wire on the T-Connector's black box.
Route the 4-flat connector through the driver's side trim panel into the storage compartment on the threshold and store it there when not in use.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces or the vehicle floor or bed. Route wires away from hot pipes, heat shields, and fuel tank. Do not pinch or cut wires when reinstalling trim panels. Do not exceed the product's stated amperage ratings or the towing manufacturer's rating, as overloading circuits can cause fires.
After all connections are complete and the rear hatch is closed, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
The rear hatch must be closed prior to testing the T-One® Connector installation to ensure proper electrical function and to allow the vehicle's electrical system to operate normally during testing.
After testing, reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items that were removed during installation. Be careful not to pinch or cut the wires when reinstalling these components.
The manual shows installation on a Nissan Rogue. For other vehicle compatibility, contact the manufacturer or check the product listing.
Trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, wire crimpers, wire cutters, Phillips screwdriver, test probe, and safety glasses.
Yes, disconnect the vehicle's negative battery cable before connecting the power wiring in step 8. Reconnect it after the fuse is installed in step 11.
Yes, you must drill a 3/32" hole for the ground wire unless an existing ground stud is available. Do not drill into the vehicle floor or bed. Verify what is behind the surface before drilling.
The T-One® Connector uses a 15 amp fuse installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2024 | Nissan Rogue | — |
