CURT
Verify Fitment
Select your vehicle to confirm this part fits.
1978 - 1996 GMC G-Series Van
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 600 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 6,000 LB |
| Weight Distribution (WD) | 10,000 LB |
| Weight Distribution Tongue Weight (WDTW) | 1,000 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1978 - 1996 | GMC G-Series Van | — |

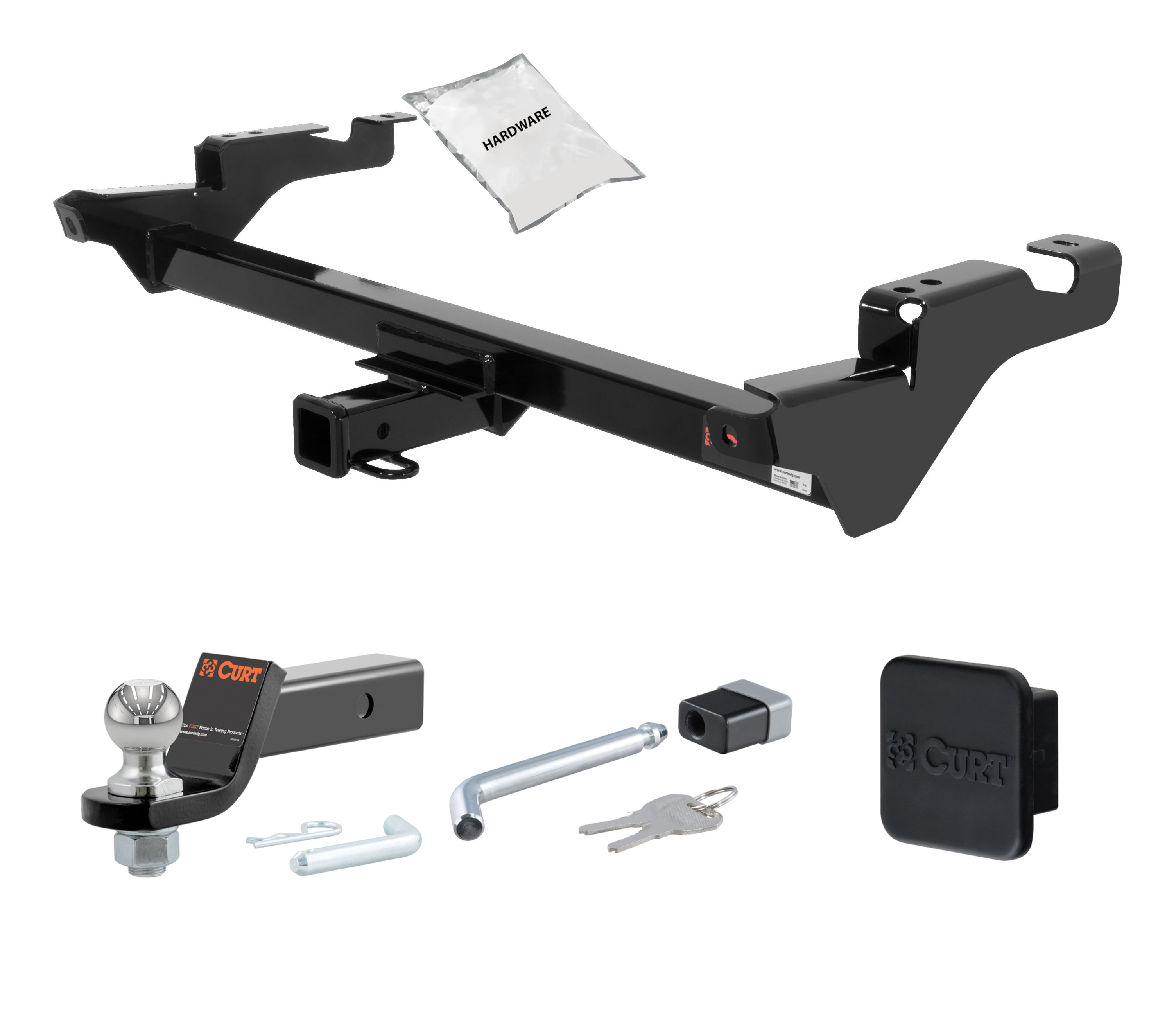

The 78 - 96 GMC G-Series Van 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA1071 (Part #HWA1071) fits 1978-1996 GMC G-Series Van models. The 1996 model year is the last year covered by this part number. For newer models, check for an updated version.
The 78 - 96 GMC G-Series Van 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA1071 (Part #HWA1071) fits the following vehicles: 1978-1996 GMC G-Series Van. Always verify your specific year, make, and model before ordering.
Yes, the 78 - 96 GMC G-Series Van 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA1071 (Part #HWA1071) is designed to fit the 1978-1996 GMC G-Series Van.
The 78 - 96 GMC G-Series Van 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA1071 (Part #HWA1071) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 13016 (also listed as RRH13016) is designed for 1978–1996 Chevy and GMC full-size vans. If your van is within this year range and is a full-size model, it should fit. Verify your vehicle year and size against these specifications before purchasing.
On late-model vehicles (within the 78–96 range), the fuel tank filler line passes through the access hole on the driver's side and a tail light wire passes through the access hole on the passenger's side. The installation procedure accounts for this by using fishwire to route the carriage bolts through the frame opening. No interference is expected if installation steps are followed correctly.
The kit includes: 4 flat washers (3/8"), 2 square hole spacers (0.250 × 1.00 × 2.50"), 2 serrated flange nuts (1/2"-13 UNC, Grade 8), 2 carriage bolts (1/2"-13 UNC, 1-3/4", Grade 8), and 1 length of 1/2" fishwire. The existing bumper bolts and nuts are reused during installation.
You must remove the bumper brackets that bolt to the bottom of each frame rail and the lower face of the bumper. These brackets and their fasteners should be retained and given to the vehicle owner for re-installation if the receiver is removed later. The bumper itself does not need to be fully removed.
No drilling is required. However, the existing hole for the forward attachment must be enlarged from its current size to 9/16". This is done using a drill bit or hole saw, not by drilling a new hole. The manual also notes that it may be necessary on some models to remove excess length from fuel tank strap bolts.
Fishwire is a flexible wire tool used to route the 1/2" carriage bolts and spacer blocks through the opening in the outside frame for the forward attachment. A 1/2" fishwire is included in the kit. It allows you to guide the bolts through the frame without direct line-of-sight access.
Yes. Remove undercoating from all attaching surfaces before bolting the receiver to the bottom of the frame and lower face of the bumper. This ensures proper contact and fastener security.
Tighten all 1/2" bolts to 110 lb-ft and all 3/8" bolts to 45 lb-ft. The kit includes 1/2" carriage bolts (which use the 110 lb-ft specification) and 3/8" flat washers (which use the 45 lb-ft specification if used as fasteners).
The manual does not provide the gross load capacity or tongue weight specifications for this hitch. Contact Curt Manufacturing or consult the product documentation that came with your hitch for these values. Regardless of the hitch rating, do not exceed your vehicle manufacturer's recommended towing capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a maintenance interval, so regular visual inspection before each use is recommended.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Yes, the Curt 13016 (RRH13016) is designed for 1978–1996 Chevy and GMC full-size vans.
No drilling is required. The existing forward attachment hole must be enlarged to 9/16". You may also need to remove excess length from fuel tank strap bolts on some models.
The manual does not specify required tools. You will need a drill or hole saw to enlarge the forward attachment hole to 9/16", a wrench or socket set for 1/2" and 3/8" fasteners, and a torque wrench to tighten bolts to 110 lb-ft and 45 lb-ft.
Tighten 1/2" bolts to 110 lb-ft and 3/8" bolts to 45 lb-ft.
You must remove the bumper brackets and their fasteners. Retain these for re-installation if the receiver is removed later. The bumper itself does not need to be fully removed.
The manual does not provide towing capacity specifications. Contact Curt Manufacturing for this information. Do not exceed your vehicle manufacturer's recommended towing capacity.
