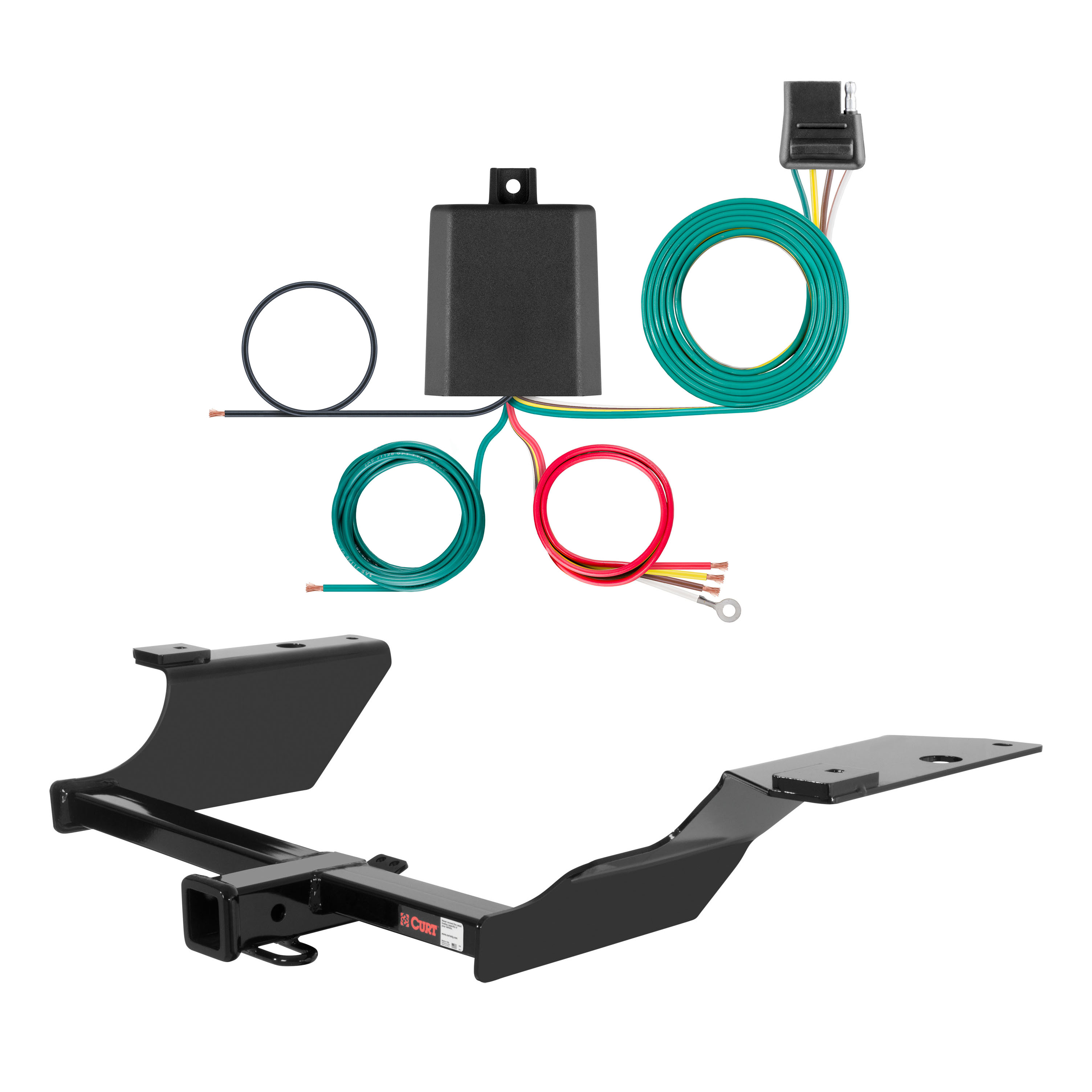

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 1997 - 2001 Honda CR-V. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Honda CR-V (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Accord, CRV, Element, Odyssey, Pilot and Prelude, Acura Integra, CL, RL, TL and MDX and Isuzu Oasis (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2001 | Honda CR-V | — |
The 97 - 01 Honda CR-V Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13314 (Part #CHW-1755) fits 1997-2001 Honda CR-V models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
The 97 - 01 Honda CR-V Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13314 (Part #CHW-1755) fits the following vehicles: 1997-2001 Honda CR-V. Always verify your specific year, make, and model before ordering.
Yes, the 97 - 01 Honda CR-V Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13314 (Part #CHW-1755) is designed to fit the 1997-2001 Honda CR-V.
The 97 - 01 Honda CR-V Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13314 (Part #CHW-1755) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 13314 is designed for 1997–2001 Honda CRV models.
The manual lists a gross load capacity of 3500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
Non-trailer loads may be applied to this hitch, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself is rated for 3500 lbs trailer weight, but your Honda CRV's factory towing limit is the governing limit. Consult your vehicle's owner manual for the specific capacity.
Yes. Before installation, you must lower the exhaust system by removing two rear exhaust hangers and one hanger in front of the axle. After the hitch is installed and raised into position, you will reattach these three hangers. If the muffler interferes with the hitch, the exhaust hangers must be modified.
Drilling may be required. Specifically, the large frame hole may need to be enlarged to 1 1/4" to accommodate the 7/16" carriage bolt and spacer. The manual notes that drilling may be required, but the extent depends on your vehicle's existing frame holes.
The kit includes: four 7/16-14 UNC Grade 8 serrated flange nuts (part 20-00103), four 0.250 x 0.88 x 2.25" square hole spacers (CM-SP2), two 7/16-14 UNC 1-1/4" Grade 8 carriage bolts (10-10281), two 7/16-14 UNC 1-3/4" Grade 8 carriage bolts (10-10314), one 3/8-16 x 1.938 x 0.875" U-bolt (CM-3805-UBR), two 3/8-16 UNC Grade 5 serrated flange nuts (20-00099), and one 7/16" fishwire installation tool.
Torque all 7/16" hardware to 70 ft-lbs.
Torque all 3/8" hardware to 26 lb-ft.
1. Lower the exhaust system by removing two rear exhaust hangers and one hanger in front of the axle. 2. Use the 7/16" fishwire to thread a carriage bolt and spacer through the large frame hole (enlarge to 1 1/4" if necessary) and out the small front hole. 3. Remove the fishwire, then use it to thread a carriage bolt and spacer into the rear frame hole. Repeat for the driver side frame rail. 4. Raise the hitch into position and attach the 7/16" flange nuts. Torque 7/16" hardware to 70 ft-lbs and 3/8" hardware to 26 lb-ft. 5. Reattach the three exhaust hangers, modifying them if the muffler interferes.
The 7/16" fishwire is an installation aid used to thread the carriage bolts and spacers through the frame holes. You thread the bolt and spacer onto the fishwire, pull it through the large frame hole and out the small front hole, then remove the fishwire and repeat the process for the rear frame hole and driver side frame rail.
Thread the 7/16" carriage bolt and spacer onto the fishwire. Pull the fishwire through the large frame hole (enlarge to 1 1/4" if necessary) and out the small front hole in the frame. Remove the fishwire from the front bolt. Repeat this process by threading another carriage bolt and spacer onto the fishwire and pulling it into the rear frame hole. Remove the fishwire and repeat the entire process for the driver side frame rail.
You must remove the three exhaust hangers before installation. After the hitch is raised into position, reattach them. If the muffler interferes with the hitch, the exhaust hangers must be modified as needed to clear the hitch.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, the Curt 13314 is designed for 1997–2001 Honda CRV models.
Yes. Remove two rear exhaust hangers and one hanger in front of the axle before installation. Reattach them after the hitch is raised into position, modifying them if the muffler interferes.
Drilling may be required. The large frame hole may need to be enlarged to 1 1/4" to accommodate the 7/16" carriage bolt and spacer.
Torque 7/16" hardware to 70 ft-lbs and 3/8" hardware to 26 lb-ft.
The hitch is rated for 3500 lbs trailer weight and 350 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Non-trailer loads must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads voids the warranty.

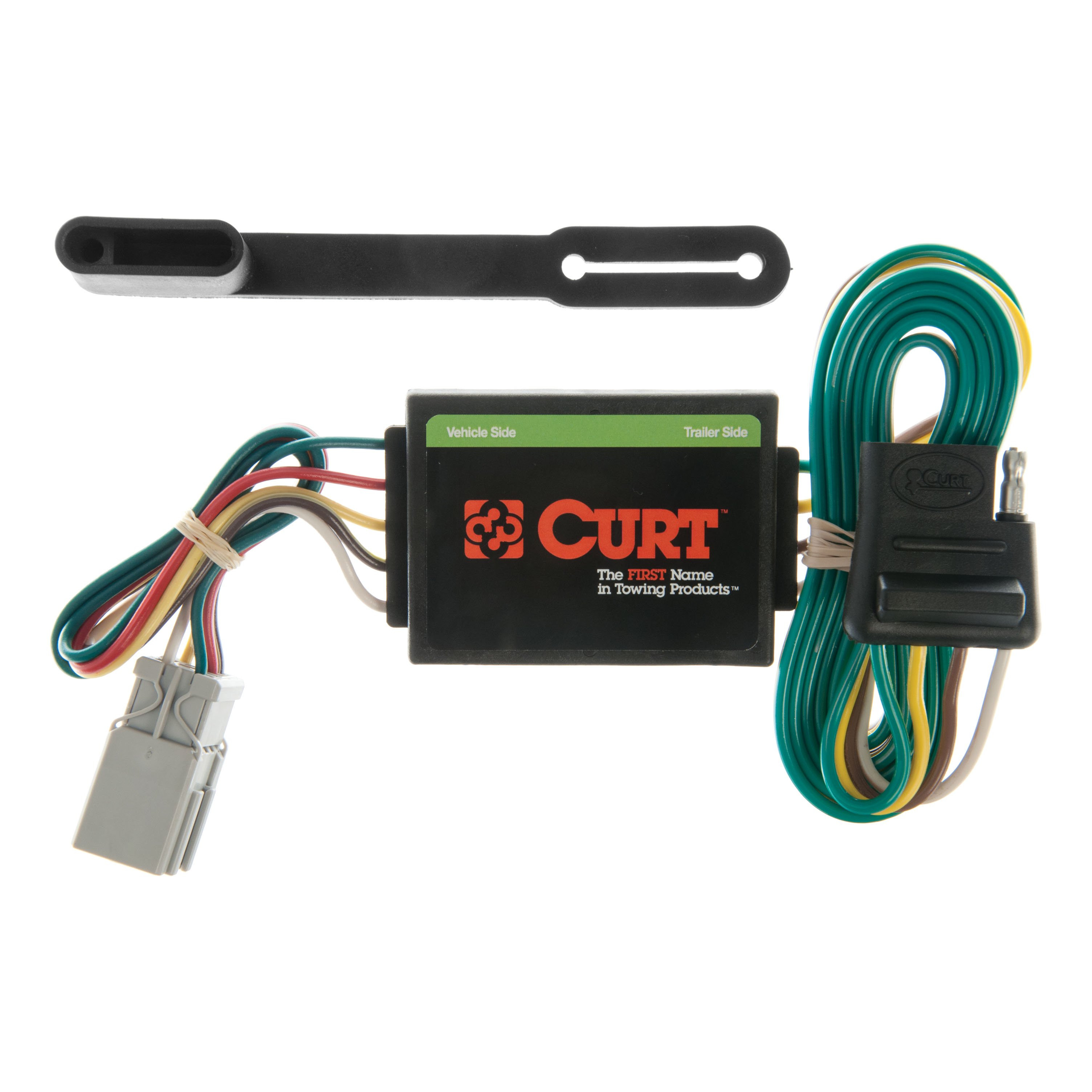

The 55336 custom wiring connector is designed for Acura CL Series, Integra, MDX, RL Series, and TL Series; Honda Accord, CR-V, Element, Odyssey, Pilot, and Prelude; and Isuzu Oasis. Check your vehicle's make and model against this list. If your vehicle is not listed, this connector is not compatible.
The 55336 is a custom wiring connector that interfaces with your vehicle's taillight wiring system. It converts the vehicle's taillight connector to a 4-flat plug for trailer lighting compatibility.
You will need a panel trim removal tool, Phillips screwdriver, and flat blade screwdriver. These are standard hand tools; no power tools or lifting equipment are required.
Yes. You must disconnect the negative battery terminal before beginning installation. Reconnect it only after all installation steps are complete and all items removed during installation have been reinstalled.
On Honda Accord and other passenger cars (Acura CL, Integra, RL, TL), the connector is located behind the driver side taillight housing, inside the trunk. Open the trunk and remove the plastic screw securing the trunk liner on the passenger side, then pull back the felt liner to locate the connector.
On 95–98 Honda Odyssey models, the connector is located behind the driver side taillight. Remove the rear access panel located inside the van to access it.
On 99–04 Honda Odyssey models, open the vehicle trunk and remove the driver side cargo bracket screw. Pull back the trim panel to locate the vehicle wiring connector.
On 97–01 Honda CR-V models, remove the three screws securing the rear driver side speaker and cover. Remove the speaker and cover to locate the vehicle wiring connector, which will be secured to the speaker wires.
On 02–06 Honda CR-V models, open the trunk and remove the cargo door on the floor. Remove the storage container, rear threshold, and driver side cargo bracket screw. Remove the cargo screw on the driver side trim panel and the cargo bracket bolt from the vehicle floor. Carefully pry the trim panel away to reveal the wiring connector taped to wires near the vehicle floor.
On Acura MDX models, open the trunk and remove the cargo door on the floor. Remove the head rests from the storage location. Locate and remove two clips inside the storage area on the threshold. Carefully pry the threshold to remove it. The vehicle wiring connector will be located inside the cargo area on the driver side, attached to the threshold plate. Remove the connector from its protective cap.
On Honda Pilot models, open the trunk and carefully pry the driver side threshold to locate the vehicle wiring connector.
On Honda Element models, open the trunk and remove the cargo door on the floor. Remove the screws holding the spring loaded hinge cover and set it aside. Carefully remove the three plastic clips holding the passenger side trim panel to the floor. Remove the five screws holding the passenger side trim panel in place. Remove the cargo net bracket and carefully pull back the trim panel, being careful not to break any tabs or clips. The connector is located in this area.
First, untape the vehicle connectors carefully, taking care not to damage the locking tabs. Inspect the connector for dirt and debris and clean if necessary. Then insert the custom wiring connector into the vehicle connector. Make sure the connectors are fully inserted with the locking tabs in place.
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape.
Yes. On Honda CR-V models only, route the custom wiring connector 4-flat plug out from under the trim panel and along the carpet edge.
Reinstall all items you removed during installation. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
The 55336 is rated for 3.0 amps per side on signal circuits and 5.0 amps total on tail and running circuits. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the wiring connector will function properly.
The 55336 fits Acura CL, Integra, MDX, RL, and TL Series; Honda Accord, CR-V, Element, Odyssey, Pilot, and Prelude; and Isuzu Oasis. Check your exact make and model against this list.
Panel trim removal tool, Phillips screwdriver, and flat blade screwdriver.
Yes, disconnect the negative battery terminal before starting. Reconnect it after all installation steps are complete.
Signal circuits: 3.0 amps per side. Tail/running circuits: 5.0 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The kit includes the custom wiring connector, a black converter box, double-sided tape for mounting, and a 4-flat dust cover.
Yes. Install the provided 4-flat dust cover after reconnecting the battery to help prevent corrosion.
