Air Lift 1000
Coil Spring
Rear
No Drill
Air Lift adjustable air helper springs level your load, and give your truck, van, or SUV a safer, more comfortable ride. Air springs are easy to install inside the existing coil spring with common mechanic's tools. Just add air when towing or hauling a heavy load, and reduce air pressure when unloaded, they are fully adjustable for a great ride. Air Lift air springs eliminate sag, sway, and bottoming out. They are made with rugged, durable components for long, reliable service. Air Lift 1000 kits fit many popular customer vehicles with coil springs. They're designed to: add support to rear springs on many popular SUVs, replace OEM front air springs on P-30 motor homes, provide front end support for snowplows, winches, etc., improve muscle car traction for drag racing, and improve ride and handling for full-size vans and trucks with front coil springs. Air adjustable with quick connecting, easy-to-use air fittings, Air Lift 1000 air helper springs have a typical max pressure of 35 PSI on cars and SUVs, and 90 PSI on motorhomes. They also have up to 1000 pounds of leveling capacity, right up to the manufacturer's recommended Gross Vehicle Weight Rating. Air Lift 1000 kits also come standard with a limited lifetime warranty and an exclusive 60 day ride satisfaction guarantee.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2013 | Acura MDX | — |
| 2005 - 2017 | Honda Odyssey | — |
| 2005 - 2009 | Honda Pilot | — |
The Air Lift AIR LIFT 1000 60815 (Part #BBCG60815) fits 2005-2013 Acura MDX models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift AIR LIFT 1000 60815 (Part #BBCG60815) fits the following vehicles: 2005-2013 Acura MDX; 2005-2017 Honda Odyssey; 2005-2009 Honda Pilot. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift AIR LIFT 1000 60815 (Part #BBCG60815) is designed to fit the 2005-2013 Acura MDX.
The Air Lift AIR LIFT 1000 60815 (Part #BBCG60815) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

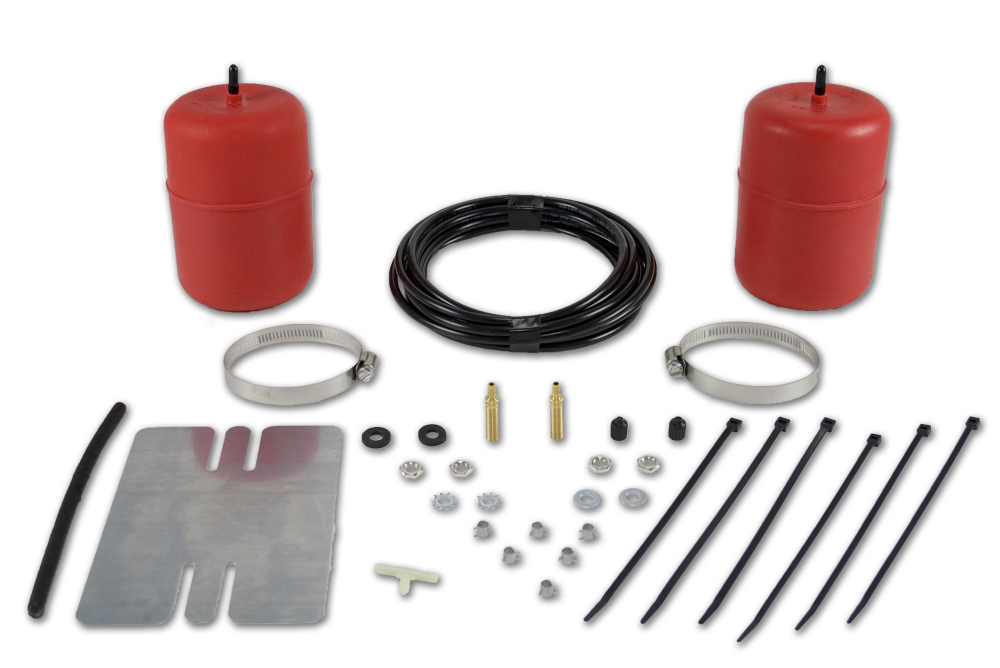

Kit 60815 includes: 2 air springs (part 46141), 1 hose 15' (part 20315), 4 zip ties (part 10466), 2 valve caps (part 21230), 4 5/16" hex nuts (part 21233), 2 rubber washers (part 21234), 2 star washers (part 18411), 2 M8 flat washers (part 18501), 1 tee (part 21233), 2 valves (part 21455), and 1 heat shield kit (part 33107). If any parts are missing or damaged, contact Air Lift customer service at (800) 248-0892.
Yes, kit 60815 is designed for Honda Odyssey, Honda Pilot, and Acura MDX. The manual covers installation for these three vehicles. However, the heat shield installation is only necessary on the Honda Odyssey.
Yes. You must jack up the rear of the vehicle or raise it on a hoist, support the frame with safety stands so the wheels hang, and then remove the wheels before beginning installation.
Jack up the rear of the vehicle or raise it on a hoist. Support the frame with safety stands so that the wheels hang. Then remove the wheels.
Yes. You must remove the coil spring to install the air spring cylinder. The process involves removing the flange bolt connecting the lower control arm to the knuckle, lowering the floor jack to release tension from the coil spring, and then removing the spring. You may also need to remove the lower shock bolt to allow the lower control arm to move far enough.
The jounce bumper is a factory component mounted on the lower control arm. Yes, you must unbolt and discard both the jounce bumper and its mounting bolt during installation.
Yes. You must drill a 3/4" hole in the lower control arm to provide valve stem clearance. For 2010 and earlier models, the template is placed on the underside of the lower control arm. For 2011 and later models, the template is placed on the top side in the spring seat area. As an option, you can drill a 1/2" hole and grind it open using an air grinder or rotary tool.
Drill a 3/4" hole. Alternatively, you can drill a 1/2" hole and grind it open using an air grinder or rotary tool.
Grinding may be required. If interference is noted from the lower control arm hitting the air spring stem or cylinder boss when raising and lowering the control arm, you must grind the control arm for clearance. Additionally, if you choose to drill a 1/2" hole instead of a 3/4" hole, you must grind the hole open using an air grinder or rotary tool.
Insert the air spring cylinder into the coil spring with the stem pointing down. Then reinstall the coil spring and raise the lower control arm enough to insert and attach the flange bolt that connects the lower control arm to the knuckle. Do not tighten the flange bolt at this time.
Torque the flange bolt to 33 lb.-ft. (45 Nm). This is done after raising the control arm far enough to just lift the vehicle off the safety jacks.
A tee air line installation is recommended for most applications. Use dual air lines only if the weight in the vehicle varies significantly from one side to the other and unequal pressures are needed to level the load or compensate for axle torque transfer in racing applications.
Maintain at least 8 inches (203 mm) clearance between the air line and the exhaust system to prevent the air line from melting.
Slide an air line clamp onto the air line. Push the air line over one side of the tee until all the barbs are covered. Using pliers, slide the air line clamp forward until it fully covers the barbed section. Repeat for the other leg of the tee.
Insert the air line through the spring seat and spacers. Push the air line onto the stem, covering all the barbs. Using pliers, slide the air line clamp upward until it fully covers the barbed section.
Select a location for the inflation valve in the gas cap well, the trunk, rear bumper, fender flange, or behind the license plate. Ensure that the valve will be protected and accessible with an air hose. For dual air line systems, valves can be located in the rocker panel flange or rear bumper.
Drill a 5/16" (8 mm) hole for the inflation valve. Mount the valve as shown in the manual, with the rubber washer serving as an outside weather seal.
No. Heat shield installation is only necessary on the Honda Odyssey. It is not required for the Honda Pilot or Acura MDX.
Bend the heat shield tabs to provide a 1/2" (13 mm) dead air space between the exhaust pipe and the heat shield. Attach the heat shield to the exhaust pipe using the clamps. Bend the heat shield for maximum clearance to the air spring.
Ensure that the exhaust has at least 2–3 inches (51–76 mm) clearance from the air spring. If necessary, loosen the clamps and rotate or move the exhaust to obtain additional clearance.
Before inflating the air springs, read the Maintenance and Servicing section of the manual. Do not inflate air springs before reading this section.
Inflate the air springs to 35 PSI (2.4 BAR) initially. Test for air leaks by applying a soapy water solution to all valve cores, fittings, and connections.
A 2–4 PSI (0.14–0.28 BAR) loss after initial installation is normal. Recheck air pressure after 24 hours. If pressure has dropped more than 5 PSI (0.34 BAR), retest for leaks.
The minimum air pressure is 5 PSI (0.34 BAR). Always maintain at least this minimum pressure to prevent the air spring from being pinched.
The maximum air pressure is 35 PSI (2.4 BAR). Never inflate beyond this maximum pressure.
Check the air pressure weekly. Always maintain at least the recommended minimum air pressure (5 PSI) to prevent the air spring from being pinched.
Use a solution of liquid dish soap and water to check all air line connections and the inflation valve core. Apply the solution to these areas to identify leaks. If a slow leak is found, locate and repair the connection before deflating and removing the air spring.
Always add air to springs in small quantities, checking the pressure frequently. Sleeves require less air volume than a tire and inflate quickly.
Inflate the air springs to 35 PSI (2.4 BAR) before adding the payload. This will allow the air cylinder to properly mesh with the coil spring. After the vehicle is loaded, adjust the air pressure down to level the vehicle and for ride comfort.
When carrying a payload, increase the tire inflation pressure in proportion to any overload condition. Air Lift recommends a 2 PSI (0.14 BAR) increase above normal for each 100 pounds of additional load on the axle. Do not exceed the vehicle manufacturer's maximum gross vehicle weight rating.
No. Adding air springs will not change the weight ratings (GAWR, GCWR, and/or GVWR) of a vehicle. Exceeding the GVWR is dangerous and voids the Air Lift warranty.
Yes. The minimum air pressure (5 PSI) should be maintained at all times. The minimum air pressure keeps the air spring in shape, ensuring that it will move throughout its travel without rubbing or wearing on itself.
No. Air pressure can be adjusted with any type of compressor as long as it can produce sufficient pressure to service the springs. Even a bicycle tire pump can be used, but it requires significant effort.
If the air springs are properly installed and maintained, they can last indefinitely.
No. The vehicle can be lifted on a hoist for short-term service work such as tire rotation or oil changes. However, if the vehicle will be on the hoist for a prolonged period of time, support the axle with jack stands to take the tension off the air springs.
If the vehicle's headlights are shining into the trees or the vehicle is leaning to one side, it is not level. Raise the air pressure to correct either of these problems and level the vehicle.
If the vehicle has a rough or harsh ride, it may be due to either too much pressure or not enough. Try different pressures to determine the best ride comfort.
Stability translates into safety and should be the priority. Stability issues include roll control, bounce, dive during braking, and sponginess. Tuning out these problems usually requires an increase in pressure.
If it is suspected that the air springs have bottomed out, increase the pressure.
Yes. It may be necessary to maintain different pressures on each side of the vehicle. Loads such as water, fuel, and appliances will cause the vehicle to be heavier on one side.
Required tools include: hoist or floor jacks, safety stands, safety glasses, metric and standard sockets/ratchet and wrenches, drill with drill bits, grinder or rotary tool, pliers, air compressor or compressed air source, and spray bottle with dish soap/water solution.
Print the manual at 100% scale. Use a measuring tool to confirm that the printed 1" or 1 cm scales (shown in figure 15) measure exactly 1" or 1 cm. If the template is printed at any scale other than 100%, you could end up drilling in the wrong locations on the vehicle.
Yes, kit 60815 is designed for Honda Odyssey, Honda Pilot, and Acura MDX. The heat shield is only required for the Honda Odyssey.
Yes. You must drill a 3/4" hole in the lower control arm for valve stem clearance and a 5/16" hole for the inflation valve. Grinding may also be required if the lower control arm interferes with the air spring.
You need: hoist or floor jacks, safety stands, safety glasses, metric and standard sockets/ratchet and wrenches, drill with bits, grinder or rotary tool, pliers, air compressor, and spray bottle with soap/water solution.
Minimum: 5 PSI (0.34 BAR). Maximum: 35 PSI (2.4 BAR). Always maintain at least the minimum pressure to prevent pinching.
Check the air pressure weekly. Recheck after 24 hours of initial installation. A 2–4 PSI loss is normal; if loss exceeds 5 PSI, retest for leaks.
A 2–4 PSI loss after initial installation is normal. If pressure has dropped more than 5 PSI (0.34 BAR) after 24 hours, retest for leaks by applying a soapy water solution to all valve cores, fittings, and connections.
A rough or harsh ride may be due to either too much pressure or not enough. Try different pressures to determine the best ride comfort.
If the vehicle's headlights are shining into the trees or the vehicle is leaning to one side, raise the air pressure to level the vehicle.
If the vehicle rocks and rolls, adjust the air pressure to reduce movement. Stability issues usually require an increase in pressure.
Raise and lower the control arm while watching the stem on the air spring cylinder. If interference is noted from the lower control arm hitting the stem or cylinder boss, grind the control arm for clearance.
