The LoadLifter 5000 load support kit for the Nissan Frontier 4WD offers up to 5,000 lbs. of load-leveling capacity while eliminating squat, trailer sway, body roll, and bottoming out. Tow and haul comfortably and stress-free.
Offering up to 5,000 lbs. of load-leveling capacity, the LoadLifter 5000 kit from Air Lift will make towing and hauling with your Nissan Frontier 4WD a comfortable and stress-free experience. Fully adjustable from 5-100 PSI, our air springs are the perfect partner for your vehicle, helping to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. The LoadLifter 5000 is also designed to improve braking and steering, while each kit has upper and lower roll plates to protect the air springs from sharp edges. The air springs are built similarly to a tire, reinforced with 2-ply fabric for maximum strength. All end caps are made with an ultra-high strength nylon composite formula, strong as steel but much lighter and corrosion-proof. Installing the kit is simple, requiring only common hand tools and no frame drilling. The LoadLifter 5000 kit has clear, easy-to-follow instructions. As the leader in air suspension products for over 70 years, Air Lift is committed to delivering quality load support products that fit, work, and last. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a limited lifetime warranty, a 60-day ride satisfaction guarantee, and a dedicated in-house customer service team, you can purchase this kit with peace of mind.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Nissan Frontier | — |
The Air Lift LoadLifter 5000 load support kit for the Nissan Frontier 4WD. 57244 (Part #BBCG57244) fits 2022-2026 Nissan Frontier models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 5000 load support kit for the Nissan Frontier 4WD. 57244 (Part #BBCG57244) fits the following vehicles: 2022-2026 Nissan Frontier. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift LoadLifter 5000 load support kit for the Nissan Frontier 4WD. 57244 (Part #BBCG57244) is designed to fit the 2022-2026 Nissan Frontier.
The Air Lift LoadLifter 5000 load support kit for the Nissan Frontier 4WD. 57244 (Part #BBCG57244) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

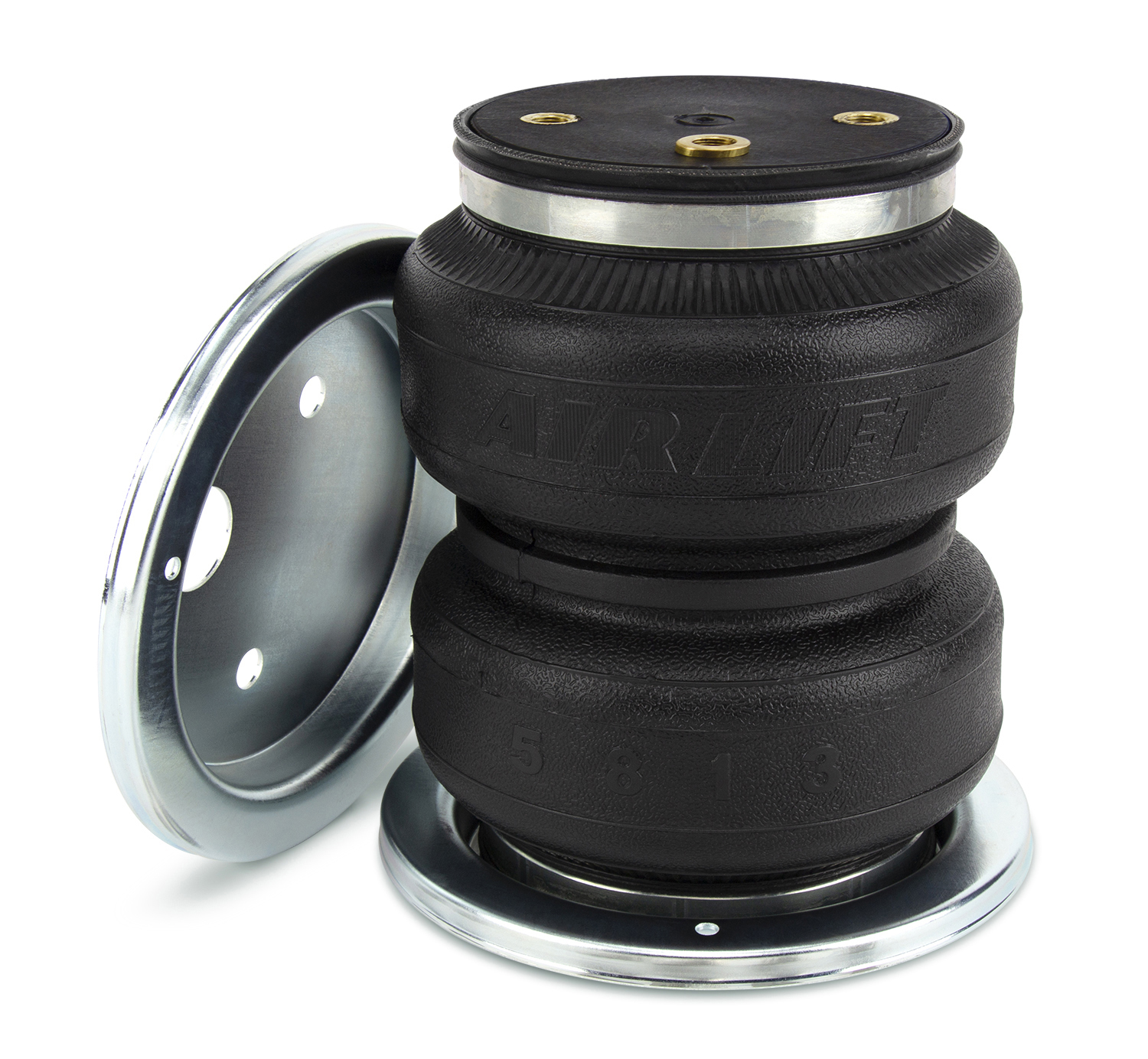

The LoadLifter 5000 Series is an air spring kit that provides up to 5,000 pounds (2,268 kg) of load-leveling support. It uses reinforced, commercial-grade single or double convolute bellows manufactured with layers of rubber and cords. The air springs are adjustable from 5 to 100 PSI (0.34 to 7 BAR), allowing you to adjust the suspension stiffness based on your load.
Yes, the MN-1185 kit (part number 57244) is designed for the Nissan Frontier. This is the only vehicle application stated in the manual.
You will need: standard and metric open-end or box wrenches, 9/16" ratchet wrench, ratchet, standard and metric regular and deep-well sockets, 5/32" and 5mm metric hex-key wrenches, 7/32" hex-key wrench (socket preferable), torque wrench, needle nose pliers, hose cutter or razor blade, hoist or floor jack, safety glasses, 2 safety stands, air compressor or compressed air source, and a spray bottle with dish soap/water solution.

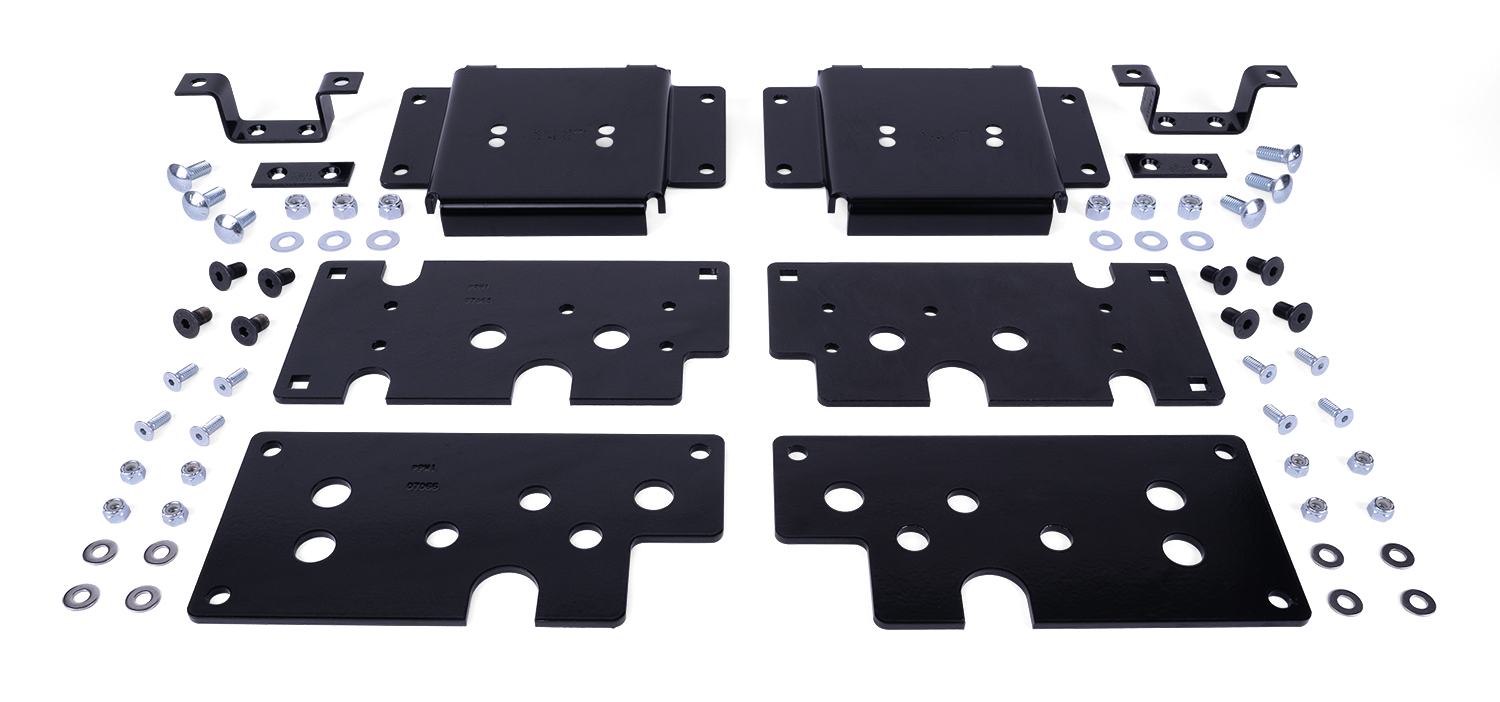

The kit includes: 2 lower brackets (03034), 2 frame brackets (07063), 2 air spring brackets (07066), 2 air springs (58439), 4 roll plates (11951), 2 1/4" 90-degree swivel air fittings (21837), 8 3/8"-24 x 3/4" flat head socket cap screws (17215), 4 U-bolts for lower bracket (11161), 2 spacers (11188), 2 mounting brackets (11521), 2 U-bolts for frame attachment (11187), 6 3/8"-16 x 1" carriage bolts (17134), 2 M8 x 25mm button head cap screws (17937), 8 1/4"-20 x 3/4" flat head socket cap screws (17938), 8 1/4"-20 nylon lock nuts (18425), 18 3/8"-16 nylon lock nuts (18435), 18 3/8" flat washers (18444), 8 1/4" flat washers (18541), 1 air line assembly (20086), 6 zip ties (10466), 2 5/16" lock washers (18411), 2 rubber washers (21234), 2 M8 flat washers (18501), 4 5/16" hex nuts (21233), and 2 valve caps (21230).
Yes. You must pull the factory jounce bumpers out of the cups and then remove the cups from the frame by removing the M8 bolt. This is done during the vehicle preparation step before installing the air spring system.
Two harness holders located forward of the rear brake line brackets on the inside of the frame rail, just behind the axle, must be removed to attach the upper bracket. Use needle nose pliers between the frame and the harness to squeeze the wire holders together and pull them out of the frame. Repeat for both sides.
Install a mounting bracket (J) onto the frame bracket (B) using the holes adjacent to the large slots with 1/4" flat head screws (N). Flip the bracket and cap the screws with 1/4" flat washers (R) and nylon lock nuts (O). On the same side, install a spacer (I) using the same 1/4" hardware. Torque all hardware to 100 lb.-in. (11 Nm). For the second frame bracket, flip it to create a mirror image (left and right specific). The holes are oversized intentionally; tighten hardware as specified.
Attach both frame brackets to the underside of the frame with the notch in the corner facing inboard and forward. Use the M8 button head cap screw (M) and snug it but do not torque at this time. The notch must face inside and forward to clear the emissions bracket. Install the frame attachment U-bolts (K) around the top of the frame through the frame bracket mounting holes, making sure the U-bolt goes between the wiring harness and frame. Cap with 3/8" flat washers (Q) and nylon lock nuts (P). Tighten the 3/8" nuts evenly and torque to 6 lb.-ft. (8 Nm). Then torque the 8mm bolts to 18 lb.-ft. (25 Nm).
Set the roll plates (E) on top of the air springs (D). Thread the fittings (F) into the air springs finger-tight, then tighten one and a half turns. With the fittings facing each other on both air springs, set the air spring brackets (C) on top making sure the notches face each other. Install the 3/8" flat head screws (G) finger-tight, then torque to no more than 20 lb.-ft. (27 Nm). Flip the assemblies upside down and set a roll plate (E) over both air spring assemblies. Set the lower brackets (A) onto the assemblies so the flange is on the opposite side of the notch and fittings. Attach using the holes closest to the flange (marked "A") with 3/8" flat head screws (G), torqued to no more than 20 lb.-ft. (27 Nm).
With the axle lowered, set the left and right assemblies onto the leaf springs, making sure the fittings have been turned inboard to avoid pinching them when lifting the axle. Raise the axle until the air spring bracket comes in contact with the frame bracket. Attach the two brackets together on both sides with 6 3/8" carriage bolts (L), flat washers (Q), and nylon lock nuts (P), torqued to 16 lb.-ft. (21 Nm). Attach the lower brackets to the leaf springs with the lower bracket U-bolts (H), 3/8" flat washers (Q), and nylon lock nuts (P), torqued evenly to 16 lb.-ft. (21 Nm). Raise the axle all the way up and remove the jack stands and jack.
Route the nylon air lines from the air springs to Schrader valves. It is recommended that the air line be routed along the top of the frame, forward of the axle, then down to the fitting. Install the air line thermal sleeve over the air line on the passenger's (right) side before inserting it into the fitting. Cut the air line in half with clean, square cuts using a razor blade or hose cutter—do not use scissors or wire cutters. Use zip ties to secure the air line to fixed points along the chassis. Do not pinch or kink the air line. The minimum bend radius is 1" (25 mm). Leave at least 2" (50 mm) of slack in the air line to allow for movement. Secure the air lines to the upper coil spring mount with the supplied zip ties (BB). Keep at least 6" (150 mm) of clearance between all air lines and the exhaust system.
The manual shows three possible locations for Schrader valves: inside the fuel tank filler door (A), inside rear wheel wells (B), or in the license plate or rear bumper area (C). You must drill a 5/16" (8 mm) hole in your chosen location. The manual shows one example installation location but does not specify which location is recommended for the Nissan Frontier. Contact Air Lift customer service at (800) 248-0892 for specific fitment guidance.
Frame bracket mounting bracket and spacer hardware: 100 lb.-in. (11 Nm). Frame attachment U-bolts (3/8" nuts): 6 lb.-ft. (8 Nm). M8 bolts attaching frame brackets to frame: 18 lb.-ft. (25 Nm). Air spring bracket flat head screws: no more than 20 lb.-ft. (27 Nm). Lower bracket flat head screws: no more than 20 lb.-ft. (27 Nm). Air spring bracket to frame bracket carriage bolts: 16 lb.-ft. (21 Nm). Lower bracket U-bolts to leaf springs: 16 lb.-ft. (21 Nm).
The maximum air pressure is 100 PSI (7 BAR). The minimum recommended air pressure is 5 PSI (0.34 BAR). Never inflate beyond 100 PSI. The air pressure actually needed is dependent on load and gross vehicle weight rating.
Do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Always maintain normal ride height. Never inflate the air springs beyond 100 PSI (7 BAR). Check air pressure weekly. Keep at least 6" (152 mm) of clearance between air springs and air lines and heat sources. Do not pinch or kink the air lines, and maintain a minimum bend radius of 1" (25 mm).
Perform the following checks: (1) Clearance test—inflate to 40-60 PSI and ensure at least 1/2" (13 mm) clearance from tire, brakes, frame, shock absorbers, and brake cables. (2) Leak test—inflate to 40-60 PSI and check all connections for leaks; all leaks must be eliminated before road testing. (3) Heat test—ensure at least 6" (152 mm) clearance from heat sources; install a heat shield if included. (4) Fastener test—after 500 miles (800 km), recheck all bolts for proper torque. (5) Road test—drive 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR). If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. After 500 miles (800 km), recheck all bolts for proper torque.
Use a spray bottle with a soapy water solution to check all air line connections and the inflation valve core. Bubbles will form at any leak location. All leaks must be eliminated before the vehicle is road tested. If a leak is found, deflate and remove the air spring to repair or replace the affected component.
Yes, the MN-1185 (Kit 57244) is designed specifically for the Nissan Frontier.
Yes, a torque wrench is required. Multiple fasteners have specific torque values ranging from 6 lb.-ft. to 100 lb.-in., and proper torque is essential for safe installation.
Yes. You must remove the factory jounce bumpers and their cups (by removing the M8 bolt), and remove two harness holders located forward of the rear brake line brackets on the inside of the frame rail.
Yes. You must drill a 5/16" (8 mm) hole for the Schrader valve installation in your chosen location (fuel tank filler door, rear wheel well, or bumper area).
Maximum air pressure is 100 PSI (7 BAR). Never inflate beyond this pressure. Minimum recommended pressure is 5 PSI (0.34 BAR).
The LoadLifter 5000 Series provides up to 5,000 pounds (2,268 kg) of load-leveling support. Do not exceed your vehicle's maximum GVWR or payload rating.
After 500 miles (800 km), recheck all bolts for proper torque. Perform a leak test and clearance check before your first road test.
Move the hard line slightly away from the U-bolt. The manual includes a note to check this during frame bracket installation to prevent damage to the wiring harness and hard lines.
Before raising the axle, make sure the fittings have been turned inboard. This prevents them from being pinched when the axle is lifted and the air spring bracket comes in contact with the frame bracket.
