The LoadLifter 5000 load support kit for 2005-2023 Toyota Tacoma 2WD and 4WD offers up to 5,000 lbs. of load-leveling capacity while eliminating squat, trailer sway, body roll, and bottoming out. Tow and haul comfortably and stress-free.
Offering up to 5,000 lbs. of load-leveling capacity, the LoadLifter 5000 kit from Air Lift will make towing and hauling with your 2005-2023 Toyota Tacoma 2WD and 4WD a comfortable and stress-free experience. Fully adjustable from 5-100 PSI, our air springs are the perfect partner for your vehicle, helping to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. The LoadLifter 5000 is also designed to improve braking and steering, while each kit has upper and lower roll plates to protect the air springs from sharp edges. The air springs are built similarly to a tire, reinforced with 2-ply fabric for maximum strength. All end caps are made with an ultra-high strength nylon composite formula, strong as steel but much lighter and corrosion-proof. Installing the kit is simple, requiring only common hand tools and no frame drilling. The LoadLifter 5000 kit has clear, easy-to-follow instructions. As the leader in air suspension products for over 70 years, Air Lift is committed to delivering quality load support products that fit, work, and last. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a limited lifetime warranty, a 60-day ride satisfaction guarantee, and a dedicated in-house customer service team, you can purchase this kit with peace of mind. Whether it is towing or hauling, the LoadLifter 5000 kit from Air Lift will allow you to use your 2005-2023 Toyota Tacoma 2WD and 4WD with added safety and comfort.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2023 | Toyota Tacoma | Fits axle under leaf spring 2WD models only |
The Air Lift New LoadLifter 5000 load support kit for the 2005-23 Toyota Tacoma 2WD and 4WD. 57300 (Part #BBCG57300) fits 2005-2023 Toyota Tacoma models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift New LoadLifter 5000 load support kit for the 2005-23 Toyota Tacoma 2WD and 4WD. 57300 (Part #BBCG57300) fits the following vehicles: 2005-2023 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift New LoadLifter 5000 load support kit for the 2005-23 Toyota Tacoma 2WD and 4WD. 57300 (Part #BBCG57300) is designed to fit the 2005-2023 Toyota Tacoma.
The Air Lift New LoadLifter 5000 load support kit for the 2005-23 Toyota Tacoma 2WD and 4WD. 57300 (Part #BBCG57300) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

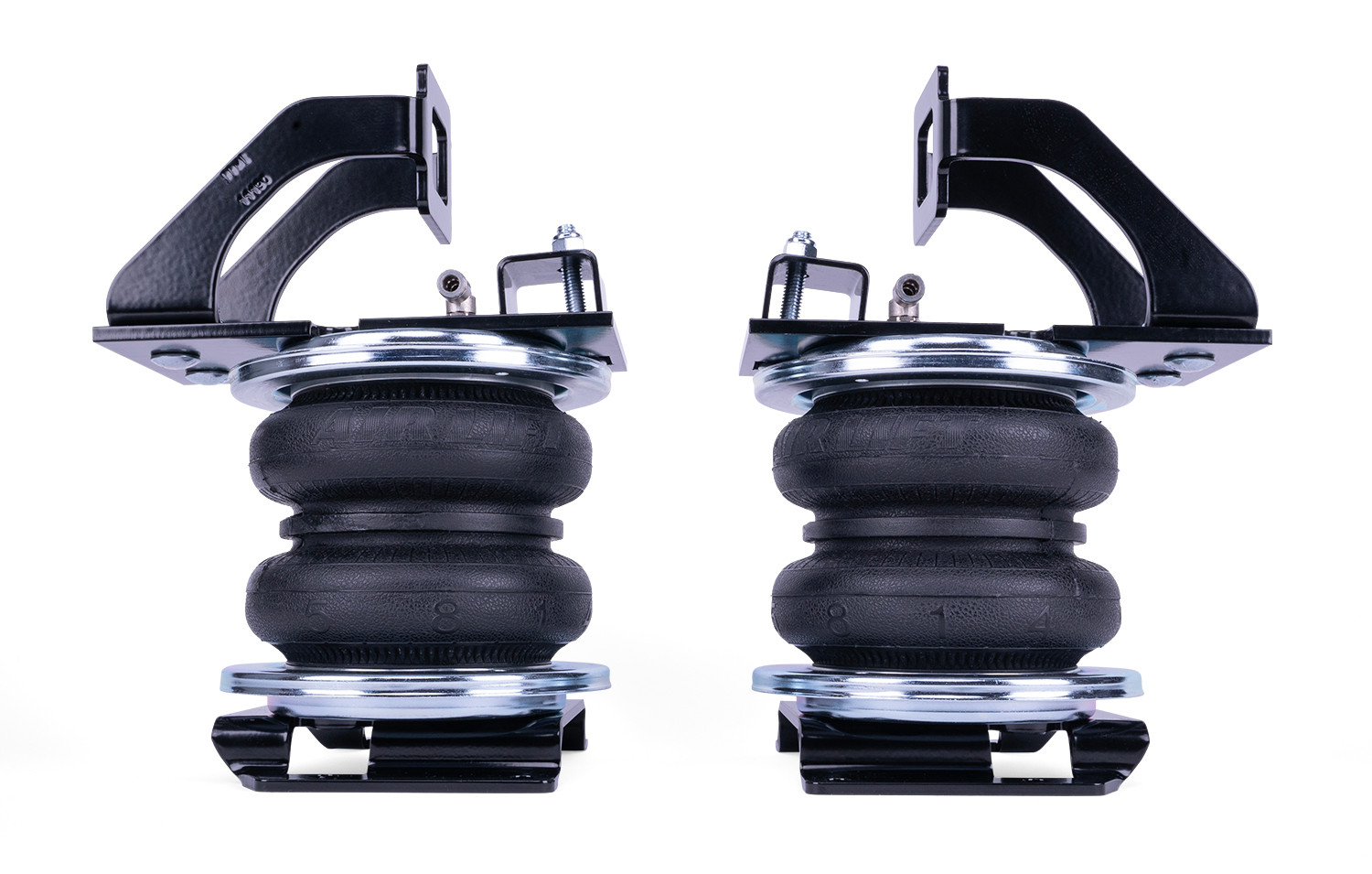

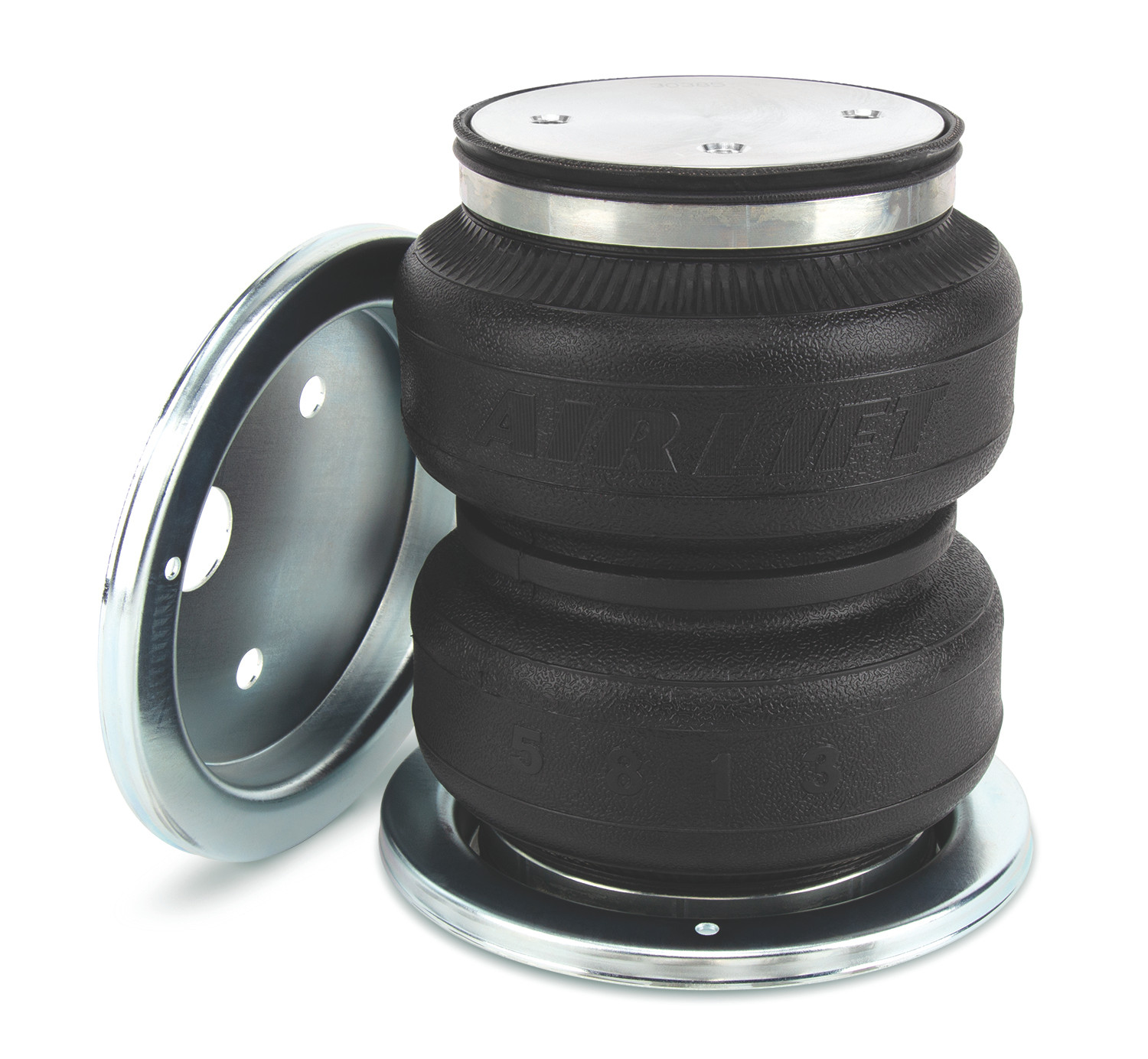

The LoadLifter 5000 Series air spring kit provides load-leveling support for your vehicle. It uses reinforced, commercial-grade air springs that deliver up to 5,000 pounds (2,268 kg) of load-leveling support with adjustable air pressure from 5 to 100 PSI (0.34 to 7 BAR). The air springs are manufactured with layers of rubber and cords similar to tire construction to control expansion and provide reliable support.
Yes, kit 57300 is designed for the Toyota Tacoma. However, the manual does not specify which model years, cab styles, or bed lengths are compatible. Contact Air Lift customer service at (800) 248-0892 or service@airliftcompany.com to confirm fitment for your specific Tacoma configuration before purchasing.
Required tools include: standard and metric open-end or box wrenches (set), 9/16" ratchet wrench, ratchet, standard and metric regular and deep-well sockets (set), 7/32" hex-key wrench (socket preferable), torque wrench, box cutter or equivalent, hose cutter/razor blade/sharp knife, hoist or floor jack, safety glasses, two safety stands, air compressor or compressed air source, and a spray bottle with dish soap/water solution. A 9/16" open-end wrench is specifically needed for tightening the rear U-bolt.
The kit includes: 2 lower brackets (03053), 1 upper LH bracket (07511), 1 upper RH bracket (07518), 2 inner braces (11190), 4 roll plates (11951), 2 air springs (58439), 2 swivel fittings (21837), 8 flat head socket-cap screws 3/8"-16 x 3/4" (17215), 2 clamp bars (11189), 4 U-bolts (11522), 2 carriage bolts 3/8"-16 x 2 1/2" (17141), 2 hex-cap screws 1/2"-13 x 1 1/2" (17161), 4 carriage bolts 3/8"-16 x 1 1/4" (17361), 4 large flat washers 17/32" x 2" x 3/16" (18207), 14 nylon lock nuts 3/8"-16 (18435), 14 flat washers 3/8" (18444), 2 nylon lock nuts 1/2"-13 (18460), 3 pin spacers 3/8" (18442), 1 air line assembly (20086), 6 zip ties (10466), 2 lock washers 5/16" (18411), 2 rubber washers (21234), 2 M8 flat washers (18501), 4 hex nuts 5/16" (21233), and 2 valve caps (21230).
Yes. You must trim the stock jounce bumper to gain clearance for the air spring assembly's lower bracket. Measure up 3/4" from the base and mark a line on the jounce bumper. Using a box cutter or equivalent, cut the top of the jounce bumper off. Use extreme caution when cutting with the cutting tool. This is a permanent modification to the vehicle.
Yes. As part of vehicle preparation, you must lift the vehicle, support the frame with safety stands, drop the axle, and remove the rear wheels. The wheels are reinstalled at the end of installation and torqued to factory specifications in a crisscross pattern.
The welded-on spacer on the upper brackets must face up. When assembling the left (driver's) side assembly, flip it upside-down carefully to avoid damaging the fitting. The flat edge of the lower bracket must be on the same side as the carriage bolt on top.
Install the swivel fitting into the air port on the air spring and tighten it one and a half turns past finger-tight. Do not over-tighten.
The 3/8" flat head socket-cap screws (H) attaching the upper and lower brackets to the air springs must be torqued to no more than 20 lb.-ft. (27 Nm). Do not exceed this specification.
The 1/2"-13 hex-cap screw (L) on the inner frame brace must be torqued to 35 lb.-ft. (47 Nm).
The three 3/8" upper nylon lock nuts must be torqued to 16 lb.-ft. (22 Nm).
The exposed lower bracket U-bolts must be evenly torqued to 16 lb.-ft. (22 Nm). The rear U-bolt should be tightened using a 9/16" ratchet or open-end wrench.
You must drill a 5/16" (8 mm) hole for each Schrader valve if one does not already exist in your chosen location. The manual shows three recommended locations: inside the fuel tank filler door, inside rear wheel wells, or the license plate/rear bumper area. Make clean, square cuts and avoid sharp bends and edges.
Route the nylon air lines from the Schrader valves to the air springs, preferably along the top of the frame and then down to the fitting. Make clean, square cuts with a razor blade or hose cutter—do not use scissors or wire cutters. Use zip ties (BB) to secure the air line to fixed points along the chassis without pinching or kinking it. The minimum bend radius is 1" (25 mm). Leave at least 2" (50 mm) of slack in the air line to allow for suspension movement.
The maximum air pressure is 100 PSI (7 BAR). Never inflate beyond this pressure. The minimum recommended air pressure in an unloaded condition is 5 PSI (0.34 BAR), which was found during development to slightly improve ride quality.
Keep at least 6 inches (150 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges that could damage the air lines.
Ensure sufficient clearance from heat sources—at least 6 inches (152 mm) for air springs and air lines. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, call Air Lift customer service at (800) 248-0892.
Perform the following checks in order: (1) Clearance test—inflate to 40-60 PSI and verify at least 1/2" clearance from tires, brakes, frame, shock absorbers and brake cables. (2) Leak test—inflate to 40-60 PSI and check all connections for leaks using soapy water; all leaks must be eliminated before road testing. (3) Heat test—ensure 6" clearance from heat sources. (4) Fastener test—after 500 miles, recheck all bolts for proper torque. (5) Road test—drive 10 miles and recheck clearance, fasteners and leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR).
Use a soapy water solution to check all air line connections and the inflation valve core. If you identify a leak, deflate and remove the air spring. For assistance with repairs, contact Air Lift customer service at (800) 248-0892 or service@airliftcompany.com.
No. Do not exceed your vehicle's maximum Gross Vehicle Weight Rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at 100 PSI maximum, the air pressure actually needed depends on load and GVWR. Exceeding these limits may damage the vehicle and create safety hazards.
Kit 57300 is designed for the Toyota Tacoma, but the manual does not specify model years, cab styles, or bed lengths. Contact Air Lift at (800) 248-0892 to confirm fitment for your specific vehicle.
You need: wrenches (standard and metric), 9/16" ratchet, sockets, 7/32" hex-key, torque wrench, box cutter, hose cutter, hoist/floor jack, safety glasses, two safety stands, air compressor, and soapy water spray bottle.
Yes. Trim the jounce bumper 3/4" from the base using a box cutter to clear the lower bracket. This is a permanent modification. Use extreme caution when cutting.
Flat head screws to air springs: 20 lb.-ft. (27 Nm). Inner frame brace 1/2" bolt: 35 lb.-ft. (47 Nm). Upper bracket nylon lock nuts: 16 lb.-ft. (22 Nm). Lower bracket U-bolts: 16 lb.-ft. (22 Nm). Wheel nuts: factory specifications.
Maximum pressure is 100 PSI (7 BAR). Minimum recommended pressure is 5 PSI (0.34 BAR). Never exceed 100 PSI.
Maintain at least 1/2" clearance from tires, brakes, frame, shocks and cables. Keep 6" clearance from exhaust and heat sources. Check these before road testing.
Check air pressure weekly. After 500 miles, recheck all fasteners for proper torque. If an air leak develops, use soapy water to locate it before deflating the system.
Use a spray bottle with a soapy water solution to check all air line connections and the inflation valve core. Spray the solution on each connection and look for bubbles, which indicate a leak. All leaks must be eliminated before road testing the vehicle. If leaks are found, deflate and remove the air spring for repair or replacement.
Perform a clearance test by inflating the air springs to 40-60 PSI and checking for at least 1/2" clearance from tires, brakes, frame, shock absorbers, and brake cables. If clearance is insufficient, the installation may not be correct. Verify that all brackets are properly aligned, that the upper bracket is fully contacting the stock jounce bumper bracket, and that the inner brace is positioned correctly. If problems persist, contact Air Lift customer service at (800) 248-0892.
