The LoadLifter 7500 XL Ultimate offers greater leveling strength for towing and hauling with 7-inch double-bellows air springs and up to 7,500 lbs. load-leveling capacity. The fully adjustable kit helps support the most significant loads.
The LoadLifter 7500 XL Ultimate offers support for the heaviest tows with an internal jounce bumper, absorbing shock for the smoothest ride. Air Lift’s fully adjustable, industry-leading air springs are the perfect upgrade for your vehicle, eliminating any issues you might face when towing and hauling. The LoadLifter 7500 XL Ultimate kit from Air Lift will give you the ability to drive select RAM 2500 two-wheel and four-wheel drive with added safety and comfort. Designed with an internal jounce bumper, the kit offers greater leveling strength for your ride at lower pressures. The kit’s 7-inch double-bellows air springs provide up to 7,500 lbs. of load-leveling capacity and help eliminate squat, trailer sway, body roll and bottoming out, keeping your cargo safe and secure while also ensuring a more comfortable ride. The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads, and protects vehicles carrying heavy loads. An Air Lift exclusive, the kit features upper and lower roll plates for added protection. All end caps are made with an ultra-high-strength nylon composite formula, strong as steel but much lighter and corrosion-proof. The air springs are built like tires, reinforced with 2-ply fabric for maximum strength. With the added stability that air springs provide, you can haul safely, knowing that you have optimal braking and steering control. The LoadLifter 7500 XL Ultimate has up to 20% more air spring volume when compared to Air Lift’s LoadLifter 5000 series. The LoadLifter 7500 XL Ultimate’s air springs are maintenance-free, can run safely on zero air pressure, and are fully adjustable from 5-100 PSI for precise control. Do not exceed the vehicle's gross vehicle weight rating (GVWR).
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
Yes, the Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57589 (Part #BBCG57589) is designed to fit the 2014-2026 Ram 2500.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57589 (Part #BBCG57589) fits 2014-2026 Ram 2500 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57589 (Part #BBCG57589) fits the following vehicles: 2014-2026 Ram 2500. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57589 (Part #BBCG57589) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

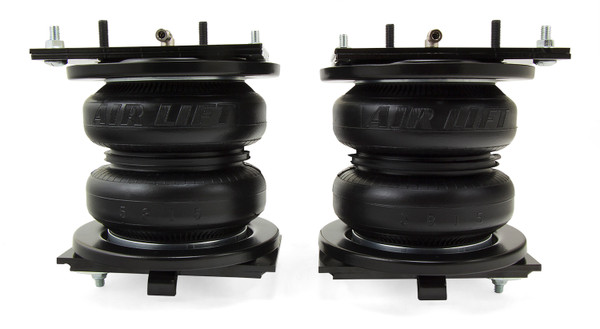

The LoadLifter 7500 XL Ultimate is an air spring suspension support system that provides up to 7,500 pounds of load-leveling support for 3/4-ton and 1-ton pickups and SUVs with leaf springs. It uses commercial-grade double-convolute bellows (reinforced rubber and cord construction similar to tire construction) and allows air pressure adjustment from 5 to 100 PSI for ride height control under load.
The kit is designed for 3/4-ton and 1-ton RAM pickups and SUVs with leaf springs. The manual does not specify exact model years or confirm compatibility with all RAM Heavy Duty variants. Contact Air Lift customer service at (800) 248-0892 or (517) 322-2144 to confirm fitment for your specific vehicle.
Required tools include: standard and metric open-end or box wrenches (set), ratchet, standard and metric sockets (regular and deep-well), 5/16" drill bit (very sharp), 9/16" crows foot adapter, heavy-duty drill, torque wrench, standard and metric socket hex-key wrenches (set), hose cutter or razor blade, hoist or floor jacks, two safety stands, safety glasses, air compressor or compressed air source, and spray bottle with dish soap/water solution.

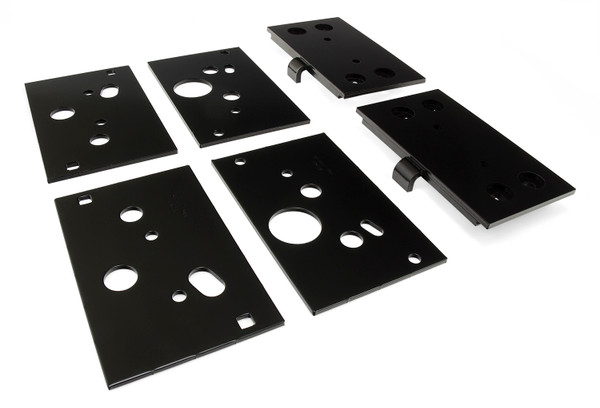

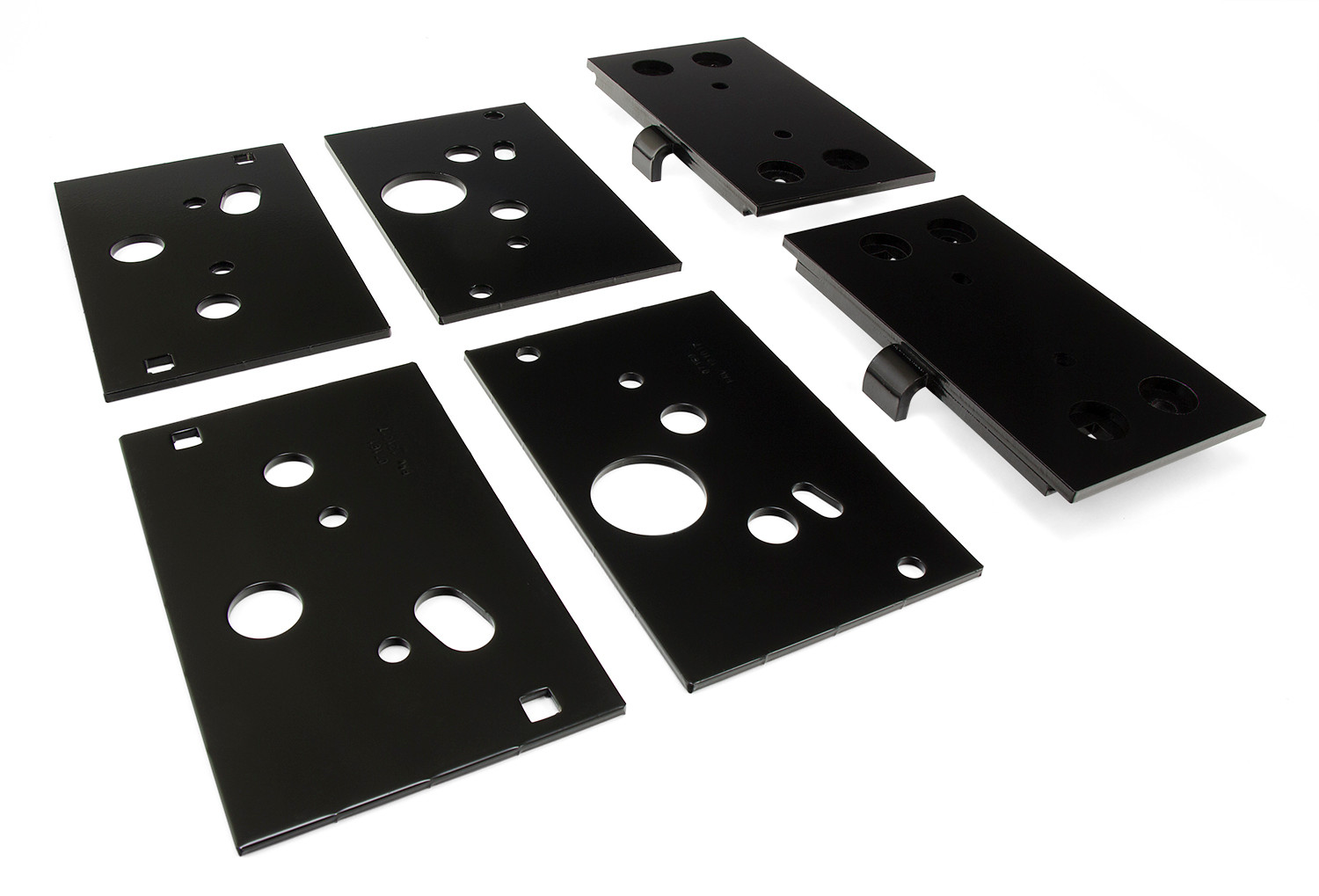

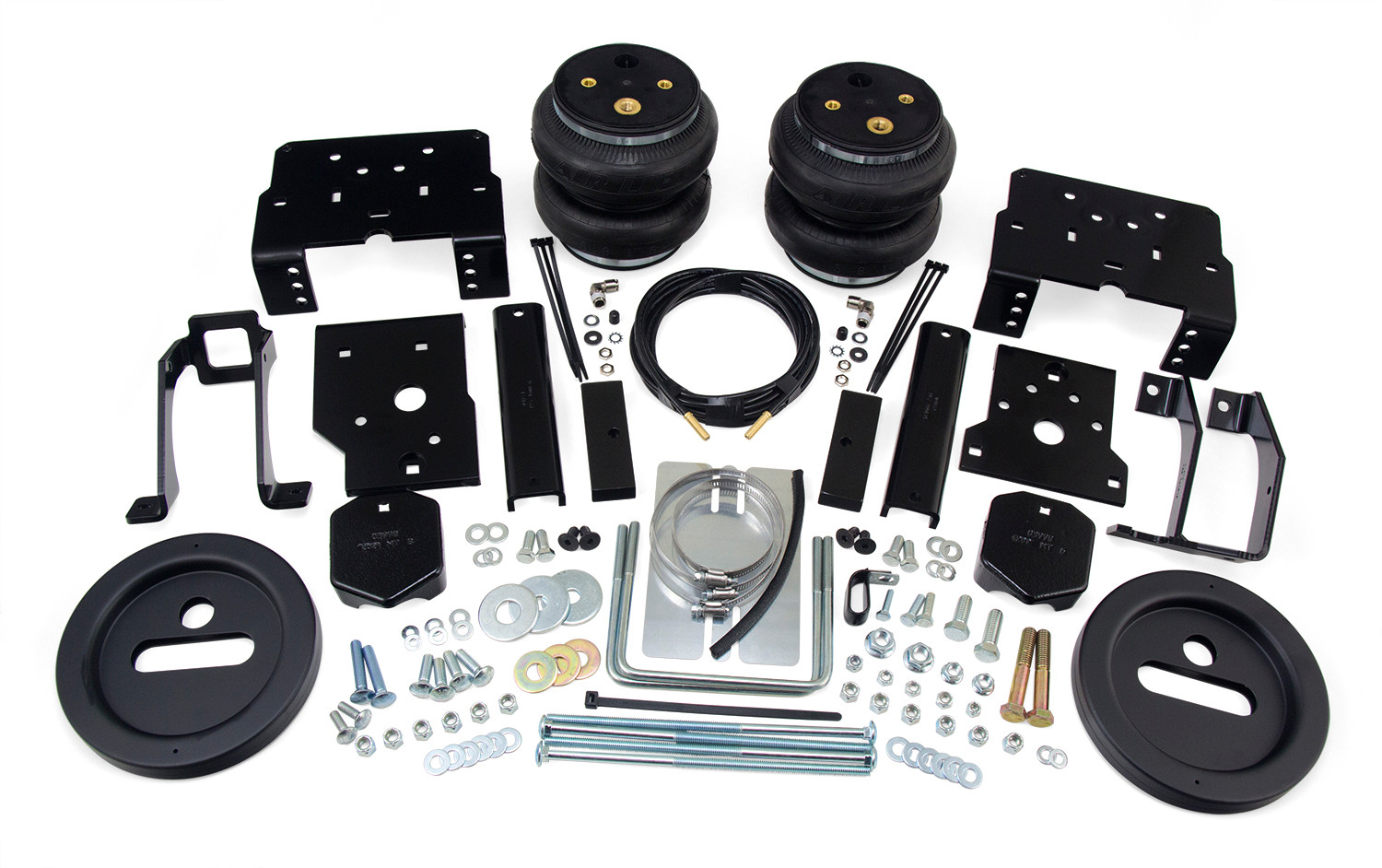

The kit includes: 2 clamp bars (01531), 2 upper frame brackets (07160), 2 upper air spring brackets (07161), 2 lower brackets (03038), 4 roll plates (11897), 2 air springs (58120), 2 hex-head cap screws 3/8"-16 x 1 1/4" (17188), 4 carriage bolts 3/8"-16 x 1 1/4" (17361), 4 button-head cap screws M10-1.50 x 35 (17366), 4 carriage bolts 3/8"-16 x 10" (17387), 2 large flat washers (18260), 8 serrated flange lock nuts 3/8"-16 (18422), 2 nylon lock nuts 3/8"-16 (18435), 2 push-to-connect swivel fittings (21837), 1 air line (20086), 6 zip ties (10466), 2 lock washers 5/16" (18411), 2 valve caps (21230), 4 hex nuts 5/16"-32 (21233), 2 rubber washers (21234), and 2 flat washers (18501).
Yes. The first step is to raise the vehicle, support the frame with safety stands, and remove the wheels. The axle must then be dropped to make room for the air spring assemblies to be positioned between the frame and axle.
On some models, there is a small vent tube on the driver's (left) side by the axle. It must be tied at an angle with a zip tie (included, part 10466) by inserting the zip tie into the small hole in the lower coil spring seat, around the vent tube, and snugging it enough to angle the tube out of the way. This prevents interference with the air spring assembly installation.
Yes. The jounce bumpers must be removed from both sides before installing the air spring assemblies. The lower bracket will later be positioned over the lower jounce bumper strike plate.
Attach the upper frame bracket (part 07160) to the frame using the M10-1.50 x 35 button-head cap screws (part 17366). The large hole in the bracket must face outward toward the tire. Torque the mounting hardware to 30 lb.-ft. (41 Nm).
1. Set a roll plate (part 11897) over the top of each air spring (part 58120) with the radiused edge toward the air spring. 2. Insert the 3/8"-16 x 1 1/4" carriage bolt (part 17361) through the upper air spring bracket (part 07161) square hole. 3. Set the bracket onto the air spring and attach using 3/8"-24 x 3/4" button-head cap screws (part 17527), torqued to no more than 20 lb.-ft. (27 Nm). 4. Install the swivel fitting (part 21837) finger-tight plus 1 1/2 turns. 5. Install the large flat washer (part 18260) onto the lower bracket (part 03038) with a 3/8"-16 x 1 1/4" hex-head cap screw (part 17188) and 3/8"-16 nylon lock nut (part 18435), torqued to 31 lb.-ft. (42 Nm). 6. Insert the long 3/8"-16 x 10" carriage bolts (part 17387) into the lower bracket square holes. 7. Set a roll plate over the bottom and attach the lower bracket using 3/8"-24 x 3/4" button-head cap screws (part 17527), torqued to no more than 20 lb.-ft. (27 Nm).
The upper air spring brackets are mirror images when set onto the air springs—the driver's (left) side and passenger's (right) side assemblies are different. The large washer on the lower bracket must be positioned on the same side as the air fittings. When attaching to the frame, the large washer on the bottom of the bracket should be positioned forward of the lower jounce bumper strike plate.
When setting the driver's (left) side assembly on the axle, the carriage bolt (part 17387) must go between the brake line and the axle, on the inboard side of the brake line bracket. This applies to both sides. The carriage bolts and fittings must line up with the holes in the frame brackets, and if necessary, raise the axle so the brackets come together without binding.
The upper frame bracket (part 07160) mounting hardware must be torqued to 30 lb.-ft. (41 Nm).
The 3/8"-24 x 3/4" button-head cap screws (part 17527) attaching the upper air spring bracket (part 07161) to the air spring must be torqued to no more than 20 lb.-ft. (27 Nm).
The 3/8"-16 x 1 1/4" hex-head cap screw (part 17188) and 3/8"-16 nylon lock nut (part 18435) attaching the large flat washer (part 18260) to the lower bracket (part 03038) must be torqued to 31 lb.-ft. (42 Nm).
The 3/8"-24 x 3/4" button-head cap screws (part 17527) attaching the lower bracket (part 03038) to the air spring assembly must be torqued to no more than 20 lb.-ft. (27 Nm).
The 3/8"-16 serrated flange lock nuts (part 18422) on the upper carriage bolts must be torqued to 16 lb.-ft. (22 Nm). A 9/16" crows foot adapter may be necessary to torque the nut underneath the frame.
The 3/8"-16 serrated flange lock nuts (part 18422) fastening the clamp bar (part 01531) over the two long carriage bolts under the axle must be torqued evenly to 10 lb.-ft. (14 Nm).
Yes, if necessary. You must choose the locations for the Schrader valves and drill a 5/16" (8mm) hole if one does not already exist. The manual suggests three common locations: inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area.
1. Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters. 2. Use zip ties to secure the air line to fixed points along the chassis without pinching or kinking it. Leave at least 2" (51mm) of slack to allow for movement. The minimum bend radius is 1" (25mm). 3. Keep at least 6" (152mm) clearance between all air lines and the exhaust system. 4. Install the Schrader valve in the chosen location.
The maximum inflation pressure is 100 PSI (7 BAR). However, the actual air pressure needed depends on load and gross vehicle weight rating. Never inflate beyond 100 PSI.
The minimum recommended pressure is 5 PSI (0.34 BAR). Check air pressure weekly and always maintain normal ride height.
There must be more than 1/2" (13mm) clearance between the tire and the upper roll plate on the air spring assembly. Check clearances after installing the tires and if changing tire sizes on the vehicle.

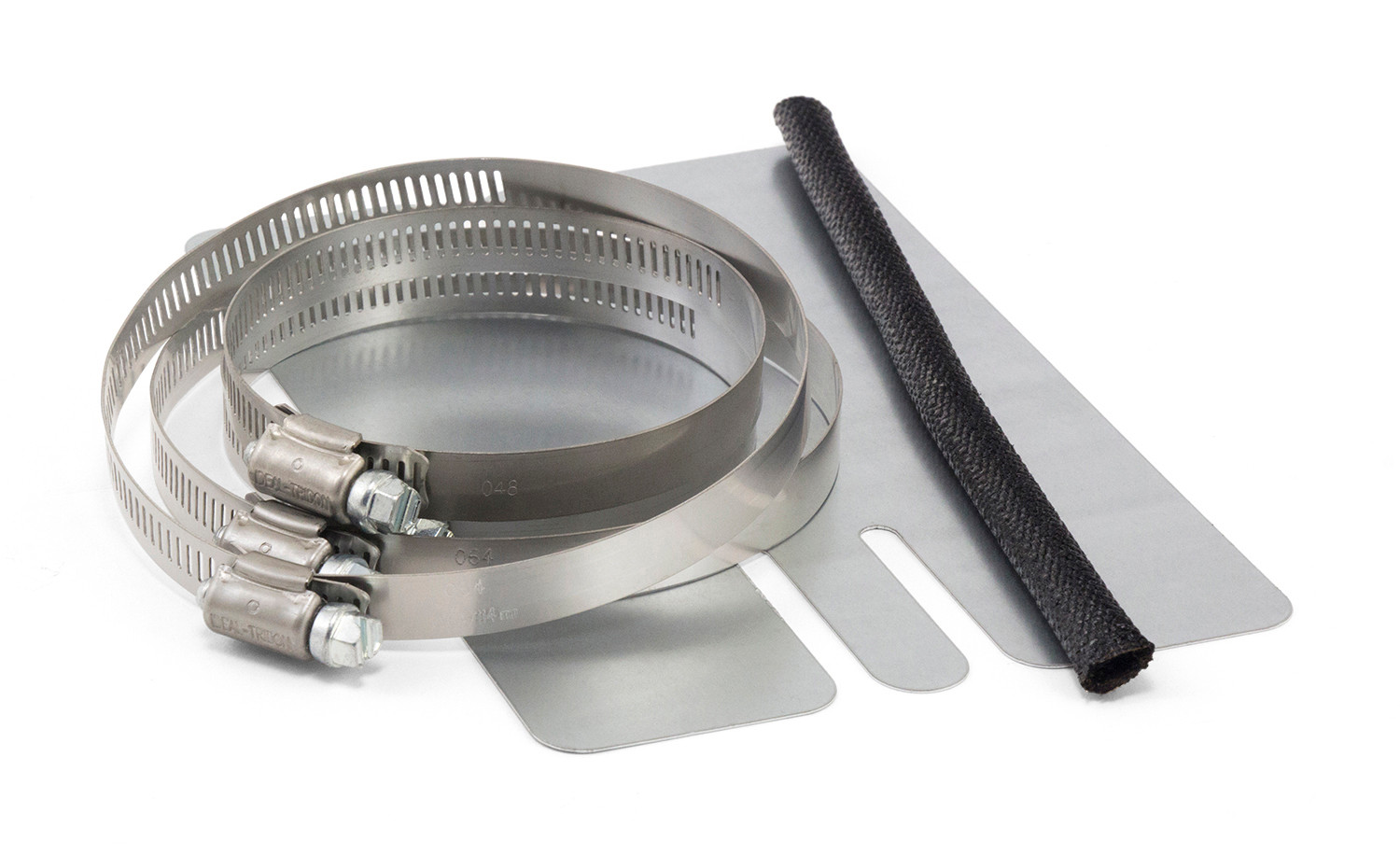

Maintain at least 6" (152mm) clearance between air springs and air lines and heat sources such as the exhaust system. If a heat shield was included in the kit, install it. If one is required but not included, contact Air Lift customer service at (800) 248-0892.
No. Do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Exceeding these limits can damage the vehicle and create a safety hazard.
Perform the following checks: 1. Clearance test—inflate to 40-60 PSI and verify at least 1/2" (13mm) clearance from the tire, brakes, frame, shock absorbers and brake cables. 2. Leak test—inflate to 40-60 PSI and check all connections for leaks before road testing. 3. Heat test—verify at least 6" (152mm) clearance from heat sources. 4. Fastener test—recheck all bolts for proper torque. 5. Road test—drive 10 miles (16km) and recheck for clearance, loose fasteners and air leaks.
Use a spray bottle with a dish soap and water solution to check all air line connections and the inflation valve core. If the system develops an air leak, identify and fix all leaks before deflating and removing the air spring. Perform this check before road testing and periodically during maintenance.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR).
The LoadLifter 7500 XL Ultimate (kit 57589) is designed for 3/4-ton and 1-ton RAM pickups and SUVs with leaf springs. Confirm your specific model year and configuration with Air Lift customer service at (800) 248-0892.
You need wrenches, sockets, a heavy-duty drill with 5/16" bit, torque wrench, hoist or floor jacks, two safety stands, safety glasses, air compressor, and a spray bottle with soapy water. A 9/16" crows foot adapter is also required for torquing under the frame.
Yes. Raise the vehicle on safety stands, remove the wheels, and drop the axle to make room for the air spring assemblies.
Yes, you must drill a 5/16" (8mm) hole for the Schrader valve if one does not already exist. Common locations are the fuel tank filler door, rear wheel wells, or rear bumper area.
Maximum inflation pressure is 100 PSI (7 BAR). Actual pressure needed depends on load and GVWR. Check pressure weekly and never exceed 100 PSI.
Maintain more than 1/2" (13mm) clearance between the tire and the upper roll plate. Check after installing tires and if changing tire sizes.
Perform clearance, leak, heat, and fastener tests at 40-60 PSI. Then road test for 10 miles and recheck clearance, fasteners, and leaks.
Check air pressure weekly. Use soapy water to check for leaks at connections and valve cores. Never exceed 100 PSI or vehicle GVWR. Recheck all fasteners after the first 10-mile road test.
Use a spray bottle with a dish soap and water solution to check all air line connections and the inflation valve core. Leaks will appear as bubbles. All leaks must be eliminated before the vehicle is road tested. If a leak is found, identify the source (connection, valve core, or air line) and repair or replace the affected component before deflating and removing the air spring.
