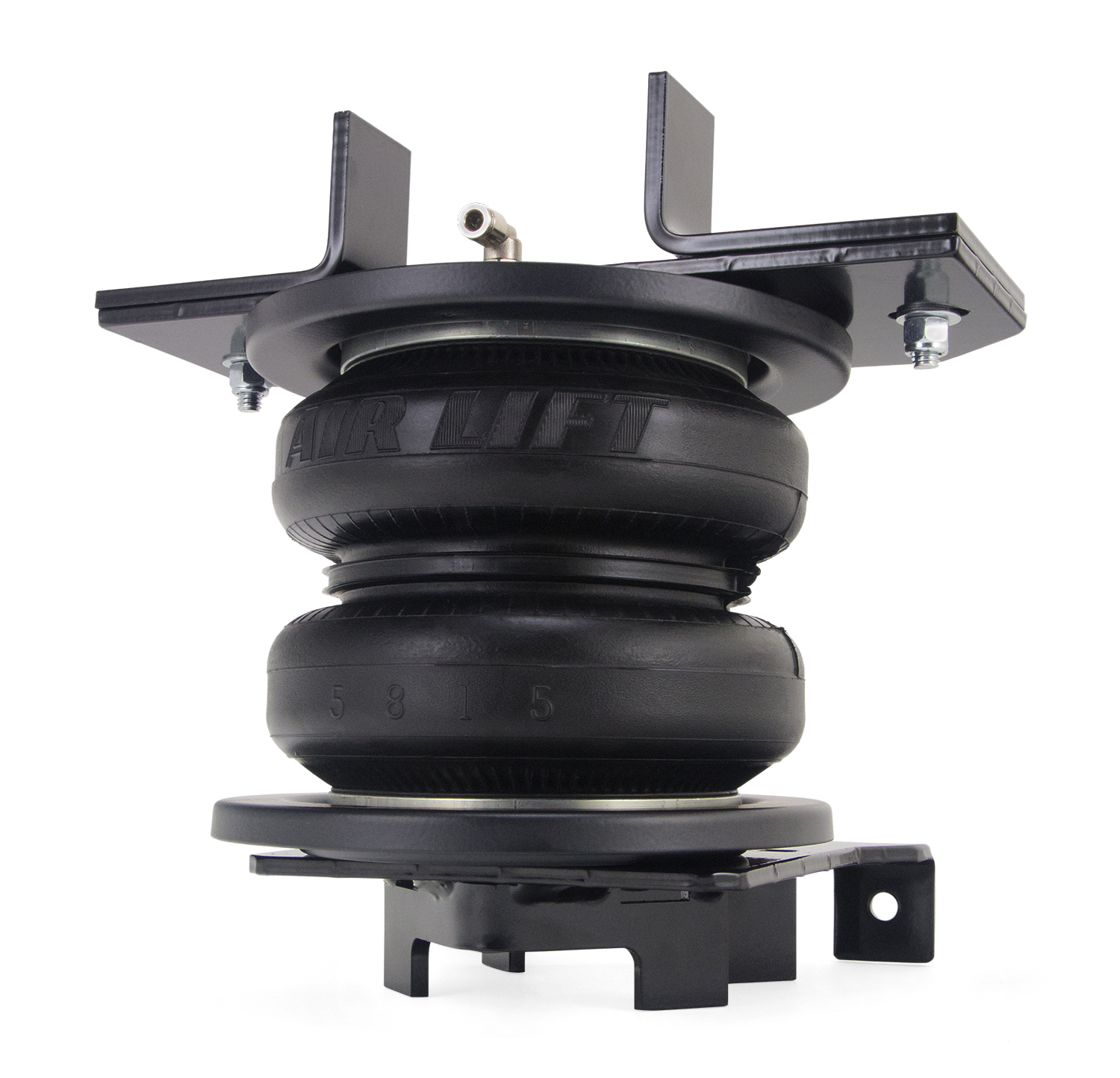

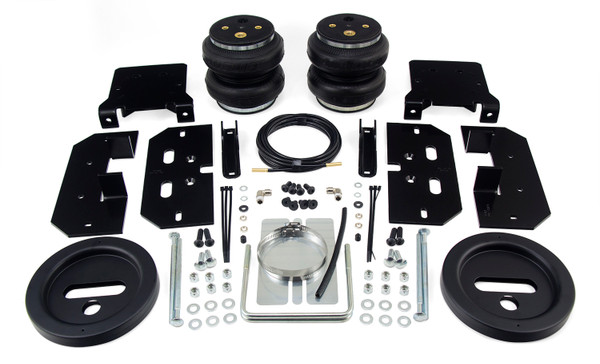

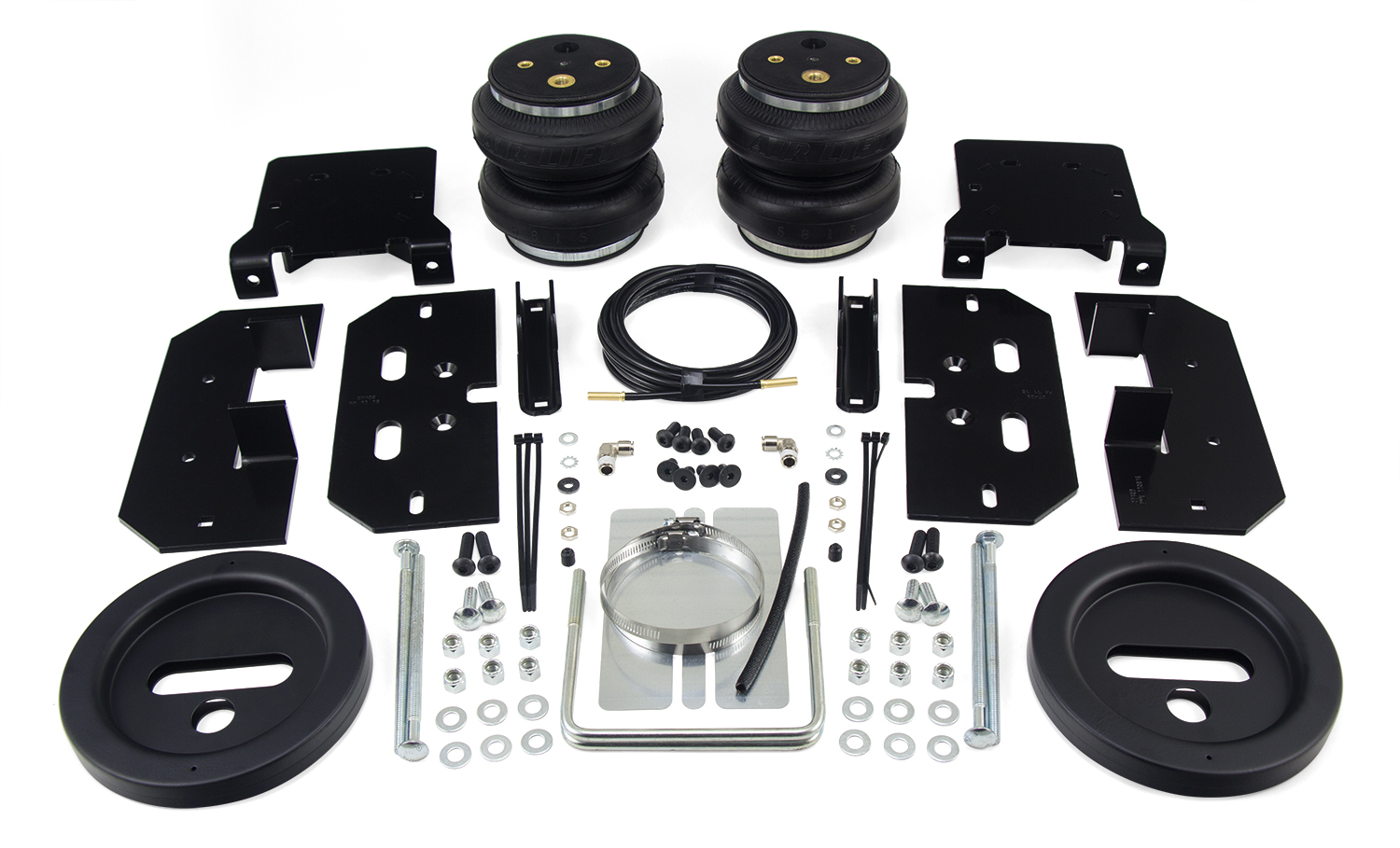

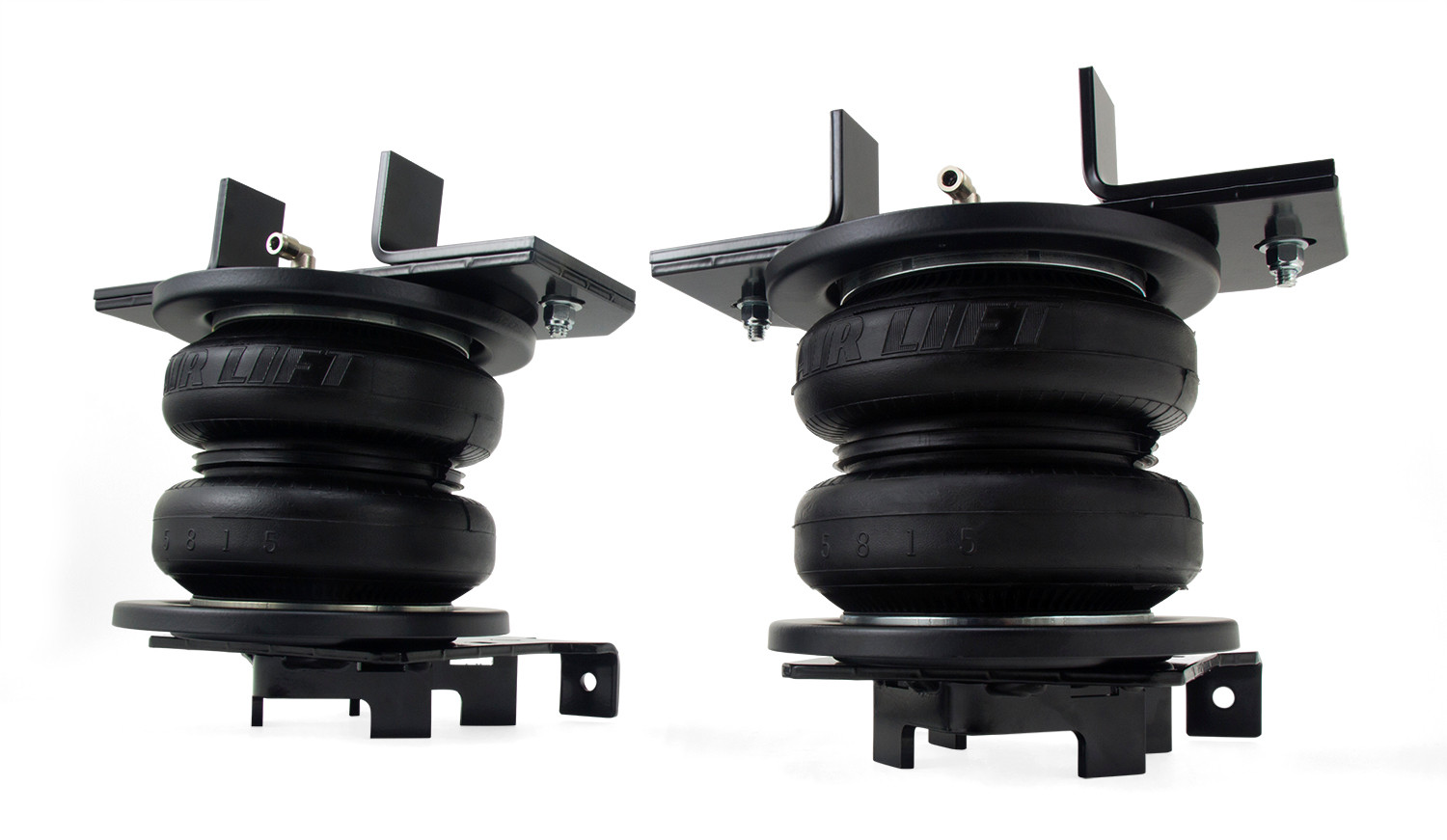

The LoadLifter 7500 XL Ultimate offers greater leveling strength for towing and hauling with 7-inch double-bellows air springs and up to 7,500 lbs. load-leveling capacity. The fully adjustable kit helps support the most significant loads.
The LoadLifter 7500 XL Ultimate offers support for the heaviest tows with an internal jounce bumper, absorbing shock for the smoothest ride. Air Lift’s fully adjustable, industry-leading air springs are the perfect upgrade for your vehicle, eliminating any issues you might face when towing and hauling. The LoadLifter 7500 XL Ultimate kit from Air Lift will give you the ability to drive select RAM 2500 four-wheel drive and select RAM 3500 four-wheel drive with added safety and comfort. Designed with an internal jounce bumper, the kit offers greater leveling strength for your ride at lower pressures. The kit’s 7-inch double-bellows air springs provide up to 7,500 lbs. of load-leveling capacity and help eliminate squat, trailer sway, body roll and bottoming out, keeping your cargo safe and secure while also ensuring a more comfortable ride. The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads, and protects vehicles carrying heavy loads. An Air Lift exclusive, the kit features upper and lower roll plates for added protection. All end caps are made with an ultra-high-strength nylon composite formula, strong as steel but much lighter and corrosion-proof. The air springs are built like tires, reinforced with 2-ply fabric for maximum strength. With the added stability that air springs provide, you can haul safely, knowing that you have optimal braking and steering control. The LoadLifter 7500 XL Ultimate has up to 20% more air spring volume when compared to Air Lift’s LoadLifter 5000 series. The LoadLifter 7500 XL Ultimate’s air springs are maintenance-free, can run safely on zero air pressure, and are fully adjustable from 5-100 PSI for precise control. Do not exceed the vehicle's gross vehicle weight rating (GVWR).
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2010 | Dodge Ram 2500 | Does not fit cab & chassis applications |
| 2003 - 2010 | Dodge Ram 3500 | Does not fit cab & chassis applications |
| 2011 - 2013 | Ram 2500 | Does not fit cab & chassis applications |
| 2011 - 2018 | Ram 3500 | Does not fit cab & chassis applications |
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57595 (Part #BBCG57595) fits the following vehicles: 2003-2010 Dodge Ram 2500; 2003-2010 Dodge Ram 3500; 2011-2013 Ram 2500; 2011-2018 Ram 3500. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57595 (Part #BBCG57595) is designed to fit the 2003-2010 Dodge Ram 2500.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57595 (Part #BBCG57595) fits 2003-2010 Dodge Ram 2500 models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57595 (Part #BBCG57595) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Kit 57595 is designed for Dodge/RAM Heavy Duty trucks, but the manual does not specify which model years, cab styles (Regular, Crew, Mega), or bed lengths are compatible. Contact Air Lift customer service at (800) 248-0892 to confirm fitment for your specific vehicle before purchasing.
The LoadLifter 7500 XL Ultimate kit provides up to 7,500 pounds (3,400 kg) of load-leveling support with air adjustability from 5–100 PSI (0.34–7 BAR).
The maximum air pressure is 100 PSI (7 BAR). However, the actual air pressure needed depends on load and your vehicle's gross vehicle weight rating. Never exceed 100 PSI, and always maintain normal ride height.
The minimum recommended pressure is 5 PSI (0.34 BAR).
If your vehicle does not have a rear brake proportioning valve or is equipped with an anti-lock brake system, installation will have no effect on braking performance. However, if your vehicle has a rear brake proportioning valve, Air Lift recommends checking with your dealer before installation, as a load assist product could affect braking performance.
The manual does not mention battery disconnection as a requirement for this installation.
Required tools include: metric and standard open-end box wrenches, ratchet with metric and standard sockets, 5/16" drill bit and drill, torque wrench, metric and standard hex key wrenches, hose cutter or sharp knife, bench or hand grinder, hoist or floor jack, two safety stands, safety glasses, air compressor or compressed air source, spray bottle with dish soap/water solution, and black spray paint.
Yes. You must drill a 5/16" (8 mm) hole for each Schrader valve installation. The manual shows three optional locations: inside the fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area. Choose locations based on your preference and drill as needed.
On some models, the roll plate on the driver's (left) side may contact the vent tube hose that comes out of the axle. If this occurs, you may need to modify the roll plate by cutting or grinding a small section to clear the hose. The lower bracket must sit flush on the axle with no interference. Spray paint any exposed metal from grinding or cutting before final installation.
Raise the vehicle and support it using safety stands or equivalent so that the axle can be safely dropped away from the frame. This is necessary to position the air spring assemblies between the axle and frame. Do not rely on a jack alone; use safety stands to prevent injury.

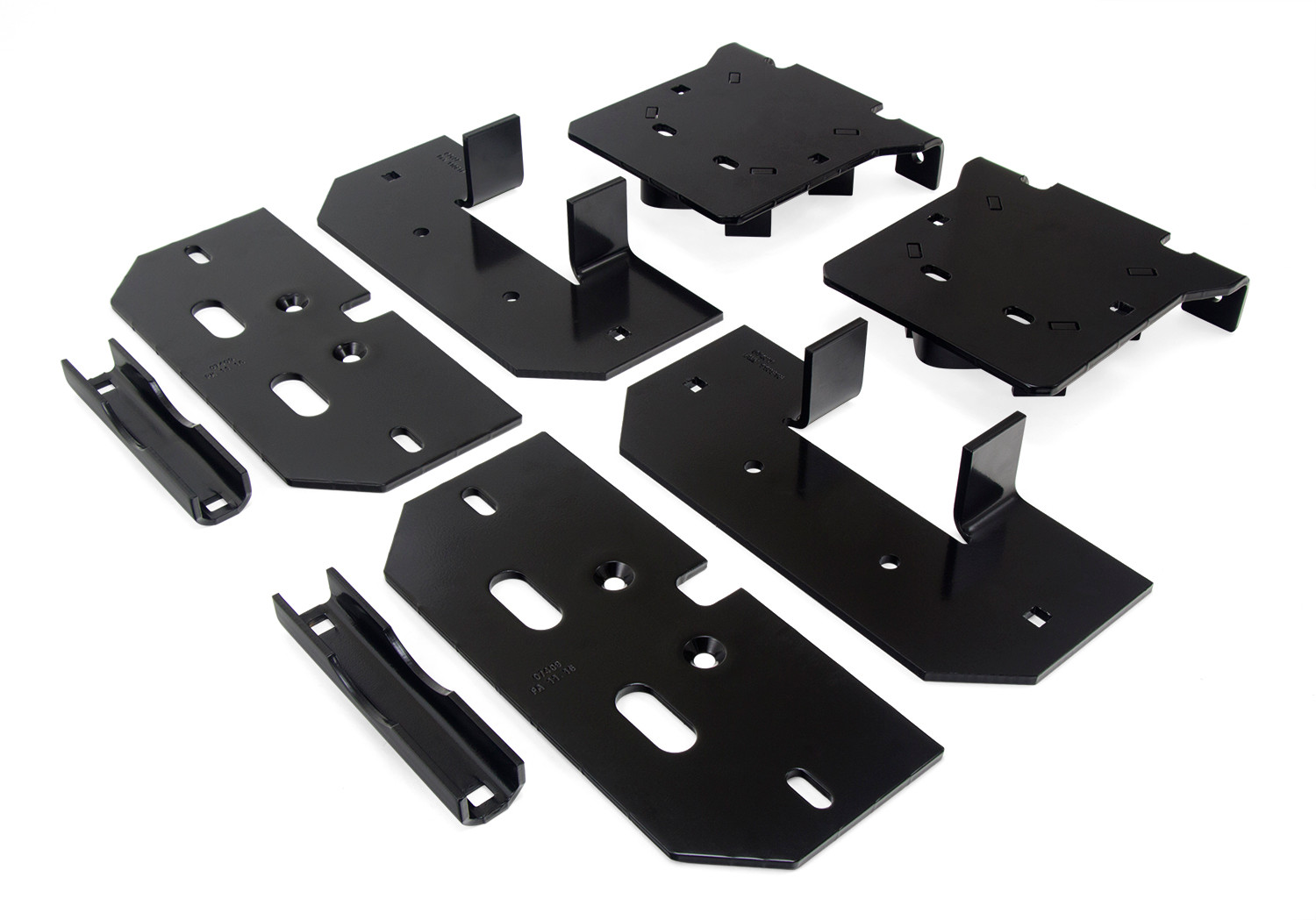

The cutout in the upper frame brackets (part B) must face inboard, away from the tire, on both sides of the frame. Install them with two M10-1.5 x 35 button head cap screws (part J) and torque to 37 lb.-ft. (50 Nm).
Torque the M10-1.5 x 35 button head cap screws (part J) that secure the upper frame brackets to 37 lb.-ft. (50 Nm).
Set the roll plate (part F) on top of the air spring (part E) with the radiused (rounded) edge facing the air spring so that it is seated inside the roll plate. A second roll plate is also placed over the bottom of the air spring during assembly.
Torque the 3/8"-24 x 7/8" flat-head cap screws (part M) that secure the upper air spring brackets to no more than 20 lb.-ft. (27 Nm).
The long flanges of the lower bracket must be on the opposite side of the fitting at the top of the air spring assemblies. This orientation is critical for proper assembly and function.
Torque both 3/8"-24 x 3/4" button-head cap screws (part N) that secure the lower bracket to no more than 20 lb.-ft. (27 Nm). Use a 7/32" hex-head wrench and tighten both evenly.
For early-model trucks with a hard brake line behind the axle that is mounted away from the axle (with a gap between axle and brake line), position the lower bracket carriage bolt that will be behind the axle between the brake line and the axle.
For late-model trucks with a hard brake line and possibly an ABS harness mounted flush to the axle (with no gap between axle and brake line), position the driver's side lower bracket carriage bolt on the outside of the brake line.
On the passenger's (right) side, the lower bracket carriage bolt is always on the outside of the brake line on all early and late model trucks, regardless of the year.
Push the lower brackets up against the leaf spring pack so that the front and back legs are locked around the stock U-bolts. The lower bracket must be flush against the stock U-bolts. Install the supplied U-bolt (part G) around the spring stack and through the legs of the lower bracket.
Torque the clamp bar (part A) hardware to 16 lb.-ft. (22 Nm). The clamp bar is installed over the long lower bracket carriage bolts under the axle and capped with 3/8" flat washers (part L) and 3/8" nylon lock nuts (part K).
After torquing the lower clamp bar hardware to 16 lb.-ft. (22 Nm), torque the leaf spring U-bolt (part G) that was previously snugged to 10 lb.-ft. (14 Nm).
Insert the 3/8"-16 x 1 1/4" carriage bolts (part I) down through the top frame brackets and cap with 3/8" flat washers (part L) and 3/8"-16 nylon lock nuts (part K). Leave loose at this time; do not tighten yet.
Raise the axle or lower the frame so safety stands can be removed. Using the slot in the upper bracket, push the top of the air spring forward or backward to align it so that it is perpendicular (as much as possible) to both the upper and lower brackets. Then torque the upper bracket hardware to 31 lb.-ft. (42 Nm).
Torque the upper bracket hardware (3/8"-16 x 1 1/4" carriage bolts with washers and nylon lock nuts) to 31 lb.-ft. (42 Nm).
After the assemblies are adjusted and tight, make sure the brake lines on the back (both driver's and passenger's sides) do not come in contact with the rear carriage bolts. Adjust by pushing the line over to gain clearance if necessary.
The emergency brake cable must be above the upper brackets to avoid interference.
The manual shows three optional locations for the Schrader valve: inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area. Choose the location that works best for your vehicle and drill a 5/16" (8 mm) hole if necessary.
Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters, as they will damage the air line.
Maintain at least 6" (152 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges. The minimum bend radius for the air line is 1" (25 mm).
Use zip ties to secure the air line to fixed points along the chassis. Do not pinch or kink the air line. Leave at least 2" (51 mm) of slack in the air line to allow for any movement that might pull on it. The minimum bend radius is 1" (25 mm).
Attach the metal heat shield to the exhaust where it is closest to the passenger's (right) side air spring. Slide the air line thermal sleeve over the air line and position it where the air line is closest to the exhaust. Maintain 1/2" (13 mm) dead air space between the shield and exhaust.
Inflate the air springs to 40–60 PSI (2.8–4.1 BAR) and make sure there is at least 1/2" (13 mm) clearance from anything that might rub against each sleeve. Be sure to check the tire, brakes, frame, shock absorbers and brake cables.
Inflate the air springs to 40–60 PSI (2.8–4.1 BAR) and check all connections for leaks using a soapy water solution. All leaks must be eliminated before the vehicle is road tested.
Ensure there is sufficient clearance from heat sources—at least 6" (152 mm) for air springs and air lines. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, call Air Lift customer service at (800) 248-0892.
Recheck all bolts for proper torque after installation.
Road test the vehicle after completing the clearance, leak, heat, and fastener tests. Inflate the springs to recommended driving pressures. Drive the vehicle 10 miles (16 km) and recheck for clearance, loose fasteners and air leaks.
Check air pressure weekly to maintain system performance and safety.
Use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. This will help you identify the source of the leak.
The air springs compress to 3.3" (84 mm) and extend to 9.0" (229 mm). The air spring should not be the suspension limiter in either compression or extension. Adjust air pressure so that normal ride height is maintained at all times, regardless of load.
If the air spring becomes the suspension limiter in extension, the use of limiting straps should be considered, particularly for off-road vehicles. The shock absorber is usually the limiter on extension.
Kit 57595 is designed for Dodge/RAM Heavy Duty trucks. Contact Air Lift at (800) 248-0892 to confirm fitment for your specific model year, cab style, and bed length.
You will need: wrenches, sockets, torque wrench, 5/16" drill bit, hex keys, hose cutter, grinder, jack, safety stands, safety glasses, air compressor, spray bottle with soapy water, and black spray paint.
Maximum air pressure is 100 PSI (7 BAR). Never exceed this pressure. Actual pressure needed depends on load and your vehicle's GVWR.
Upper frame brackets: 37 lb.-ft. (50 Nm). Upper air spring brackets: 20 lb.-ft. (27 Nm). Lower bracket cap screws: 20 lb.-ft. (27 Nm). Clamp bar: 16 lb.-ft. (22 Nm). Leaf spring U-bolt: 10 lb.-ft. (14 Nm). Upper bracket hardware: 31 lb.-ft. (42 Nm).
If your truck has an anti-lock brake system or no rear brake proportioning valve, there is no effect. If it has a rear brake proportioning valve, check with your dealer before installation.
Perform clearance, leak, heat, and fastener tests at 40–60 PSI. Then road test for 10 miles and recheck all items. Ensure 1/2" clearance from all components and 6" from exhaust.
Check air pressure weekly. Maintain normal ride height. Never exceed 100 PSI. Do not exceed vehicle GVWR or payload rating. If a leak develops, use soapy water to locate it before deflating.
Use a soapy water solution to check all air line connections and the inflation valve core. The soapy water will bubble at the location of any leak. Once located, the leak must be eliminated before road testing.
If the roll plate on the driver's (left) side comes in contact with the vent tube hose from the axle, modify the roll plate by cutting or grinding a small section to clear the hose. The lower bracket must sit flush on the axle with no interference. Spray paint any exposed metal from grinding or cutting before final installation.
After the assemblies are adjusted and tight, check both driver's and passenger's sides to ensure the hard brake line is not rubbing on the carriage bolts. If contact is found, adjust by pushing the line over to gain clearance.
