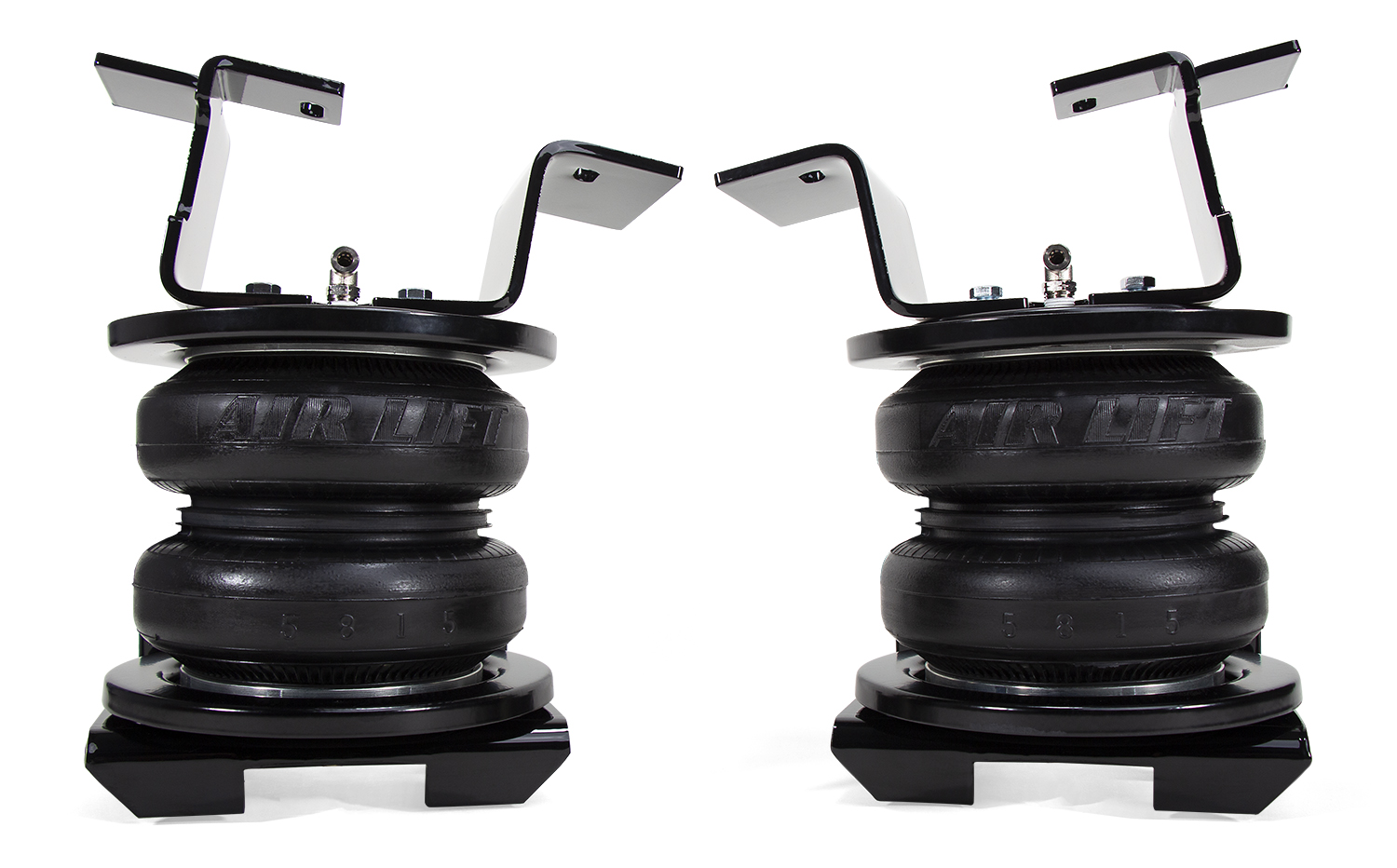

The LoadLifter 7500 XL Ultimate offers greater leveling strength for towing and hauling with 7-inch double-bellows air springs and up to 7,500 lbs. load-leveling capacity. The fully adjustable kit helps support the most significant loads.
The LoadLifter 7500 XL Ultimate offers support for the heaviest tows with an internal jounce bumper, absorbing shock for the smoothest ride. Air Lift’s fully adjustable, industry-leading air springs are the perfect upgrade for your vehicle, eliminating any issues you might face when towing and hauling. The LoadLifter 7500 XL Ultimate kit from Air Lift will give you the ability to drive select RAM 3500 two-wheel and four-wheel drive with added safety and comfort. Designed with an internal jounce bumper, the kit offers greater leveling strength for your ride at lower pressures. The kit’s 7 inch double bellows air springs provide up to 7,500 lbs. of load-leveling capacity and help eliminate squat, trailer sway, body roll and bottoming out, keeping your cargo safe and secure while also ensuring a more comfortable ride. The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads, and protects vehicles carrying heavy loads. An Air Lift exclusive, the kit features upper and lower roll plates for added protection. All end caps are made with an ultra-high-strength nylon composite formula, strong as steel but much lighter and corrosion-proof. The air springs are built like tires, reinforced with 2-ply fabric for maximum strength. With the added stability that air springs provide, you can haul safely, knowing that you have optimal braking and steering control. The LoadLifter 7500 XL Ultimate has up to 20% more air spring volume when compared to Air Lift’s LoadLifter 5000 series. The LoadLifter 7500 XL Ultimate’s air springs are maintenance-free, can run safely on zero air pressure, and are fully adjustable from 5-100 PSI for precise control. Do not exceed the vehicle's gross vehicle weight rating (GVWR).
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | Ram 3500 | — |
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling. 57531 (Part #BBCG57531) fits 2019-2026 Ram 3500 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling. 57531 (Part #BBCG57531) is designed to fit the 2019-2026 Ram 3500.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling. 57531 (Part #BBCG57531) fits the following vehicles: 2019-2026 Ram 3500. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling. 57531 (Part #BBCG57531) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the LoadLifter 7500 XL Ultimate kit (57531) is designed for the RAM 3500. The kit is recommended for 3/4- and 1-ton pickups and SUVs with leaf springs and provides up to 7,500 pounds (3,402 kg) of load-leveling support.
The maximum air pressure is 100 PSI (7 BAR). Never inflate beyond this pressure. The air pressure actually needed depends on load and gross vehicle weight rating; do not exceed the vehicle manufacturer's maximum GVWR or payload rating.
The minimum recommended pressure is 5 PSI (0.34 BAR).
Required tools include: standard and metric open-end or boxed wrenches (set), standard and metric regular and deep-well sockets (set), screwdriver, ratchet, 9/16" ratchet wrench, torque wrench, 9/16" crows-foot adapter, hose cutter or sharp knife, hoist or floor jack, 2 safety stands, safety glasses, air compressor or compressed air source, and a spray bottle with dish soap/water solution.
The manual does not specify whether battery disconnection is required. Contact Air Lift customer service at (800) 248-0892 for clarification.
Lift the vehicle and support the frame with safety stands. Drop the axle down low enough to later set the air spring assemblies into position between the frame and axle.
No. Unbolt and remove both jounce bumpers during preparation. The jounce bumpers and hardware will not be reused.
Torque the 3/8" hex-head cap screws (part I) that attach the upper brackets to the air springs to no more than 20 lb.-ft. (27 Nm).
Tighten the 90 degree swivel elbow fittings (part H) finger-tight plus 1½ turns.
Using a 9/16" crows-foot adapter, evenly torque the leaf spring U-bolts (part L) to 10 lb.-ft. (14 Nm).
Torque the lower axle clamp bar hardware (3/8" serrated flange lock nuts on the carriage bolts) to 16 lb.-ft. (22 Nm).
Torque the 3/8" flat washers (part P) and lock nuts (part Q) on the upper brace bolts (part M) to 31 lb.-ft. (42 Nm).
Yes, drilling is required only for the Schrader valve installation. You must drill a 5/16" (8 mm) hole in the chosen location for the Schrader valve. The manual suggests three optional locations: inside the fuel tank filler door, inside rear wheel wells, or the license plate or rear bumper area.
Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters, as these will damage the air line.
Keep at least 6" (152 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges.
The minimum bend radius for the air line is 1" (25 mm). Leave at least 2" (51 mm) of slack in the air line to allow for any movement that might pull on the air line.
Use zip ties to secure the air line to fixed points along the chassis. Do not pinch or kink the air line. Leave at least 2" (51 mm) of slack in the air line to allow for any movement that might pull on the air line.
Inflate the air springs to 40-60 PSI (2.8-4.1 BAR) and make sure there is at least 1/2" (13 mm) clearance from anything that might rub against each air spring. Be sure to check the tire, brakes, frame, shock absorbers and brake cables.
Inflate the air springs to 40-60 PSI (2.8-4.1 BAR) and check all connections for leaks. All leaks must be eliminated before the vehicle is road tested.
Be sure there is sufficient clearance from heat sources, at least 6" (152 mm) for air springs and air lines. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, call Air Lift customer service at (800) 248-0892.
After 500 miles (800 km), recheck all bolts for proper torque.
Check air pressure weekly.
If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring.
For safety and to prevent possible damage to the vehicle, do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at a maximum inflation pressure of 100 PSI (7 BAR), the air pressure actually needed is dependent on load and GVWR.
The upper brace flange must face inward when installing onto the frame. Set the brace assemblies through the existing holes in the frame, then through the upper brackets, with the flange facing inward.
The flange on the lower bracket must be opposite of the fitting on the top of the air spring assembly.
Yes, the LoadLifter 7500 XL Ultimate kit (57531) is designed for the RAM 3500 and recommended for 3/4- and 1-ton pickups and SUVs with leaf springs.
You need a torque wrench, 9/16" ratchet wrench, 9/16" crows-foot adapter, hose cutter or sharp knife, hoist or floor jack, 2 safety stands, air compressor, and standard/metric wrenches and sockets.
Do not exceed the vehicle manufacturer's maximum GVWR or payload rating. Although rated at 100 PSI, the actual pressure needed depends on load and GVWR.
Perform clearance, leak, heat, and fastener tests. Inflate to 40-60 PSI and check for 1/2" clearance from tires, brakes, frame, shocks and cables. Check all connections for leaks. Verify 6" clearance from exhaust. Recheck bolt torque after 500 miles.
Check air pressure weekly. Maintain normal ride height and never inflate beyond 100 PSI (7 BAR).
Use a soapy water solution to check all air line connections and the inflation valve core. Apply the solution to suspected leak areas; bubbles will form at the leak location. All leaks must be eliminated before the vehicle is road tested.
