The LoadLifter 7500 XL Ultimate offers greater leveling strength for towing and hauling with 7 inch double bellows air springs and up to 7500 lbs. load-leveling capacity. The fully adjustable kit helps support the most significant loads.
The LoadLifter 7500 XL Ultimate offers support for the heaviest tows with an internal jounce bumper, absorbing shock for the smoothest ride. Air Lift’s fully adjustable, industry-leading air springs are the perfect upgrade for your vehicle, eliminating any issues you might face when towing and hauling. Tow and haul stress-free with Air Lift’s LoadLifter 7500 XL Ultimate. Designed with an internal jounce bumper for select Chevy Silverado/GMC Sierra 2500HD and 3500HD, four-wheel drive, this air spring kit eliminates frequent issues you might face, like bottoming out, squat and trailer sway. Air Lift’s air springs are fully adjustable, and the jounce bumper allows you to tow and haul with lower pressures with 7500 lbs. of load-leveling capacity. The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads, and protects vehicles carrying heavy loads. An Air Lift exclusive, the kit features upper and lower roll plates for added protection. All end caps are made with an ultra-high-strength nylon composite formula, strong as steel but much lighter and corrosion-proof. The air springs are built like tires, reinforced with 2-ply fabric for maximum strength. With the added stability that air springs provide, you can haul safely, knowing that you have optimal braking and steering control. The LoadLifter 7500 XL Ultimate has up to 20% more air spring volume when compared to Air Lift’s LoadLifter 5000 series. The LoadLifter 7500 XL Ultimate’s air springs are maintenance-free, can run safely on zero air pressure, and are fully adjustable from 5-100 PSI for precise control. Do not exceed the vehicle's gross vehicle weight rating (GVWR).
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Chevrolet Silverado 2500 HD | Will not fit commercial chassis vehicles |
| 2020 - 2026 | Chevrolet Silverado 3500 HD | Will not fit commercial chassis vehicles |
| 2020 - 2026 | GMC Sierra 2500 HD | Will not fit commercial chassis vehicles |
| 2020 - 2026 | GMC Sierra 3500 HD | Will not fit commercial chassis vehicles |
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57541 (Part #BBCG57541) fits 2020-2026 Chevrolet Silverado 2500 HD models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57541 (Part #BBCG57541) fits the following vehicles: 2020-2026 Chevrolet Silverado 2500 HD; 2020-2026 Chevrolet Silverado 3500 HD; 2020-2026 GMC Sierra 2500 HD; 2020-2026 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57541 (Part #BBCG57541) is designed to fit the 2020-2026 Chevrolet Silverado 2500 HD.
The Air Lift LoadLifter 7500 XL Ultimate provides supreme support for heavy hauling 57541 (Part #BBCG57541) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

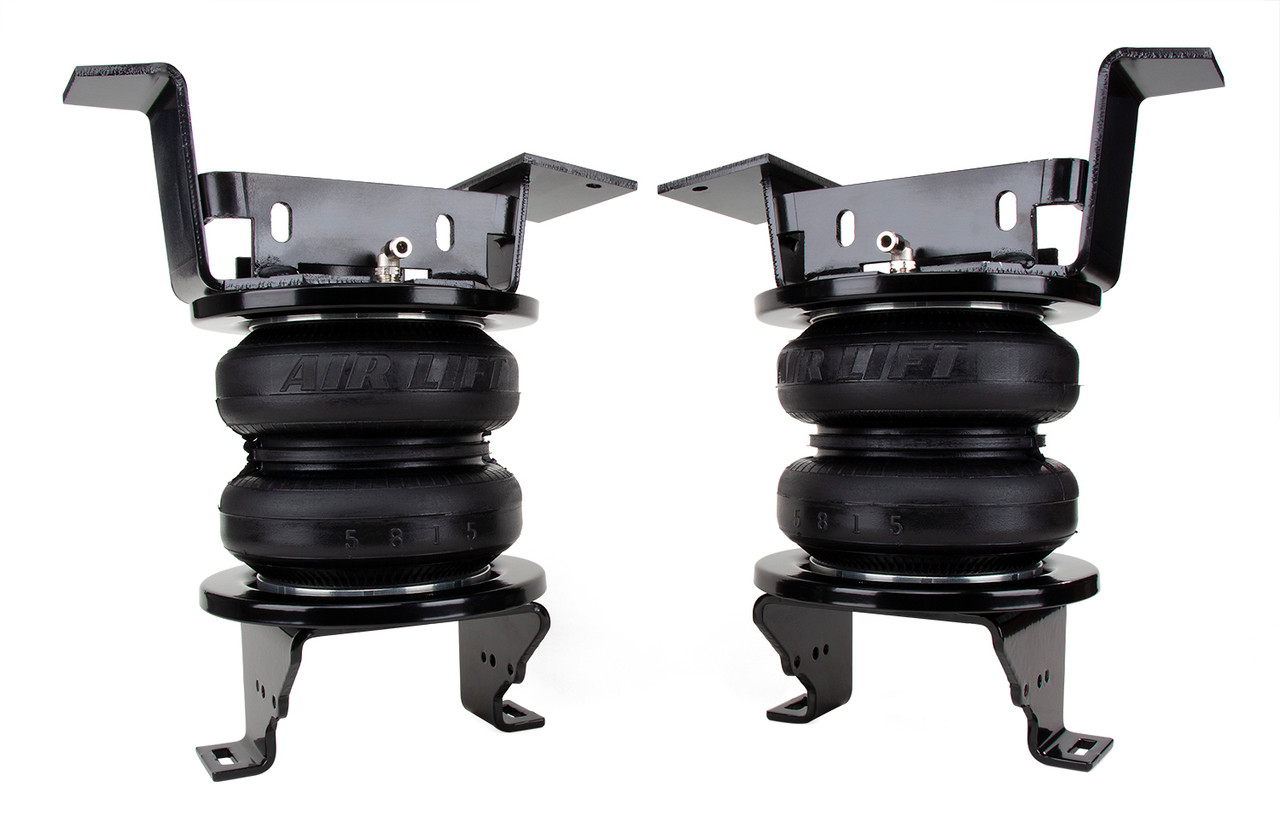

The LoadLifter 7500 XL Ultimate is an air suspension support system that uses reinforced, commercial-grade double-convolute air springs to provide load-leveling support. It delivers up to 7,500 pounds (3,402 kg) of load-leveling capacity with air adjustability from 5–100 PSI (.34–7 BAR). The air springs are manufactured with layers of rubber and cords that control growth, similar to tire construction. The kit is recommended for most 3/4- and 1-ton pickups and SUVs with leaf springs.
Yes, kit 57541 is designed for GM 2500-3500HD vehicles. The kit is recommended for most 3/4- and 1-ton pickups and SUVs with leaf springs. However, the manual does not specify model year ranges or confirm fitment for all variants within the 2500-3500HD designation. If you have questions about your specific vehicle configuration, contact Air Lift customer service at (800) 248-0892.
Required tools include: standard and metric open-end or box wrenches (set), ratchet, standard and metric regular and deep-well sockets (set), 7/32" hex-key wrench, 5/16" drill bits (very sharp), heavy duty drill, torque wrench, large screwdriver or small pry bar, hose cutter/razor blade/sharp knife, hoist or floor jack, 2 safety stands, safety glasses, air compressor or compressed air source, and spray bottle with dish soap/water solution.

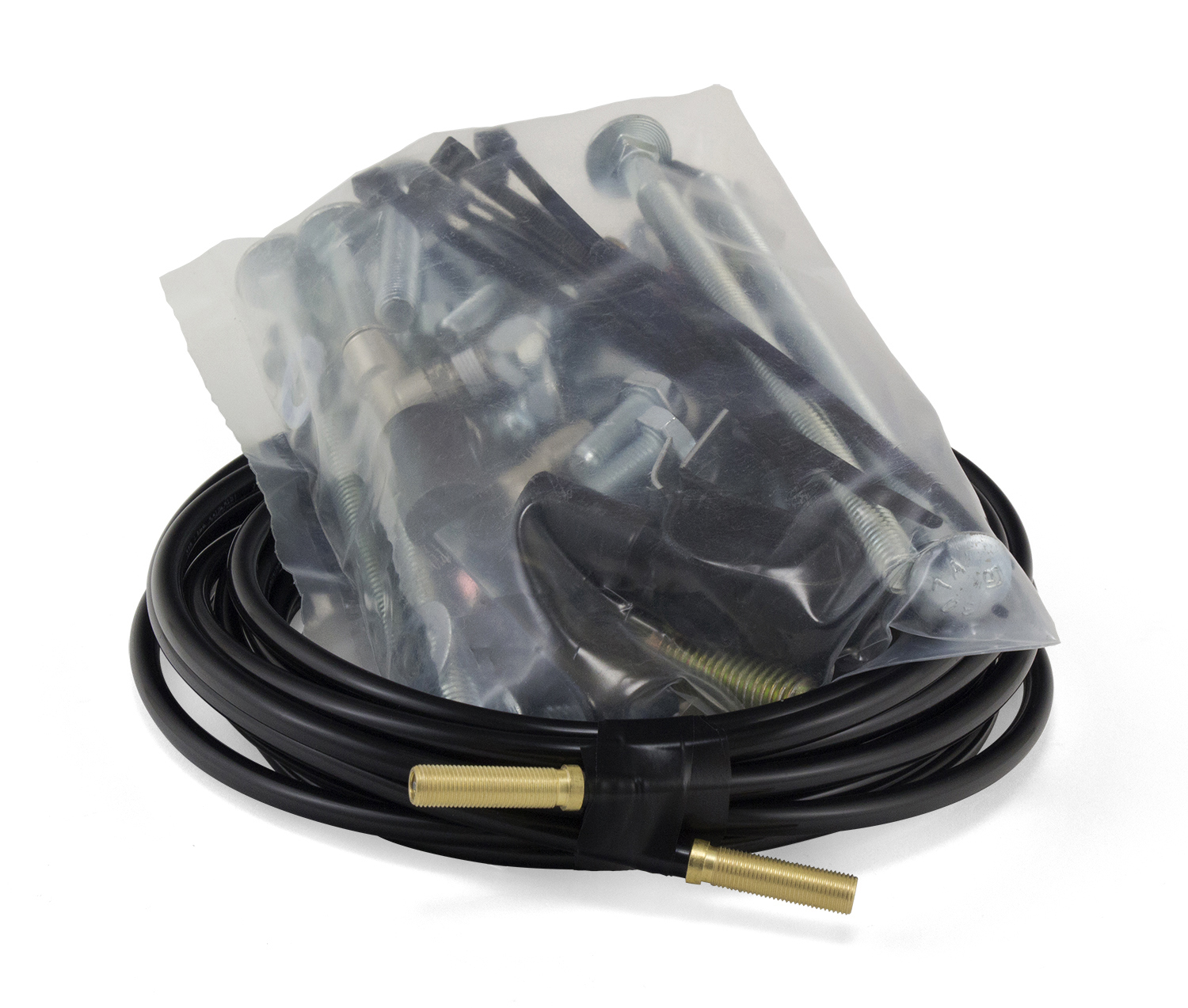

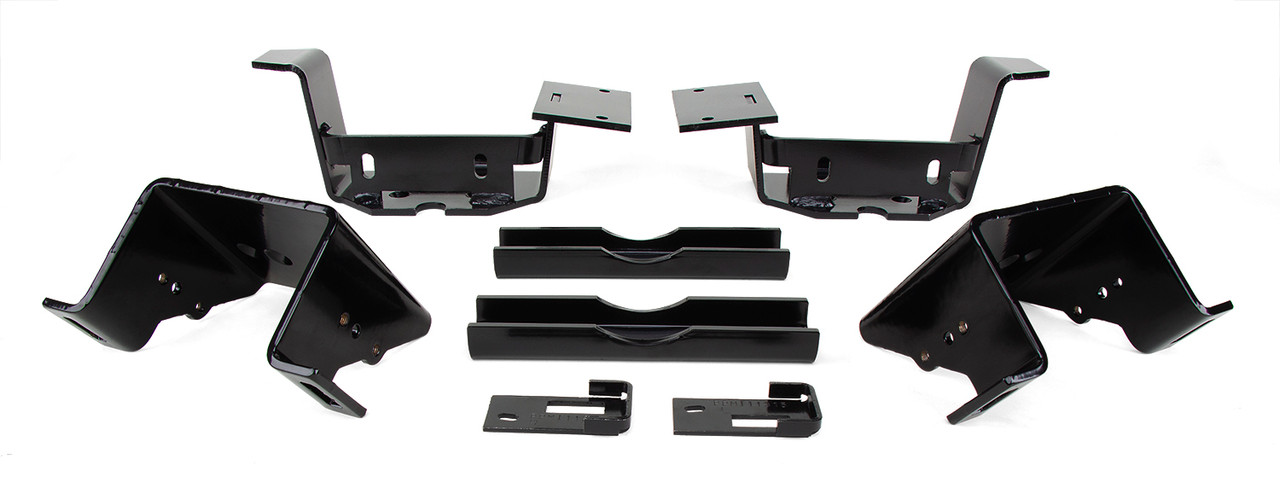

The kit includes: 2 clamp bars (01851), 2 lower brackets (03702), 1 R.H. upper bracket (07808), 1 L.H. upper bracket (07902), 4 roll plates (11897), 2 air springs (58120), 2 90-degree swivel air fittings (21837), 8 3/8"-24 X 3/4" flat head socket cap screws (17215), 2 3/8"-16 L-bolts (11323), 1 L.H. ABS wiring relocation bracket (11315), 1 R.H. ABS wiring relocation bracket (11320), 2 3/8"-16 U-bolts round end (11771), 4 3/8"-16 X 3 1/2" carriage bolts (17142), 2 M8-1.25 X 10 hex cap screws (17449), 14 3/8"-16 serrated flange lock nuts (18422), 2 M8 flat washers (18501), 15 ft air line (20086), 6 zip ties (10466), 2 valve caps (21230), 4 5/16" hex nuts (21233), 2 5/16" rubber washers (21234), 2 star washers (18411), 2 3/8"-16 X 6 1/2" hex cap screws (17586), and 2 3/8" flat washers (18444).
Yes. The jounce bumpers must be removed from the jounce bumper brackets on both sides by prying them out with a pry bar or large screwdriver. This is the first step after raising the frame and supporting it with safety stands.
Two bolts holding the brake/ABS line bracket onto the back side of the jounce bumper strike plate must be removed. Pull the bracket away from the jounce bumper strike plate to make room for the lower bracket. Then squeeze the two locking tabs on the large ABS wiring harness loom holder attached to the stock brake/ABS line bracket and pull it out, disconnecting it from the bracket. Leave the loom holder loose for now; it will be reattached later using ABS wiring relocation brackets (J & K) supplied in the kit.
1. Place roll plates (E) on the air springs (F) and install the 90-degree swivel elbow fitting (G) onto the air springs. Tighten the air fittings finger-tight plus 1 1/2 turns. 2. Install both upper brackets (C & D) onto the air spring assemblies using 3/8" flat head screws (H). Torque hardware to no more than 20 lb.-ft. (27 Nm). 3. Set the lower brackets (B) next to each other with angled sections pointing toward each other. Use the first and third holes on each bracket to attach to the air springs. Set a roll plate (E) onto the air spring assembly and attach the lower bracket with two 3/8" flat head screws (H), torqued to no more than 20 lb.-ft. (27 Nm). The angled side of the lower bracket must be on the fitting side of the air spring.
1. With suspension at full extension, set the driver's (left) and passenger's (right) side assemblies over the axle jounce bumper strike plates with the fitting pointing to the inside of the frame. Push the lower bracket down flush to the strike plate and align it by moving the air spring assembly in and out until the tab and hole on the brake line/ABS bracket align with the holes in the lower bracket. 2. Attach the ABS loom holder (previously removed) to the underside of each ABS loom bracket (J & K) supplied. The brackets will nest around the bottom of the lower bracket. 3. Insert a 3/8" carriage bolt (M) through the lower bracket and ABS loom holder. Install a 3/8" serrated flange lock nut (O) onto the carriage bolt with the flat portion facing up. Tighten enough to nest the ABS bracket around the lower bracket, but do not fully tighten yet. Repeat for both sides.
Torque clamp bar hardware evenly to 16 lb.-ft. (22 Nm). The clamp bar should be aligned so that it is somewhat centered between the shock bracket and leaf spring retainer.
1. For the driver side only, pull the tree holder holding the wiring harness onto the frame out of the frame. 2. Hold the L-bolt (I) parallel to the frame and insert the eye through the top of the frame from the inside out between the 5th wheel bracket and bed crossmember. 3. When the eye is completely through the frame, rotate the L-bolt forward and under the wiring harness inside the frame. 4. Insert the 3/8" hex cap screw (W) through a 3/8" flat washer (X), then all the way through the eye of the L-bolt. 5. Rotate the new "U-bolt" down and through the upper bracket holes, behind the axle. Install 3/8" serrated flange lock nuts (O) onto the U-bolt and leave loose. 6. Install the U-bolt (L) from the outside of the frame, over the jounce bumper mounting cup and through the upper bracket on the inside of the frame. Attach with 3/8" serrated flange nuts (O) and leave loose. Note: It may be necessary to tap the U-bolt into position because of the welds around the jounce bumper cup.
Yes. You must drill a 5/16" (8 mm) hole in your chosen location for each Schrader valve. Recommended locations are inside the fuel tank filler door, inside rear wheel wells, or the license plate/rear bumper area. The manual notes that for LoadLifter 5000 Ultimate Plus kits, the rear bumper area or license plate is the recommended location.
For nylon air lines, it is recommended that the air line be routed along the top of the frame, forward of the axle, then down to the fitting. Keep at least 6" (150 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges. The minimum bend radius for the air line is 1" (25 mm). Use zip ties to secure the air line to fixed points along the chassis without pinching or kinking it. Leave at least 2" (50 mm) of slack in the air line to allow for any movement that might pull on the air line. Install the air line thermal sleeve over the air line on the passenger's (right) side before inserting into the fitting.
Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters, as these will damage the air line.
Torque the 3/8" flat head socket cap screws (H) that attach the upper brackets (C & D) to the air spring assemblies to no more than 20 lb.-ft. (27 Nm).
Torque the 3/8" flat head socket cap screws (H) that attach the lower bracket (B) to the air spring assemblies to no more than 20 lb.-ft. (27 Nm).
Once the hose is installed and the system is inflated to 10 PSI, torque both upper bracket U-bolts to 10 lb.-ft. (14 Nm), starting with the square U-bolt first.
The maximum air pressure is 100 PSI (7 BAR). Do not exceed this pressure. Although the air springs are rated at a maximum inflation pressure of 100 PSI (7 BAR), the air pressure actually needed is dependent on load and gross vehicle weight rating. Always maintain normal ride height and never inflate beyond 100 PSI.
The minimum recommended pressure is 5 PSI (.34 BAR).
After inflating the air springs to 40–60 PSI (2.8–4.1 BAR), ensure there is at least 1/2" (13 mm) clearance from anything that might rub against each air spring. Be sure to check the tire, brakes, frame, shock absorbers and brake cables. Additionally, maintain at least 6" (152 mm) clearance from heat sources. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, call Air Lift customer service at (800) 248-0892.

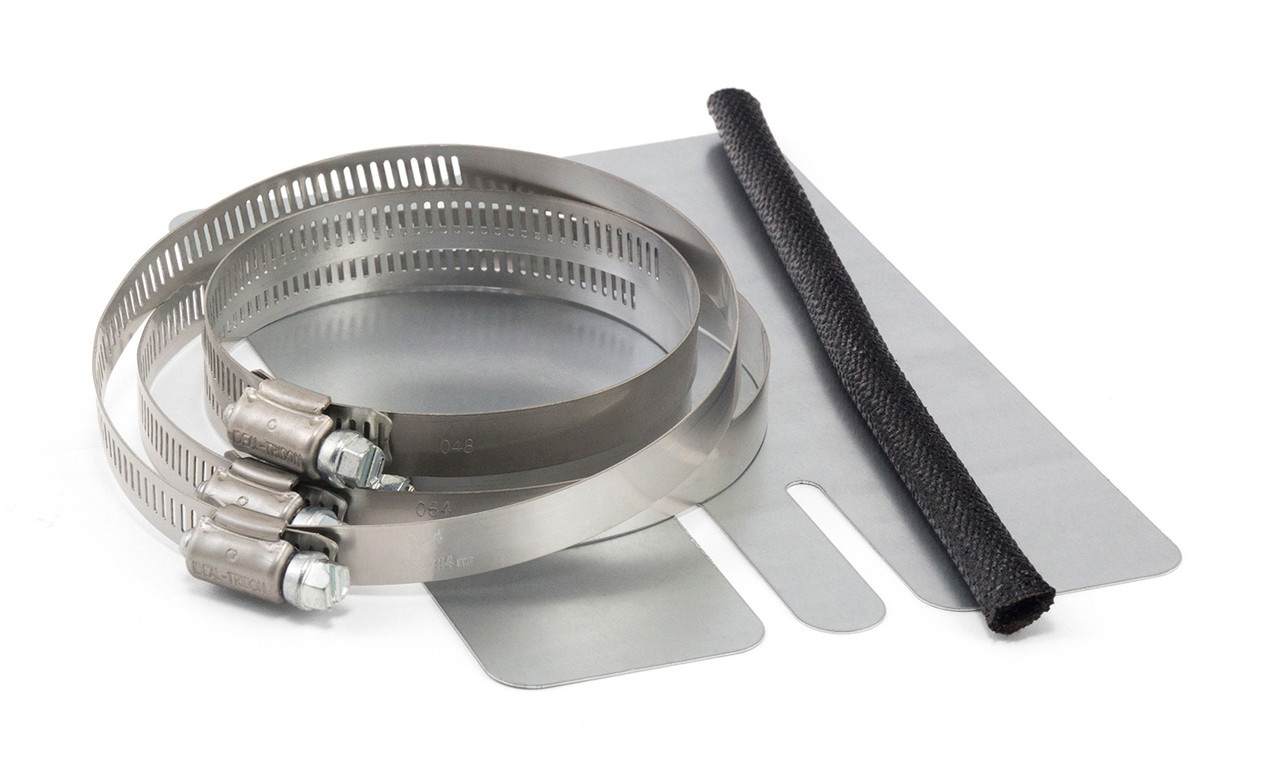

Maintain a 1/2" (13 mm) dead air space between the exhaust pipe and heat shield. Bend tabs to provide this dead air space and attach the heat shield to the exhaust pipe using the clamps. Bend the heat shield for maximum clearance to the air spring.
The minimum bend radius for the air line is 1" (25 mm). Avoid sharp bends and edges, and do not pinch or kink the air line.
Keep at least 6" (150 mm) of clearance between all air lines and the exhaust system.
Perform the following checks in order: 1. Clearance test — Inflate the air springs to 40–60 PSI (2.8–4.1 BAR) and ensure at least 1/2" (13 mm) clearance from tires, brakes, frame, shock absorbers and brake cables. 2. Leak test — Inflate to 40–60 PSI and check all connections for leaks; all leaks must be eliminated before road testing. 3. Heat test — Ensure at least 6" (152 mm) clearance from heat sources; install heat shield if included. 4. Fastener test — After 500 miles (800 km), recheck all bolts for proper torque. 5. Road test — Inflate to recommended driving pressures, drive 10 miles (16 km), and recheck for clearance, loose fasteners and air leaks.
Check air pressure weekly.
If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring.
After 500 miles (800 km), recheck all bolts for proper torque.
No. For safety and to prevent possible damage to the vehicle, do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at a maximum inflation pressure of 100 PSI (7 BAR), the air pressure actually needed is dependent on load and gross vehicle weight rating.
Yes, kit 57541 is designed for GM 2500-3500HD vehicles with leaf springs. For specific model year or configuration questions, contact Air Lift at (800) 248-0892.
You need: wrenches and sockets (metric and standard), 7/32" hex key, 5/16" drill bits, heavy duty drill, torque wrench, pry bar, hose cutter, hoist/floor jack, 2 safety stands, safety glasses, air compressor, and soapy water spray bottle.
Yes, jounce bumpers must be removed from both sides by prying them out with a pry bar or screwdriver.
Yes, drill a 5/16" (8 mm) hole for each Schrader valve. Recommended locations are the fuel tank filler door, inside rear wheel wells, or rear bumper/license plate area.
Maximum air pressure is 100 PSI (7 BAR). Minimum recommended pressure is 5 PSI (.34 BAR). Do not exceed 100 PSI.
Keep at least 6" (150 mm) of clearance between all air lines and the exhaust system. Maintain 1/2" (13 mm) dead air space between the exhaust pipe and heat shield.
Perform a leak test by inflating to 40–60 PSI and checking all connections with soapy water. All leaks must be eliminated before road testing. Also check clearance from tires, brakes, frame, shocks and cables (minimum 1/2").
Check air pressure weekly. After 500 miles (800 km), recheck all bolts for proper torque.
If the wire loom does not align correctly, unclip the line holder, adjust the position, then re-clip the line holder back onto the loom.
It may be necessary to tap the U-bolt into position because of the welds around the jounce bumper cup. Use a mallet or hammer to gently tap it into place.
Use a soapy water solution to check all air line connections and the inflation valve core. Spray the solution on all connections and look for bubbles, which indicate a leak. Once you identify the leak, tighten the connection or replace the component as needed. Do not deflate and remove the air spring until the leak is located.
