Air Lift RideControl air helper springs are air-adjustable from 5 to 100 PSI and have up to 2,000 pounds of leveling capacity, right up to the manufacturer's recommended Gross Vehicle Weight Rating.
RideControl provides more safety, stability and ride comfort. The kit fits many popular vehicles with leaf springs, including half-ton and mini pickups, full-size and mini vans, and SUVs. Both front and rear applications are available for these vehicles. Each kit includes everything you need, and is easily installed in two hours or less. End caps are made of an ultra-strong nylon composite that is as strong as steel, but weighs less and is corrosion-proof. Air Lift RideControl adjustable air springs work with your existing leaf spring suspension. Just add air when towing or hauling a heavy load, and reduce air pressure when unloaded, the air bags are fully adjustable for a great ride. Air Lift air springs eliminate sag, sway, and bottoming out. Each kit includes everything you need, and is easily installed in two hours or less. End caps are made of an ultra-strong nylon composite that is as strong as steel, but weighs less than steel and is also corrosion-proof. These rugged, durable components mean that you get reliable service from the springs for the lifetime of the vehicle. Air Lift RideControl air helper springs are air-adjustable from 5 to 100 PSI and have up to 2,000 pounds of leveling capacity, right up to the manufacturer's recommended Gross Vehicle Weight Rating. They also come with a limited lifetime warranty and an exclusive 60-day ride satisfaction guarantee.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2014 | Ford F-150 | Does not fit vehicles with in: bed hitch Does not fit the 2010 F: 150 Raptor |
The Air Lift RIDE CONTROL KIT 59568 (Part #BBCG59568) fits the following vehicles: 2010-2014 Ford F-150. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift RIDE CONTROL KIT 59568 (Part #BBCG59568) is designed to fit the 2010-2014 Ford F-150.
The Air Lift RIDE CONTROL KIT 59568 (Part #BBCG59568) fits 2010-2014 Ford F-150 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift RIDE CONTROL KIT 59568 (Part #BBCG59568) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The RideControl air spring kit (part numbers 59544 and 59568) is designed for Ford F-150 Pickup and Lincoln Mark LT vehicles. Kit 59544 is shown in the installation guide as the primary reference.
The RideControl air spring kit is a load support product designed to assist with load carrying capacity. It includes air springs, brackets, air lines, and inflation valves that work together to provide adjustable suspension support.
No. The installation of this kit does not alter the Gross Vehicle Weight Rating (GVWR) or payload of the vehicle. You must continue to check your vehicle's owner's manual and not exceed the maximum load listed for your vehicle.
Yes. Your vehicle may be equipped with a rear brake proportioning valve, and any type of load assist product could affect brake performance. Air Lift recommends checking with your dealer before installing this product. If your vehicle does not have a rear brake proportioning valve or is equipped with an anti-lock brake system, installation will have no effect on brake performance.
Required tools include: hoist or floor jacks, 2 safety stands, safety glasses, torque wrench, 5/16" open-end or box wrench, 7/16" open-end or box wrench, 9/16" open-end or box wrench, adjustable wrench, ratchet with 9/16", metric, and 1/2" deep well sockets, hose cutter or sharp knife, air compressor or compressed air source, and spray bottle with dish soap/water solution.

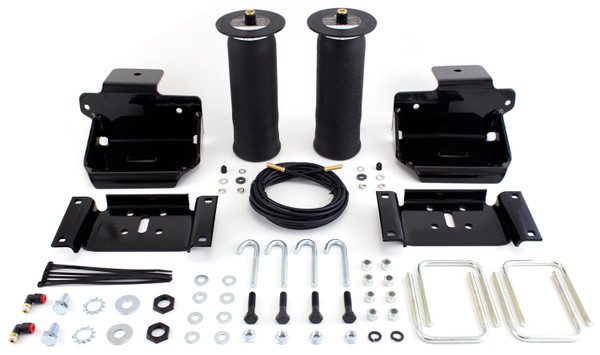

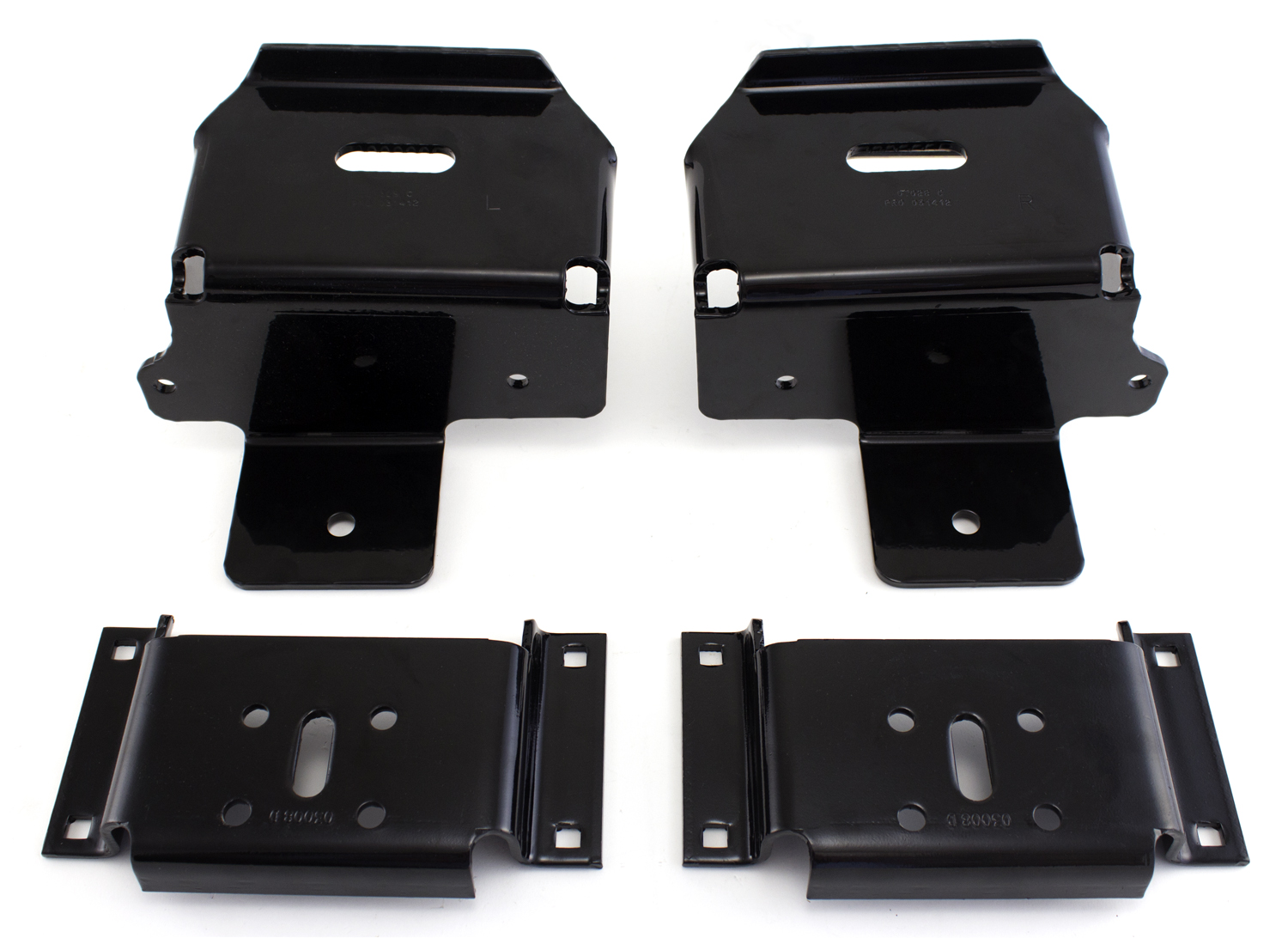

The kit includes: 2 air springs (A1 or A2), left and right upper brackets (B, C), 2 lower brackets (D), 4 U-bolts (E), 2 M10-1.25 x 45 bolts or M10-1.50 x 45 bolts (F or G), 2 M10 lock washers (H), 8 3/8" nylon lock nuts (I), 8 3/8" flat washers (J), 4 3/8" J-bolts (K), 4 3/8" serrated flange nuts (L), 2 1/2" bolts (M), 2 1/2" flat washers (N), 2 3/4" nylon nuts (O), 2 3/4" lock washers (P), 2 1/4" elbows (Q), 1 air line assembly (AA), 6 zip ties (BB), 2 valve caps (CC), 2 rubber washers (EE), 2 5/16" flat washers (DD), 2 star washers (FF), and 4 5/16" hex nuts (GG).
Yes. The first step is to remove the stock jounce bumper from under the frame. Some late-model jounce bumpers have alignment pins that will need to be removed and ground flush to the jounce bumper once removed.
Some late-model vehicles have a rubber plug covering the slot in the frame. If present, remove the plug and discard it before proceeding with installation.
Insert the J-bolts (K) through the upper bracket with the curved part facing inboard. Then insert the curved part of the J-bolts into the existing slots in the frame, ensuring they lock onto the frame securely.
Torque the 3/8" serrated flange nuts on the J-bolts to no more than 10 lb.-ft. evenly on both sides.
Yes. After tightening the J-bolts to the frame, cut the forward bolt flush to the nut.
Install the elbow fitting (Q) into the air port of the air sleeve. The fitting is pre-coated with thread sealant. Tighten finger-tight plus two turns using a 7/16" open-end wrench, being careful to tighten on the metal hex nut only. Do not overtighten.
No. When attaching the air spring to the lower bracket with the 1/2" flat washer and lower mounting bolt, leave it loose for later adjustment. Similarly, leave the 3/4" nylon lock nut and lock washer on the upper threaded post loose for final adjustment.
Set the lower bracket on the leaf spring above the axle and attach using the supplied U-bolts (E), 3/8" flat washers (J), and 3/8" nylon lock nuts (I).
Yes, but only for the inflation valves. You must drill a 5/16" hole at a convenient location to mount the inflation valves. Popular locations include wheel well flanges, license plate recess in bumper, under the gas cap access door, or through the license plate itself. Ensure there is enough clearance around the inflation valves for an air chuck.
Cut the air line assembly (AA) in two equal lengths using a hose cutter, razor blade, or sharp knife. A clean, square cut will ensure against leaks. Do not use wire cutters or scissors, as these tools may flatten or crimp the air line, causing it to leak around the O-ring seal inside the elbow fitting.
Place a 5/16" nut and star washer on the air valve, leaving enough valve in front to extend through the hole and accommodate the rubber washer, flat washer, and another 5/16" nut and cap. Approximately 1/2" of valve should be exposed after installation to easily apply a pressure gauge or air chuck. Push the inflation valve through the hole and tighten the nuts to secure the assembly.
Route the air line along the frame to the air fitting on the air spring. Keep at least 6" of clearance between the air line and heat sources such as exhaust pipes, muffler, or catalytic converter. Avoid sharp bends and edges. Use plastic zip ties to secure the air line to fixed, non-moving points along the chassis. Zip ties should be tight but not pinch the air line. Leave at least 2" of slack to allow for movement that might pull on the air line.
Cut off the air line leaving approximately 12" of extra air line. Make a clean square cut to ensure against leaks. Insert the air line into the 90-degree swivel fitting by pushing it in until it bottoms out. Approximately 9/16" of air line should be inside the fitting.

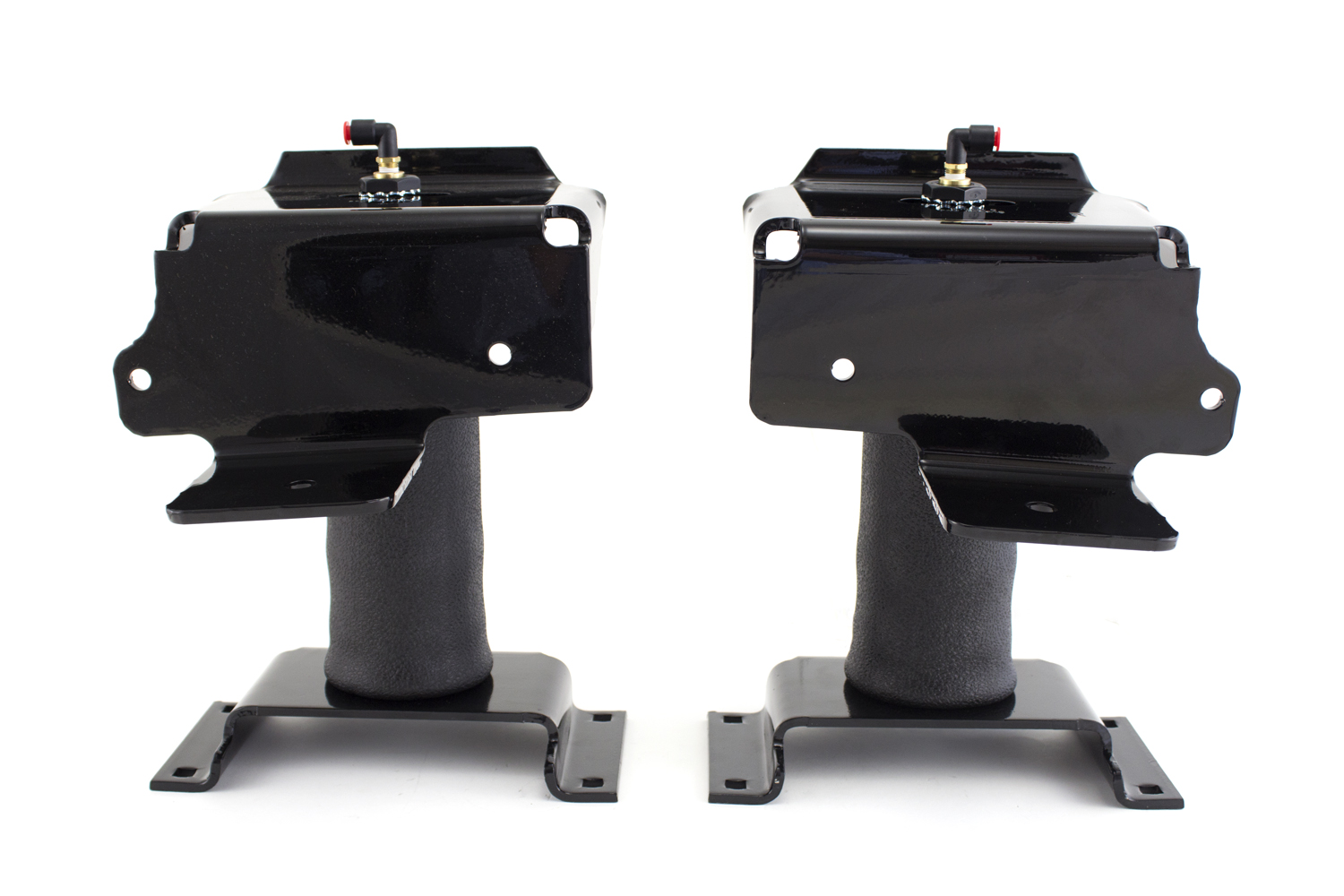

With the top and bottom mounting bolts still loose, inflate the air springs to approximately 10 PSI. Use the slots in the brackets to correctly align the air spring between the upper and lower brackets by tapping it inboard or outboard for proper alignment. There should be a symmetrical cushion of air around the base of the air spring when correctly positioned.
The maximum air pressure is 100 PSI (7 BAR). Do not exceed this pressure. Although the air springs are rated at this maximum, the air pressure actually needed is dependent on load and gross vehicle weight rating.
The minimum recommended air pressure is 5 PSI (0.34 BAR).
Inflate the air springs to 40-60 PSI (2.8-4.1 BAR) and ensure there is at least 1/2" (13 mm) clearance from anything that might rub against each air spring. Be sure to check the tire, brakes, frame, shock absorbers, and brake cables.
Inflate the air springs to 40-60 PSI (2.8-4.1 BAR) and check all connections for leaks using a spray bottle with soap/water solution. All leaks must be eliminated before the vehicle is road tested.
Yes. Ensure there is sufficient clearance from heat sources, at least 6" (152 mm) for air springs and air lines. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, contact Air Lift customer service at (800) 248-0892.
After 500 miles (800 km), recheck all bolts for proper torque.
After completing the clearance, leak, heat, and fastener tests, road test the vehicle. Inflate the air springs to recommended driving pressures. Drive the vehicle 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly.
Use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring.
Yes. If you intend to use the truck off-road or in situations where the suspension is extended, it will be necessary to install limiting straps due to the long extension travel of the rear suspension. If limiting straps are not installed for vehicles used off-road, the suspension could pull the air springs apart, and the damage will not be covered by the warranty.
1. Jack the vehicle up using the hitch or frame. 2. Measure the distance between the upper and lower air spring mounting brackets (maximum extension on the air spring is 10" or slightly longer). 3. Measure from the center of one shock bolt to the center of the other (a common place to mount limiting straps). This is the length needed to limit the suspension from overextension. 4. Contact a local auto parts retailer to purchase limiting straps in the correct length for your vehicle. 5. Follow the manufacturer's directions on installing the limiting straps.
Yes. Unbolt the lower bracket from the leaf spring if the vehicle is to be serviced by a frame contact hoist.
Air Lift Company provides a limited lifetime warranty to the original purchaser of its load support products, that the products will be free from defects in workmanship and materials when used on cars and trucks as specified by Air Lift Company and under normal operating conditions. For the full Limited Warranty and Return Policy, visit www.airliftcompany.com/warranty or contact Air Lift customer service.
Complete your warranty registration online at www.airliftcompany.com/warranty. Take a photo of your sales receipt and scan the QR code provided to complete the online registration.
Contact Air Lift Company customer service by calling toll-free (800) 248-0892, Monday through Friday. For calls from outside the USA or Canada, call (517) 322-2144. You can also visit www.airliftcompany.com or write to Air Lift Company, 2727 Snow Road, Lansing, MI 48917 or PO Box 80167, Lansing, MI 48908-0167.
Yes, the RideControl kit (59544/59568) is designed for Ford F-150 Pickup and Lincoln Mark LT vehicles.
You need a hoist or floor jacks, safety stands, torque wrench, wrenches (5/16", 7/16", 9/16"), adjustable wrench, ratchet with sockets, hose cutter or sharp knife, air compressor, and spray bottle with soap/water solution.
Torque the 3/8" serrated flange nuts on the J-bolts to no more than 10 lb.-ft. evenly on both sides.
Inflate to 40-60 PSI and ensure at least 1/2" clearance from the tire, brakes, frame, shock absorbers, and brake cables.
Check air pressure weekly.
Yes. If you use the truck off-road, limiting straps are necessary to prevent the suspension from pulling the air springs apart. Damage from missing straps is not covered by warranty.
Air line leaks at connections are often caused by improper cutting. Use a hose cutter, razor blade, or sharp knife to make a clean, square cut. Do not use wire cutters or scissors, as these flatten or crimp the air line, causing leaks around the O-ring seal inside the elbow fitting. Ensure approximately 9/16" of air line is inserted into the fitting until it bottoms out.
With the top and bottom mounting bolts still loose, inflate the air springs to approximately 10 PSI. Use the slots in the brackets to align the air spring by tapping it inboard or outboard for proper alignment. There should be a symmetrical cushion of air around the base of the air spring when correctly positioned.
Use a spray bottle with soap/water solution to check all air line connections and the inflation valve core. Identify the source of the leak and correct it before deflating and removing the air spring. All leaks must be eliminated before the vehicle is road tested.
Inflate the air springs to 40-60 PSI and check for at least 1/2" clearance from the tire, brakes, frame, shock absorbers, and brake cables. If clearance is insufficient, the installation may need adjustment or repositioning. Contact Air Lift customer service at (800) 248-0892 if you cannot achieve proper clearance.
