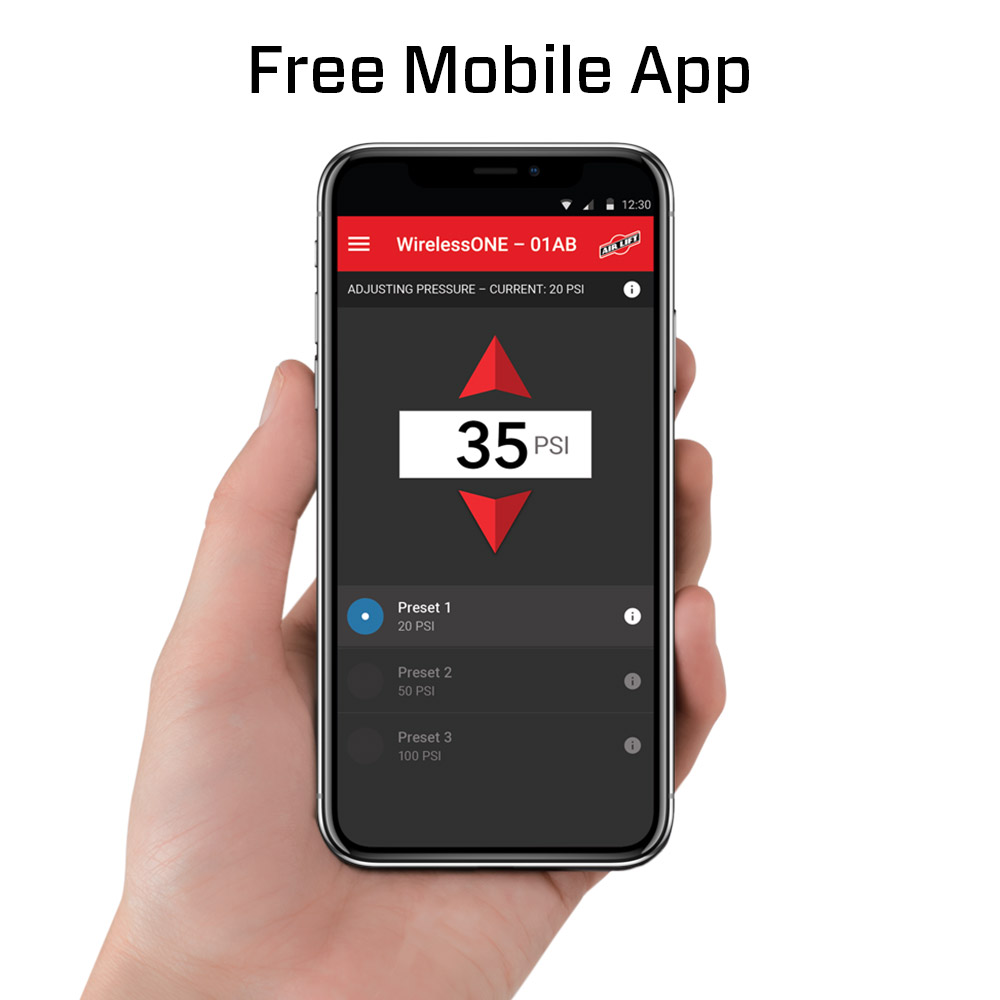

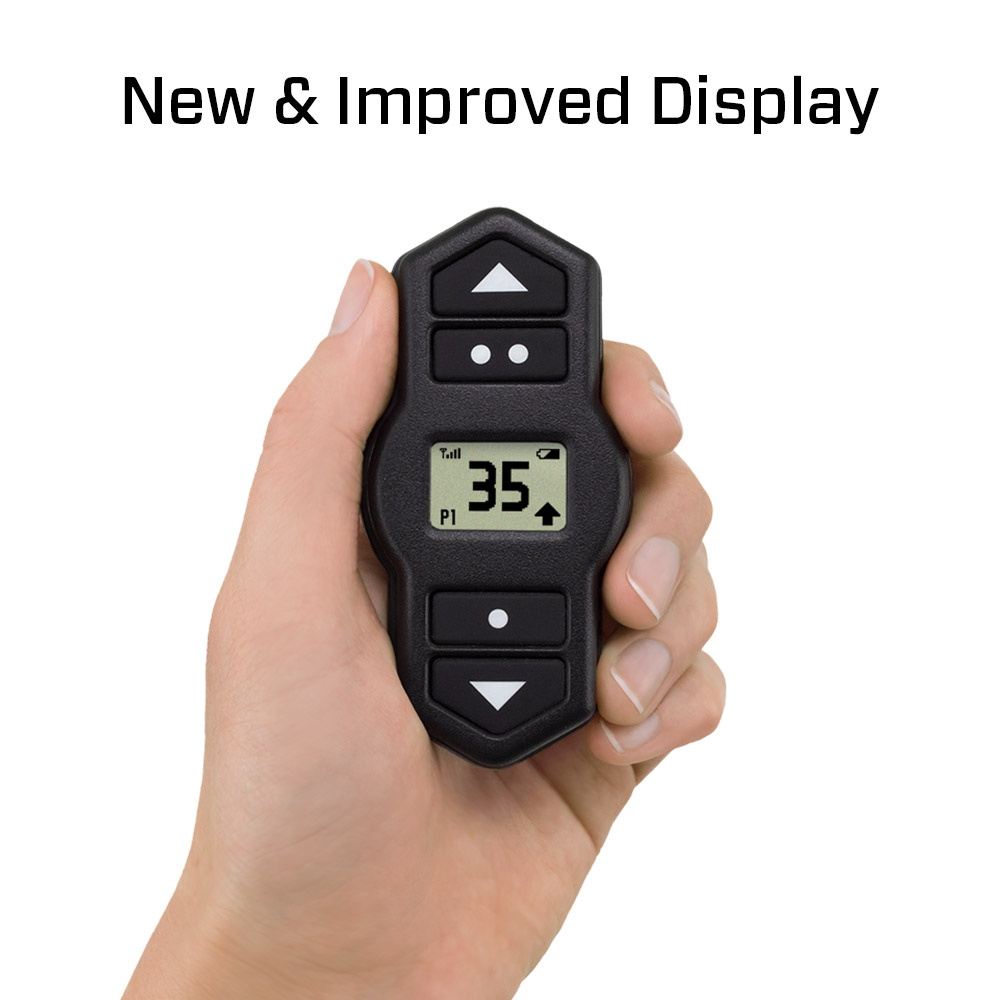

With WirelessOne, you can control your Air Lift system from inside or outside your vehicle using either the included remote control or the WirelessOne App, allowing you to make on-the-go adjustments with ease.
Offering easy and convenient air pressure adjustment for any brand of aftermarket air spring, the WirelessOne on-board air compressor system from Air Lift is ideal for any air spring user. With the included handheld controller and NEW wireless app, inflation and deflation has never been more simple. With air spring equipped vehicles, adjusting the air pressure has been an inconvenience -- find a gas station with an air compressor, then fiddle with Schrader valves until the pressures are equalized. Air Lift looked to eliminate that hassle with WirelessOne, making every part of the process simple and fast, starting with installation. WirelessONE is a single path system, meaning that both air springs will inflate or deflate to the same pressure. The air springs are inflated and deflated by an external air compressor with either one or two Schrader valves, attached to one or two air springs. Between the included wiring harness, installation hardware and a fully illustrated instruction manual, WirelessOne will be up and running in no time. Installing the system takes only an hour, with no air line or wiring needing to be routed through the cab of the vehicle, as well as no need to tap into the ignition wire. By eliminating this necessity, Air Lift removed the need to drill into the firewall and the need to work with live wires. When installed, the system allows you to quickly and easily adjust the air pressure in the air springs to accommodate changes in the vehicle's load. With the second generation of WirelessOne , Air Lift created a mobile app for both iOS and Android devices, on top of the included wireless controller, allowing you to connect with the Bluetooth -enabled manifold easily. As the leader in air suspension products for over 65 years, Air Lift is committed to delivering quality parts that last.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-94942 Years

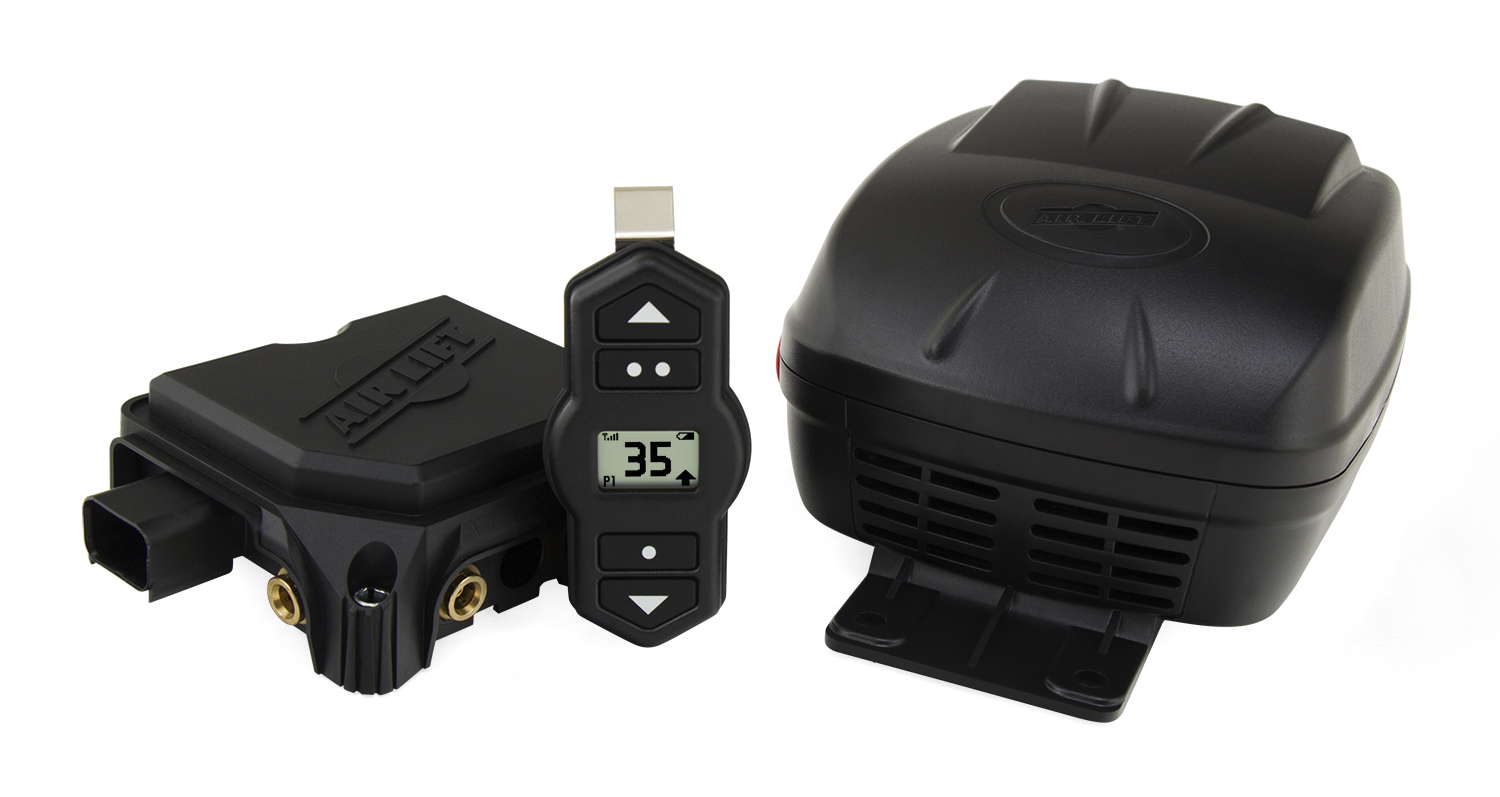

The kit includes a wireless controller (72709), wireless manifold (72708), compressor (16060), 20 feet of 1/4" air line (20946), wiring harness (26896), two 1/4" PTC tees, 15A ATC fuse, two heat shrink butt splices (12-10 ga), ATC/ATO fuse holder, fifteen 8" zip ties, two 3/8" ring terminals, and five M5x1.5 x 30 self-tapping socket cap screws. Air spring kits, Schrader valves, elbow fittings and associated hardware are sold separately.
Yes. Air spring kits, Schrader valves, elbow fittings and associated hardware are sold separately and are not included in the WirelessONE kit.
Yes. The compressor can be mounted sideways, upside down, or top up. Mount it using the hardware included with the compressor, using the compressor as a template.
No. The manifold cannot be mounted upside down or with the electrical connector pointed down. It can be mounted in any other orientation. Ideally, mount it in the middle of the vehicle, and it must be mounted forward of the rear axle.
The manifold should be located no more than 32 inches (81 cm) from the compressor. Do not extend the wires beyond this distance, as extending wires could decrease compressor life and cause voltage drop outside industry standards.
Ideally, both should be mounted in the middle of the vehicle in the zone marked by the yellow square on the suggested component layout to optimize wireless performance. If necessary, they can be mounted farther back, but must be mounted forward of the rear axle. The compressor should be located in an area shielded from direct splash to prevent moisture damage.
Required tools are: power drill, 5/32" drill bit, grinder, 4mm hex bit/bit driver, 3/8" socket and ratchet, wire stripping/crimping tool, and sharp razor knife.
1. Mount the compressor (C). 2. Mount the manifold (B), located no more than 32" (81 cm) from the compressor. 3. Cut off the terminal on the red compressor wire before connecting to the wiring harness (E). Route the harness (E) and air lines (D) along the frame and make all wiring and air line connections. 4. Finish by connecting the wiring to the battery. 5. Install the fuse (G) last.
The fuse must be installed last to ensure all connections are made before power is applied to the system. Installing the fuse before all connections are complete could cause electrical issues or damage.
The compressor ground wire must have a good connection to the frame under the compressor foot. It may be necessary to grind some paint or rust off the frame to make good contact and ensure a reliable ground connection.
Yes. Use the included mounting template and a 5/32" drill bit to make pilot holes for the manifold mounting screws. The drilling template is on page 5 and must be printed at 100% scale to ensure correct hole dimensions.
Use a 5/32" drill bit to make pilot holes for the manifold mounting screws.
Use a sharp knife or hose cutter and make clean, square cuts. Do not use scissors or wire cutters, as these tools will deform the air line. Do not cut the lines at an angle. The minimum bend radius for 1/4" air line is 1" (25 mm). Inspect the air line for lengthwise scratches after cutting; contact Air Lift customer service if the air line is damaged.
Use a 4mm hex bit to install the M5x1.5 x 30 self-tapping socket cap screws (part 17509) that mount the manifold.
The minimum bend radius for 1/4" air line is 1 inch (25 mm). Air lines must be installed straight into fittings.
The system uses a 15A ATC fuse (part 24652). This fuse must be installed last, after all other connections are made.
The pink wire is optional and can be connected to any wire that is active when the ignition is on. This allows WirelessONE to make adjustments as soon as the ignition is turned on. Otherwise, the system will only activate when the vehicle moves or when woken up by the controller or mobile app. Hardware to connect to the ignition is not included. This is a low-amperage circuit that should be connected to the output side of a 10A or smaller fuse-protected circuit.
Cut off the terminal on the red compressor wire before connecting it to the wiring harness (E).
Avoid routing air lines and wiring near sharp edges. If passing air lines or wiring through holes in the frame, use rubber grommets. Support wiring and air lines every 8–12 inches (20–30 cm) with zip ties or other means. Keep wiring and air lines, manifold and compressor at least 6 inches away from heat sources such as the exhaust.
Remove all fuses before jump-starting or welding on the vehicle. Failure to do so could damage the manifold.
The compressor should be located in an area shielded from direct splash because excessive moisture can damage the compressor and cause system failure.
Keep wiring and air lines, manifold and compressor at least 6 inches away from heat sources such as the exhaust system.
Support wiring and air lines every 8–12 inches (20–30 cm) with zip ties or other means.
The manual does not specify vehicle compatibility. Contact Air Lift Company at (800) 248-0892 or (517) 322-2144 to confirm fitment for your vehicle.
You need a power drill with 5/32" bit, grinder, 4mm hex bit, 3/8" socket and ratchet, wire stripping/crimping tool, and sharp razor knife.
The manifold must be located no more than 32 inches (81 cm) from the compressor. Do not extend wires beyond this distance, as it could decrease compressor life and cause voltage drop.
The system uses a 15A ATC fuse. Install it last, after all other connections are made.
Remove all fuses before welding to prevent damage to the manifold.
