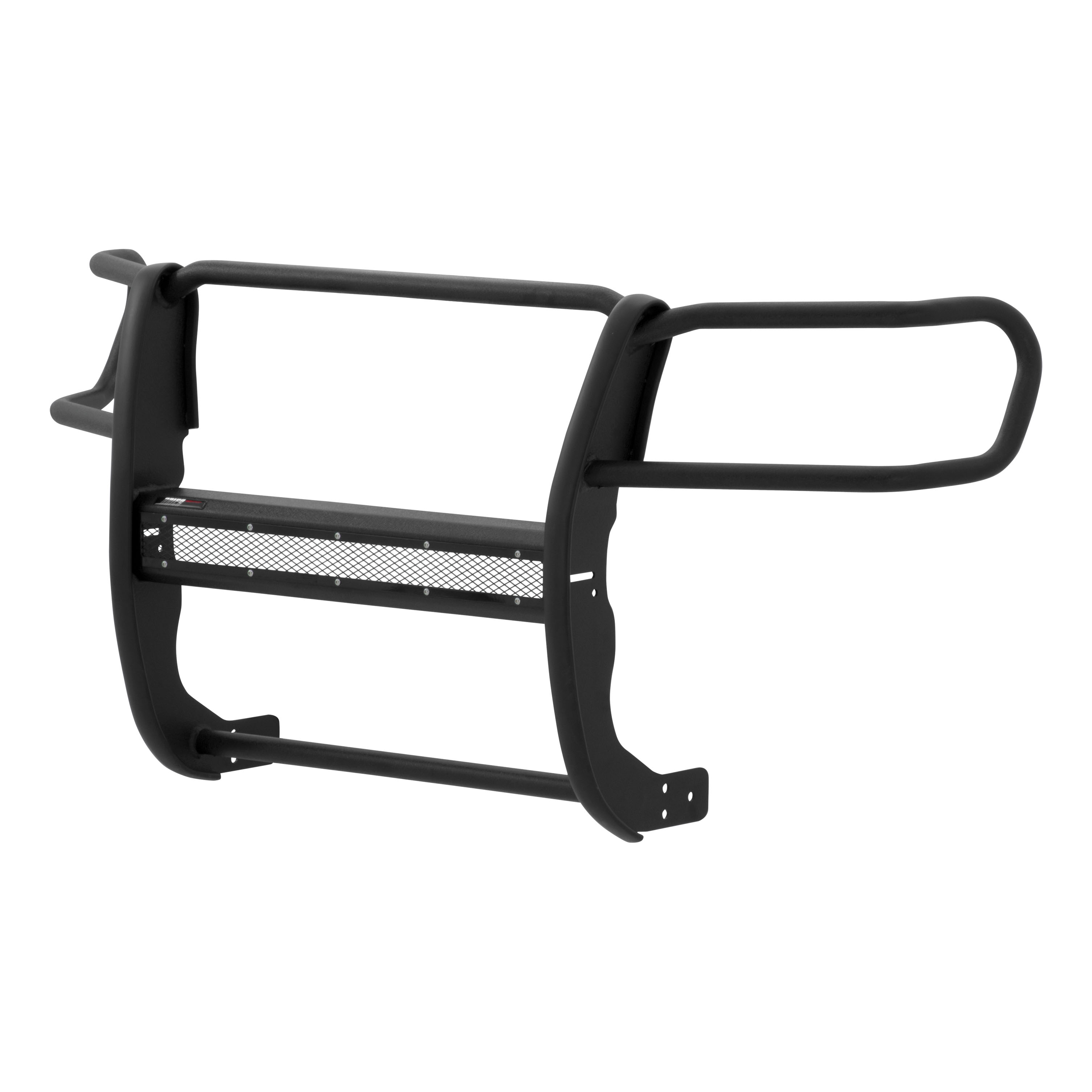

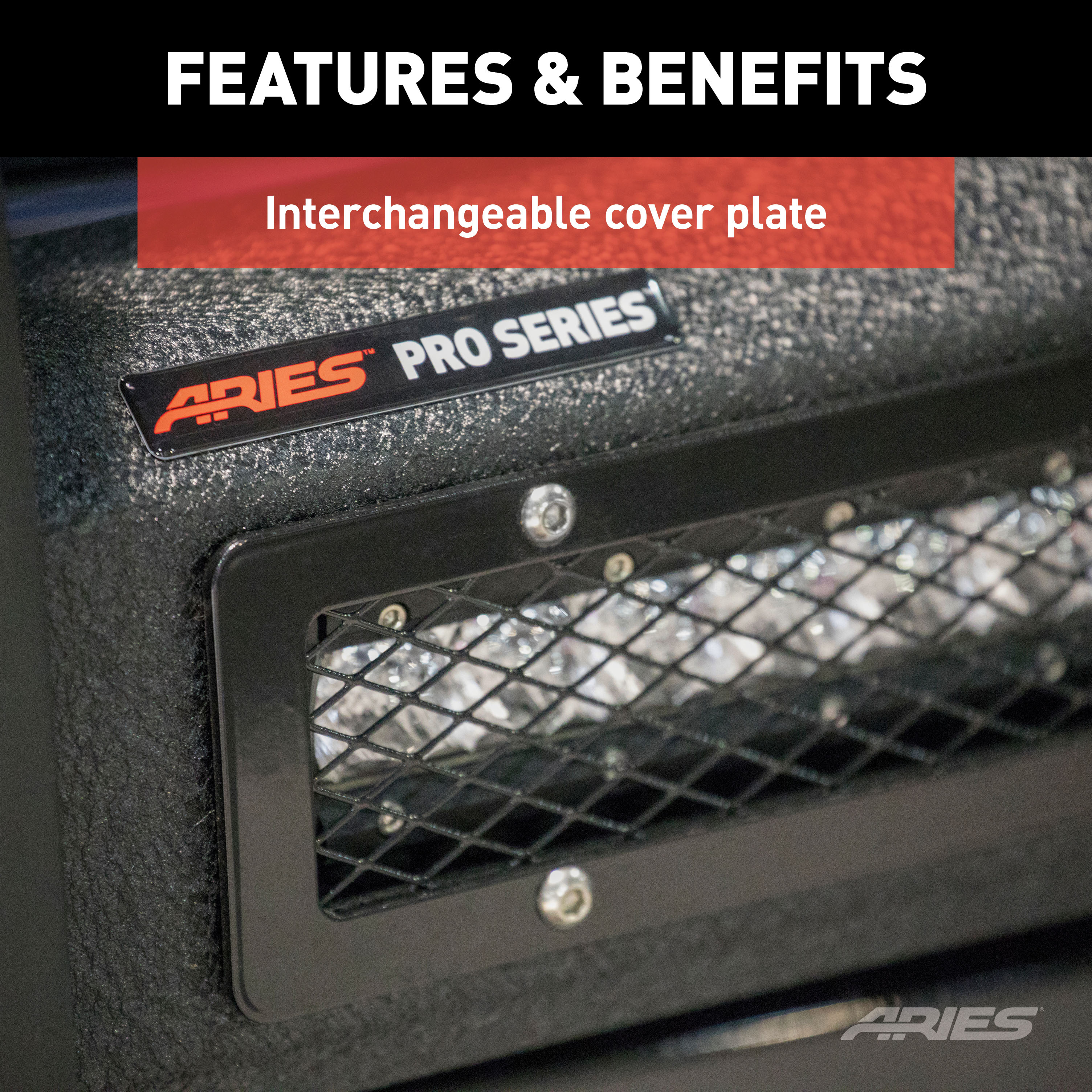

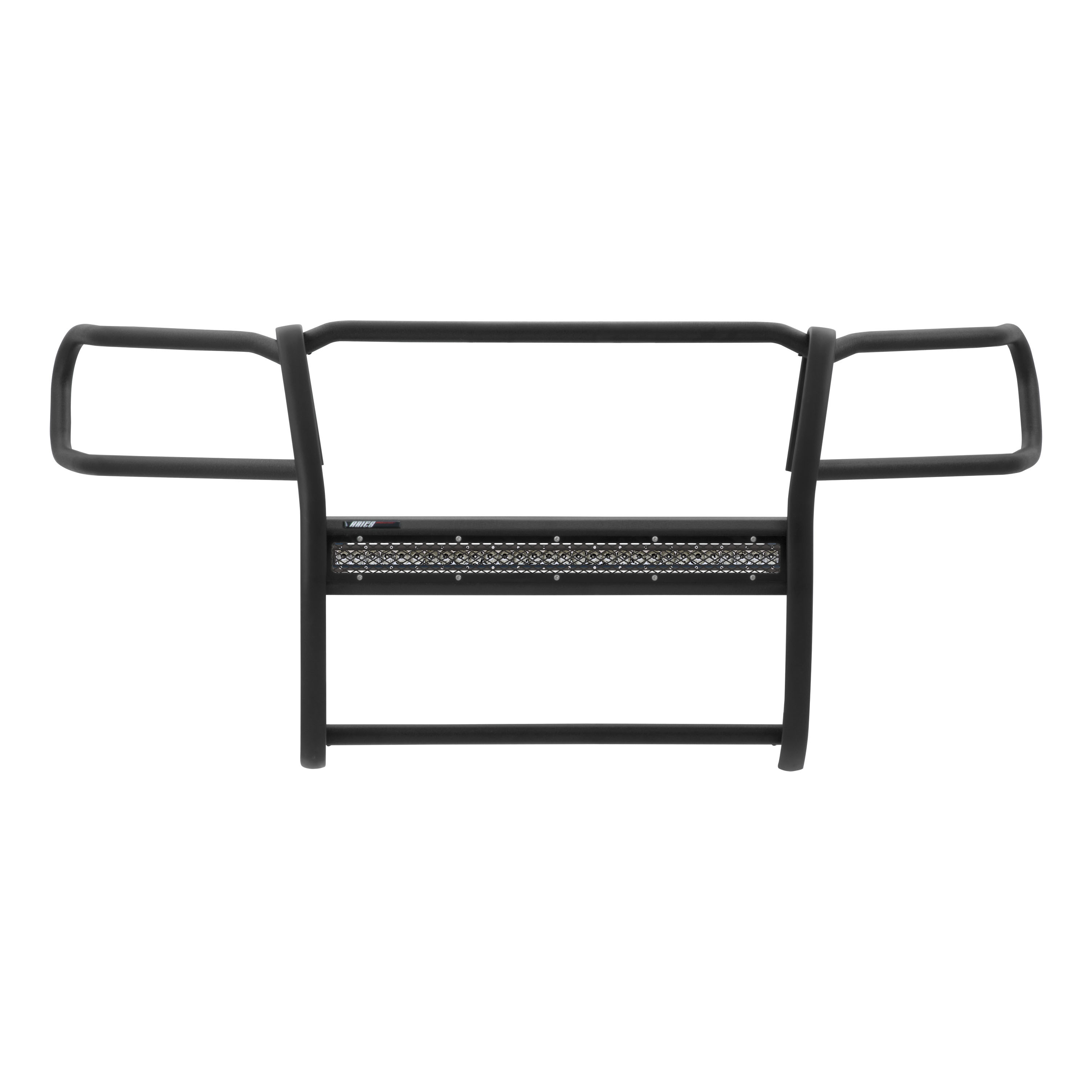

Includes Pro Series grille guard #P2054, mounting hardware, 30" LED light bar #1501264 and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Blank
Color: Black
Light - Beam Type: Combo
Light - Configuration: Single-row
Light - Light Size: 30 IN
Light - Light Type: Light Bar
Light - Lumens: 14,800

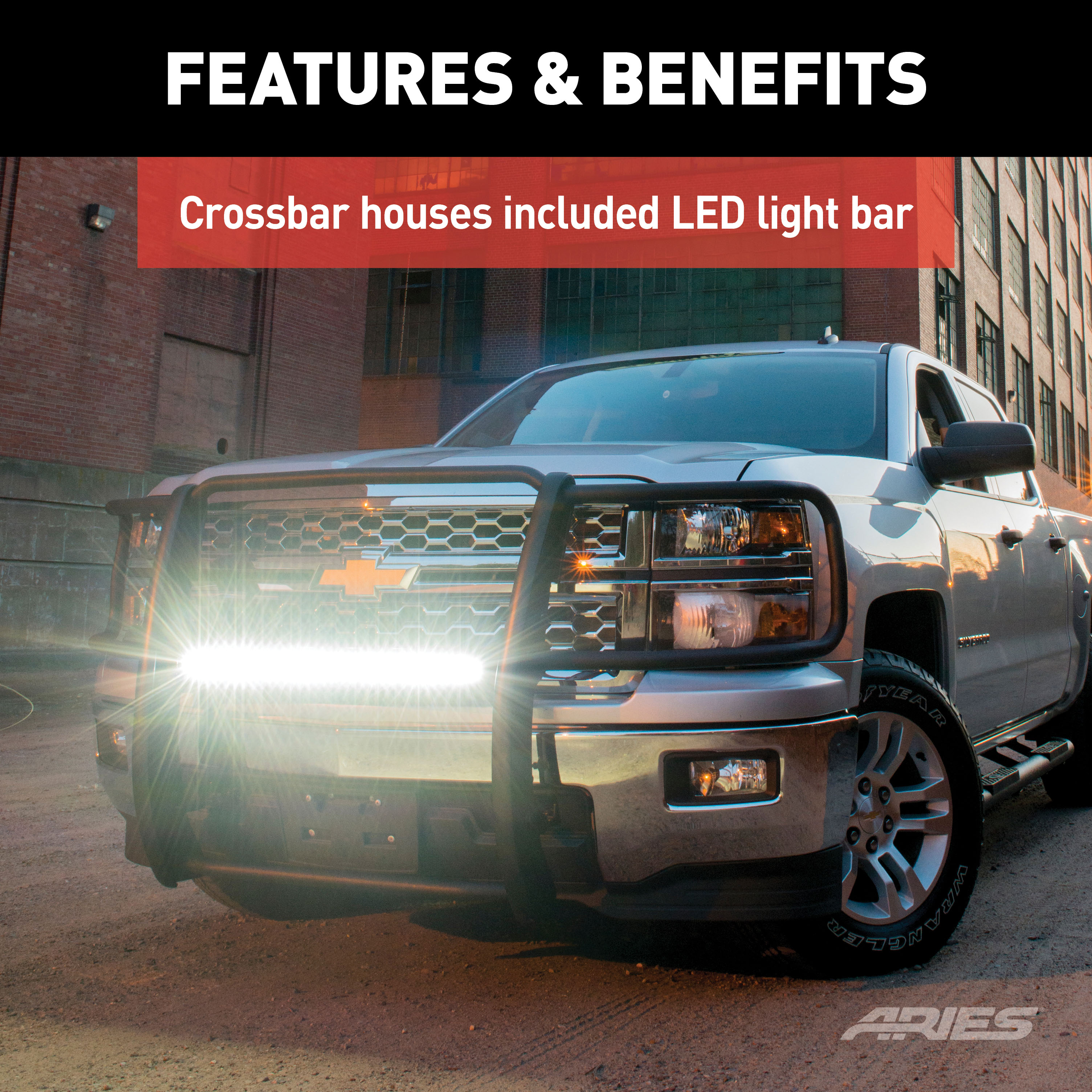

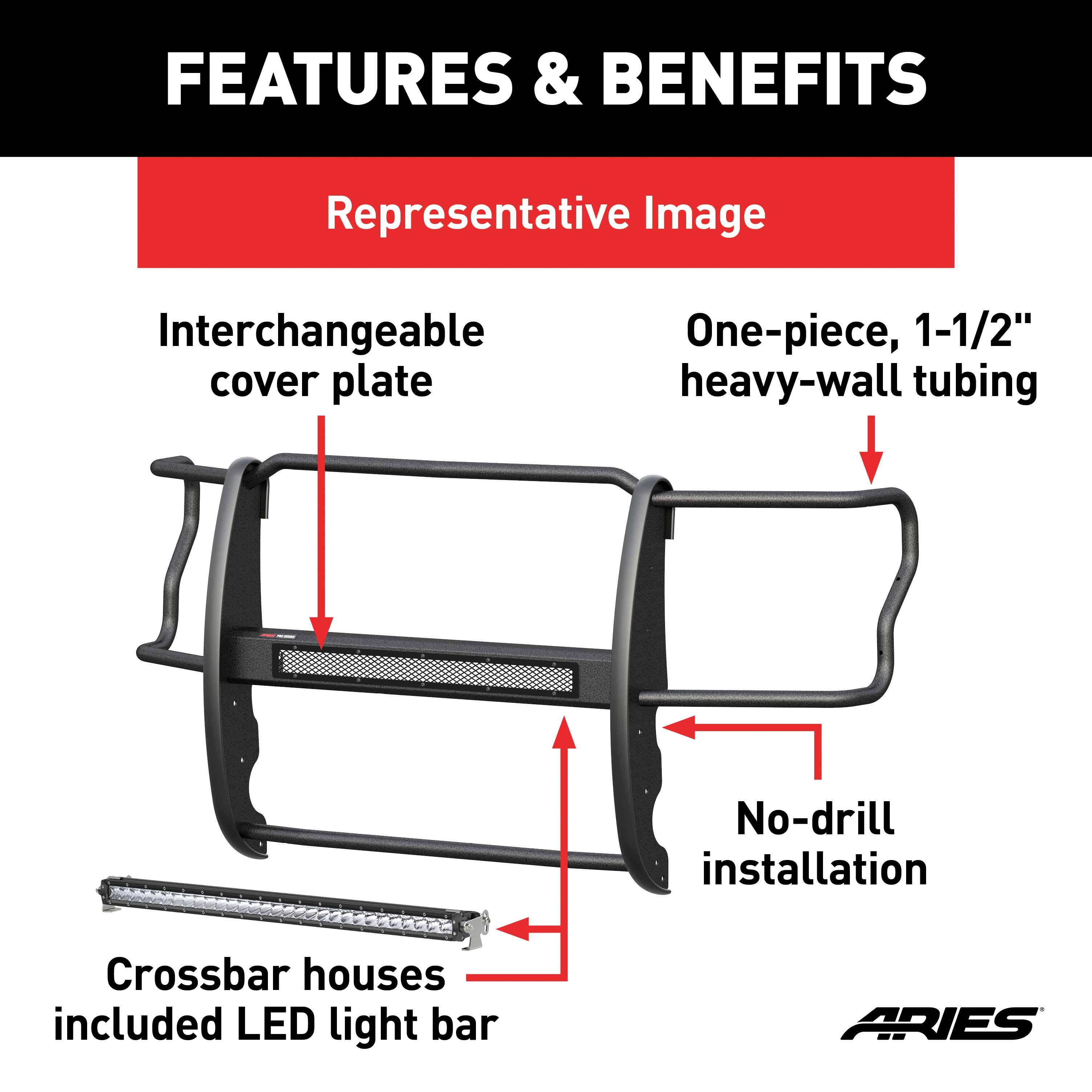

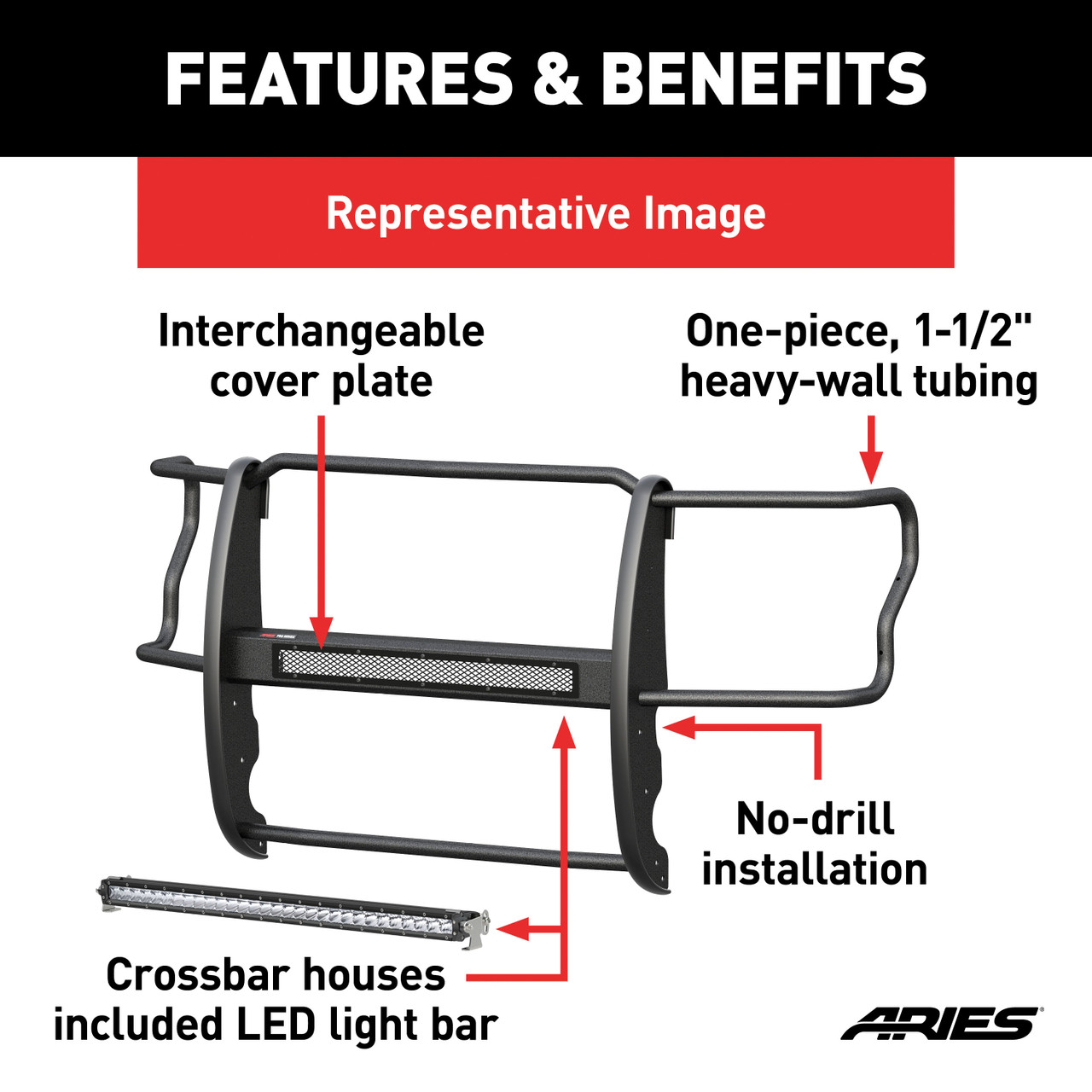

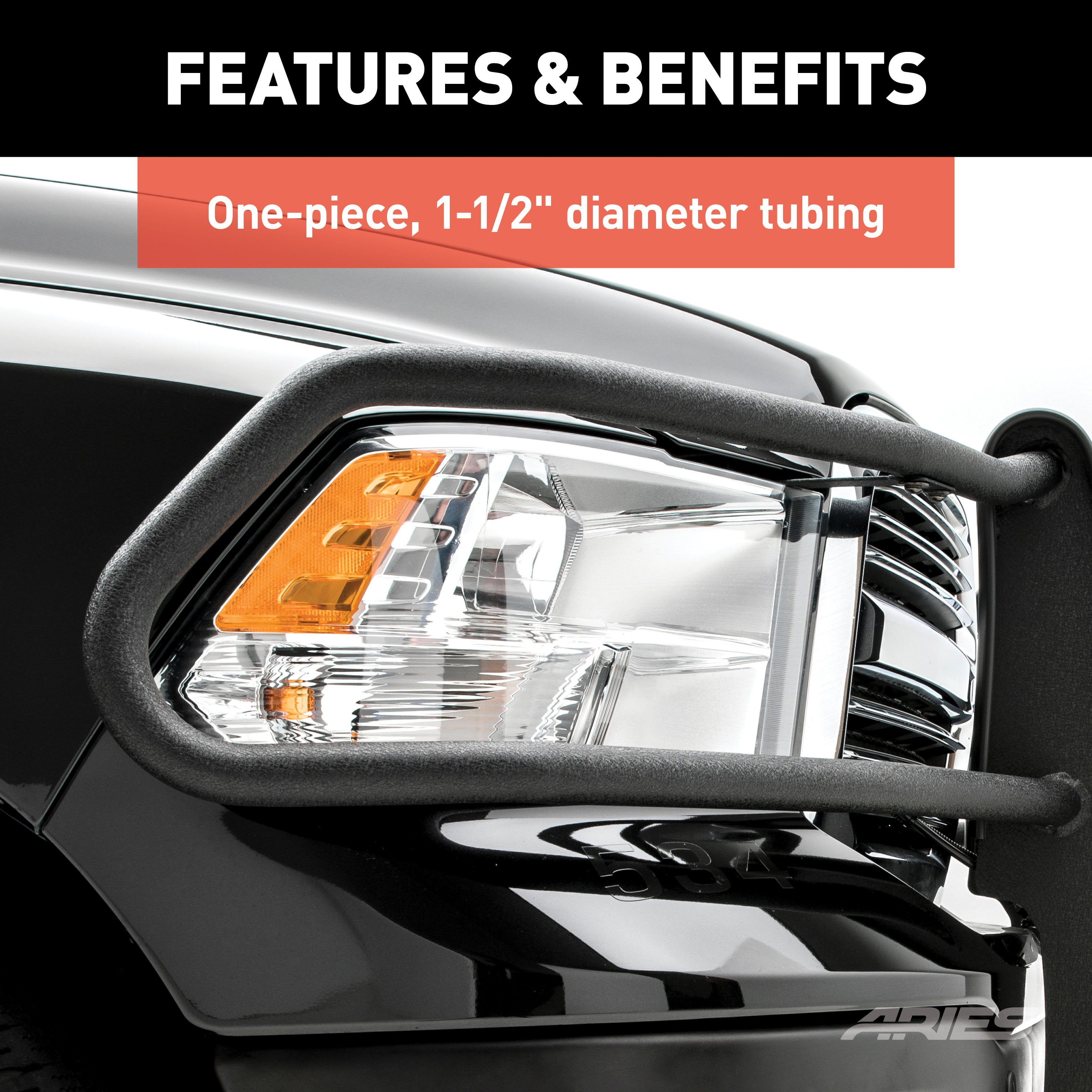

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that houses an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to mount the included 30" LED light bar #1501264. The bracket can also accept other single-row light bars (some 30" light bars may not fit). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styl es and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Toyota Tacoma (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2015 | Toyota Tacoma | — |

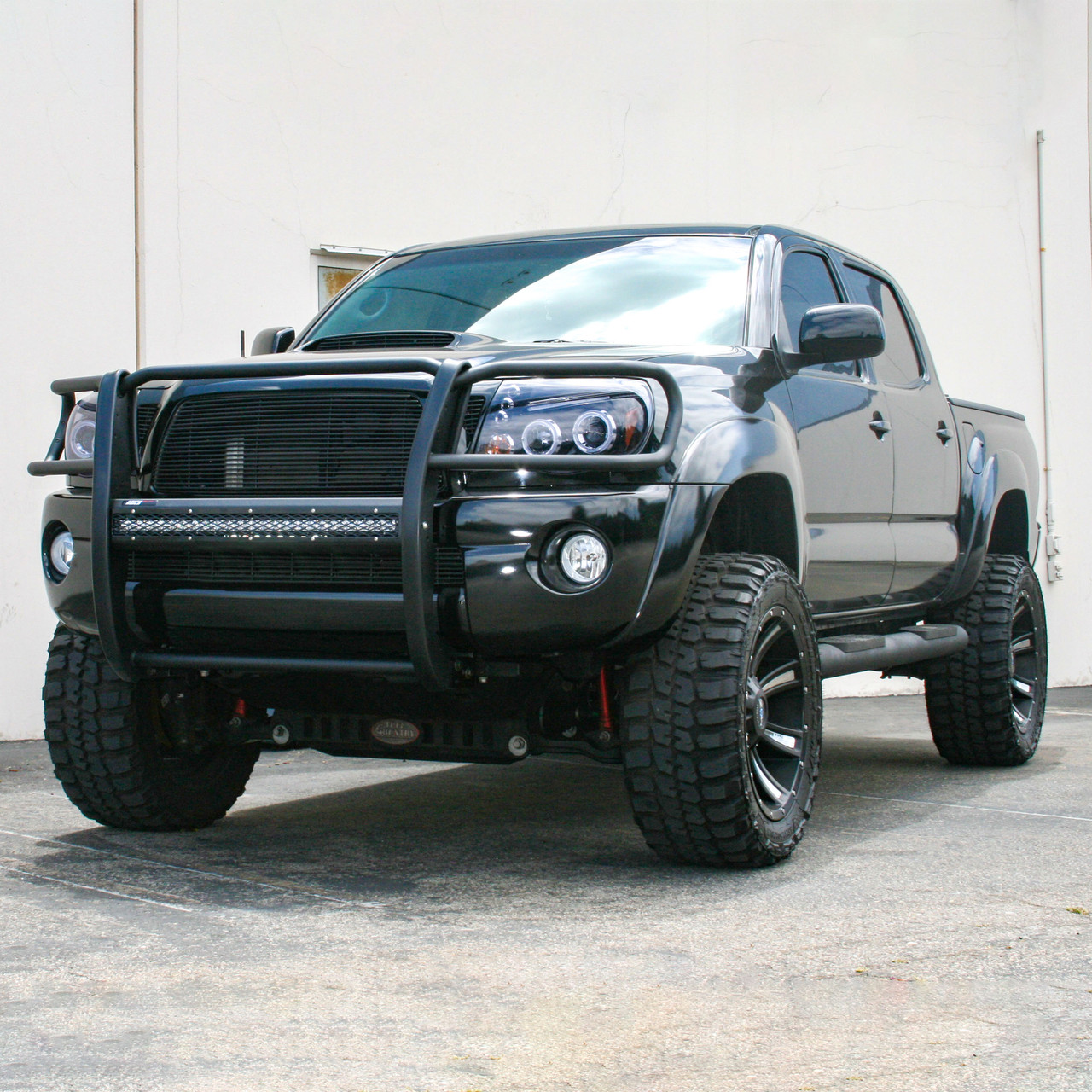

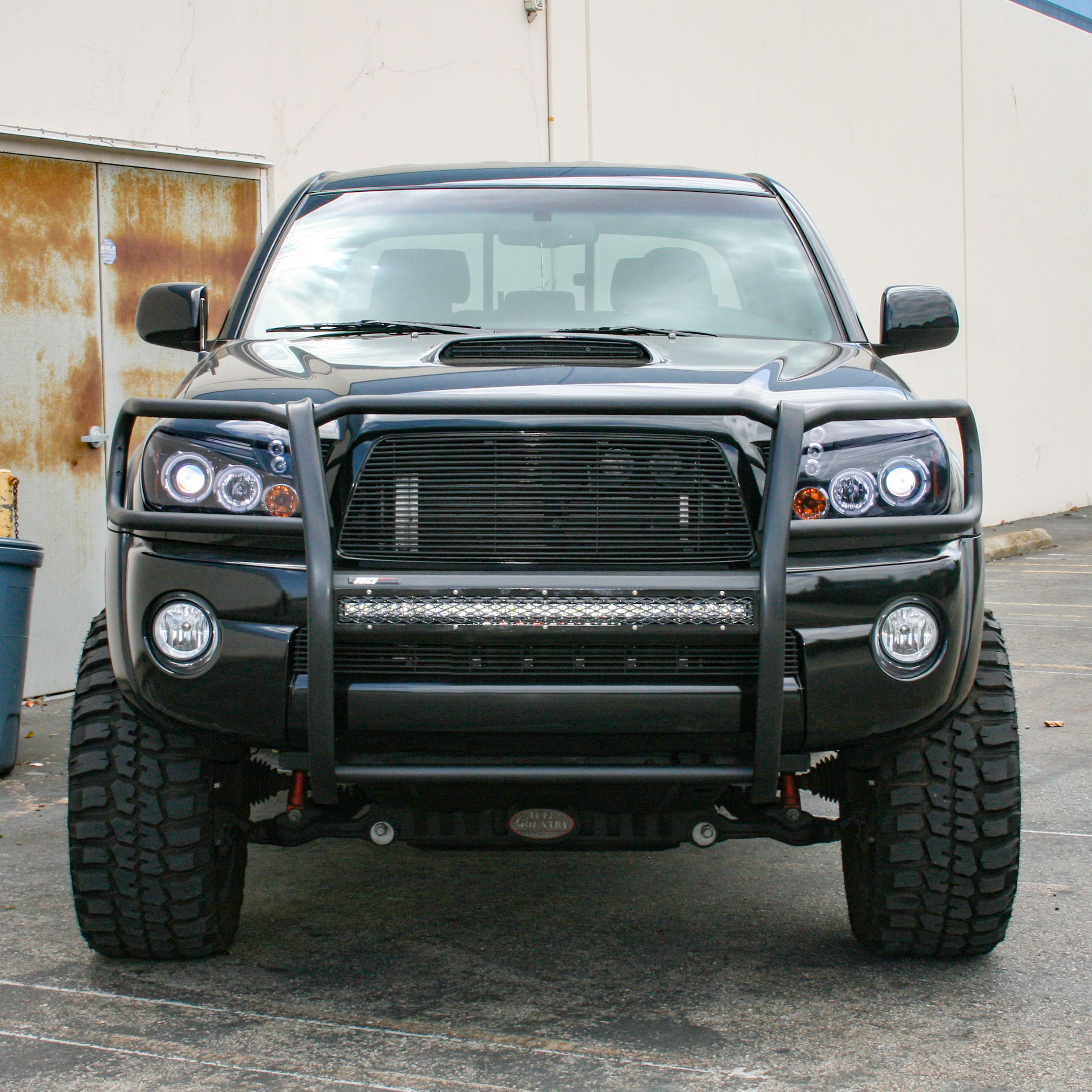

Yes, the ARIES 2170001 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170001) is designed to fit the 2005-2015 Toyota Tacoma.
The ARIES 2170001 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170001) fits the following vehicles: 2005-2015 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
The ARIES 2170001 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170001) fits 2005-2015 Toyota Tacoma models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES 2170001 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt part 2054 and 2054-2 Grille Guard is designed for 2005-2013 Toyota Tacoma models. If your vehicle is equipped with a factory skid plate, it must be removed before installation and will not be reinstalled.
The kit includes: 1 grille guard, 2 driver/left and passenger/right mounting brackets, 2 driver/left and passenger/right top brackets, 1 support flange, 2 10mm x 30mm T-bolt plates, 2 8mm nut clips, 12mm hex bolts (2x 120mm, 6x 35mm), 10mm x 30mm button head bolts, 10mm x 30mm T-bolts, 8mm button head bolts, 8mm clip nuts, 12mm and 10mm lock washers, 12mm and 10mm flat washers (various sizes), and 12mm and 10mm hex nuts.
Yes. The manual explicitly states: 'DO NOT ATTEMPT INSTALLATION ALONE; PERSONAL INJURY OR DAMAGE TO THE TRUCK MAY RESULT.' At minimum, you need assistance when positioning the grille guard onto the mounting brackets (Step 9).
Yes. If your vehicle is equipped with a factory skid plate, it must be removed before installation. The manual notes that the skid plate will not be reinstalled. Removal is required to access the frame channel mounting points and the radiator support cross-member.
1. Verify all parts are present. 2. Attach LED light (if used) to support flange and install 8mm nut clips into support flange slots. 3. Lay grille guard face down and attach support flange with 8mm button head bolts and flat washers (snug, do not tighten). 4. Remove factory bumper support nuts from frame channel end and install driver/left frame mounting bracket using existing nuts for upper holes and 12mm x 120mm hex bolt for lower hole. 5. Repeat for passenger/right side. 6. Open hood and insert 10mm T-bolt plates through radiator support cross-member holes. 7. Attach top brackets to T-bolt plates with 10mm flat washers and nylon lock nuts (do not tighten). 8. Position grille guard onto mounting brackets with assistance. 9. Attach grille guard to mounting brackets with 6x 12mm x 35mm hex bolts, 12mm flat washers and nylon lock nuts. 10. Bolt top brackets to grille guard uprights with 10mm x 30mm button head bolts, flat washers and nylon lock nuts (do not tighten). 11. Align grille guard and tighten all hardware.
Select your LED light mounting hardware and brackets (sold separately). LED manufacturers provide different mounting styles, so determine your mounting options based on your specific LED light. Once determined, attach the LED light to the support flange as shown in Figure 1 of the manual. The manual notes that LED manufacturers will have similar but different mounting styles or brackets.
The support flange is secured to the center flange of the grille guard with 2x 8mm button head bolts, 2x 8mm flat washers, and 2x 8mm lock washers (one set per side). These fasteners should be snug but not fully tightened until final alignment in Step 11.
1. Remove the 3 factory nuts securing the bumper support to the end of the frame channel. 2. Line up the 3 upper holes in the frame mounting bracket with the threaded studs in the frame channel end. 3. Bolt the bracket to the studs using the existing nuts removed in step 1. 4. Insert 1x 12mm x 120mm hex bolt with 1x 12mm flat washer through the lower mounting hole in the bracket and into the frame channel end. 5. Secure with 1x 12mm flat washer and 1x 12mm nylon lock nut. 6. Tighten all hardware at this time. Repeat this procedure for the passenger/right side.
1. Open the hood and locate the factory hole on each side of the bottom of the radiator support cross-member behind the grille insert. 2. Select 1x 10mm T-bolt plate and insert it through the back of the cross-member and down through the hole in the bottom. 3. Slide the top bracket through the plastic grille opening and attach it to the T-bolt plate using 1x 10mm flat washer and 1x 10mm nylon lock nut. Do not tighten hardware at this time. 4. Repeat for the remaining top bracket.
With assistance, position the grille guard onto the inside of the mounting brackets. Use 6x 12mm x 35mm hex bolts, 12mm flat washers (12 total), and 6x 12mm nylon lock nuts to attach the grille guard to the mounting brackets. Do not fully tighten until final alignment.
Line up the mounting hole in each top bracket with the corresponding hole in the upright on the grille guard. Bolt each top bracket to the grille guard using 1x 10mm x 30mm button head bolt, 1x 10mm flat washer, and 1x 10mm nylon lock nut. Do not tighten hardware at this time. Tighten all hardware after final alignment in Step 11.
Do not fully tighten hardware until the grille guard is properly aligned. After positioning the grille guard and attaching all brackets and fasteners, align the grille guard properly and then tighten all hardware in Step 11.
Wax the grille guard after installation. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives, as these could damage the finish. For black finishes, mild soap may be used to clean the grille guard. Perform periodic inspections to ensure all hardware remains secure and tight.
Perform periodic inspections to the installation to make sure that all hardware is secure and tight. This is important because vibration and use can loosen fasteners over time.
The 1501264 is a 10-inch LED light bar designed for vehicle mounting. It includes a wiring harness, mounting brackets (left and right), a relay with pre-installed 15-amp fuse, switch, rubber spacers, and fasteners. The light bar can be mounted in a desired location and wired to the vehicle's battery through the included relay and switch.
The 1501264 is supplied with a relay for standard voltage systems. If your vehicle uses a 24V system, the relay will need to be replaced with a 24V unit. The manual states: 'If this light bar is being used with a 24V system, the relay will need to be replaced with a 24V unit.'
1. Mount the LED light in the desired location with a rubber spacer between the mounting surface and each bracket. 2. Disconnect the supplied switch from the wiring harness and install it in the desired location. 3. Route the wiring harness to the light and insert the male plug on the harness into the female socket on the LED light. Reconnect the blue, red, and black spade connectors to the switch (see wiring diagram). 4. Connect the red fused wire with ring terminal to the positive (+) battery post. Connect the black wire ring terminal to the negative (-) battery post or other suitable vehicle grounding point. 5. Mount the provided relay to the vehicle and secure all wires with zip ties away from moving parts. 6. Test the light to ensure proper function.
The LED light bar requires three connections: 1. Red fused wire with ring terminal to the positive (+) battery post. 2. Black wire ring terminal to the negative (-) battery post or other suitable vehicle grounding point. 3. Blue, red, and black spade connectors from the wiring harness to the switch (see wiring diagram for specific connections). The light bar connects to the switch via a male plug inserted into the female socket on the LED light.
The Aries 1501264 includes a 15-amp fuse, which is pre-installed in the relay.
Mount the LED light bar in the desired location using the included left and right mounting brackets. Place a rubber spacer between the mounting surface and each bracket to protect the vehicle finish and reduce vibration. Secure the brackets using the included M6 security screws (M6 - 1.0 x 25mm), M6 flat washers, and M8 hex head cap screws (M8 - 1.25 x 18mm) with M8 flat washers and M8 nylon lock nuts.
The supplied switch should be disconnected from the wiring harness and installed in a desired location of your choice. The manual does not specify a particular mounting location, allowing you to choose a convenient spot in your vehicle's interior.
Route the wiring harness from the battery and relay to the LED light. Secure all wires with zip ties away from moving parts to avoid damage. The wiring harness connects to the LED light via a male plug that inserts into the female socket on the light.
Improper electrical installation may damage electronic components resulting in personal injury, property or equipment damage. Damage caused by incorrect installation is not covered by warranty. Installation should only be performed by qualified personnel with a solid understanding of electrical systems. Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
After mounting the relay to the vehicle and securing all wires with zip ties, test the light to ensure proper function. This confirms that all electrical connections are correct and the light bar is operating as intended.
Yes. The Curt 2054 and 2054-2 Grille Guard is designed for 2005-2013 Tacoma. If equipped with a factory skid plate, it must be removed and will not be reinstalled.
Yes. The manual states: 'DO NOT ATTEMPT INSTALLATION ALONE; PERSONAL INJURY OR DAMAGE TO THE TRUCK MAY RESULT.' Assistance is required, particularly when positioning the grille guard onto the mounting brackets.
Yes. If equipped, the factory skid plate must be removed before installation and will not be reinstalled.
No. The LED light is sold separately. The grille guard includes a support flange and nut clips to mount an aftermarket LED light of your choice.
Wax the grille guard after installation and regularly thereafter. Do not use polish or wax containing abrasives. For black finishes, mild soap may be used to clean. Perform periodic inspections to ensure all hardware remains tight.
The 1501264 is supplied with a standard-voltage relay. For 24V systems, the relay must be replaced with a 24V unit.
The 1501264 includes a 15-amp fuse, pre-installed in the relay.
Connect the red fused wire with ring terminal to the positive (+) battery post. Connect the black wire ring terminal to the negative (-) battery post or other suitable vehicle grounding point.
1. Verify that the red fused wire with ring terminal is securely connected to the positive (+) battery post. 2. Verify that the black wire ring terminal is securely connected to the negative (-) battery post or suitable grounding point. 3. Check that the 15-amp fuse in the relay is not blown. 4. Ensure the switch is properly connected with the blue, red, and black spade connectors according to the wiring diagram. 5. Verify that the male plug on the wiring harness is fully inserted into the female socket on the LED light. 6. Inspect all wires and connections for visible damage or loose connections.
