2016 - 2023 Toyota Tacoma
Confirmed to Fit
Verify Fitment
Select your vehicle to confirm this part fits.

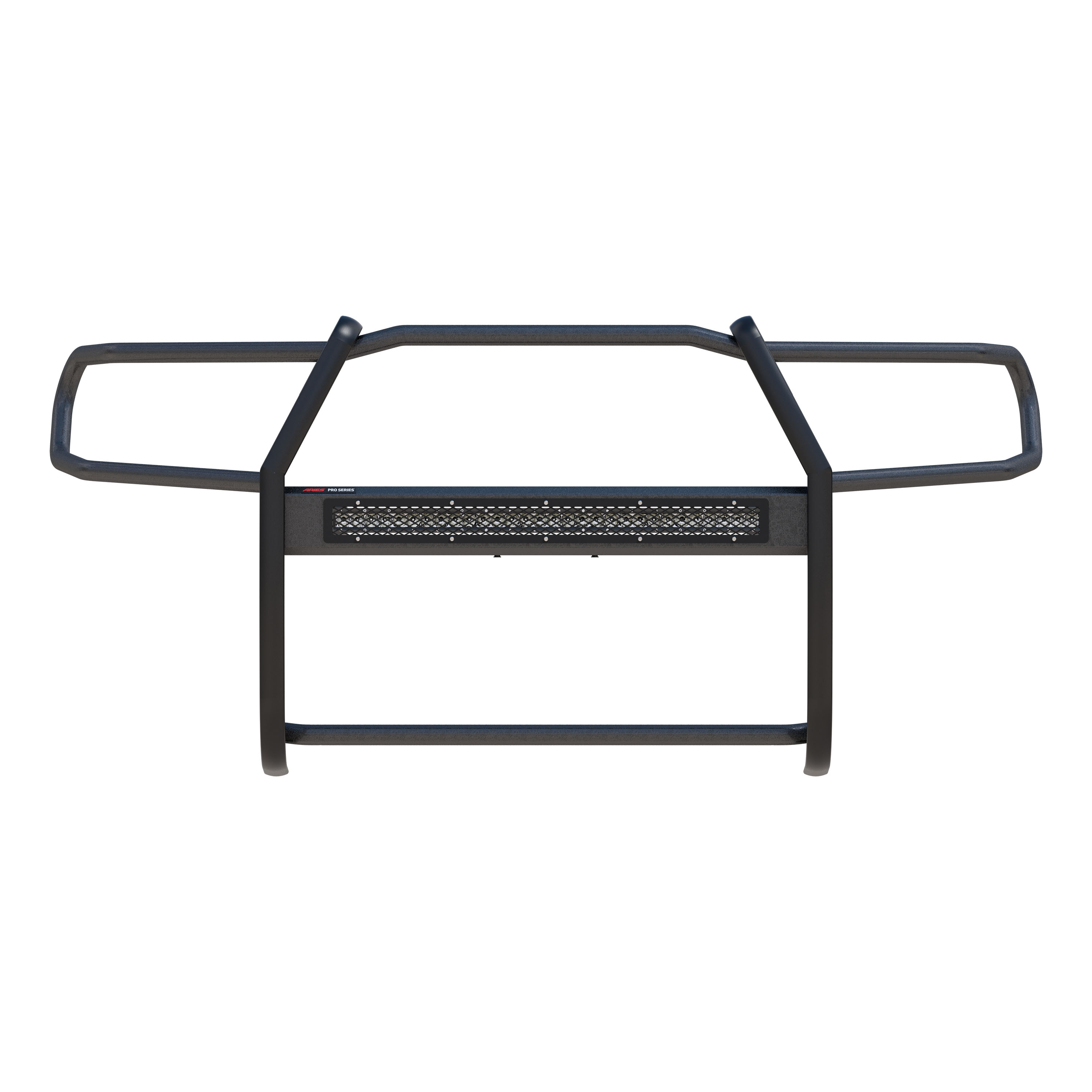

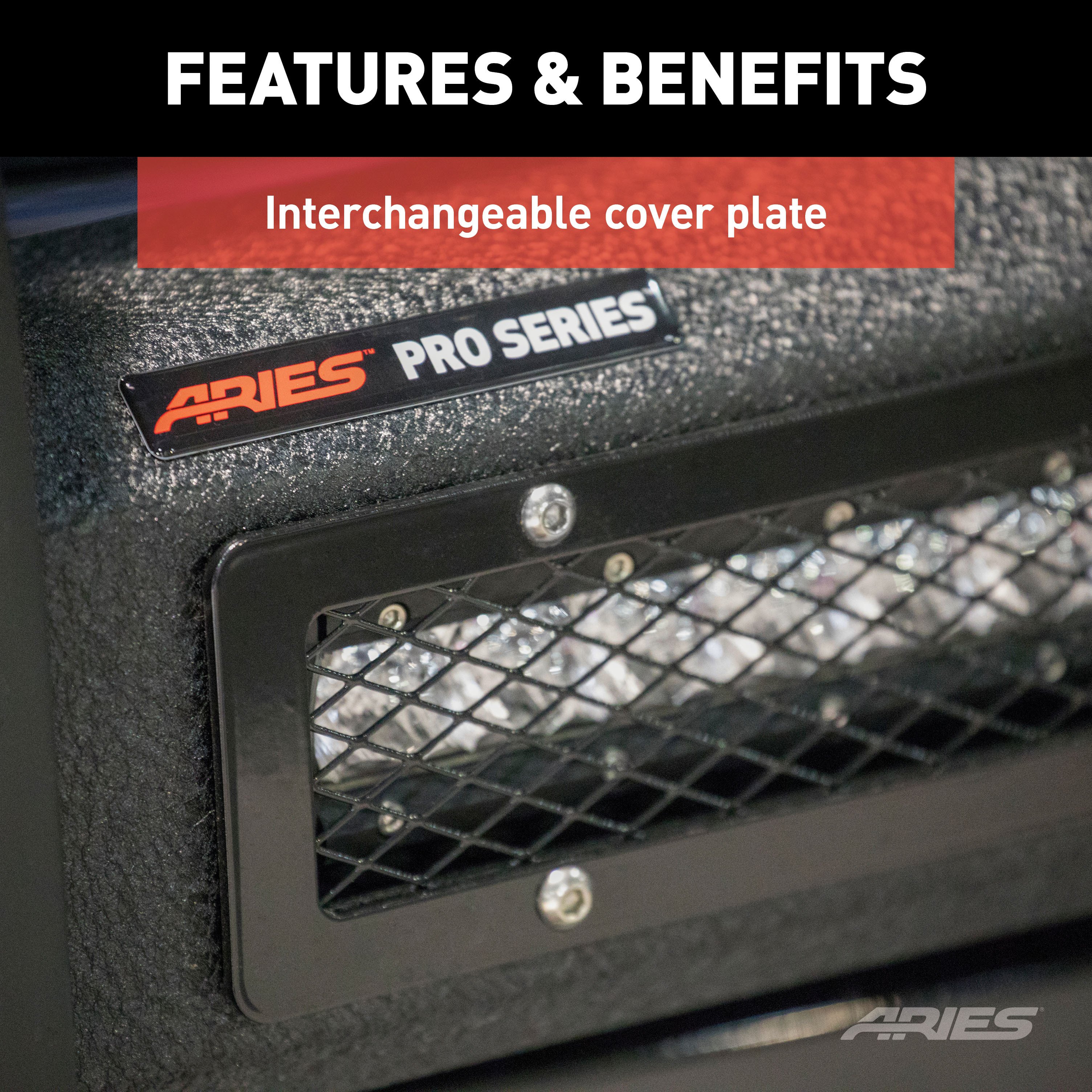

Includes Pro Series grille guard #P2068, mounting hardware, 30" LED light bar #1501264 and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Blank
Color: Black
Light - Beam Type: Combo
Light - Configuration: Single-row
Light - Light Size: 30 IN
Light - Light Type: Light Bar
Light - Lumens: 14,800

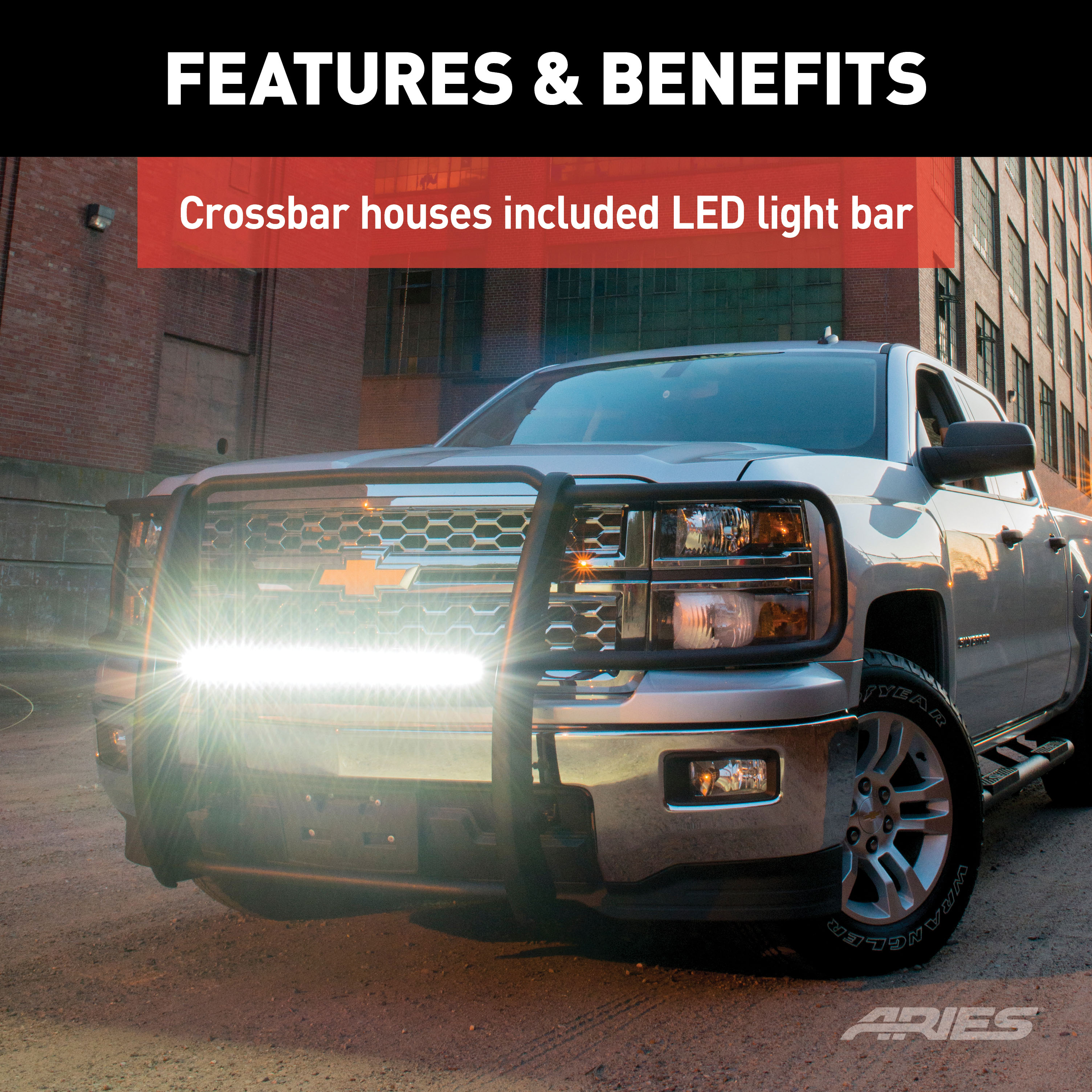

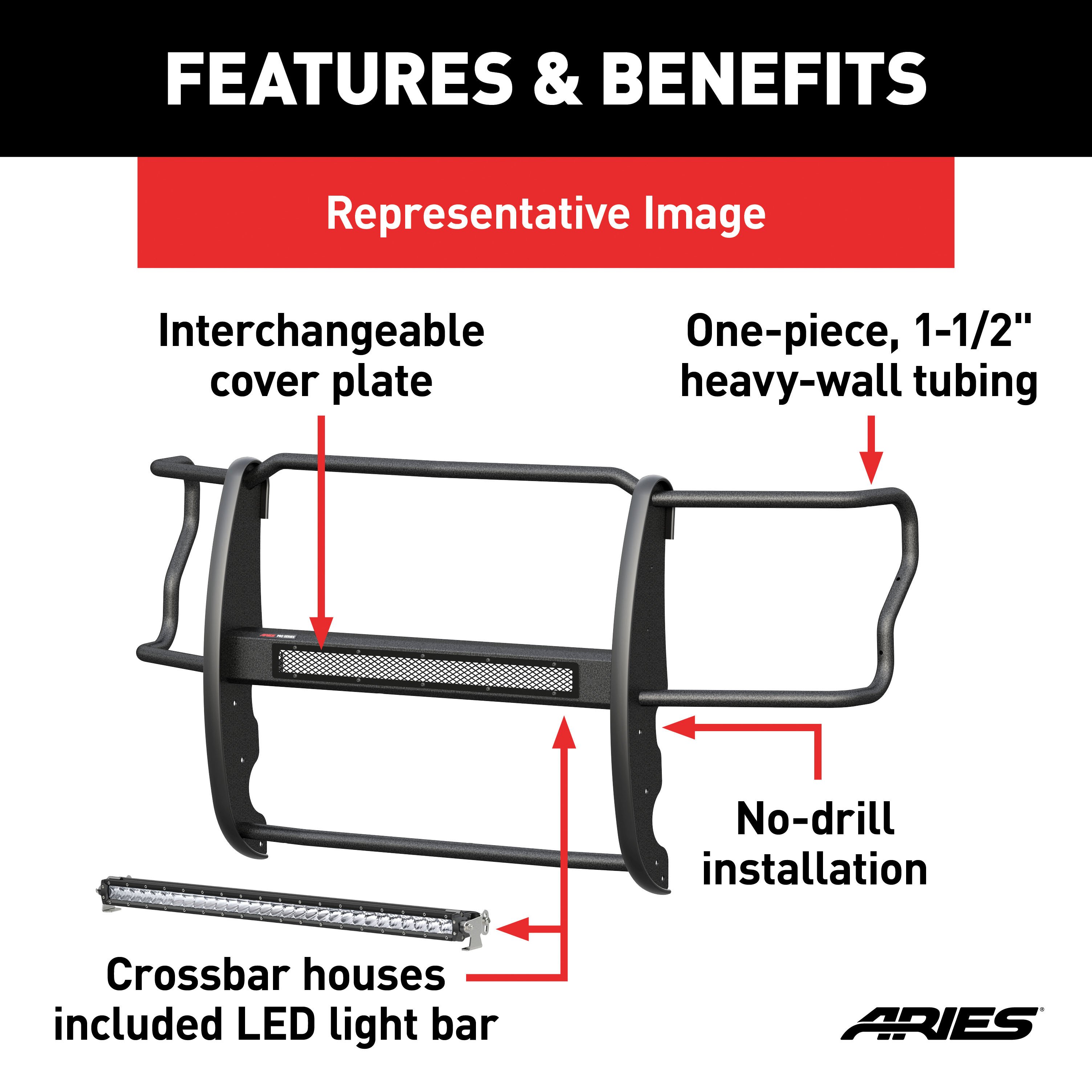

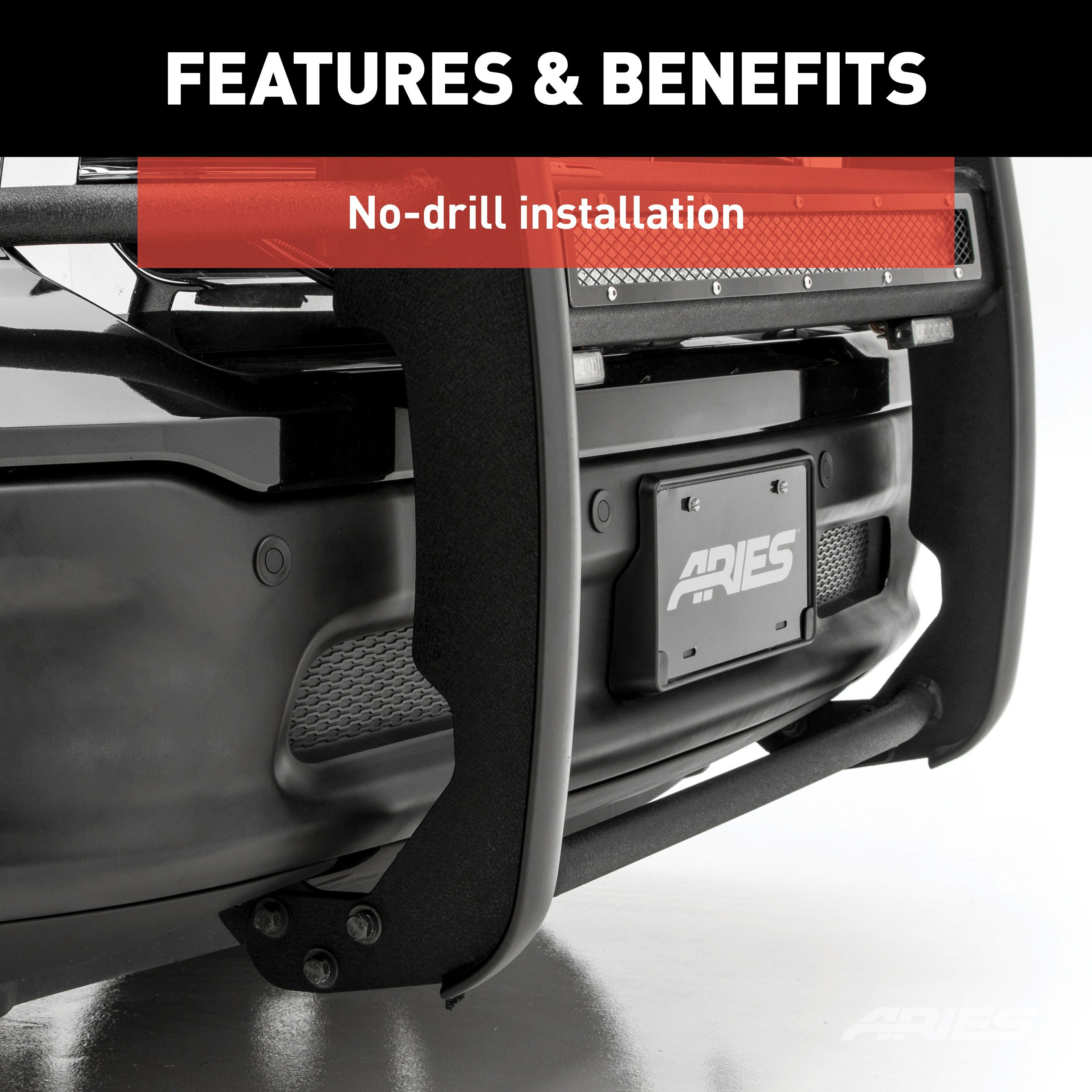

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that houses an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to mount the included 30" LED light bar #1501264. The bracket can also accept other single-row light bars (some 30" light bars may not fit). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Toyota Tacoma (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Toyota Tacoma | — |
The ARIES 2170006 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170006) fits the following vehicles: 2016-2023 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
Yes, the ARIES 2170006 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170006) is designed to fit the 2016-2023 Toyota Tacoma.
The ARIES 2170006 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170006) fits 2016-2023 Toyota Tacoma models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES 2170006 Pro Series Black Steel Grille Guard with Light Bar, Select Toyota Tacoma (Part #BBDR2170006) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P2068 kit includes one grille guard, two frame mounting brackets (driver and passenger), two top mounting brackets, one LED support flange, and all required fasteners: 2 clip nuts (8mm), 2 hex bolts (8mm), 2 flat washers (8mm), 2 lock washers (8mm), 4 bolt plates (10mm), 6 hex bolts (10mm), 2 button head bolts (10mm), 20 flat washers (10mm), 12 lock washers (10mm), 12 hex nuts (10mm), and 2 plastic retainers (10mm). The LED light and its mounting hardware are sold separately.
The 1501264 kit includes one 10-inch LED light bar, left and right mounting brackets, a wiring harness with pre-installed 15-amp fuse, a relay, a switch, two security screws (M6 - 1.0 x 25mm), two rubber spacers (M6), two flat washers (M6), two hex head cap screws (M8 - 1.25 x 18mm), two flat washers (M8), two Nylock nuts (M8 - 1.25mm), and an L-wrench for the security screws.
The P2068 grille guard is designed to work with LED lights mounted to the included LED support flange. The manual states that LED manufacturers may have different mounting styles or brackets, and once the mounting option is determined, it should be attached to the support flange. The LED light and its mounting hardware are sold separately, so compatibility depends on the specific LED light chosen.
Required tools are: ratchet, 16mm wrench, 13mm socket, utility knife, 17mm socket, and 6mm Allen wrench.
Yes. Step 11 explicitly states 'With help, lift the grille guard up to the mounting brackets,' indicating that at least two people are required to safely position the grille guard during installation.
The installation sequence is: (1) Attach LED light and hardware to the support flange; (2) Attach clip nuts and 8mm bolts to the support flange; (3) Place grille guard face down and insert support flange into light bar cage; (4) Remove air dam from bumper; (5) Remove factory hex bolt on passenger side, insert bolt plate and retainer; (6) Install passenger-side frame mounting bracket using factory hardware; (7) Repeat for driver side; (8) Open hood and remove plastic cover; (9) Insert 10mm bolts into support bar holes; (10) Install top mounting brackets to support bar; (11) Mark and cut slots in air dam for mounting brackets, then reinstall air dam; (12) With help, lift grille guard and secure to all mounting points; (13) Tighten all hardware.
Step 1 instructs you to select an LED light and mounting hardware (sold separately) and attach the hardware to the support flange. The manual notes that LED manufacturers may have different mounting styles or brackets, so once you determine the mounting option, attach it to the support flange according to the LED manufacturer's instructions.
Place a clip nut on both ends of the support flange. Insert an 8mm hex bolt, lock washer and flat washer into each clip nut, leaving enough space between the flat washer and clip nut to slot the support flange into the light bar cage. Place the grille guard face down on a flat surface and insert the support flange into the light bar cage, ensuring the flat washer, lock washer and bolt head are on the outside of the center flange.

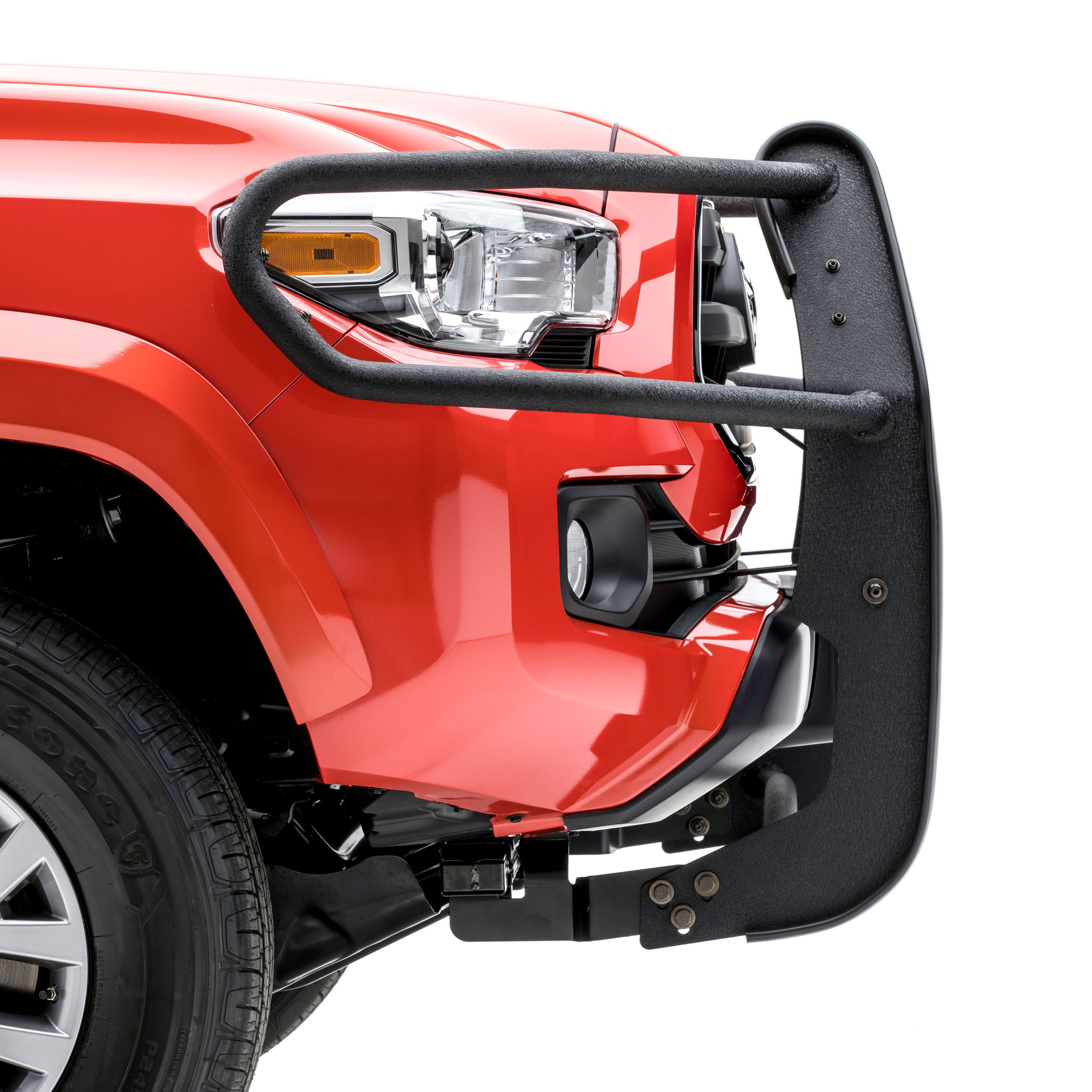

The frame mounting brackets are secured using the factory hex bolt that was removed from the vehicle (on the lower mounting point) along with a 10mm flat washer, 10mm lock washer and 10mm hex nut. A 10mm bolt plate is inserted into the large frame hole and a 10mm bolt retainer keeps the bolt plate from falling into the frame.
A 10mm bolt is inserted into the two outer-most holes on the support bar (located in front of the radiator). The top mounting bracket is then secured using a 10mm flat washer, 10mm lock washer and 10mm hex nut.
Yes. The air dam on the bottom of the front bumper must be modified. After the grille guard is positioned, you mark the locations of the mounting brackets on the air dam using a marker and tape, then cut two slots large enough to clear the mounting brackets. The air dam is then reinstalled.
With help, lift the grille guard up to the mounting brackets. At each lower frame mounting point, secure using a 10mm hex bolt and flat washer on the outside and a 10mm flat washer, 10mm lock washer and 10mm hex nut on the inside of the grille guard. At each top mounting point, secure using a 10mm button head bolt and flat washer on the outside and a 10mm flat washer, 10mm lock washer and 10mm hex nut on the inside. Once aligned, tighten all hardware.
Periodic inspections should be performed to ensure all mounting hardware remains tight. For black finishes, mild soap may be used to clean the product.
The 1501264 is a 10-inch LED light bar. The manual includes a dimensional drawing showing the light bar is 33.5 units long, 31.9 units wide, with a 25-degree angle and various mounting hole specifications detailed in the technical drawing on page 7.
The LED light bar is mounted using two security screws (M6 - 1.0 x 25mm), two rubber spacers (M6), two flat washers (M6), two hex head cap screws (M8 - 1.25 x 18mm), two flat washers (M8), and two Nylock nuts (M8 - 1.25mm). A rubber spacer must be placed between the mounting surface and each bracket.
Route the wiring harness to the light and insert the male plug on the wiring harness into the female socket on the LED light. Reconnect the blue, red and black spade connectors to the switch according to the wiring diagram. Connect the red fused wire with ring terminal to the positive (+) battery post. Connect the black wire ring terminal to the negative (-) battery post or other suitable vehicle grounding point. Mount the provided relay to the vehicle and secure all wires with zip ties away from moving parts.
The 1501264 includes a pre-installed 15-amp fuse in the wiring harness.
Improper electrical installation may damage electronic components resulting in personal injury, property or equipment damage. Damage caused by incorrect installation is not covered by warranty. Installation should only be performed by qualified personnel with a solid understanding of electrical systems. Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
If the 1501264 light bar is being used with a 24V system, the relay will need to be replaced with a 24V unit. The kit comes with a standard relay suitable for typical vehicle electrical systems.
The supplied switch should be disconnected from the wiring harness and installed in the desired location. The wiring harness connects the switch to the LED light bar via blue, red and black spade connectors as shown in the wiring diagram.
The manual does not specify which vehicle makes, models or years the P2068 fits. Contact ARIES Automotive at 877.287.8634 or check ARIESAUTOMOTIVE.COM for fitment information.
No. The LED light and its mounting hardware are sold separately. The P2068 includes the grille guard, mounting brackets, support flange, and fasteners only.
At least two people are required. Step 11 explicitly states 'With help, lift the grille guard up to the mounting brackets.'
Yes. Two slots must be cut in the air dam on the bottom of the front bumper to clear the mounting brackets. The air dam is then reinstalled.
The manual does not specify tools required for wiring installation. Basic electrical tools and wire strippers are typically needed, but consult a qualified electrician if unfamiliar with vehicle electrical systems.
The manual states installation should only be performed by qualified personnel with a solid understanding of electrical systems. Improper installation may damage electronic components and is not covered by warranty.
Connect the red fused wire with ring terminal to the positive (+) battery post and the black wire ring terminal to the negative (-) battery post or other suitable vehicle grounding point.
Perform the following checks: (1) Verify the 15-amp fuse is not blown and is properly seated in the wiring harness; (2) Check that the red fused wire ring terminal is securely connected to the positive (+) battery post; (3) Check that the black wire ring terminal is securely connected to the negative (-) battery post or vehicle grounding point; (4) Verify the male plug on the wiring harness is fully inserted into the female socket on the LED light; (5) Confirm the blue, red and black spade connectors are properly reconnected to the switch; (6) Ensure the switch is in the ON position; (7) Inspect all wires for visible damage or loose connections. If the light still does not function, consult a qualified electrician.
Tighten all mounting hardware. The manual states that once the grille guard is aligned, all hardware should be tightened, and periodic inspections should be performed to ensure all mounting hardware remains tight. Check all 10mm hex bolts, lock washers, and hex nuts at both the lower frame mounting points and upper top mounting bracket points.
Do not operate the light. Inspect all wires and connections for visible damage or loose connections. Secure any loose wires with zip ties away from moving parts. If damage is found, do not use the light bar. Contact ARIES Automotive at 877.287.8634 for warranty or replacement options. Improper electrical installation or damage caused by incorrect installation is not covered by warranty.
