Includes mounting hardware for attaching to the bumper
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Carbon Steel
Bumper Location: Front

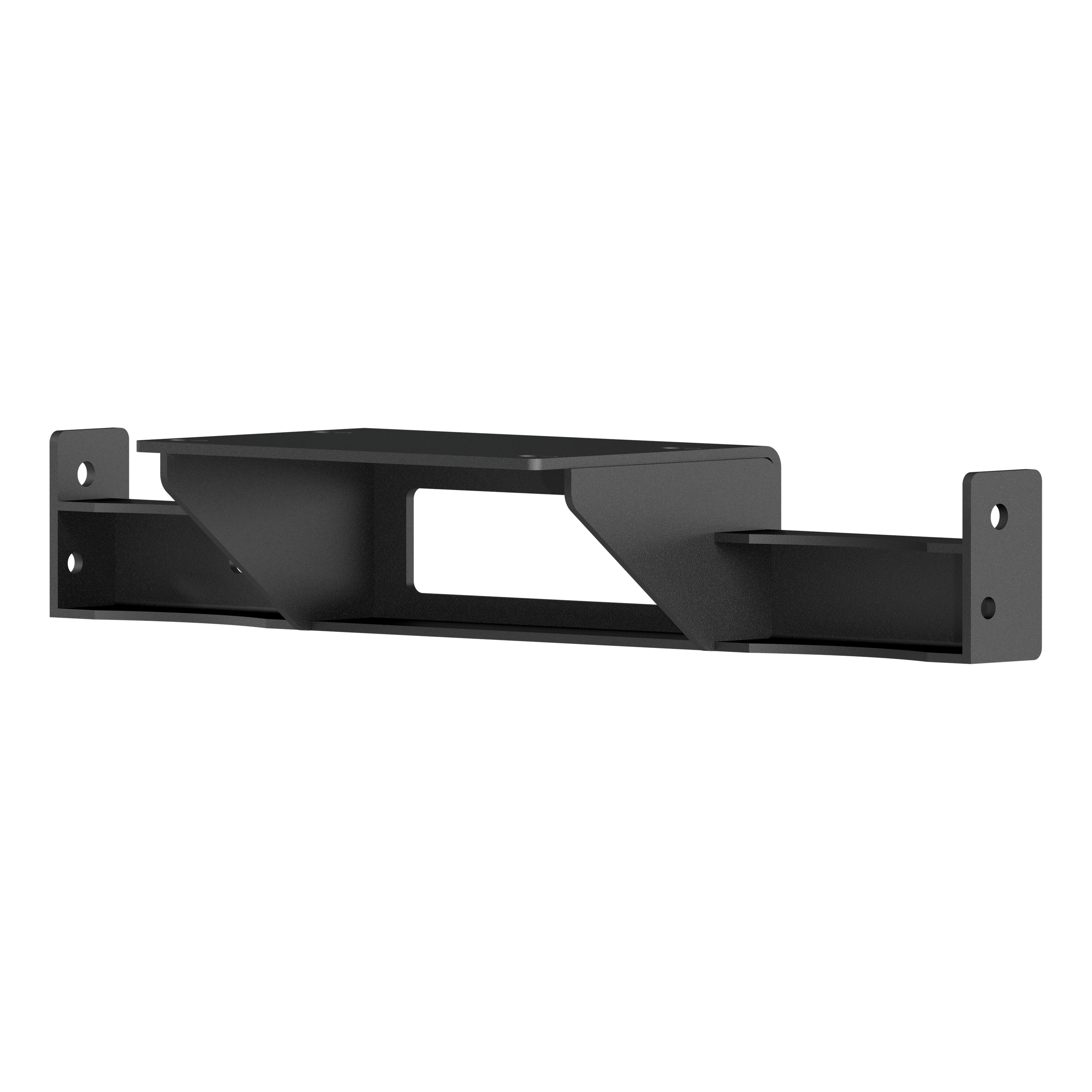

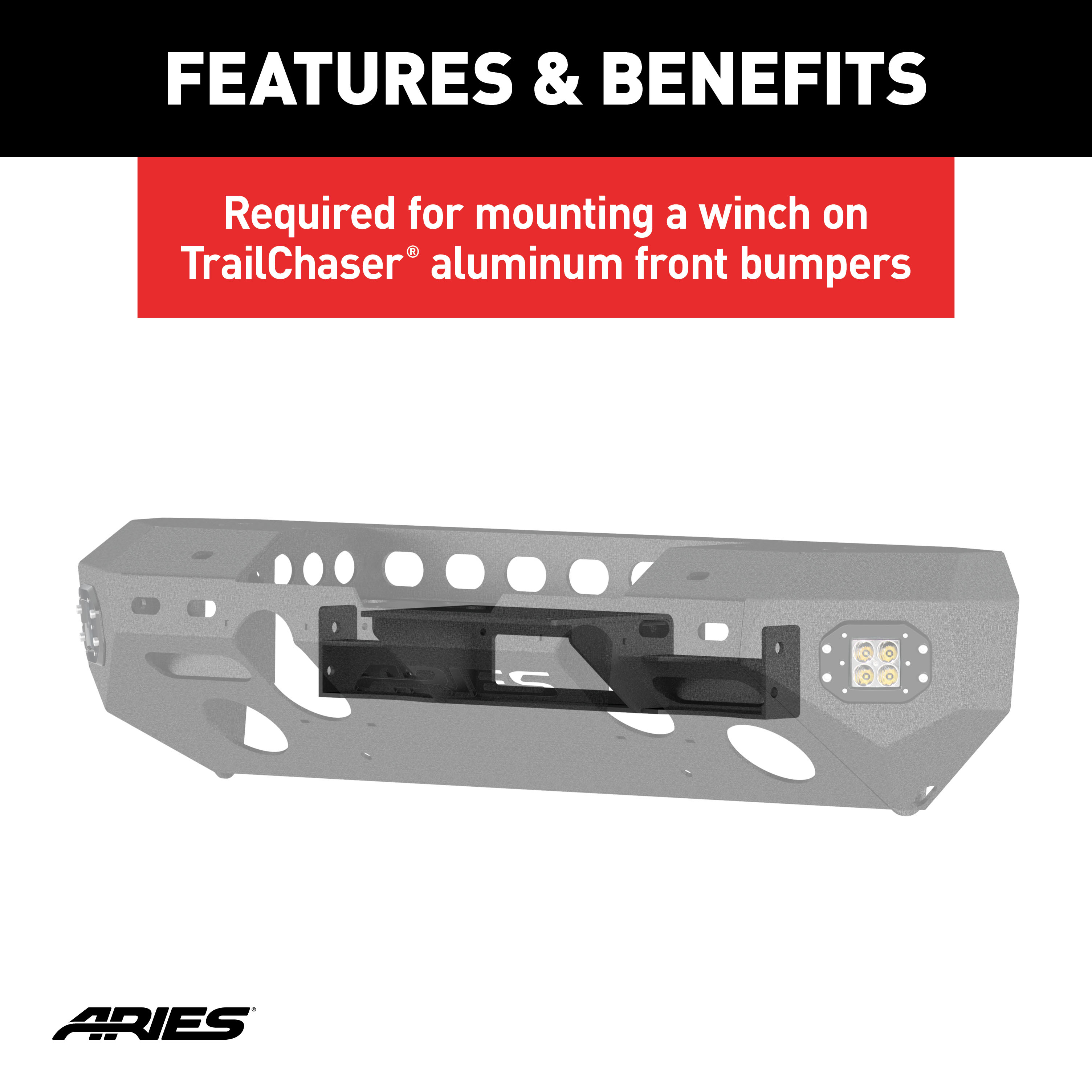

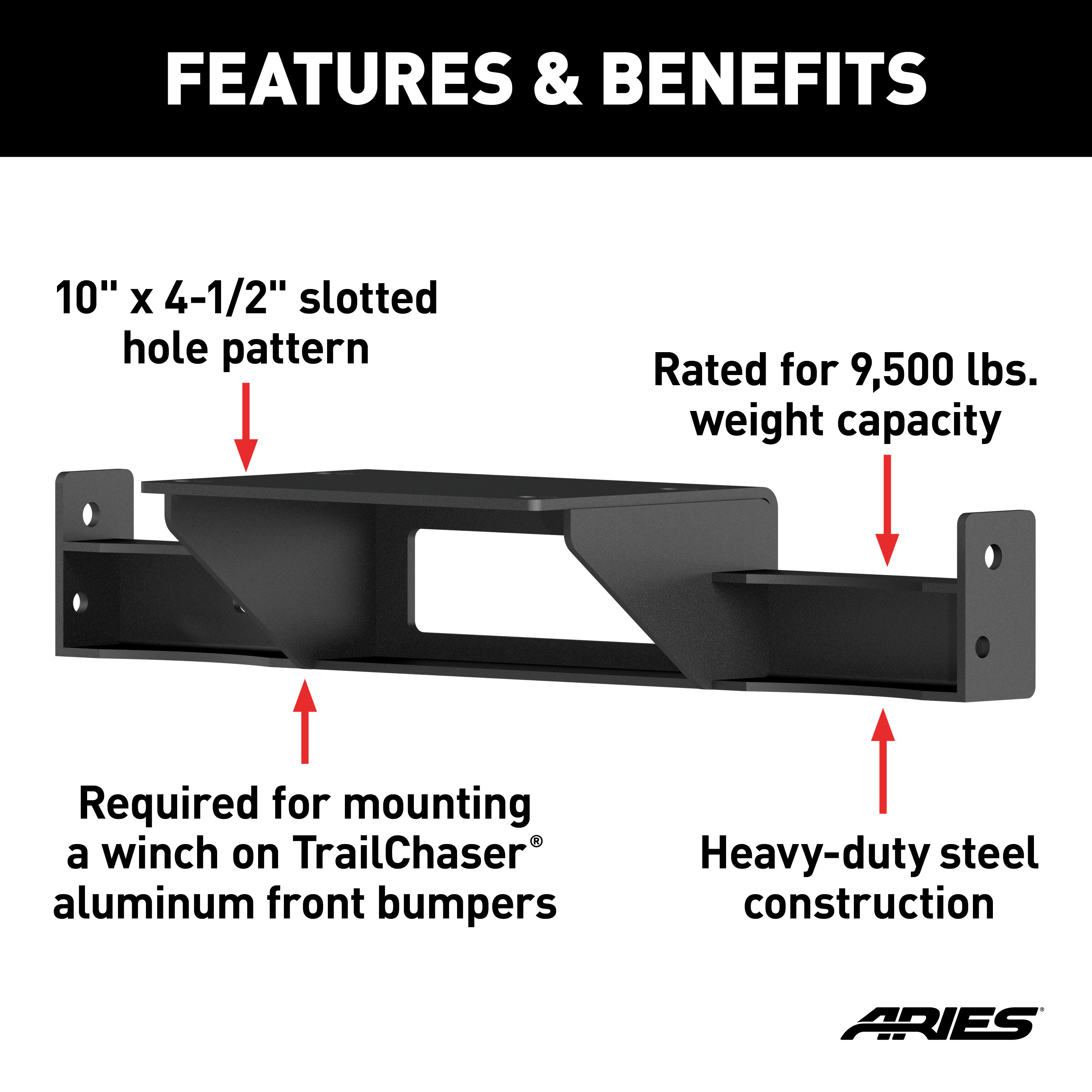

This winch reinforcement bracket provides the added strength needed for mounting a winch on the ARIES TrailChaser front aluminum bumper for Jeep Wrangler JK. It is constructed from high-strength carbon steel and rated to a weight capacity of 9,500 lbs. It also features standard, slotted mounting holes to be compatible with most winches, and it comes with a durable black powder coat finish for lasting protection against the elements.
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2017 | Jeep Wrangler | — |
| 2018 | Jeep Wrangler JK | — |
The ARIES TrailChaser Bumper Jeep JK Winch Reinforcement Bracket Bumper Bracket (Part #BBDR2072101) fits 2007-2017 Jeep Wrangler models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The ARIES TrailChaser Bumper Jeep JK Winch Reinforcement Bracket Bumper Bracket (Part #BBDR2072101) fits the following vehicles: 2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK. Always verify your specific year, make, and model before ordering.
Yes, the ARIES TrailChaser Bumper Jeep JK Winch Reinforcement Bracket Bumper Bracket (Part #BBDR2072101) is designed to fit the 2007-2017 Jeep Wrangler.
The ARIES TrailChaser Bumper Jeep JK Winch Reinforcement Bracket Bumper Bracket (Part #BBDR2072101) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The kit includes: 1 winch support bracket, 2 nut plates, 2 M10 × 30 mm hex bolts with flat washers and lock washers, and 2 M12 × 30 mm hex bolts with flat washers and lock washers. All fasteners are included; no additional hardware is required for bracket installation.
The manual states the bracket is designed for a Jeep, but does not specify the model year or generation. Contact Aries Automotive at 877.287.8634 or check ARIESAUTOMOTIVE.COM to confirm fitment for your specific Jeep model before purchasing.
Required tools are: ratchet, torque wrench, Phillips screwdriver, flathead screwdriver, 10 mm socket, 16 mm socket, 18 mm socket, deburring tool, cut-off tool, touch-up paint, and masking tape. A torque wrench is essential because fasteners must be torqued to specific values (M10 bolts to 25 ft.-lbs., M12 bolts to 45 ft.-lbs.).
Yes. The installation requires removal of the factory air dam, bumper, and vacuum pump bracket to access the frame where the winch support bracket mounts. The bumper is secured with four nuts (removed with an 18 mm socket) and must be carefully lifted from the frame and set on a flat work surface.
Yes. The vacuum pump bracket must be cut off as shown in Step 7. After cutting, the cut edge must be deburred using a deburring tool, and the raw metal must be protected with touch-up paint to prevent corrosion.
No drilling is required. The bracket mounts to existing threaded holes in the Jeep frame using nut plates that align with the frame holes.
M10 bolts must be torqued to 25 ft.-lbs. M12 bolts must be torqued to 45 ft.-lbs. Do not tighten any fasteners until all four bolts are started; then remove the temporary tape and torque both bolt sizes in the final step.
1. Remove air dam and its fasteners. 2. Disconnect fog light wiring harness and unclip from bumper. 3. Remove frame cover fasteners. 4. Remove bumper nuts (18 mm socket) from both sides. 5. Lift bumper off frame. 6. Remove and loosen vacuum pump bolts. 7. Cut and deburr vacuum bracket, apply touch-up paint. 8. Pull wiring harness out and tape nut plates. 9. Tuck wiring harness into frame channel and position nut plates with tape. 10. Set winch support bracket in place with wiring routed below it. 11. Insert M12 and M10 bolts with washers on both sides without tightening. 12. Remove tape and torque M10 bolts to 25 ft.-lbs. and M12 bolts to 45 ft.-lbs.
Starting all four bolts before tightening ensures proper alignment of the bracket with the frame and prevents cross-threading or misalignment that could damage the nut plates or frame threads.
The fog light wiring harness must be tucked into the frame channel and routed below the winch support bracket. This routing protects the wiring from damage and ensures it does not interfere with bracket operation.
Periodic inspections should be performed to ensure all mounting hardware remains tight. The bracket should be waxed after installation, and regular waxing is recommended to add a protective layer over the finish. Do not use polish or wax containing abrasives, dish detergent, abrasive cleaners, abrasive pads, or wire brushes, as these may damage the finish. Mild automotive detergent may be used to clean the product.
Wax the bracket after installation and regularly thereafter to add a protective layer over the finish. For polished, gloss, and other smooth finishes, polish may be used to clear small scratches and scuffs. Do not use any polish or wax containing abrasives, as these will damage the finish. Clean with mild automotive detergent only; do not use dish detergent, abrasive cleaners, abrasive pads, or wire brushes.
The bracket is designed for a Jeep, but the manual does not specify the model. Contact Aries Automotive at 877.287.8634 or visit ARIESAUTOMOTIVE.COM to confirm fitment for your specific model before purchasing.
You will need a ratchet, torque wrench, Phillips and flathead screwdrivers, 10 mm, 16 mm, and 18 mm sockets, deburring tool, cut-off tool, touch-up paint, and masking tape. A torque wrench is essential for final fastener tightening.
Yes, the factory bumper must be removed to access the frame mounting points. The air dam and vacuum pump bracket must also be removed.
Cutting is required: the vacuum pump bracket must be cut off and deburred, then protected with touch-up paint. No drilling is required.
M10 bolts: 25 ft.-lbs. M12 bolts: 45 ft.-lbs. Start all four bolts before tightening any of them.
Wax after installation and regularly thereafter. Use only mild automotive detergent for cleaning. Do not use abrasive cleaners, polish with abrasives, dish detergent, abrasive pads, or wire brushes.
Perform periodic inspections to ensure all mounting hardware remains tight. Wax the bracket and maintain the finish with mild detergent and regular waxing.
