Custom Designed For Your Vehicle
Material: Steel
Finish: Powder Coat
Color: Black
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Ford Expedition | Only Vehicles equipped with 4L Vehicles with Timberline, Adaptive Cruise Control, Shutters, & EcoBoost Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2026 | Ford Expedition | Vehicles with Adaptive Cruise Control & Shutters, Comes with Removable Attachment Tabs, Install Rating 2, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Tow Hooks Must be Removed and Remain off the Vehicle After Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2025 | Ford Expedition | Vehicles with Adaptive Cruise Control & Shutters, Comes with Removable Attachment Tabs, Install Rating 2, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Tow Hooks Must be Removed and Remain off the Vehicle After Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

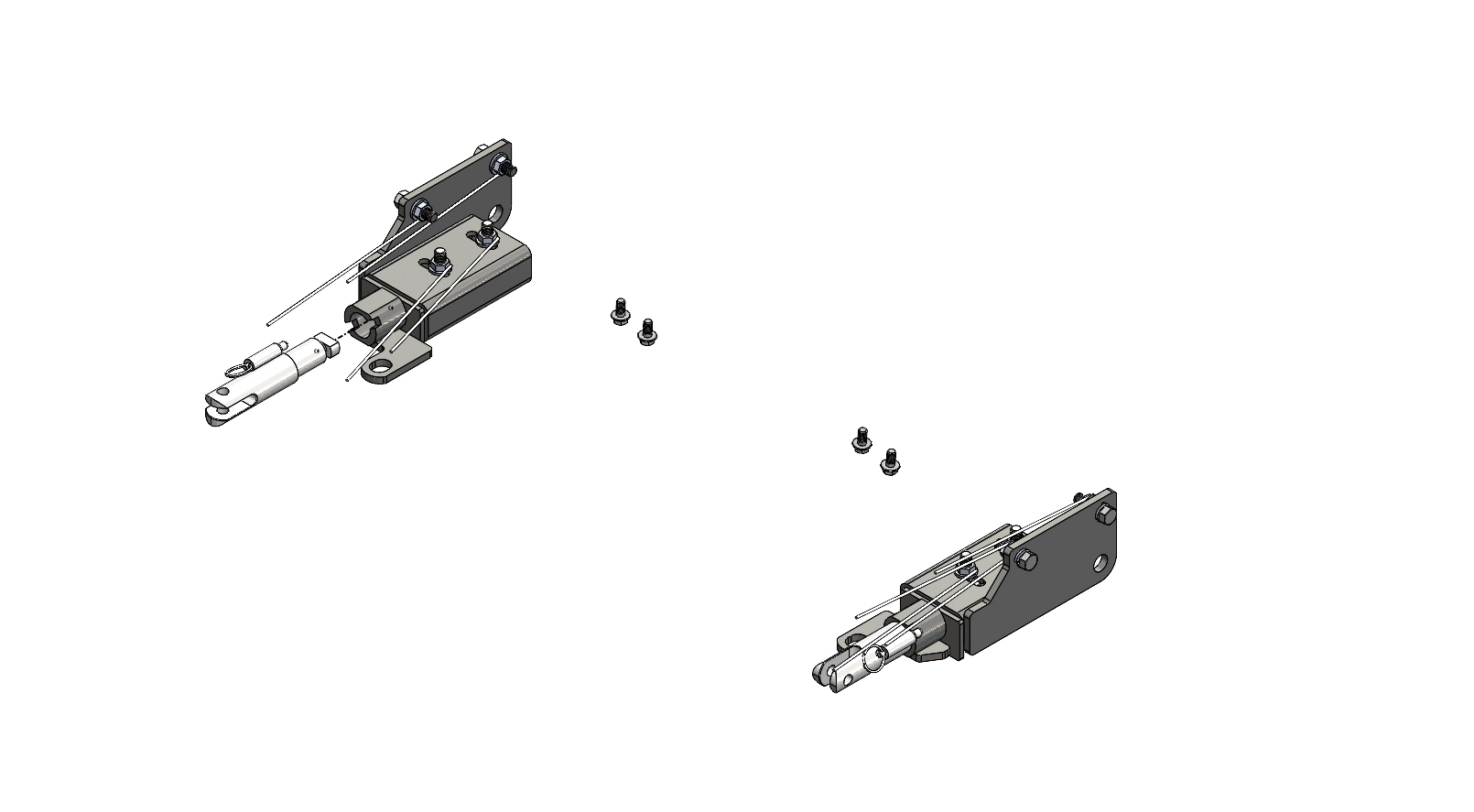

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPEDITION TIMBERLINE (Part #FDRWBX2693) fits the following vehicles: 2018-2026 Ford Expedition. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPEDITION TIMBERLINE (Part #FDRWBX2693) fits 2018-2026 Ford Expedition models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPEDITION TIMBERLINE (Part #FDRWBX2693) is designed to fit the 2018-2026 Ford Expedition.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPEDITION TIMBERLINE (Part #FDRWBX2693) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2693 fits 2018-2024 Ford Expedition models equipped with a 4L engine, including Adaptive Cruise Control, Shutters, Timberline, and EcoBoost variants. If your vehicle year, make, model, or features are not listed, contact Blue Ox at (402) 385-3051 to verify fitment before purchasing.
The BX2693 fits 2025-2026 Ford Expedition 4x4 models, including Tremor, Adaptive Cruise Control, and Shutters variants. It does not fit 2WD 2025-2026 models. Contact Blue Ox at (402) 385-3051 if you need to confirm your specific model year and configuration.
The BX2693 attachment tab width is 34 inches and height is 17.5 inches. Your tow bar must be compatible with these dimensions. Verify your tow bar specifications before installation. Blue Ox recommends confirming compatibility with your dealer or by contacting (402) 385-3051.
Required tools include: flat screwdriver, 10MM socket, torque wrench, 13MM socket, drill with 1/2" drill bit, 15MM socket, Loctite Red, 16MM socket, 5/16" nut driver, 7/16" socket, 5.5MM socket, 7/16" wrench, and 3/4" socket.
The kit includes: 8× 1/2"-13 Whiz Nuts, 2× baseplates (driver and passenger side), 2× Attachment Tab Assemblies, 1× Breakaway Bracket, 1× 1/4"-20 x 3/4" Hex Head Bolt Grade 5, 8× 1/2"-13 x 1-3/4" Hex Head Bolts Grade 5, 2× 1/4"-20 x 1" Hex Head Bolts Grade 5, 2× #10-32 1/2" Round Slotted Head Screws, 4× M10-1.5 x 20MM Flanged HH Bolts Grade 8.8, 2× #10-32 Hex Nuts, 3× 1/4"-20 Hex Nylon Nuts, 4× 1/2" Flat Washers, 8× 1/2" Lock Washers, 2× #10 Lock Washers, 2× Class IV Safety Cables, 2× 1/2" Quicklinks, and 2× Black Cap Plug Receivers.
No, tail light wiring kits are not included. Blue Ox recommends the BX8869 Tail Light Wiring Kit for vehicles with bulbs and the BX8848 Tail Light Wiring Kit for vehicles with LED tail lights. These must be ordered separately.
The manual specifies that 2018-2024 models require disconnection of an electrical connection on the driver side of the vehicle during baseplate installation (step 2 of Baseplate Installation). The manual does not state whether the battery itself must be disconnected. Contact Blue Ox at (402) 385-3051 for clarification on battery disconnection requirements.
Yes. Vehicles with tow hooks require removal of the two tow hook bolts using a 15MM socket. The tow hooks are removed and will not be reinstalled. This must be done on both sides of the vehicle.
The fascia, fascia cover, belly pan, and belly pan bracket are removed during installation and then reinstalled after the baseplate is mounted. Tow hooks are removed but are not reinstalled. All removed items should be placed on a flat, sturdy surface during installation.
Yes. Using a 1/2" drill bit, you must drill two holes in the side of the frame on each side of the vehicle (four holes total), using the baseplate as a template. After drilling, paint the cut edges of the frame with good quality paint to prevent rusting.
Yes. On 2018-24 Non-Timberline models only, you must remove the area shown in step 7a to allow room for the tab and convenience link. This must be done on both sides of the vehicle. The manual does not specify the exact trimming method or dimensions.
No trimming is required on 2025 models. Instead, you must remove the four clips attaching the tow hook cover to the fascia and push the cover inward to remove it. The cover will not be reinstalled. This must be done on both sides of the vehicle.
The torque specification for 1/2"-13 Grade 5 bolts is 78 foot-pounds. Apply Loctite Red to all bolt threads before tightening. Tighten the bolts on the bottom of the baseplate first, then the side bolts.
The torque specification for M10-1.5 Grade 8.8 bolts is 31 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
The torque specification for 1/4"-20 Grade 5 bolts is 10 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for the manufacturer's towing specifications and your vehicle's GVWR.
Yes. The BX2693 includes two Class IV Safety Cables and two 1/2" Quicklinks. These permanent baseplate safety cables must be attached to the baseplate and secured to the frame rail or cross member of the vehicle's frame. The cables prevent the towed vehicle from breaking loose if the baseplate connection fails. Safety cables must not be mounted against wires, hoses, or brake lines. These cables are in addition to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame of the vehicle. The manual shows recommended installation options in the Permanent Baseplate Safety Cable Installation section. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
Yes. The manual recommends removing the attachment tabs when not in use, if applicable.
The manual does not specify a retorque interval. However, it states that it is the owner's responsibility to inspect all towing equipment for loose bolts before each towing trip and to use Loctite Red on all bolts and tighten to the recommended specifications. Contact Blue Ox at (402) 385-3051 for guidance on retorque intervals.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. The warranty is valid only if the customer warranty card is returned within 30 days of purchase.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Blue Ox provides a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your product at http://blueox.com/warranty/.
The BX2693 fits 2018-2024 Ford Expedition with 4L engine (all trim levels) and 2025-2026 Ford Expedition 4x4 (Tremor, ACC, Shutters). Verify your model year and engine size, then contact Blue Ox at (402) 385-3051 if unsure.
You need a drill with 1/2" bit, torque wrench, sockets (5.5MM, 7/16", 10MM, 13MM, 15MM, 16MM, 3/4"), flat screwdriver, 5/16" nut driver, 7/16" wrench, and Loctite Red.
Yes. You must drill two 1/2" holes per side (four total) into the frame using the baseplate as a template. Paint the cut edges to prevent rust.
Yes. You must remove the area shown in step 7a to allow room for the tab and convenience link on both sides.
Tighten 1/2"-13 Grade 5 bolts to 78 foot-pounds. Apply Loctite Red to all threads. Tighten bottom bolts first, then side bolts.
Yes. Two Class IV Safety Cables and two 1/2" Quicklinks are included. Attach them to the baseplate convenience link and secure to the vehicle frame on both sides. Do not mount against wires, hoses, or brake lines.
The baseplate is tested to your vehicle's GVWR. Do not exceed this weight or the warranty is void. Check your vehicle owner's manual for GVWR and towing specifications.
Verify all electrical connections are plugged in and functioning. Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to spec with Loctite Red before each towing trip.
