Custom Designed: The BX1734 is custom designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

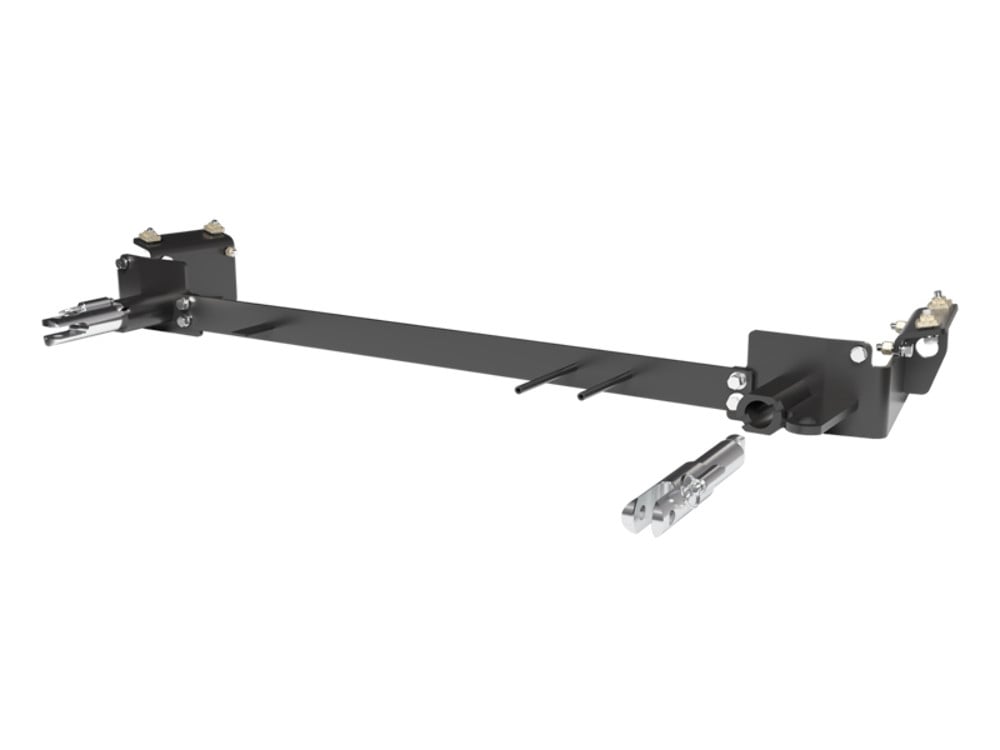

The Blue Ox BX1734 Tow Bar Bracket is a premium automotive accessory, designed to provide exceptional towing capabilities to your vehicle. Made from high-grade steel and finished with a durable powder coating, this black tow bar bracket offers unmatched strength and longevity. It's custom designed for each specific towed vehicle, ensuring a perfect fit and easy installation. With the Blue Ox BX1734, you can expect a sturdy, reliable connection that won't let you down. Best of all, it comes with all the necessary mounting hardware and detailed instructions for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2021 | Chevrolet Traverse | Vehicles with Turbo and Shutters No Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Base Plate, Chevy Traverse Rs BX1734 (Part #FDRWBX1734) fits the following vehicles: 2019-2021 Chevrolet Traverse. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Base Plate, Chevy Traverse Rs BX1734 (Part #FDRWBX1734) is designed to fit the 2019-2021 Chevrolet Traverse.
The BlueOx Base Plate, Chevy Traverse Rs BX1734 (Part #FDRWBX1734) fits 2019-2021 Chevrolet Traverse models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Base Plate, Chevy Traverse Rs BX1734 (Part #FDRWBX1734) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX1734 is designed for 2019-2021 Chevy Traverse models without ACC. The manual specifically states "(No ACC)" in the product designation. If your vehicle has adaptive cruise control, you will need a different baseplate model.
Yes. The BX1734 is specifically designed for 2019-2021 Chevy Traverse models that include shutters and turbo. The manual includes detailed instructions for trimming and notching the shutters during installation.
The attachment tab height is 16 inches and the attachment tab width is 37.5 inches.
Required tools include: large vise grip, flat screwdriver, torque wrench, drill, 3/8" drill bit, 2-1/2" hole saw, 7MM socket, 10MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, T15 Torx, T20 Torx, 5/16" nut driver, and Loctite Red. A reciprocating saw may be needed for trimming.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle. The manual states it is recommended and includes tail light removal instructions on page 4, but does not explicitly state it is mandatory. Consult with your installer or Blue Ox technical service at (402) 385-3051 to confirm whether it is required for your specific installation.
The following components must be removed and reinstalled after baseplate installation: fascia cover, fascia, windshield washer fluid reservoir, and shutters. The manual also requires removal of tail lights and rear panel trim to access mounting points. All removed items are reinstalled unless otherwise noted.
Yes. Drilling is required. The manual specifies drilling five holes using a 3/8" drill bit: one top hole on each side (drilled first to hold baseplate in place with vise grips), then four remaining holes on each side after the cross bar is installed. Additionally, a 2-1/2" hole saw is used to create holes in the fascia for the attachment tabs.
Trimming is required in several areas: the shutter housing must be trimmed on both sides (step 7); the sides of shutters must be trimmed around the attachment tab housing as needed (step 15); the middle two shutters must be notched for electrical rods and the breakaway bracket (step 16); and the fascia must be trimmed around the convenience links and attachment tabs (step 18). The manual notes that dimensional variations between vehicles may require additional tailoring of the baseplate.
The manual provides a general torque chart for 3/8"-16 bolts: Grade 5 bolts should be torqued to 33 foot-pounds, and Grade 8 bolts to 47 foot-pounds. The baseplate uses Grade 5 3/8"-16 bolts. The manual emphasizes using Loctite Red on all bolt threads and tightening all bolts to the appropriate torque, but does not specify a different value for this particular application.
The manual requires disconnecting the temperature sensor on the passenger side of the fascia (by pressing the red button and pulling the handle) during fascia removal, and reconnecting it during reinstallation. The manual also references tail light removal and installation of the BX8848 Tail Light Wiring Kit (recommended). All electrical connections must be plugged in and accessories must be functioning properly before reinstalling the fascia.
Yes. The BX1734 includes two Class IV Safety Cables (part 226-0049) that must be installed. The cables must be attached to the baseplate using the provided convenience link and secured to a solid piece of the vehicle frame. Safety cables must not rub against hoses or moving parts. The manual emphasizes that permanent baseplate safety cables are strongly recommended and must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and accessories are functioning properly. Verify that safety cables are properly secured to the frame and do not rub against hoses or moving parts. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut frame edges to prevent rusting. The manual does not specify retorque intervals, but recommends registering your product at www.blueox.com to receive maintenance bulletins and safety alerts.
No. The manual explicitly states: "If the baseplate is in an accident, it must be replaced. DO NOT use it again! An accident can cause unseen damage and using it again could result in more damage or serious injury." Do not use the baseplate if it is damaged or missing parts.
The hardware kit includes: 4 nut plates with 14" wire (3/8"), 1 1/4"-20 x 3/4" hex head bolt Grade 5, 2 #10-32 1/2" round slotted head screws, 10 3/8"-16 x 1-1/4" hex head bolts Grade 5, 4 3/8"-16 x 1" hex head bolts Grade 5, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 6 3/8"-16 hex nylon insert lock nuts, 1 1/4"-20 hex nylon nut, 6 3/8" flat washers, 14 3/8" lock washers, 2 #10 lock washers, 1 4-way bracket, 2 Class IV safety cables, 2 1/2" quicklinks, and 2 black cap plug receivers.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. Register your product at http://blueox.com/warranty/ to activate coverage.
The BX1734 fits 2019-2021 Chevy Traverse models without adaptive cruise control (ACC) and with shutters and turbo. If your vehicle has ACC, you need a different baseplate model. Contact Blue Ox at (402) 385-3051 to confirm fitment.
Yes. Installation requires drilling five holes using a 3/8" drill bit and creating holes in the fascia using a 2-1/2" hole saw. Trimming of the shutter housing, shutters, and fascia is also required.
You will need a torque wrench, drill with 3/8" and 2-1/2" hole saw bits, sockets (7MM, 10MM, 7/16", 9/16"), Torx drivers (T15, T20), vise grips, and Loctite Red. A reciprocating saw may be needed for trimming.
Yes. Two Class IV Safety Cables are included and must be installed. They must be secured to the vehicle frame and cannot rub against hoses or moving parts. Safety cables are required in addition to, not instead of, legally required safety cables on the towing vehicle.
Grade 5 3/8"-16 bolts should be torqued to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening. The manual provides a torque chart for reference.
You must remove the fascia cover, fascia, windshield washer fluid reservoir, shutters, tail lights, and rear panel trim. All components are reinstalled after baseplate installation.
The baseplate is rated to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
The manual states: "The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances." If the baseplate does not fit properly, minor adjustments to the baseplate may be needed. Contact Blue Ox technical service at (402) 385-3051 for guidance on specific fit issues.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. Verify that the temperature sensor connector on the passenger side is fully connected (press the red button and pull the handle to seat the connector). If you installed the BX8848 Tail Light Wiring Kit, verify all tail light connections are secure. If electrical issues persist, contact Blue Ox technical service at (402) 385-3051.
The manual emphasizes using Loctite Red on all bolt threads before tightening. Ensure you are applying Loctite Red to all bolts and tightening them to the appropriate torque specification (33 foot-pounds for Grade 5 3/8"-16 bolts). Before each towing trip, inspect all bolts and retighten any that have loosened. If bolts continue to loosen despite proper Loctite application and torque, contact Blue Ox technical service at (402) 385-3051.
Safety cables must not rub against any hoses or moving parts. If cables are rubbing, reposition them to route around the obstruction and secure them to a solid piece of the vehicle frame. Ensure cables are not mounted against wires, hoses, or brake lines. If repositioning is not possible, contact Blue Ox technical service at (402) 385-3051 for alternative routing options. Improper cable routing could cause fluid leaks or electrical shorts.
