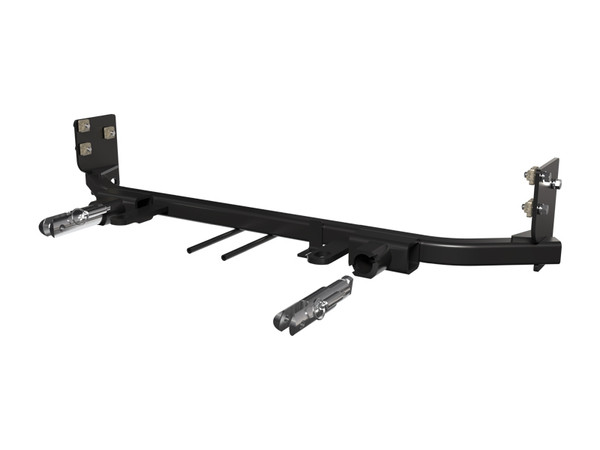

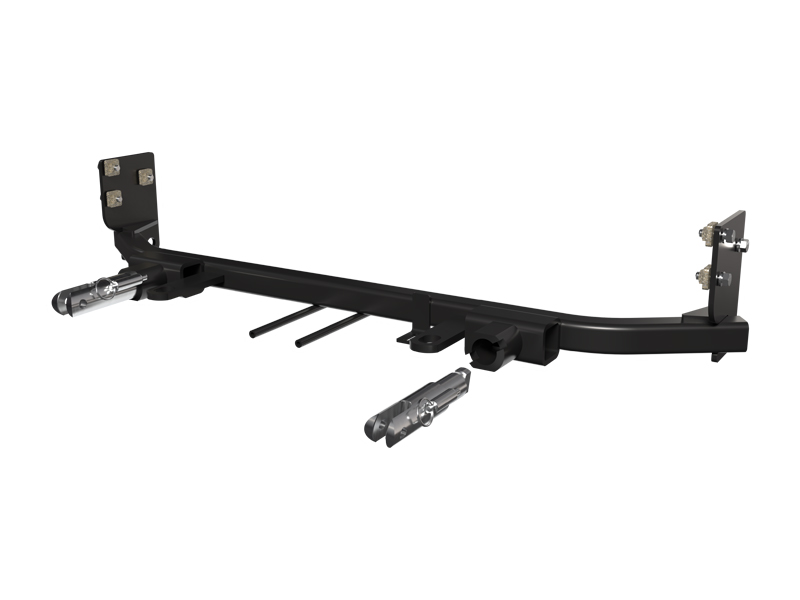

1. Custom-Designed: Each Blue Ox BX1741 Tow Bar Bracket is tailored for a specific towed vehicle, ensuring a precise fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1741 Tow Bar Bracket is a perfect fusion of durability and practical design. This custom-made accessory is expertly crafted from robust steel, ensuring long-lasting performance even under the toughest towing conditions. It features a sleek black color and is finished with a powder coat, enhancing its resistance to rust and corrosion. This bolt-on mounting type base plate is straightforward to install, and with its included mounting hardware, you can enjoy a hassle-free DIY installation. It's built not just to meet but to exceed your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2022 | Chevrolet Spark | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SPARK LT (Part #FDRWBX1741) fits the following vehicles: 2019-2022 Chevrolet Spark. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SPARK LT (Part #FDRWBX1741) fits 2019-2022 Chevrolet Spark models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SPARK LT (Part #FDRWBX1741) is designed to fit the 2019-2022 Chevrolet Spark.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SPARK LT (Part #FDRWBX1741) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1741 baseplate is designed for 2019-2022 Chevy Spark LT models with manual transmission. The attachment tab height is 15.5" and width is 22". If the front of your vehicle looks different from the images in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding.
The kit includes: one BX1741 baseplate (61-8323), two attachment tab assemblies with holes (62-3468), six 3/8" nut plates with 14" wire (61-5208), six 3/8"-16 x 1-1/4" hex head bolts Grade 5, two attachment tab assembly bolts, two self-drilling screws, two class III safety cables (226-0046), two 3/8" quicklinks (229-0359), two black cap plug receivers (290-0437), one electrical bracket (299-0685), and various washers, nuts and fasteners as listed in the parts list.
Required tools are: flat screwdriver, utility knife, torque wrench, drill, 3/8" drill bit, 7MM socket, 10MM socket, 13MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, and 5/16" nut driver. You will also need Loctite Red for all bolt threads.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. You can find a Blue Ox Dealer at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. Failing to follow installation instructions or altering them will void the manufacturer's warranty.
Yes. You must drill out the back hole in the frame on the passenger side using a 3/8" drill bit, then use the baseplate as a guide to drill the remaining two holes on both sides of the vehicle. You must also drill a hole according to the BX8869 Tail Light Wiring Kit instructions. Additionally, you must cut through the plastic shielding on both sides of the vehicle approximately 3-1/2" down from the top and discard the upper portion.
Yes. After the baseplate is installed, you must hold the fascia as close to its original position, mark and trim the fascia around the convenience links, attachment tabs and optional breakaway switch before reinstalling it.
Yes. Both the fascia and bumper must be removed and reinstalled for baseplate installation. The fascia is removed first by removing four 10MM bolts from the top, two push pins, one 7MM bolt from each wheel well after pulling back the liner, and eight 7MM bolts from the underside. The bumper is then removed by removing four push pins from the top, two from the bottom, and eight 13MM bolts. All items are reinstalled after the baseplate is installed.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds, and 3/8" Grade 8 bolts to 47 foot-pounds. The BX1741 uses 3/8"-16 x 1-1/4" Grade 5 bolts, so torque to 33 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. You must drill a hole according to the tail light wiring kit instructions. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
Yes. The BX1741 includes two class III permanent baseplate safety cables that must be attached to the baseplate and secured to the frame rail or cross member of the vehicle's frame. These cables are strongly recommended and must remain installed as long as the baseplate is installed. The permanent baseplate safety cables are in addition to, and NOT a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle. Ensure the cables do not rub against any hoses or moving parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and accessories are functioning properly. Verify that the permanent baseplate safety cables do not rub against any hoses or moving parts. Check that all bolts are tightened to the appropriate torque specifications using Loctite Red.
It is your responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Blue Ox offers service at rallies and at their factory for a nominal fee to ensure your towing system is in proper working condition.
If the baseplate is involved in an accident, it must be replaced. Do NOT use it again, as an accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Blue Ox provides a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. Register your product at http://blueox.com/warranty/.
No. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Even though bolts may already be present on the vehicle, do not assume they are adequate for baseplate mounting. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed. This includes the fascia, bumper, push pins, and wheel well liners.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage. Take care to avoid scratching or damaging the fascia and bumper during removal and reinstallation.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting. This is especially important after drilling the frame holes and cutting the plastic shielding.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. Wear appropriate protective equipment and take care to avoid injury.
Yes. The attachment tabs can be removed when not in use. This is recommended by Blue Ox to maintain the appearance of your vehicle when not towing.
Yes, the BX1741 is designed for 2019-2022 Chevy Spark LT with manual transmission. Attachment tabs are 15.5" high and 22" wide. Contact Blue Ox at (402) 385-3051 if your vehicle front looks different.
Yes. You must drill the frame using a 3/8" drill bit on both sides, cut plastic shielding 3-1/2" down from the top on both sides, and drill a hole for the tail light wiring kit. You must also trim the fascia around the attachment tabs.
You need: torque wrench, drill with 3/8" bit, sockets (7MM, 10MM, 13MM, 7/16", 9/16"), wrenches (7/16", 9/16"), 5/16" nut driver, flat screwdriver, utility knife, and Loctite Red.
Yes. Both must be removed and reinstalled. Fascia requires removing 4 × 10MM bolts (top), 2 push pins, 1 × 7MM bolt per wheel well, and 8 × 7MM bolts (underside). Bumper requires removing 4 push pins (top), 2 push pins (bottom), and 8 × 13MM bolts.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. The BX1741 uses Grade 5 bolts. Always apply Loctite Red to all bolt threads before tightening.
Do not exceed your vehicle's GVWR (Gross Vehicle Weight Rating). The baseplate is computer tested to GVWR; exceeding it voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes. Two class III permanent baseplate safety cables are included and must be attached to the frame. They are in addition to, not a replacement for, legally required safety cables. Ensure cables do not rub against hoses or moving parts.
Inspect for cracked welds, missing or worn parts, and loose bolts. Verify electrical connections are secure and functioning. Check that safety cables do not rub against hoses. Retighten all bolts to torque specifications using Loctite Red.
