High-Quality Material: Made from sturdy steel, the Blue Ox BX2246 Tow Bar Bracket ensures reliable strength and durability for long-term use.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2246 Tow Bar Bracket is a reliable and robust solution for your towing needs. Crafted from high-quality steel and finished with a durable black powder coat, it is designed to withstand the toughest conditions and demands. This custom-designed base plate ensures a perfect fit for your specific vehicle, enhancing safety and stability during your towing operations. It comes complete with all the necessary mounting hardware, plus easy-to-follow instructions for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
Yes, the BlueOx Tow Bar Base Plate For Select HONDA CR-V BX2246 (Part #FDRWBX2246) is designed to fit the 2007-2011 Honda CR-V.
The BlueOx Tow Bar Base Plate For Select HONDA CR-V BX2246 (Part #FDRWBX2246) fits 2007-2011 Honda CR-V models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate For Select HONDA CR-V BX2246 (Part #FDRWBX2246) fits the following vehicles: 2007-2011 Honda CR-V. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select HONDA CR-V BX2246 (Part #FDRWBX2246) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

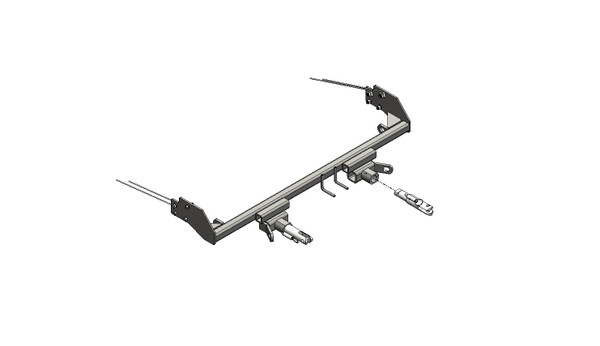

The BX2246 is a tow baseplate manufactured by Blue Ox designed for 2007-11 Honda CR-V vehicles. It provides the attachment point for a tow bar and safety cables to enable towing. The baseplate has attachment tabs with a height of 16 inches and width of 19 inches.
The BX2246 is designed for 2007-11 Honda CR-V vehicles. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances. These may include filing a hole slightly, bending electrical rods, or bending end plates. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
Required tools include: 10mm socket, 12mm socket, 9/16" socket, Phillips screwdriver, flat screwdriver, utility knife, hack saw blade, reciprocating saw, vise grips, hammer, 9/32" drill bit, 13/32" drill bit, and Loctite RED. A power drill may be used for drilling but requires awareness of torque and drill bit length dangers.
The following components must be removed: radiator cover (7 pushpins), fascia (2 Phillips screws and 1 pushpin per side, 1 metric bolt per side, 4 pushpins at bottom), air baffle (2 metric bolts on driver's side), coolant line clips and bolt, metal bumper (2 metric bolts per side), temperature sensor (pins), and washer reservoir (2-3 metric bolts depending on model year). These components are reinstalled after baseplate installation.
Yes, drilling is required. You must drill four holes into each frame rail using a 13/32" drill bit, using the baseplate as a template. Additionally, you must drill a hole into the coolant line bracket using a 9/32" drill bit, and drill a hole into the bottom of the metal bumper using a 9/32" drill bit for the breakaway bracket.
Yes, trimming is required. You must use a reciprocating saw to cut the metal bumper flush with the side of the frame rail, approximately 1/4" from the end of the bumper on both sides. You must also cut the webbing of the frame end with horizontal and vertical cuts, and flatten frame support webbing with a hammer. Additionally, you must trim the fascia contours using a hack saw blade or utility knife to allow room for relocated coolant lines. For 2010 models, the two outside bars must be trimmed completely off so baseplate tabs can come through.
The manual provides a torque chart for metric and inch bolts on page 1. For the 3/8-16 bolts used in this installation, you must apply Loctite RED to all bolts before tightening and tighten according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions (not provided in this document). The manual emphasizes that all bolts must be tightened to recommended specifications.
1. Clamp the baseplate to the bottom of the flattened webbing using vise grips. 2. Using the baseplate as a template, drill four holes into the frame rail with a 13/32" drill bit. 3. Insert two 3/8" nut plates through the opening in the frame rail end and align to the top two holes. 4. Install two 3/8-16 x 1 1/4" hex bolts and 3/8" lock washers to nut plates but do not tighten. 5. Install the bumper. 6. Now tighten the hex bolts. 7. In the lower drilled holes, install two 3/8-16 x 1" hex bolts, 3/8" lock washers and 3/8-16 hex nuts and tighten. Do this to both sides of the vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation shows the cables attached to the frame of the vehicle. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts. Do this to both sides of the vehicle. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame.
1. Measure 4" from the receiver tube to the location position for the breakaway bracket. 2. Drill a hole into the bottom of the metal bumper with a 9/32" drill bit. 3. Attach the breakaway bracket to the underside of the metal bumper with a 1/4"-20 x 3/4" bolt and 1/4"-20 nut. 4. Attach the breakaway (not supplied) to the bracket with a 1/4"-20 x 3/4" bolt and 1/4"-20 nut.
Move the bottom coolant line to just above the original bolt hole for the bracket. Drill into the bracket using a 9/32" drill bit. Insert a 10mm metric bolt into the drilled hole and tighten. Additionally, trim the fascia contours to allow room for the relocated coolant lines on both sides of the vehicle.
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2007-11 Honda CR-V with the BX2246 baseplate. Be sure that all electrical connections are plugged in properly and functioning before installing the fascia.
If the baseplate is in an accident, it must be replaced and not used again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principle function is to prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. However, permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Before installing the fascia, be sure that all electrical connections are plugged in properly and functioning. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use if applicable. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle.
The hardware kit includes: 4 x 3/8" nut plates with wire, 2 x 1/4-20 x 3/4" hex bolts Grade 5, 2 x #10-32 x 1/2" slot round head screws, 4 x 3/8-16 x 1 1/4" hex bolts Grade 5, 4 x 3/8-16 x 1" hex bolts Grade 5, 2 x #12-14 x 1" self-drilling screws, 4 x 3/8-16 hex nuts, 2 x #10-32 hex nuts, 2 x 1/4-20 hex nylon nuts, 8 x 3/8" lock washers, 2 x #10 lock washers, 1 x electrical bracket, 2 x permanent baseplate safety cables, 2 x 3/8" quick links, and 2 x cap plugs.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow and/or altering these installation instructions or required equipment will void the manufacturer's warranty.
The manual does not provide specific information about interference with the spare tire or other components beyond those that must be removed or relocated during installation (fascia, air baffle, metal bumper, temperature sensor, washer reservoir, and coolant lines). Contact Blue Ox at (402) 385-3051 if you have concerns about fitment with specific vehicle components.

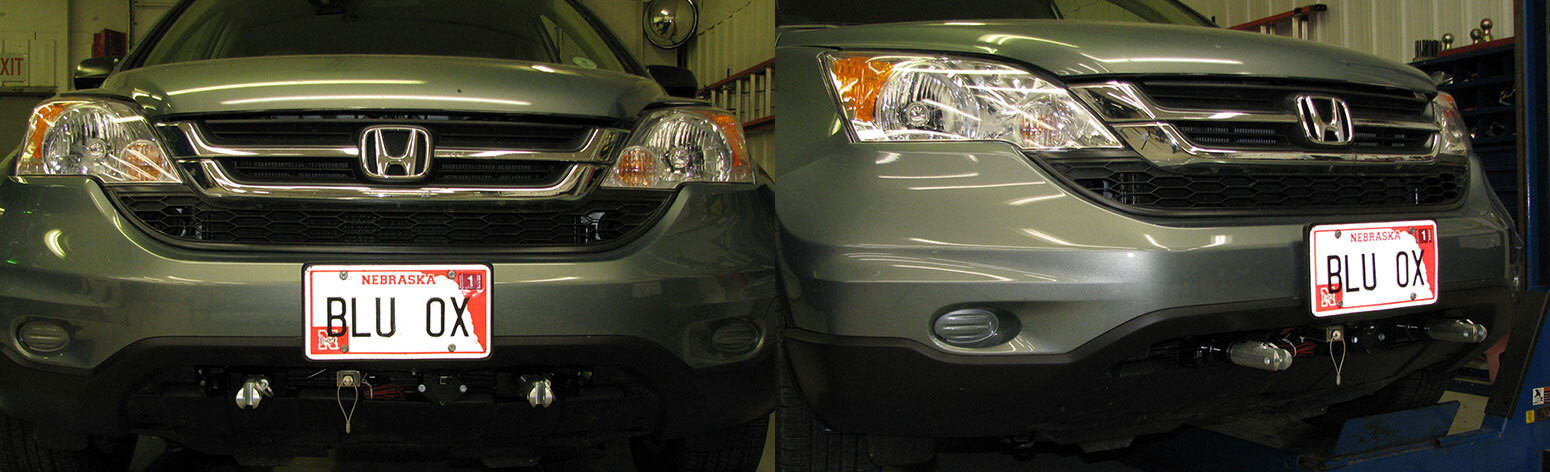

Yes, the BX2246 is designed for 2007-11 Honda CR-V. Minor adjustments may be necessary due to manufacturer tolerances. If the front of your vehicle looks different than shown in the manual, call (402) 385-3051.
Yes. Drilling is required: four holes per frame rail (13/32" bit), coolant bracket hole (9/32" bit), and bumper hole for breakaway bracket (9/32" bit). Trimming is required: metal bumper flush with frame, frame webbing cuts, fascia contours, and for 2010 models, the two outside bars.
Required tools: 10mm, 12mm, and 9/16" sockets; Phillips and flat screwdrivers; utility knife; hack saw blade; reciprocating saw; vise grips; hammer; 9/32" and 13/32" drill bits; and Loctite RED. A power drill may be used but requires awareness of torque and drill bit length dangers.
Radiator cover, fascia, air baffle, metal bumper, temperature sensor, and washer reservoir must be removed. Coolant line clips and bolts must be disconnected or relocated. All components are reinstalled after baseplate installation.
The BX8869 Bulb and Socket Wiring Kit is recommended. Ensure all electrical connections are plugged in properly and functioning before installing the fascia.
Permanent baseplate safety cables are strongly recommended and included. They must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Apply Loctite RED to all bolts before tightening. Tighten according to the torque chart on page 1 of these instructions or page 3 of the Baseplate Towing General Instructions. The manual provides torque specifications for metric and inch bolts by size and grade.
Before installing the fascia, verify all electrical connections are plugged in properly and functioning. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to recommended specifications using Loctite Red.
Before installing the fascia, verify that all electrical connections are plugged in properly and functioning. If connections are not functioning, do not proceed with fascia installation. Check that the BX8869 Bulb and Socket Wiring Kit (if used) is properly connected and all connectors are fully seated. Refer to the wiring kit instructions for specific troubleshooting steps.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If the front of your vehicle looks different than shown in the manual or if alignment issues persist, contact Blue Ox Technical Service at (402) 385-3051.
If the baseplate is in an accident or shows signs of damage such as cracked welds, do not use it. The baseplate must be replaced. An accident can cause unseen damage and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Honda CR-V | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
