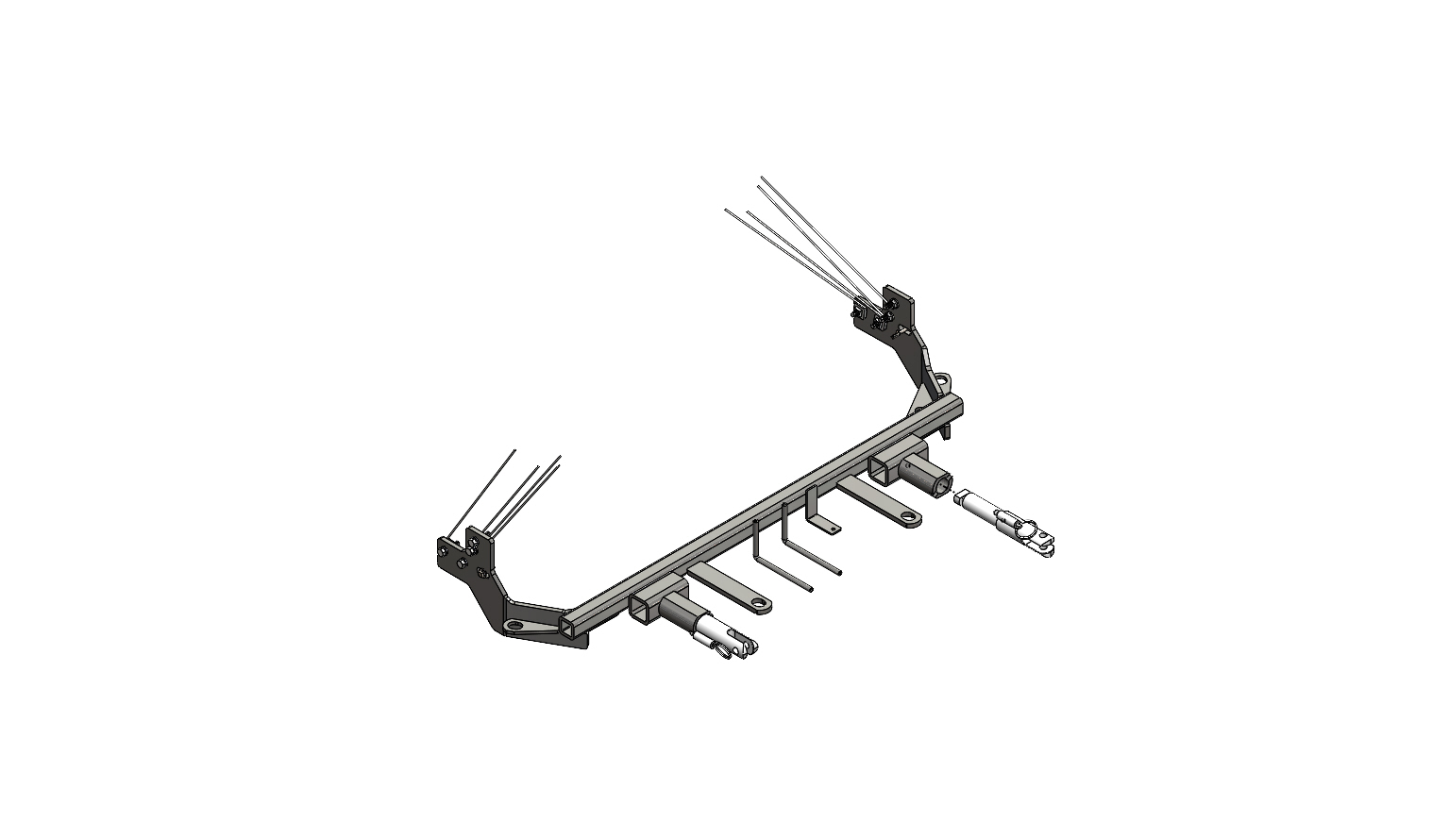

1. Custom-Designed: Each Blue Ox BX2340 Tow Bar Bracket is custom tailored for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2340 Tow Bar Bracket is a robust, custom-designed base plate to meet your towing needs. Crafted from high-grade steel and finished with a black powder coat, it promises durability and resistance to adverse conditions. This product offers a bolt-on mounting type, allowing for a straightforward, do-it-yourself installation. The package includes all necessary hardware, making the process hassle-free. The BX2340 is not just a purchase, it's an investment in quality and convenience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2018 | Hyundai Elantra | No GT/GT Sport Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select HYUNDAI ELANTRA SE (Part #FDRWBX2340) fits the following vehicles: 2017-2018 Hyundai Elantra. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select HYUNDAI ELANTRA SE (Part #FDRWBX2340) is designed to fit the 2017-2018 Hyundai Elantra.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select HYUNDAI ELANTRA SE (Part #FDRWBX2340) fits 2017-2018 Hyundai Elantra models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select HYUNDAI ELANTRA SE (Part #FDRWBX2340) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX2340 is designed for 2017-2018 Hyundai Elantra only, excluding GT and GT Sport models. If your vehicle is a GT or GT Sport variant, this baseplate is not compatible.
The attachment tab height is 14 1/2" and the attachment tab width is 24".
Required tools include: large vise grip, flat screwdriver, utility knife, reciprocating saw, Phillips screwdriver, torque wrench, drill, tape measure, 3/8" drill bit, 10MM socket, 12MM socket, 7/16" socket, 7/16" wrench, and 9/16" socket. You will also need Loctite Red.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. The installation involves removal of the fascia and windshield washer fluid reservoir, drilling, trimming with a reciprocating saw, and precise torque specifications.
The kit includes: 4 whiz nuts with 14" wire, 4 nut plates with 14" wire, 1 baseplate, 2 attachment tab assemblies with holes, 1 hex head bolt (1/4"-20 x 3/4"), 2 round slotted head screws (#10-32 1/2"), 8 hex head bolts (3/8"-16 x 1-1/2"), 1 hex head bolt (6MM-1.0 x 30MM), 1 hex head bolt (6MM-1.0 x 45MM), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 1 hex nylon nut (1/4"-20), 2 flat washers (1/4"), 1 flat washer (3/8"), 2 lock washers (1/4"), 8 lock washers (3/8"), 2 lock washers (#10), 1 electrical bracket, 2 class III safety cables, and 2 quicklinks (3/8").
The BX8848 4-Diode Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional. Contact Blue Ox Technical Service at (402) 385-3051 to confirm whether the kit is necessary for your specific installation.
Yes. Drilling is required at multiple points: a 1/4" drill bit is used to bore out existing holes on both bumper horns (steps 10-11), a hole saw is used to drill a 1-1/4" access hole on each side of the frame above the baseplate (step 13), and a 3/8" drill bit is used to drill four holes through the baseplate into the frame on both sides (step 16).
Yes. A reciprocating saw is used to trim marked areas on both sides of the plastic shielding on the bumper (step 12), both sides of the bumper horn (step 15), and both sides of the fascia (step 18). The fascia must also be marked and trimmed around the convenience links and attachment tabs before reinstallation (step 20).
Yes. The drilling of holes in the frame and the trimming of plastic shielding, bumper horn, and fascia are permanent modifications. The manual does not indicate that any of these cuts or holes can be reversed.
The manual provides a torque chart for metric and inch bolts in Grade 5, Grade 8, Grade 8.8, and Grade 10.9. All bolts must be tightened according to the torque chart provided, using Loctite Red on all bolt threads. For example: 1/4" Grade 5 bolts = 10 ft-lbs, 3/8" Grade 5 bolts = 33 ft-lbs, 6MM Grade 8.8 bolts = 6 ft-lbs, 8MM Grade 8.8 bolts = 16 ft-lbs. Specific torque values for the 3/8" hardware securing the baseplate to the frame are not explicitly stated in the manual.
According to the torque chart, 3/8" Grade 5 bolts should be tightened to 33 foot-pounds. These bolts are used in multiple locations during the baseplate installation.
According to the torque chart, 6MM Grade 8.8 bolts should be tightened to 6 foot-pounds (for 6MM x 30MM) or 8 foot-pounds (for 6MM x 45MM, which is Grade 10.9). Use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and your vehicle's GVWR.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. They must have adequate weight rating and must not be mounted against wires, hoses, or brake lines. The safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The safety cables must not rub against any hoses or moving parts. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. The cables should be routed around the frame crossmember or frame of the towed vehicle. The manual shows two recommended installation options: one with convenience link tabs on the baseplate, and one without. Ensure the cables are secured to a solid piece of the frame.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance, safety bulletins, and recalls.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut edges of the frame to prevent rusting. Register your product online at www.blueox.com to receive maintenance and safety bulletins. Blue Ox offers a service program where, for a nominal fee, a service technician will service your towing system to ensure it is in proper working condition.
The manual states that many Blue Ox baseplates are designed to use existing holes and hardware, but you should not assume existing bolts are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. In step 16, the manual mentions using existing bolts to pin the baseplate in place while leveling and clamping, then removing them after baseplate bolts are installed. For replacement bolts, use the same grade as the original (typically Grade 5).
If a bolt is lost or needs replacement, use a replacement bolt of the same grade as the original. In most cases, this will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Using non-genuine or incorrect replacement bolts will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/.
Contact Blue Ox Technical Service at (402) 385-3051. You can speak with their technical service team about any questions regarding the performance of your product. You can also visit www.blueox.com for the latest version of installation instructions and to find Blue Ox Dealers in your area. Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products.
The BX2340 fits 2017-2018 Hyundai Elantra only, excluding GT and GT Sport models. If your vehicle is a standard Elantra (not GT or GT Sport), it is compatible.
You will need: reciprocating saw, drill with 3/8" and 1-1/4" hole saw bits, torque wrench, sockets (10MM, 12MM, 7/16", 9/16"), wrenches, screwdrivers, vise grip, utility knife, tape measure, and Loctite Red.
Yes. Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for this work. Find a dealer at www.blueox.com or call (402) 385-3051. The installation involves removing the fascia and reservoir, drilling, trimming with a reciprocating saw, and precise torque specifications.
Yes. Installation requires drilling a 1/4" hole in bumper horns, a 1-1/4" access hole in the frame, and 3/8" holes through the baseplate into the frame. Trimming with a reciprocating saw is required on plastic shielding, bumper horn, and fascia.
Use the torque chart provided: 1/4" Grade 5 = 10 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 6MM Grade 8.8 = 6 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
The baseplate is rated to your vehicle's GVWR (Gross Vehicle Weight Rating). Do not exceed this weight or the warranty is void. Check your vehicle owner's manual for towing specifications and GVWR.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame and must not touch wires, hoses, or brake lines. They supplement, not replace, legally required safety cables between towing and towed vehicles.
Verify all electrical connections are plugged in and functioning before reinstalling the fascia. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Retighten all bolts to specification using Loctite Red.
