Made from high-quality steel for maximum strength and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

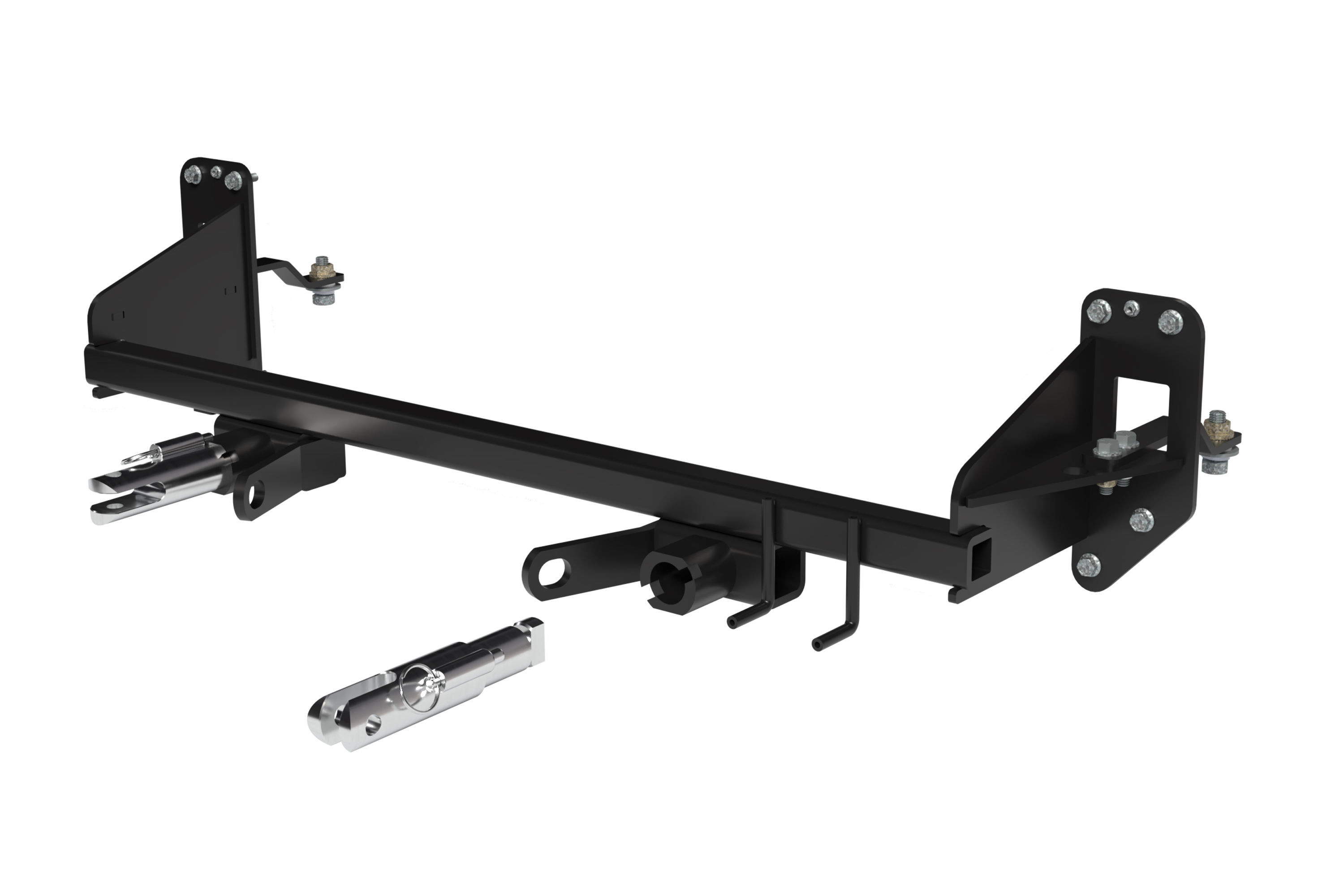

The Blue Ox BX2345 Tow Bar Bracket is the ultimate solution for your towing needs. Made from high-quality steel with a protective powder coat finish, it offers the perfect blend of strength and durability. Designed to fit each specific towed vehicle, it ensures a perfect fit and easy installation. With its bolt-on mounting type, it eliminates the need for drilling or welding and offers a secure fit. The package includes all necessary hardware and clear instructions for a hassle-free, do-it-yourself installation. Its sleek black color adds a touch of elegance and matches any vehicle color.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2022 | Hyundai Venue | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI VENUE SE (Part #FDRWBX2345) fits the following vehicles: 2020-2022 Hyundai Venue. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI VENUE SE (Part #FDRWBX2345) fits 2020-2022 Hyundai Venue models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI VENUE SE (Part #FDRWBX2345) is designed to fit the 2020-2022 Hyundai Venue.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI VENUE SE (Part #FDRWBX2345) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2345 is designed for 2020-2022 Hyundai Venue with manual transmission. The manual notes that if the front of your vehicle looks different than shown in the instructions, you should contact Blue Ox at (402) 385-3051 before proceeding.
The manual specifies the BX2345 is for 2020-2022 Hyundai Venue with manual transmission only. Compatibility with automatic transmission models is not addressed in the manual. Contact Blue Ox at (402) 385-3051 to confirm fitment for automatic transmission vehicles.
The attachment tab height is 15 inches and the attachment tab width is 19 inches.
Required tools include: reciprocating saw, torque wrench, 7MM socket, 10MM socket, 12MM socket, 1/4" socket, 1/4" wrench, 9/16" socket, 9/16" wrench, 3/4" socket, 3/4" wrench, and 5/16" nut driver. You will also need Loctite Red for all bolt threads.
The manual recommends the BX8869 Tail Light Wiring Kit for this vehicle and notes that a hole must be drilled according to the kit's instructions. The manual does not specify whether the kit is included or must be purchased separately. Contact your Blue Ox dealer for availability.
Blue Ox recommends that towing products be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting (402) 385-3051. The manual does not state whether professional installation is mandatory.
No. The bumper is removed during installation and will not be reinstalled. The fascia is removed and then reinstalled after the baseplate is installed.
Yes. The manual states that some trimming is required. Specifically, you must trim the plastic piece on the passenger side of the vehicle and trim indicated areas from the plastic piece on the driver side. Additionally, you must use a reciprocating saw to notch the frame on both sides to allow room for the frame support brace.
The baseplate itself uses existing holes and hardware on the vehicle. However, the manual recommends the BX8869 Tail Light Wiring Kit, which requires drilling a hole according to the kit's instructions. If you are installing a breakaway switch (optional), you must cut out an indicated area on the fascia.
For Grade 8.8 metric bolts: 16 foot-pounds. For Grade 10.9 metric bolts: 22 foot-pounds. Always use Loctite Red on all bolt threads before tightening and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
For Grade 8.8 metric bolts: 31 foot-pounds. For Grade 10.9 metric bolts: 40 foot-pounds. Always use Loctite Red on all bolt threads before tightening and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
For Grade 8.8 metric bolts: 54 foot-pounds. For Grade 10.9 metric bolts: 70 foot-pounds. Always use Loctite Red on all bolt threads before tightening and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
For Grade 5 bolts: 33 foot-pounds. For Grade 8 bolts: 47 foot-pounds. Always use Loctite Red on all bolt threads before tightening and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
For Grade 5 bolts: 78 foot-pounds. For Grade 8 bolts: 119 foot-pounds. Always use Loctite Red on all bolt threads before tightening and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
For Grade 5 bolts: 10 foot-pounds. For Grade 8 bolts: 14 foot-pounds. Always use Loctite Red on all bolt threads before tightening and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications and your vehicle's GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. The cables must not rub against any hoses or moving parts.
No. If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury.
Do not use the baseplate if it is damaged or missing parts. Contact Blue Ox at (402) 385-3051 for replacement parts or a replacement baseplate.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use.
The kit includes: 8 existing M8 x 1.25MM bolts, 2 existing 5MM flange nuts, 2 Whiz nuts with 10" wire, 2 attachment tab assemblies, 2 frame anchor plates, 1 1/4"-20 x 3/4" hex head bolt (Grade 5), 2 1/2"-13 x 1-1/2" hex head bolts (Grade 5), 2 #10-32 1/2" round slotted head screws, 4 3/8"-16 x 1-1/4" hex head bolts (Grade 5), 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 4 3/8"-16 hex nylon insert lock nuts, 1 1/4"-20 hex nylon nut, 4 3/8" flat washers, 2 1/2" flat washers, 2 1/2" lock washers, 2 #10 lock washers, 2 12MM flat washers, 1 electrical bracket, 2 class III safety cables, 2 3/8" quicklinks, and 2 black cap plug receivers.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Failing to follow these requirements will void the manufacturer's warranty. Replacement parts may be ordered through your nearest Blue Ox dealer or distributor.
1. Remove the four push pins along the top of the fascia. 2. Remove the three push pins along the edge of the wheel well on both sides, then using an 8MM socket, remove the one bolt from the fascia joint on both sides. 3. On the underside of the vehicle, remove the indicated push pin on both sides. 4. Remove the vehicle fascia by pulling upward and outward at the fascia joint to release it, then unsnap the fascia underneath the headlight on both sides. Set the fascia aside for reinstallation later.
Using a 12MM socket, remove the four bolts (white) from the bumper. Using a 10MM socket, remove the one nut (gray) on the top of the bumper. Do this on both sides of the vehicle. Remove the bumper; it will not be reinstalled later.
1. Remove the plastic plug from the bottom of the frame on both sides. 2. Using a reciprocating saw, notch the frame as shown in the instructions to allow room for the frame support brace on both sides. 3. Slide the frame support brace into place.
In the front two holes, install 3/8" bolts with flat washers and nylon lock nuts. In the back hole, install one 1/2" bolt with lock washer, large flat washer, and small flat washer from the bottom of the frame and a whiz nut through the frame opening.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The manual shows the recommended installation of the cables to the frame of the vehicle. Additional options may interfere with suggested mounting; in that case, secure the cables to a solid piece of the frame as described in the General Information sheet. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Remove the two horizontal slats on the driver side of the fascia to allow room for the removable tab, convenience link, and electrical. Remove the outer horizontal slat on the passenger side of the fascia to allow room for the removable tab and convenience link. If installing a breakaway switch (optional), cut out the indicated area to allow room for the breakaway switch.
Yes, the BX2345 is designed for 2020-2022 Hyundai Venue with manual transmission. If your vehicle's front looks different than shown in the instructions, contact Blue Ox at (402) 385-3051.
You will need a reciprocating saw, torque wrench, sockets (7MM, 10MM, 12MM, 1/4", 9/16", 3/4"), wrenches (1/4", 9/16", 3/4"), a 5/16" nut driver, and Loctite Red.
Yes. You must trim plastic pieces on both sides of the vehicle and use a reciprocating saw to notch the frame on both sides. The bumper is removed and not reinstalled.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your GVWR.
Yes, two class III safety cables and two 3/8" quicklinks are included. Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the vehicle's frame rail or cross member.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
No. Use only genuine factory replacement parts. If a bolt needs replacement, use the same grade (usually Grade 5). Substituting parts voids the warranty.
No. If the baseplate is in an accident, it must be replaced. Do not reuse it, as accidents can cause unseen damage.
Do not use the baseplate. A damaged or incomplete baseplate is unsafe for towing. Contact Blue Ox at (402) 385-3051 to order replacement parts or a replacement baseplate.
The baseplate must be replaced immediately. Do not attempt to reuse it. Accidents can cause unseen damage to the baseplate that could result in failure during towing, leading to separation of the towed vehicle and serious injury or death.
Do not proceed with installation. Contact Blue Ox at (402) 385-3051 before installing the baseplate. Your vehicle may not be compatible with the BX2345, or it may require different installation procedures.
Tighten all loose bolts to the recommended torque specifications using Loctite Red on all bolt threads. Refer to the torque chart in the installation instructions for the correct torque value based on bolt size and grade. If you are unsure of the bolt grade, contact Blue Ox at (402) 385-3051.
Do not use the baseplate for towing. Cracked welds indicate structural damage that could cause the baseplate to fail during towing. Contact Blue Ox at (402) 385-3051 to arrange for a replacement baseplate.
