Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

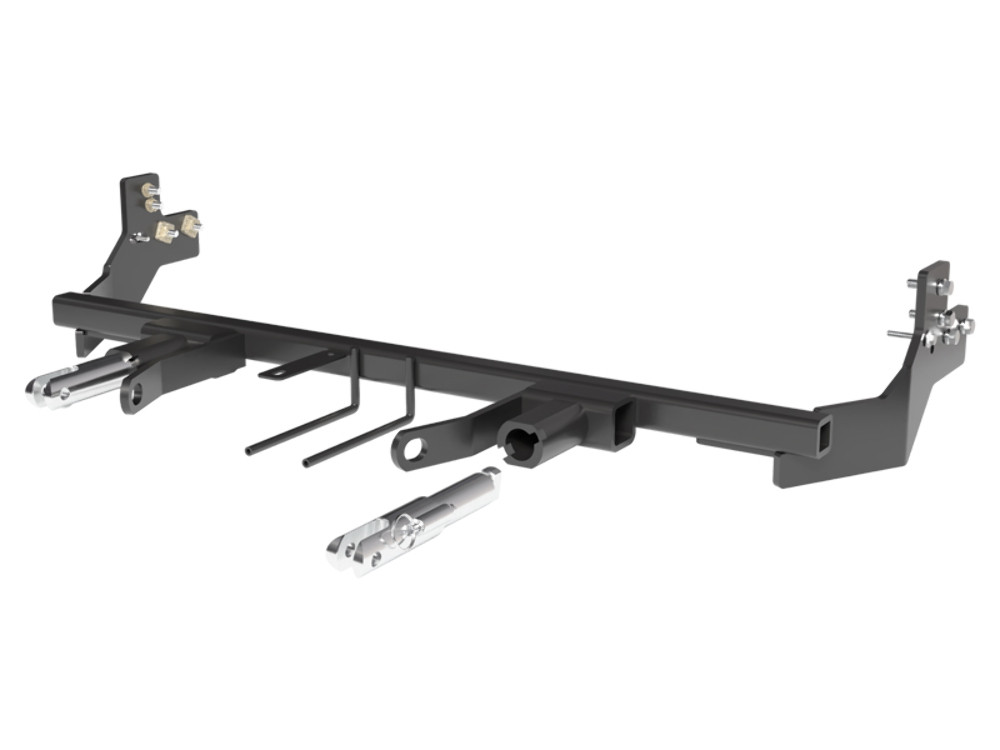

The Blue Ox BX2343 Tow Bar Bracket is a high-quality towing accessory designed to provide a secure, stable connection for your towed vehicle. Made from durable steel with a sleek black powder coat finish, this robust bracket is engineered to withstand tough conditions and deliver long-lasting performance. The bolt-on mounting type simplifies the installation process, with all necessary hardware included for your convenience. With a custom design for each specific towed vehicle, you can trust the Blue Ox BX2343 Tow Bar Bracket to offer a perfect fit and superior towing efficiency.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 | Hyundai Elantra | No SCC, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Headlights Must be Removed and Replaced During Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
No. The BX2343 is designed exclusively for the 2019 Hyundai Elantra with manual transmission only. It does not fit GT or SCC models.
No. The BX2343 is designed for manual transmission only. It does not fit automatic transmission versions of the 2019 Hyundai Elantra.
The attachment tab height is 14 inches and the attachment tab width is 20 inches.
Required tools include: large vise grip, flat screwdriver, torque wrench, drill, reciprocating saw, Loctite Red, 1/4" drill bit, 3/8" drill bit, 10MM socket, 12MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, and 1-1/4" hole saw.
The kit includes: 4 × 3/8"-16 whiz nuts with 14" wire, 4 × 3/8" nut plates with 14" wire, 1 × BX2343 baseplate, 2 × attachment tab assemblies with hole, 1 × 1/4"-20 × 3/4" hex head bolt (Grade 5), 2 × #10-32 1/2" round slotted head screws, 8 × 3/8"-16 × 1-1/2" hex head bolts (Grade 5), 1 × 6MM-1.0 × 30MM hex head bolt (Grade 8.8), 1 × 6MM-1.0 × 45MM hex head bolt (Grade 8.8), 2 × #12-14 × 1" self-drilling screws, 2 × #10-32 hex nuts, 1 × 1/4"-20 hex nylon nut, 3 × 1/4" flat washers, 1 × 3/8" flat washer, 2 × 1/4" lock washers, 8 × 3/8" lock washers, 2 × #10 lock washers, 1 × electrical bracket, 2 × Class III safety cables, 2 × 3/8" quicklinks, 1 × 8" nylon cable tie, and 2 × black cap plug receivers.
The BX8869 tail light wiring kit is recommended for this vehicle. The manual instructs to drill a hole according to the tail light wiring kit instructions.
Yes. The fascia must be removed at the beginning of installation and reinstalled at the end. It is removed by taking out 2 bolts and 4 push pins from the top, 3 push pins from the wheel well edges (with 1 bolt on each side), and 12 push pins from the underside.
Yes. The belly pan must be removed and reinstalled. It is removed by taking out 4 bolts from the front portion (2 on each side) and 3 bolts from the rear (2 on passenger side, 1 on driver side).
Yes. The windshield washer fluid reservoir must be removed and reinstalled. It is removed by taking out 2 bolts from the passenger side and unplugging all lines.
Yes. The horn must be removed and reinstalled. It is removed by taking out 1 bolt from the horn bracket on the passenger side.
Yes. Both headlights must be removed and reinstalled. Each headlight is removed by taking out 4 bolts (2 on top, 2 on bottom) and 1 bolt from the top corner.
Yes. The air baffle on the driver side must be removed and reinstalled. It is removed by taking out 3 bolts: 2 on the outside of the frame and 1 on the backside. Two rubber grommets must be removed from the air baffle before reinstalling.
Yes. The temperature sensor bracket must be removed from the bottom of the bumper using a reciprocating saw. The sensor is unclipped from the bracket and repositioned later, attached to the baseplate with a zip tie.
Yes. Drilling is required. A 1/4" drill bit is used to drill a hole higher on the frame to reattach wires (step 9). A 1-1/4" hole saw is used to drill out existing holes on both sides of the frame to create access holes (step 15). A 3/8" drill bit is used to drill four holes on each side of the frame using the baseplate as a guide (step 17). A hole is also drilled according to the tail light wiring kit instructions.
Yes. Trimming is required. A utility knife is used to trim plastic shielding on both sides of the vehicle (step 10). A reciprocating saw is used to trim the frame on both sides (step 12) and to remove the temperature sensor bracket from the bottom of the bumper (step 14). The fascia must be marked and trimmed around the convenience links and attachment tabs before reinstallation (step 23).
Yes. A reciprocating saw is used to trim the frame as indicated on both sides of the vehicle (step 12). After cutting, a good quality paint should be applied to the cut edges of the frame to prevent rusting.
Be careful of the condenser while trimming on the driver side of the vehicle.
Torque specifications for metric bolts (in foot-pounds) are: 6MM Grade 8.8 = 6 ft-lbs, 6MM Grade 10.9 = 8 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs, 8MM Grade 10.9 = 22 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs, 10MM Grade 10.9 = 40 ft-lbs, 12MM Grade 8.8 = 54 ft-lbs, 12MM Grade 10.9 = 70 ft-lbs, 14MM Grade 8.8 = 89 ft-lbs, 14MM Grade 10.9 = 117 ft-lbs, 16MM Grade 8.8 = 161 ft-lbs, 16MM Grade 10.9 = 230 ft-lbs, 18MM Grade 8.8 = 222 ft-lbs, 18MM Grade 10.9 = 318 ft-lbs.
Torque specifications for inch bolts (in foot-pounds) are: 1/4" Grade 5 = 10 ft-lbs, 1/4" Grade 8 = 14 ft-lbs, 5/16" Grade 5 = 19 ft-lbs, 5/16" Grade 8 = 29 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 3/8" Grade 8 = 47 ft-lbs, 7/16" Grade 5 = 54 ft-lbs, 7/16" Grade 8 = 78 ft-lbs, 1/2" Grade 5 = 78 ft-lbs, 1/2" Grade 8 = 119 ft-lbs, 5/8" Grade 5 = 154 ft-lbs, 5/8" Grade 8 = 230 ft-lbs, 3/4" Grade 5 = 257 ft-lbs, 3/4" Grade 8 = 380 ft-lbs.
Yes. Loctite Red must be used on all bolt threads before tightening. All bolts must be tightened according to the torque chart provided unless otherwise specified.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two Class III safety cables are included with the baseplate and must be attached to the baseplate and frame of the vehicle. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Safety cables must not rub against any hoses or moving parts. These permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do NOT use the baseplate if it is damaged or missing parts.
Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. These permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle.
Yes. Remove the attachment tabs when not in use (if applicable).
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX2343 fits 2019 Hyundai Elantra with manual transmission only. It does not fit GT, SCC, or automatic transmission models.
You will need: drill, reciprocating saw, torque wrench, sockets (10MM, 12MM, 7/16", 9/16"), drill bits (1/4", 3/8", 1-1/4" hole saw), vise grip, screwdrivers, wrenches, and Loctite Red.
The fascia, belly pan, windshield washer fluid reservoir, horn, air baffle, headlights, and temperature sensor bracket must all be removed and reinstalled.
Yes. Use Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes. Two Class III safety cables and quicklinks are included. They must be attached to the baseplate and frame and must not rub against hoses or moving parts.
