{'feature': 'Custom Design', 'description': 'Each Blue Ox base plate is custom designed for a specific towed vehicle, ensuring a perfect fit and optimized performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2338 Tow Bar Bracket is an exceptional piece of automotive engineering, designed with precision to fit specific towed vehicles. Crafted from robust steel and finished with a durable black powder coat, this product is built to last. The bracket is a bolt-on type, making installation straightforward and hassle-free. To further ease the process, all necessary mounting hardware is included in the package. This means you can handle installation on your own, thanks to the comprehensive instructions provided. Choose the Blue Ox BX2338 Tow Bar Bracket for a reliable, robust, and easy-to-install solution to your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI ACCENT SE (Part #FDRWBX2338) is designed to fit the 2012-2017 Hyundai Accent.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI ACCENT SE (Part #FDRWBX2338) fits the following vehicles: 2012-2017 Hyundai Accent. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI ACCENT SE (Part #FDRWBX2338) fits 2012-2017 Hyundai Accent models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HYUNDAI ACCENT SE (Part #FDRWBX2338) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

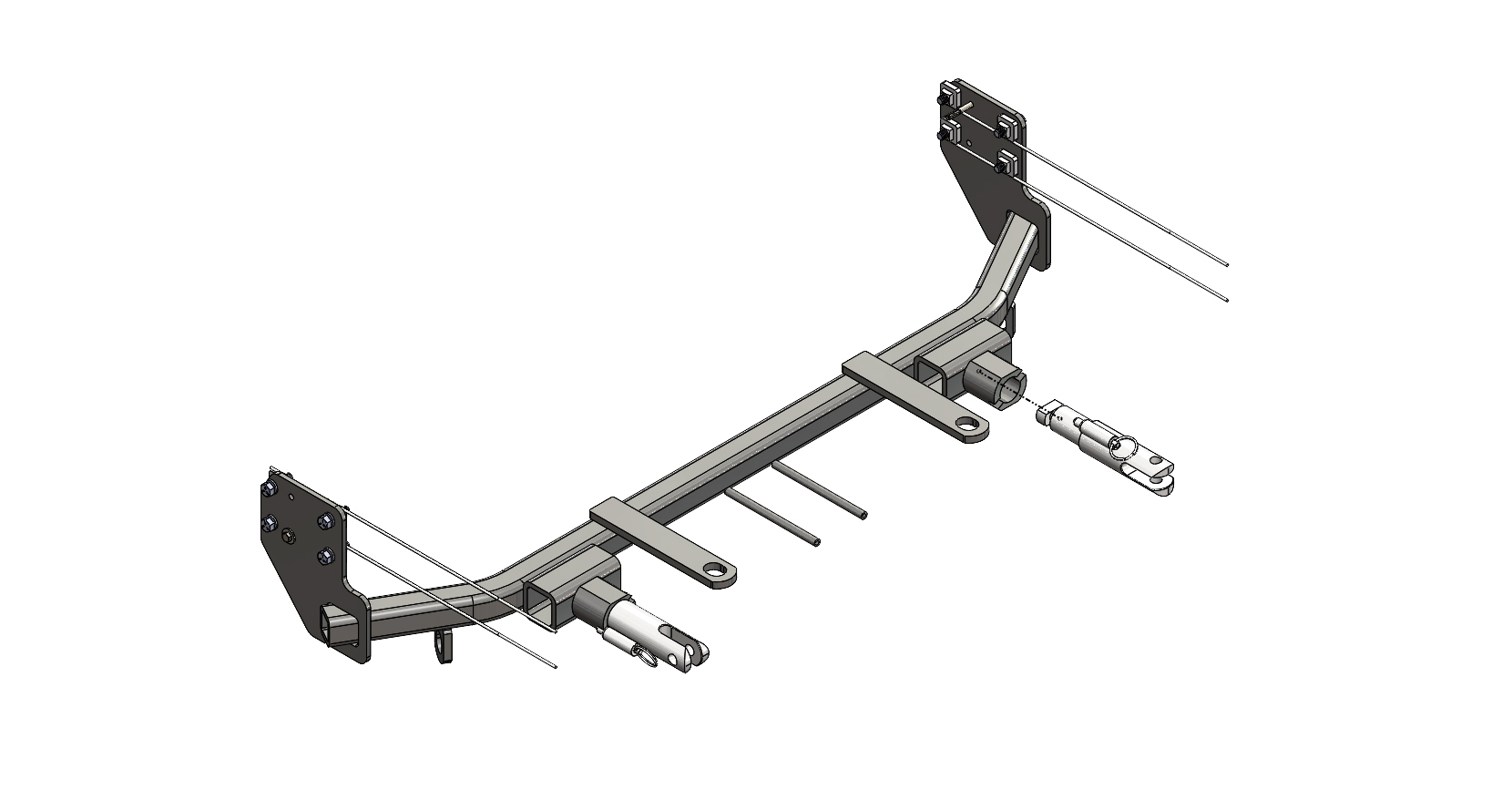

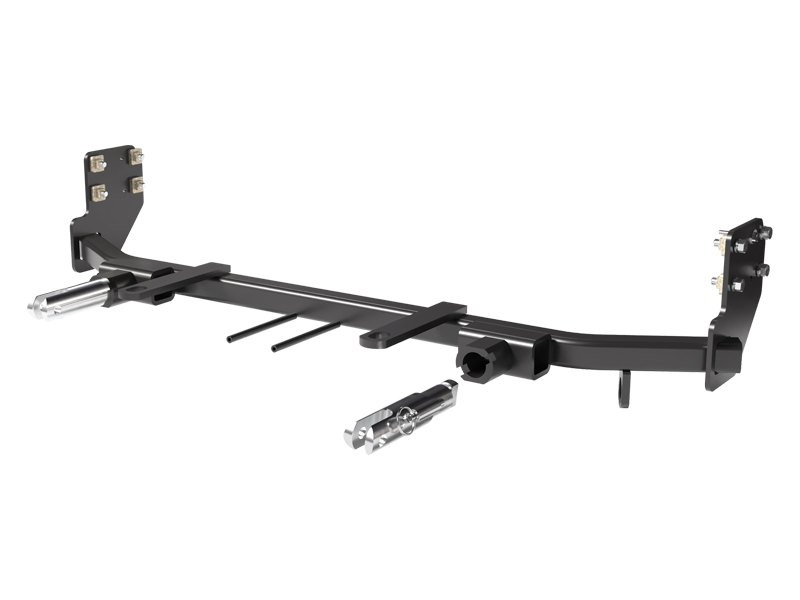

The BX2338 is a towing baseplate manufactured by Blue Ox designed specifically for 2012-2017 Hyundai Accent GLS/SE models with foglights. It is mounted to the front frame of the vehicle to provide attachment points for a tow bar. The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty.
The manual specifies the BX2338 is designed for 2012-2017 Hyundai Accent GLS/SE models with foglights. The manual does not confirm fitment on other Accent trim levels or model years. Contact Blue Ox Customer Care at (402) 385-3051 to verify fitment on other variants.
Required tools include: large vise grip, reciprocating saw, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 1-1/4" hole saw, 13/32" drill bit, 10MM socket, 12MM socket, 9/16" socket, 9/16" wrench, and Loctite Red. A drill with variable speed and torque control is recommended to manage drill bit length and torque hazards.
The kit includes: 8 nut plates with 14" wire (3/8"-16), 1 baseplate, 2 attachment tab assemblies, 1 breakaway bracket, 1 electrical bracket, 2 class III safety cables, 2 quicklinks (3/8"), 2 receiver cap plugs, various bolts (6MM and 3/8"-16), screws, washers, lock washers, and nuts as detailed in the parts list on page 3. All fasteners are zinc-plated (ZP) unless otherwise noted.
Yes. Installation requires removal and reinstallation of the fascia, metal bumper, windshield washer fluid reservoir, and air baffle. The manual states these components are removed and reinstalled for baseplate installation. All removed items should be placed on a flat, sturdy surface and will be reinstalled unless otherwise noted after the baseplate is installed.
Yes. Blue Ox states that towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
Yes. Drilling is required. You must drill a 13/32" hole through the frame on both sides of the vehicle for the top front mounting bolts (step 15). The manual also requires drilling a 1-1/4" hole through the front two layers of the metal bumper on both sides for nut plate access (step 13). Additional drilling may be required for tail light wiring if the BX8869 Tail Light Wiring Kit is used.
Trimming and cutting required includes: (1) using a reciprocating saw to trim the lip off the face of the frame on both sides for baseplate clearance (step 11); (2) cutting two slits on the bottom hole in the frame and bending the tab out for nut plate access on both sides (step 12); (3) trimming the lower tab off the air baffle with a utility knife before reinstallation (step 17); (4) trimming the fascia around the convenience links and attachment tabs (step 19). Paint all cut frame edges with good quality paint to prevent rusting.
Yes. The modifications are permanent. The frame lip is trimmed with a reciprocating saw, frame tabs are cut and bent, the bumper is drilled with a 1-1/4" hole saw, and the air baffle is trimmed with a utility knife. These modifications cannot be reversed. The baseplate is designed to remain installed on the vehicle.
Torque specifications depend on bolt grade and size. For 6MM Grade 8.8 bolts: 8 ft-lbs. For 3/8"-16 Grade 5 bolts: 33 ft-lbs. For 1/4"-20 Grade 5 bolts: 10 ft-lbs. All bolts must be tightened with Loctite Red applied to threads. Refer to the torque chart on page 1 for complete specifications by bolt size and grade. Use a torque wrench to ensure proper tightening.
The attachment tab height is 14" and the attachment tab width is 24".
The manual states the BX8869 Tail Light Wiring Kit is recommended for this vehicle, not required. If used, a hole must be drilled according to the tail light wiring kit instructions. The manual does not provide specific details about the wiring kit installation.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR to determine the safe towing weight limit.
Yes. Permanent baseplate safety cables are strongly recommended and included with the kit (2 class III safety cables with quicklinks). These cables must be connected from the baseplate to the frame rail or cross member and must remain installed as long as the baseplate is on the vehicle. The permanent safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Safety cables must not rub against hoses, brake lines, or moving parts.
If the baseplate is involved in an accident, it must be replaced. Do not reuse it. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications with Loctite Red applied.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Ensure permanent baseplate safety cables remain installed and do not rub against hoses or moving parts. Register your product online at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins.
No. The manual explicitly states to use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow this requirement will void the manufacturer's warranty.
The removal sequence is: (1) Remove fascia (steps 1-5); (2) Remove metal bumper (steps 6-7); (3) Remove windshield washer fluid reservoir (step 8); (4) Remove air baffle (step 9); (5) Remove plastic shrouding on passenger side (step 10); (6) Trim frame lip with reciprocating saw (step 11); (7) Cut and bend frame tabs (step 12); (8) Drill bumper holes (step 13). All removed items should be placed on a flat, sturdy surface and will be reinstalled after baseplate installation.
The baseplate is mounted using existing holes on the frame rails. On the driver side, insert a 6MM-1.0 x 45MM bolt with a 1/4" flat washer into the existing hole. On the passenger side, insert a 6MM-1.0 x 30MM bolt with a 1/4" flat washer into the existing hole. Level the baseplate and tighten the hardware. Then drill additional holes using a 13/32" drill bit and install 3/8"-16 x 1-1/4" bolts with 3/8" lock and flat washers into 3/8" nut plates. Apply Loctite Red to all bolt threads and tighten to the appropriate torque.
To reinstall the horn on the driver side, flatten the notch at the end of the horn bracket by tapping with a hammer. Using the existing hole just below the headlight, insert a 1/4"-20 x 3/4" hex bolt with a 1/4"-20 hex flange whiz nut to attach the horn bracket.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Secure the cables to a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. The manual shows recommended installation in the Permanent Baseplate Safety Cable Installation section.
The BX2338 is designed for 2012-2017 Hyundai Accent GLS/SE models with foglights. Confirm your trim level and model year match before purchasing. Contact Blue Ox at (402) 385-3051 to verify fitment on other variants.
You will need a drill, reciprocating saw, utility knife, torque wrench, 1-1/4" hole saw, 13/32" drill bit, sockets (10MM, 12MM, 9/16"), Phillips screwdriver, tape measure, large vise grip, and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
Torque depends on bolt size and grade. 6MM Grade 8.8 bolts: 8 ft-lbs. 3/8"-16 Grade 5 bolts: 33 ft-lbs. 1/4"-20 Grade 5 bolts: 10 ft-lbs. Apply Loctite Red to all threads before tightening. See the torque chart on page 1 for complete specifications.
Yes. Installation requires removal of the fascia, metal bumper, windshield washer reservoir, and air baffle. These components are reinstalled after the baseplate is mounted.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for the GVWR and manufacturer's towing specifications.
Do not use the baseplate if it is damaged or missing parts. If the baseplate was involved in an accident, it must be replaced and not reused, as accidents can cause unseen damage that could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 for replacement or repair options.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. If connections are not working, disconnect and recheck all electrical connections to the fascia and other components. Verify that all plugs are fully seated. If the issue persists, contact Blue Ox Customer Care at (402) 385-3051.
After inserting the initial 6MM bolts with flat washers into the existing frame holes on both sides, level the baseplate before tightening the hardware. If the baseplate is not level, loosen the bolts, adjust the baseplate position, and retighten. Ensure the baseplate remains level while drilling the additional holes and installing the 3/8"-16 bolts.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2017 | Hyundai Accent | Vehicles with Fog Lights Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
