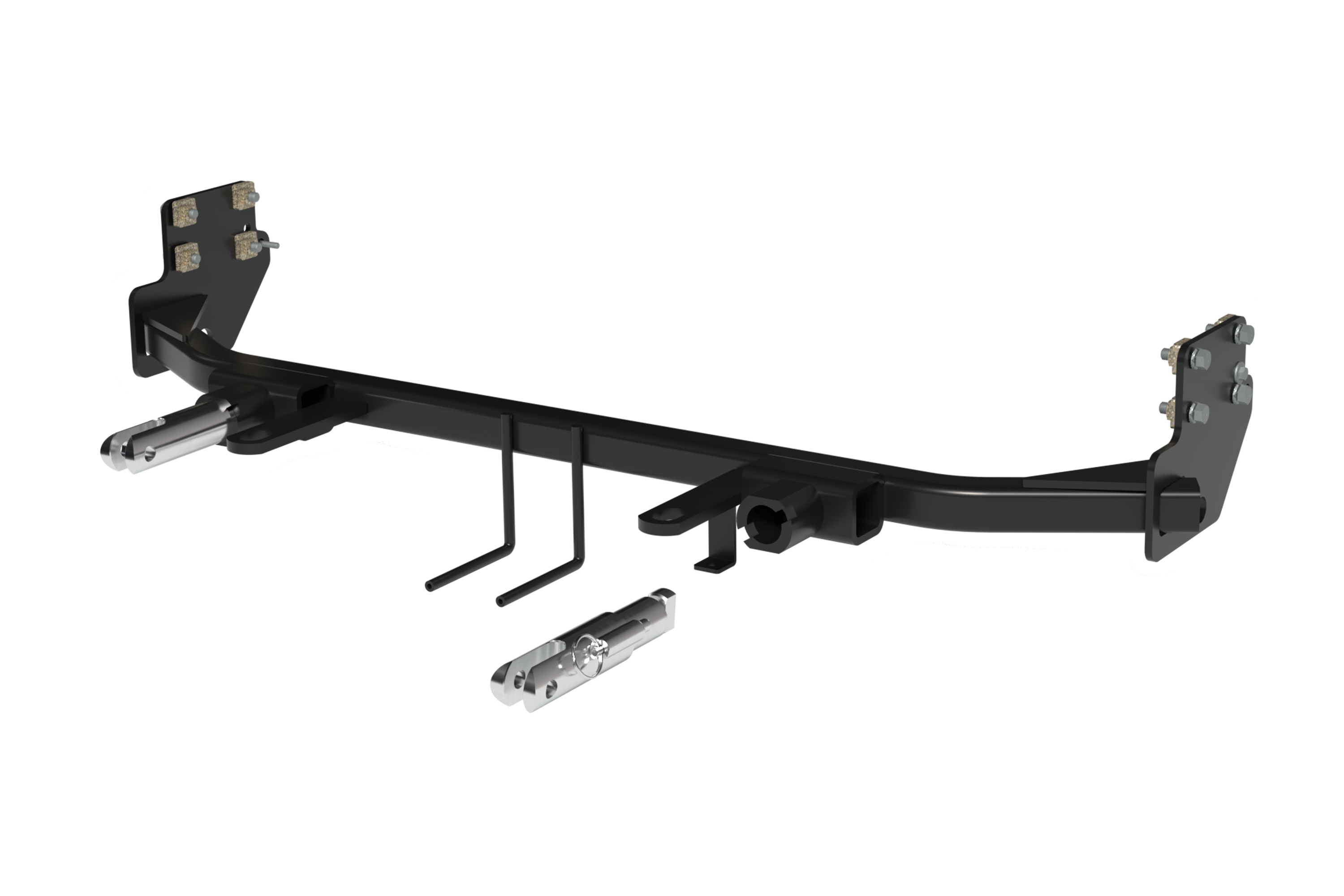

Custom Fit: The Blue Ox BX2342 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Enhance your towing experience with the Blue Ox BX2342 Tow Bar Bracket. Custom designed for each specific towed vehicle, this product promises a perfect fit and easy installation. Crafted from high-quality steel with a powder-black finish, this sturdy bracket provides reliable support for your towing needs. It comes with all the necessary mounting hardware for a hassle-free, do-it-yourself installation. Whether you're on a road trip or moving heavy loads, the Blue Ox BX2342 Tow Bar Bracket is the perfect companion for your towing vehicle.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Hyundai Accent | No Fog Lights Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate For Select HYUNDAI ACCENT BX2342 (Part #FDRWBX2342) fits the following vehicles: 2018-2022 Hyundai Accent. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate For Select HYUNDAI ACCENT BX2342 (Part #FDRWBX2342) is designed to fit the 2018-2022 Hyundai Accent.
The BlueOx Tow Bar Base Plate For Select HYUNDAI ACCENT BX2342 (Part #FDRWBX2342) fits 2018-2022 Hyundai Accent models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate For Select HYUNDAI ACCENT BX2342 (Part #FDRWBX2342) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX2342 is designed for 2018-2022 Hyundai Accent with manual transmission only. It is not compatible with automatic transmission vehicles.
No. The BX2342 is designed for vehicles with no fog lights. If your vehicle has fog lights, this baseplate is not compatible.
Contact Blue Ox technical service at (402) 385-3051. The manual states that if the front of your vehicle looks different than shown, you should contact them before proceeding with installation.
The attachment tab height is 15 inches and the attachment tab width is 22 inches.
The kit includes: 8 nut plates with 14-inch wire (3/8"), 2 attachment tab assemblies with hole, 1 hex head bolt (1/4"-20 x 3/4"), 2 round slotted head screws (#10-32 1/2"), 8 hex head bolts (3/8"-16 x 1-1/4"), 2 hex head bolts (6MM-1.0 x 30MM), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 1 hex nylon nut (1/4"-20), 2 flat washers (1/4"), 8 lock washers (3/8"), 2 lock washers (#10), 1 electrical bracket, 2 class III safety cables, and 2 quicklinks (3/8").
Required tools are: large vise grip, flat screwdriver, torque wrench, drill, reciprocating saw, tape measure, Loctite Red, 3/8-inch drill bit, 10MM socket, 12MM socket, 7/16-inch socket, 7/16-inch wrench, 9/16-inch socket, and 5/16-inch nut driver. An 8MM socket is also needed for wheel well liner removal.
Yes. Blue Ox towing products are intended to be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051.
The fascia, bumper, belly pan, windshield washer fluid reservoir, and air intake must be removed during installation. All items will be reinstalled after the baseplate is installed unless otherwise noted. The air baffle must also be removed and reinstalled.
Yes. Drilling is required. You will drill out the front bottom hole (3/8-inch drill bit on both sides), the top front hole (3/8-inch drill bit on both sides), and the back two holes (3/8-inch drill bit on both sides). A 3/8-inch drill bit is required.
Yes. Trimming is required. You will use a reciprocating saw to remove indicated areas on each side of the vehicle so they are flush with the frame, trim the bumper where it overlaps the frame, create an access hole by slotting the frame plug, and trim the air baffle area. Paint cut edges of frame with good quality paint to prevent rusting.
The torque specification for 3/8-inch Grade 5 bolts is 33 foot-pounds. All bolts must have Loctite Red applied to threads before tightening.
The torque specification for 6MM Grade 8.8 bolts is 6 foot-pounds. All bolts must have Loctite Red applied to threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications and your vehicle's GVWR.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not rub against hoses or moving parts. The cables must be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. The fascia should be held as close to its original position as possible, and marked and trimmed around the convenience links and attachment tabs before reinstallation.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use if applicable. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle. The manual does not specify whether it is required or optional, so contact Blue Ox at (402) 385-3051 to confirm if it is necessary for your installation.
The BX2342 fits 2018-2022 Hyundai Accent with manual transmission only and no fog lights. If your vehicle has automatic transmission or fog lights, it is not compatible. Contact Blue Ox at (402) 385-3051 if your vehicle's front looks different from the manual images.
You will need a drill, reciprocating saw, torque wrench, large vise grip, tape measure, sockets (10MM, 12MM, 8MM, 7/16-inch, 9/16-inch), wrenches, nut driver (5/16-inch), screwdrivers, 3/8-inch drill bit, and Loctite Red.
Yes. Installation requires drilling six holes (3/8-inch drill bit) and using a reciprocating saw to trim frame areas, bumper, and air baffle. Cut edges must be painted to prevent rust. These modifications are permanent.
You must remove the fascia, bumper, belly pan, windshield washer fluid reservoir, air intake, and air baffle. All components are reinstalled after baseplate installation.
Use 33 foot-pounds for 3/8-inch Grade 5 bolts and 6 foot-pounds for 6MM Grade 8.8 bolts. Apply Loctite Red to all bolt threads before tightening. Refer to the torque chart in the manual for other bolt sizes.
Permanent baseplate safety cables are strongly recommended and must be connected to the frame. They must not rub against hoses or moving parts. They are used in addition to, not instead of, legally required safety cables.
The baseplate is tested to your vehicle's GVWR. Do not exceed this weight or the warranty will be void. Check your vehicle owner's manual for GVWR and towing specifications.
Ensure all electrical connections are plugged in and accessories are functioning properly. Mark and trim the fascia around the convenience links and attachment tabs before reinstalling.
