Custom Design: Specially designed for each specific towed vehicle, ensuring a perfect fit and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

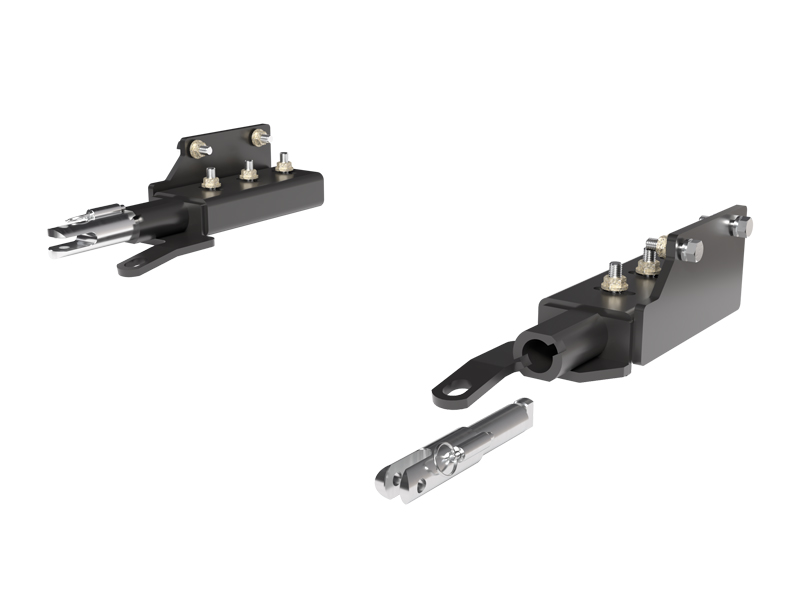

The Blue Ox BX2682 Tow Bar Bracket is a robust, reliable, and efficient solution for your towing needs. Expertly designed for specific towed vehicles, this top-quality bracket ensures a seamless fit and superior performance. Constructed from high-strength steel, it boasts supreme durability and longevity. The bracket is finished with a black powder coat, providing additional protection against rust and corrosion. A bolt-on mounting type enhances the ease of installation, and all necessary hardware is included for your convenience. With the Blue Ox BX2682 Tow Bar Bracket, experience hassle-free towing and enhanced vehicle compatibility.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2027 | Lincoln Navigator | Only Vehicles Equipped with Slow Climb Mode, Vehicles With Adaptive Cruise Control, Shutters, & Turbo, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAV (Part #FDRWBX2682) is designed to fit the 2018-2026 Lincoln Navigator.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAV (Part #FDRWBX2682) fits the following vehicles: 2018-2026 Lincoln Navigator. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAV (Part #FDRWBX2682) fits 2018-2026 Lincoln Navigator models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAV (Part #FDRWBX2682) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2682 baseplate is designed for 2018-2026 Lincoln Navigator models that have Slow Climb Mode and include Adaptive Cruise Control, Shutters, and Turbo. If your vehicle does not have Slow Climb Mode, this baseplate is not compatible. Contact Blue Ox at (402) 385-3051 to confirm your vehicle's specifications before purchasing.
The BX2682 attachment tab height is 16 inches and the width is 34.5 inches. Ensure that your tow bar is compatible with these dimensions before installation.
The kit includes: two baseplate sections (driver and passenger side), two attachment tab assemblies with holes, one electrical bracket with 90° bend, ten 1/2"-13 whiz nuts with 10" wire, ten 1/2"-13 x 1-3/4" Grade 5 hex head bolts, five 1/4"-20 x 1" Grade 5 hex head bolts, two #10-32 1/2" round slotted head screws, two #10-32 hex nuts, five 1/4"-20 hex nylon nuts, four 1/4" flat washers, six 1/2" flat washers, ten 1/2" lock washers, two #10 lock washers, two Class IV safety cables, two 1/2" quicklinks, and two black cap plug receivers.
Required tools include: torque wrench, drill with 1/2" drill bit, reciprocating saw, tape measure, Loctite Red, large vise grip, flat screwdriver, 7/16" wrench, 7/16" socket, 3/4" socket, 3/4" wrench, 5.5MM socket, 7MM socket, 10MM socket, 15MM socket, and 5/16" nut driver.
Blue Ox recommends that installation be performed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. The installation involves fascia removal, drilling, trimming, and electrical connections, which may require specialized knowledge and tools.
Yes. The front fascia and fascia cover must be removed and reinstalled during baseplate installation. For 2018-2024 models, this involves removing push pins, unsnapping the fascia cover, removing bolts from the top and wheel well, pulling back the liner, removing underside bolts, and unplugging electrical connections. For 2025-2026 models, the process is similar but involves different bolt counts and locations. All removed items are reinstalled after baseplate installation.
Yes. The installation requires drilling two holes on each side of the vehicle using a 1/2" drill bit. These holes are drilled using the baseplate as a guide and are used to mount the baseplate to the frame. Additionally, the fascia must be trimmed to allow room for the attachment tab and convenience link.
For 2018-2024 models, a 5-1/2" wide by 2-1/4" tall rectangle must be removed from the fascia, starting 3/4" from the lip at the bottom of the fascia and 1/4" from the bumper. This must be done on both sides of the vehicle. For 2025-2026 models, the tow hook cover is trimmed using a reciprocating saw according to indicated measurements shown in the manual, and the covers are then reinstalled onto the fascia.
Yes. The drilling of holes in the vehicle frame and the trimming of the fascia are permanent modifications. The manual recommends using good quality paint to spray cut edges of the frame to prevent rusting. These modifications cannot be reversed without professional repair.
For Grade 5 inch bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. The BX2682 kit primarily uses 1/2"-13 Grade 5 bolts, which should be torqued to 78 ft-lbs. All bolts must have Loctite Red applied to threads before tightening.
For Grade 8 inch bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs, 3/4" = 380 ft-lbs. If Grade 8 bolts are used as replacements, apply Loctite Red to all threads before tightening to the appropriate torque value.
For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs. For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs. Apply Loctite Red to all threads before tightening.
1. Slide the baseplate into place and hold. Start the first bottom 1/2" bolt with flat washer and whiz nut on the backside on both sides of the vehicle. Do not use Loctite Red at this time. 2. Make sure the baseplate is tight against the frame and insert the back two 1/2" bolts with flat washers and whiz nuts on the backside. Use Loctite Red on these bolts. 3. Once the back bolts are in place, remove the front bolt, apply Loctite Red, and reinstall. 4. Using the baseplate as a guide, drill two holes using a 1/2" drill bit and insert two 1/2" bolts with whiz nuts on the backside. 5. Use Loctite Red on all bolt threads and tighten all bolts to 78 ft-lbs (for Grade 5).
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame of the vehicle, such as a frame rail or crossmember. The manual shows two recommended options: one for baseplates with convenience link tabs and one for baseplates without. Ensure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses, or brake lines. These cables are in addition to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Only if your vehicle has tow hooks. If present, remove the two bolts from the tow hooks on both sides of the vehicle using a 15MM socket before sliding the baseplate into place.
On the driver side of the vehicle, unplug the indicated electrical connections before removing the front fascia. For 2018-2024 models only, on the passenger side near the headlight, unhook the fluid line by squeezing and pulling apart. These connections must be reconnected after the baseplate is installed and before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for the manufacturer's towing specifications and your vehicle's GVWR.
If the baseplate is in an accident, it must be replaced and cannot be reused. Do not use the baseplate if it is damaged or missing parts. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 for replacement.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. Use a good quality paint to spray cut edges of the frame to prevent rusting. Wear appropriate protective equipment when handling cosmetic parts, as they may require protective covers, rags, and specialty tools to prevent damage.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. For 2018-2024 models, reconnect the fluid line on the passenger side and electrical connections on the driver side. For 2025-2026 models, reconnect electrical connections on the driver side. Verify that all bolts have been tightened to the correct torque specifications with Loctite Red applied.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure that Loctite Red is used on all bolts and that they are tightened to the recommended specifications. The attachment tabs should be removed when not in use if applicable. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
The BX88462 Receiver Mounted Light Bar is recommended for the Lincoln Navigator with the BX2682 baseplate.
No. Even though bolts may exist on the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Using incorrect or inadequate hardware could result in baseplate failure and separation of the towed vehicle.
If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation. The manual is specific to 2018-2026 Lincoln Navigator models with Slow Climb Mode, and variations may indicate an incompatible vehicle.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use correct parts will void the manufacturer's warranty.
The BX2682 fits 2018-2026 Lincoln Navigator models with Slow Climb Mode (includes ACC, Shutters, and Turbo). Confirm your vehicle has Slow Climb Mode before purchasing. Contact Blue Ox at (402) 385-3051 if unsure.
Blue Ox recommends installation by Blue Ox Dealers familiar with the product and equipped for fit work. Installation involves fascia removal, drilling, trimming, and electrical connections. Find a dealer at www.blueox.com or call (402) 385-3051.
Yes. Two 1/2" diameter holes must be drilled on each side of the vehicle using the baseplate as a guide. The fascia must also be trimmed to allow room for the attachment tab. These are permanent modifications.
Required tools include: torque wrench, drill with 1/2" bit, reciprocating saw, tape measure, Loctite Red, sockets (5.5MM, 7MM, 10MM, 15MM), wrenches (7/16", 3/4"), and a 5/16" nut driver.
Grade 5 1/2" bolts should be torqued to 78 ft-lbs. Grade 8 1/2" bolts should be torqued to 119 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
The baseplate is rated to your vehicle's GVWR. Exceeding this weight voids the warranty. Refer to your vehicle owner's manual for towing specifications and GVWR.
If the baseplate is in an accident or damaged, it must be replaced and cannot be reused. Do not use a damaged or incomplete baseplate. Contact Blue Ox at (402) 385-3051 for replacement.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with Loctite Red. Register your product at www.blueox.com for safety bulletins and recalls.
