Custom-Designed Fit: Engineered specifically for a wide range of towed vehicles, ensuring a perfect and secure fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

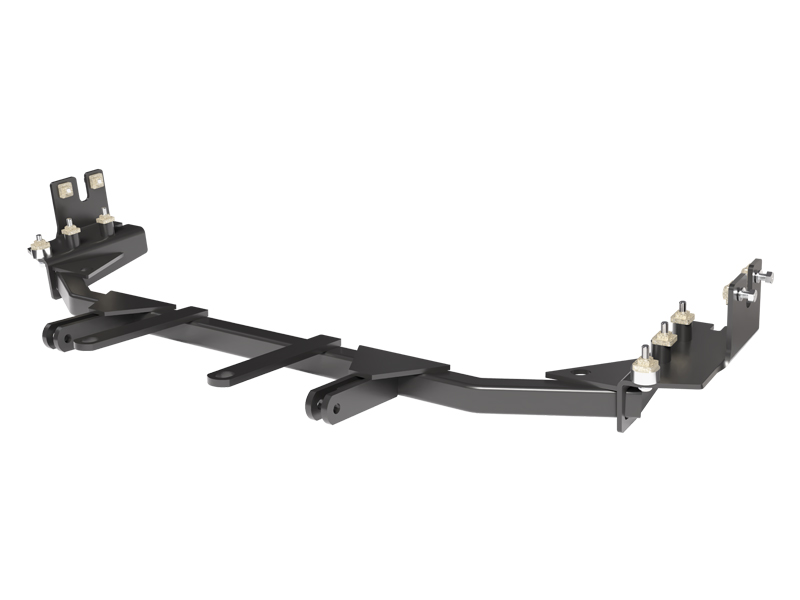

Upgrade your towing system with the Blue Ox BX2634 Tow Bar Bracket. Expertly crafted from robust steel, this base plate offers outstanding durability and resilience. It boasts a black powder coat finish to resist corrosion and ensure lasting performance. Specifically designed to fit a wide range of towed vehicles, it provides a secure and reliable connection point for your tow bar. The bracket is easy to bolt on, and comes with all necessary mounting hardware and comprehensive instructions, making it ideal for do-it-yourself installation. Enhance your towing experience with the Blue Ox BX2634 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2014 | Lincoln MKS | No EcoBoost No Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
No. The BX2634 is designed specifically for 2013-14 Lincoln MKS models without EcoBoost or Adaptive Cruise. If your vehicle has either of these features, this baseplate is not compatible.
The manual does not explicitly state compatibility with 2012 models. However, it notes that on 2012 models, the bolt on the outer edge is not installed (Step 1), suggesting some fitment differences. Contact Blue Ox Technical Service at (402) 385-3051 to confirm compatibility before purchasing.
The attachment tab height is 14-1/2" and the attachment tab width is 20".
The kit includes: 10 pieces of 3/8"-16 nut plates with 14" wire (61-5208); 4 pieces of 3/8"-16 x 2-1/2" hex head bolts Grade 5 (201-0336); 4 pieces of 3/8"-16 x 1-1/4" hex head bolts Grade 5 (201-0368); 2 pieces of 3/8"-16 x 2" hex head bolts Grade 5 (201-0444); 7 pieces of 1/4" flat washers (203-0001); 12 pieces of 1/2" flat washers (203-0005); 10 pieces of 3/8" lock washers (203-0010); 2 Class III safety cables (226-0046); and 2 pieces of 3/8" quicklinks (229-0359).
Required tools include: 5.5MM socket, 8MM socket, 10MM socket, 9/16" socket, large vise grip, flat screwdriver, Phillips screwdriver, utility knife, torque wrench, tape measure, Loctite Red, drill, 13/32" drill bit, flat chisel, and hammer.
The BX8848 4 Diode Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional. Contact Blue Ox at (402) 385-3051 to confirm whether it is necessary for your installation.
The fascia, horn, and windshield washer fluid reservoir must be removed. The manual states these items will be reinstalled after the baseplate is installed unless otherwise noted. Place all removed components on a flat, sturdy surface during installation.
Yes. The installation requires drilling six holes using a 13/32" drill bit: two top holes on each side (Step 10), two bottom back holes on each side (Step 9), and one bottom front hole on each side (Step 12). The baseplate is used as a template for drilling the bottom holes.
The fascia must be notched. Measure from the outside edge inward 2" and mark. On both sides of the 2" mark, measure outward 3/4". The distance from center mark to center mark should measure 20". The manual does not provide detailed cutting instructions beyond these measurements; refer to Step 13 and the accompanying image for visual guidance.
Yes. On both sides, notch the plastic tab from the top to the bottom as indicated in the image in Step 7. Additionally, notch the tab located in the center of the vehicle as indicated in Step 8. Refer to the images in the manual for the exact notching pattern.
Yes. After reinstalling the horn to its original location in Step 14, it may require bending slightly to fit properly with the baseplate installed.
Yes. Prior to reinstalling the windshield washer reservoir, it must be notched as shown in Step 15. The manual does not provide detailed cutting instructions; refer to the image in Step 15 for the exact notching pattern.
Yes. The manual states to use a good quality paint to spray cut edges of frame to prevent rusting. This applies to any frame edges exposed during drilling and installation.
The manual provides general torque charts for Grade 5 and Grade 8 bolts but does not specify the exact grade or torque value for the 3/8"-16 bolts used in this baseplate installation. The bolts supplied are Grade 5 (per the parts list), and the general chart shows Grade 5 3/8" bolts at 33 foot-pounds. However, contact Blue Ox Technical Service at (402) 385-3051 to confirm the correct torque specification for this specific application.
The manual states that the baseplate is computer tested to your vehicle's GVWR and that exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your specific GVWR. The manual does not provide a specific GVWR rating for the baseplate itself.
The BX8848 4 Diode Wiring Kit is recommended for this vehicle. The manual does not specify whether additional wiring components are required or optional beyond this kit.
Yes. The manual states: "Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia." This is a critical step to verify that the horn, windshield washer system, and any other electrical components are working correctly before final reassembly.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The BX2634 kit includes 2 Class III safety cables (226-0046) and 2 quicklinks (229-0359) for this purpose. The cables must be connected from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses, or brake lines.
No. The permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Both sets of cables are necessary for safe towing.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Additionally, do not use the baseplate if it is damaged or missing parts.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. The manual also recommends using protective covers, rags, and specialty tools to prevent damage to cosmetic parts during installation.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. After installation, verify that the safety cables do not rub against any hoses or moving parts. The manual also recommends that the owner inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The manual also recommends registering your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes. The manual states to remove the attachment tabs when not in use (if applicable). This helps protect the tabs and reduces the profile of the baseplate when the vehicle is not being used for towing.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." While the manual does not explicitly state that professional installation is required, it is strongly recommended. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is non-transferable and does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust. To activate warranty coverage, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice must accompany any warranty claim. Register your product at http://blueox.com/warranty/.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct replacement parts will void the manufacturer's warranty.
If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051. This may indicate a vehicle variation or a different model year that requires different installation instructions.
The BX2634 fits 2013-14 Lincoln MKS models without EcoBoost or Adaptive Cruise. If your vehicle has either feature, this baseplate is not compatible. Contact Blue Ox at (402) 385-3051 to confirm fitment.
You will need: 5.5MM, 8MM, 10MM, and 9/16" sockets; large vise grip; flat and Phillips screwdrivers; utility knife; torque wrench; tape measure; Loctite Red; drill with 13/32" bit; flat chisel; and hammer.
Yes. Six holes must be drilled using a 13/32" drill bit: two on each side at the top, two on each side at the bottom back, and one on each side at the bottom front. The baseplate is used as a template for the bottom holes.
The fascia, horn, and windshield washer fluid reservoir must be removed. These are reinstalled after baseplate installation. Place removed components on a flat, sturdy surface during work.
Yes. Two Class III safety cables and two 3/8" quicklinks are included. These must be connected from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses, or brake lines.
The manual provides general Grade 5 torque specifications (3/8" bolts at 33 foot-pounds) but does not specify the exact torque for this application. Contact Blue Ox at (402) 385-3051 for the correct torque specification. Always use Loctite Red on all bolt threads before tightening.
The BX8848 4 Diode Wiring Kit is recommended. Verify all electrical connections are plugged in and functioning before reinstalling the fascia.
The horn may require bending slightly to fit properly with the baseplate installed (Step 14). If bending does not resolve the fit issue, contact Blue Ox Technical Service at (402) 385-3051 for assistance.
During removal (Step 6), the windshield washer fluid lines must be plugged to avoid fluid leakage. If leakage occurs after reinstallation, verify that the lines were properly plugged during removal and that they are fully reconnected during reinstallation (Step 17). If leakage persists, contact Blue Ox Technical Service at (402) 385-3051.
Before reinstalling the fascia, verify that ALL electrical connections are plugged in and accessories are functioning properly (Step 2 of Notice section). If accessories are not functioning, check that all connectors are fully seated and that no wires were damaged during removal or installation. If problems persist, contact Blue Ox Technical Service at (402) 385-3051.
