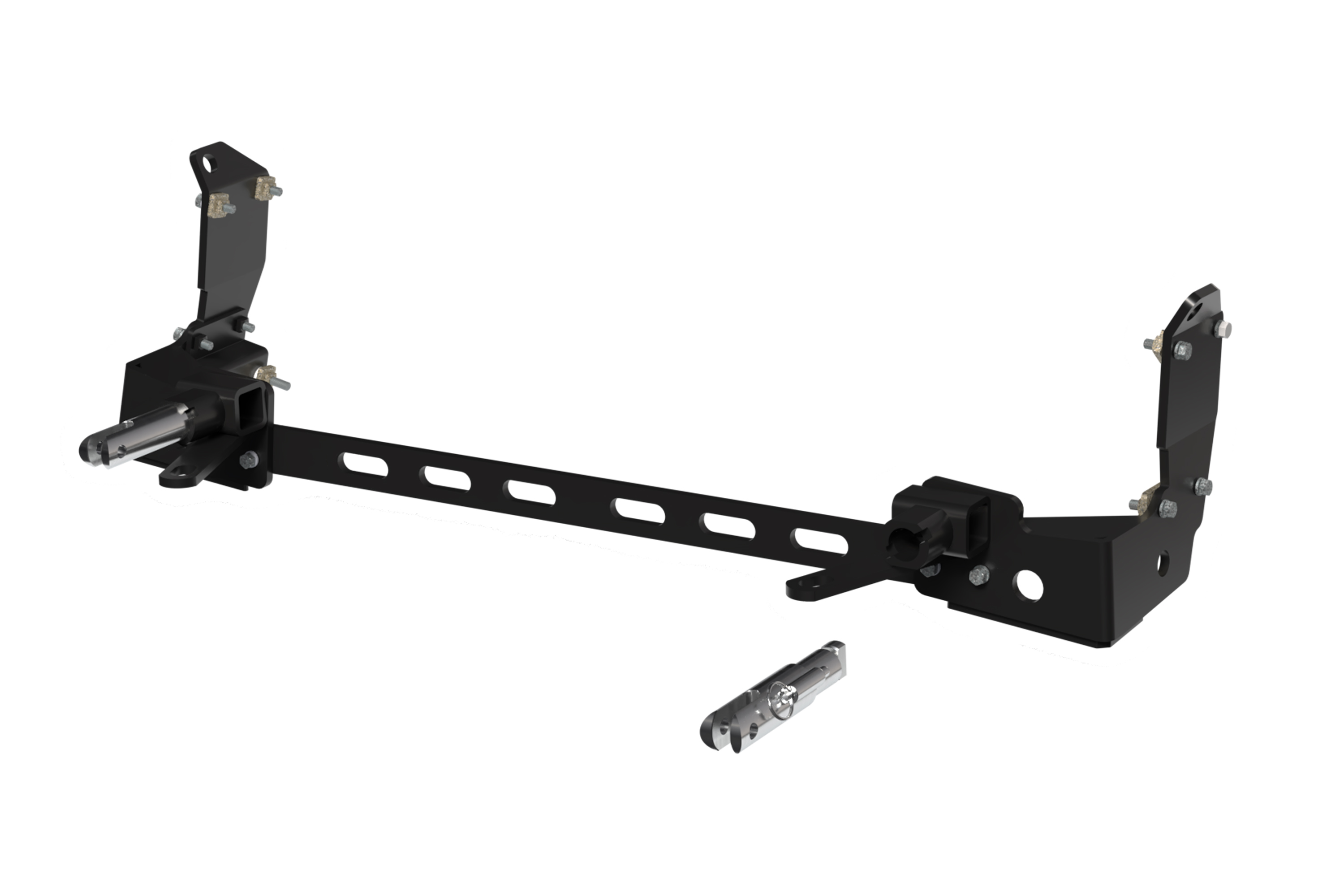

Custom Design: Each Blue Ox BX2665 Tow Bar Bracket is meticulously designed to fit specific towed vehicles, ensuring an optimal fit and secure towing.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2665 Tow Bar Bracket is a professionally engineered towing accessory tailored to fit your specific vehicle. Crafted from durable steel and featuring a black powder coat finish, this bracket provides reliable and rust-resistant performance. Its bolt-on mounting type ensures a hassle-free installation, and to make the process even smoother, we've included all necessary hardware along with clear instructions. Elevate your towing experience with Blue Ox's commitment to quality and convenience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2020 | Lincoln MKZ | Also Hybrid No Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2017 | Lincoln MKZ | Also Hybrid Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Baseplate Has Non 24 in. Spaced Attachment Tabs Headlights Must be Removed and Replaced During Installation Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs No Adaptive Cruise Control |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select LINCOLN MKZ HYBRID RESERVE (Part #FDRWBX2665) fits 2017-2020 Lincoln MKZ models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select LINCOLN MKZ HYBRID RESERVE (Part #FDRWBX2665) fits the following vehicles: 2017-2020 Lincoln MKZ. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select LINCOLN MKZ HYBRID RESERVE (Part #FDRWBX2665) is designed to fit the 2017-2020 Lincoln MKZ.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select LINCOLN MKZ HYBRID RESERVE (Part #FDRWBX2665) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2665 baseplate is designed for 2017-20 Lincoln MKZ vehicles, including hybrid models. However, it is not compatible with vehicles equipped with Adaptive Cruise Control (ACC). If your vehicle has ACC, this baseplate is not suitable.
The attachment tab height is 13 inches and the width is 33 3/4 inches.
Required tools include: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 3/8" drill bit, 1-1/4" hole saw, 7MM socket, 8MM socket, 10MM socket, 7/16" socket, 9/16" socket, 7/16" wrench, 9/16" wrench, T25 Torx, T30 Torx, and Loctite Red. A reciprocating saw is also needed for trimming plastic components.
Yes. The fascia cover and windshield washer fluid reservoir must be removed and reinstalled during baseplate installation. The fascia is removed by first removing ten push pins (five on each side), then removing bolts from the grill cover, wheel well covers, and underside of the fascia, and finally disconnecting electrical connections.
Yes. Both headlights must be removed during installation. This involves removing the plastic headlight covers (using T25 Torx screws and push pins), then removing the headlight bolts using a T30 Torx. The headlights are reinstalled after the baseplate installation is complete.
Yes, drilling is required. You must drill access holes in the side of the frame and the face of the lower support using a 1-1/4" hole saw on both sides of the vehicle. You must also ream out the rear existing hole using a 3/8" drill bit on both sides. Additional drilling is required for the lower support plate holes and optional breakaway installation.
Yes, trimming is required. You must trim plastic shielding near the shutters on the passenger side using a reciprocating saw. You must also trim marked areas on the front of the lower support, behind the shutters on both sides, and on the passenger front of the fascia. The trimmed fascia piece is used as a template to cut a similar shape on the driver side.
Yes. Blue Ox states that towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The kit includes: 8 nut plates with 14" wire (61-5208), 2 support plates (61-7681), driver and passenger side baseplates (61-7786, 61-7787), 2 attachment tab assemblies (62-3468), 1 breakaway bracket (102-7186), 1 slotted bracket (102-7712), various hex head bolts in 1/4", 3/8" sizes and grades, hex nuts, lock washers, flat washers, 2 class III safety cables (226-0046), 2 quicklinks (229-0359), and 2 black cap plug receivers (290-0437).
Use the torque chart provided in the manual. For inch bolts: 1/4" Grade 5 = 10 ft-lbs, 5/16" Grade 5 = 19 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 7/16" Grade 5 = 54 ft-lbs, 1/2" Grade 5 = 78 ft-lbs. For metric bolts: 6MM Grade 8.8 = 6 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs, 12MM Grade 8.8 = 54 ft-lbs. Apply Loctite Red to all bolt threads before tightening. Tighten all bolts according to the torque chart unless otherwise specified in the instructions.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
Yes. Permanent baseplate safety cables are strongly recommended and are included with the kit (2 class III safety cables, part 226-0046). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not be mounted against wires, hoses, or brake lines. These permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Verify that the baseplate is level and all bolts are fully tightened to the appropriate torque specifications. Ensure safety cables do not rub against any hoses or moving parts. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Blue Ox offers service at rallies and at their factory for a nominal fee to ensure your towing system is in proper working condition.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The BX8848 4-Diode Wiring Kit is recommended for this vehicle. However, the manual does not explicitly state whether it is required or optional.
After installing the baseplate onto the frame with the 3/8" hardware, level the baseplate prior to fully tightening the bolts. Lock washers (item 17) are provided to be used as needed to adjust the square tubes on the driver and passenger side baseplates to be level when the weldments are installed (4 places total).
First, install the baseplate onto the frame with 3/8" hardware and level it prior to fully tightening. Then install the lower support plate to the baseplate holes with supplied 3/8" hardware and fully tighten. Next, using a 3/8" drill bit, drill the lower plate holes through the support. Finally, install 3/8" hardware into the drilled lower support holes and fully tighten the bolts, using washers as necessary to ensure tightness.
Slide the slotted bracket into place and clamp it. Install with the supplied 3/8" hardware. On the passenger side, using a 3/8" drill bit, drill into the bracket. Install with the supplied 3/8" hardware and fully tighten.
Yes, the breakaway bracket installation is optional. If you choose to install a breakaway, use a reciprocating saw to cut marked areas on both the plastic shutter shielding and the fascia. Using a 3/8" drill bit, drill into the baseplate. Install the breakaway with the supplied 3/8" hardware and fully tighten.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be connected to the frame of the vehicle. Secure the cables to a solid piece of the frame as described in the General Information sheet. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
Hold the fascia as close to its original position as possible and mark and trim the fascia around the convenience links and attachment tabs. Reinstall the headlights, fascia, and fascia cover. Before reinstalling, ensure that all electrical connections are plugged in and accessories are functioning properly.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, or failure to follow instructional guidelines. The warranty is non-transferable and does not cover normal wear and tear, paint, or rust.
Visit http://blueox.com/warranty/ to register your warranty. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes, the BX2665 is designed for 2017-20 Lincoln MKZ vehicles including hybrids, but not for models with Adaptive Cruise Control (ACC).
Yes. You must drill access holes using a 1-1/4" hole saw, ream existing holes with a 3/8" drill bit, and trim plastic shielding and fascia components using a reciprocating saw.
Yes, the fascia, headlights, and windshield washer fluid reservoir must be removed and reinstalled during installation.
You need a torque wrench, drill with 3/8" and 1-1/4" bits, reciprocating saw, socket set (7MM, 8MM, 10MM, 7/16", 9/16"), Torx drivers (T25, T30), Loctite Red, and standard hand tools including screwdrivers and wrenches.
Use the torque chart provided: 1/4" Grade 5 = 10 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 5/16" Grade 5 = 19 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
Yes, two class III safety cables are included. They must be connected from the baseplate to the vehicle frame and must not contact hoses or wires.
The baseplate is rated to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes, Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
Verify all electrical connections are plugged in and working, the baseplate is level, all bolts are fully tightened to torque specs, and safety cables do not rub hoses or moving parts.
Use lock washers (item 17) as needed to adjust the square tubes on the driver and passenger side baseplates to be level when the weldments are installed. Level the baseplate prior to fully tightening the bolts. This adjustment is done at 4 places total.
Use washers as necessary to ensure tightness when installing the 3/8" hardware into the drilled holes. The manual specifically notes to use washers as necessary to ensure tightness during bracket installation.
If additional options interfere with the suggested mounting location, secure the cables to a solid piece of the frame as described in the General Information sheet. Ensure the safety cables do not rub against any hoses or moving parts. Watch for oil cooler and air conditioner lines, electrical wires, and hoses.
Before each towing trip, inspect all towing equipment for loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications. The manual emphasizes using Loctite Red on all bolt threads before tightening to prevent loosening.
