1. Custom Design: Each Blue Ox BX1758 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and secure installation.
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1758 Tow Bar Bracket is a premium quality product designed for ultimate convenience and durability. Its custom design makes it a perfect fit for any specific towed vehicle, ensuring a seamless and secure installation. With an attractive powder coat finish, this bracket resists corrosion, offering long-lasting performance. Its bolt-on mounting type makes installation hassle-free, and the included mounting hardware further simplifies the process. When you choose the Blue Ox BX1758 Tow Bar Bracket, you receive a comprehensive package that includes all necessary hardware and instructions, allowing for a straightforward, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years

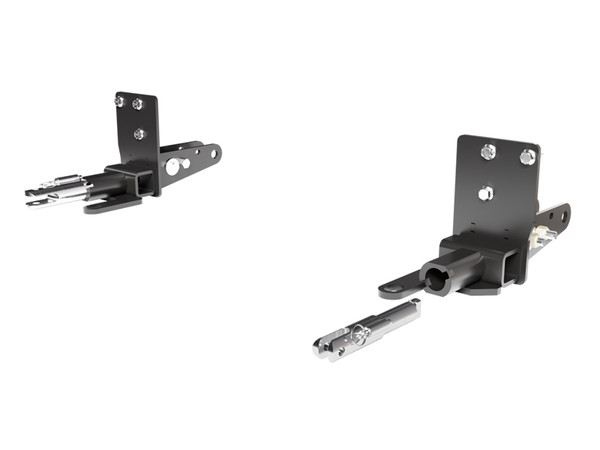

Yes, the BlueOx Baseplate, Chevy Colorado Z71 W/ Skid Plate BX1758 (Part #FDRWBX1758) is designed to fit the 2023-2026 Chevrolet Colorado.
The BlueOx Baseplate, Chevy Colorado Z71 W/ Skid Plate BX1758 (Part #FDRWBX1758) fits the following vehicles: 2023-2026 Chevrolet Colorado; 2023-2026 GMC Canyon. Always verify your specific year, make, and model before ordering.
The BlueOx Baseplate, Chevy Colorado Z71 W/ Skid Plate BX1758 (Part #FDRWBX1758) fits 2023-2026 Chevrolet Colorado models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Baseplate, Chevy Colorado Z71 W/ Skid Plate BX1758 (Part #FDRWBX1758) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

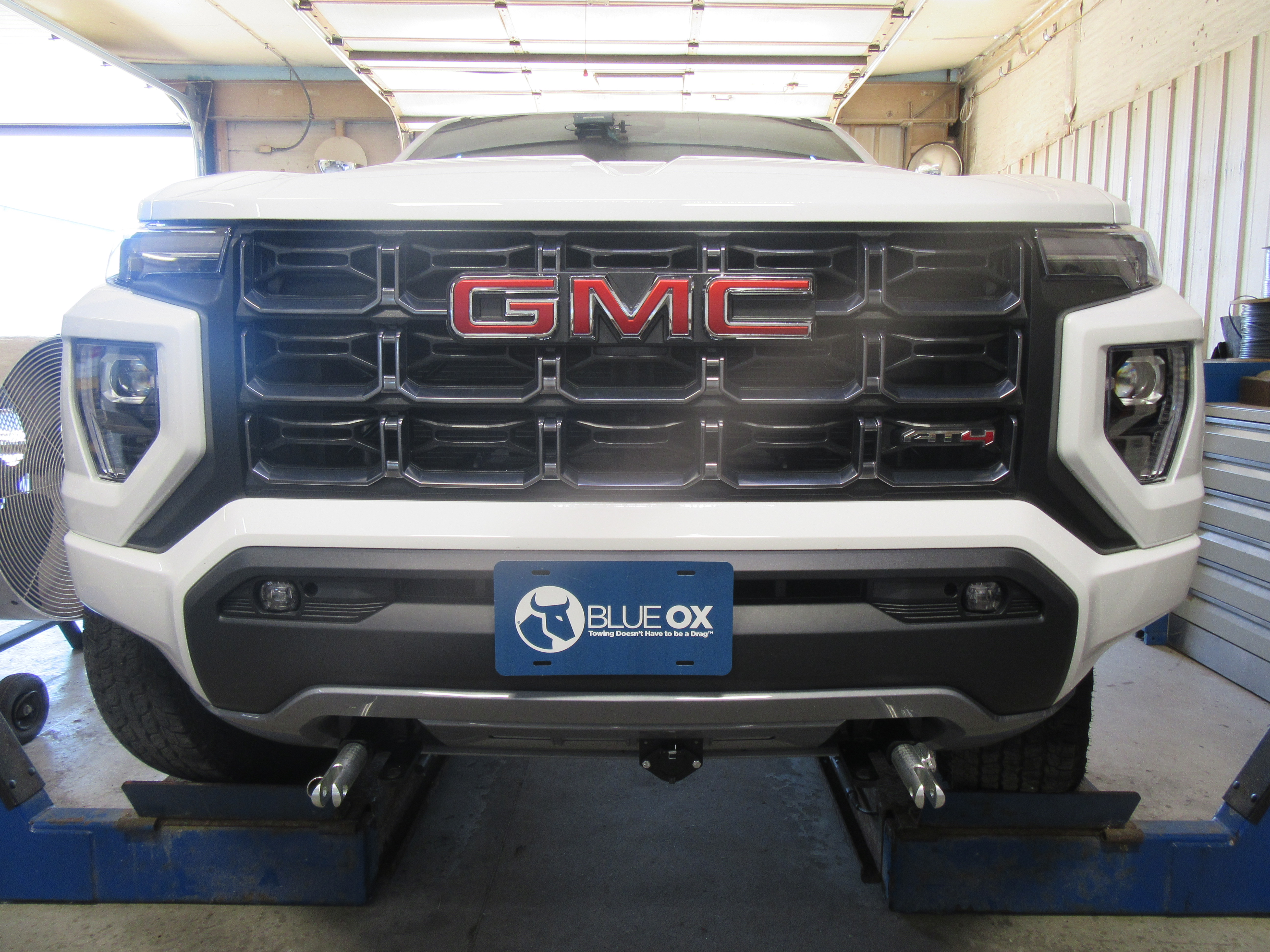

The BX1758 baseplate is designed for 2023-2026 Chevy Colorado (No Bison) models with ACC, Shutters, and Turbo, and 2023-2026 GMC Canyon models (No Off-Road Bumper) with ACC, Shutters, and Turbo. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
No. The BX1758 is specifically designed for Chevy Colorado models without the Bison package. The manual explicitly states "No Bison" in the product title.
No. The BX1758 is designed for GMC Canyon models without an off-road bumper. The manual explicitly states "No Off-Road Bumper" in the product title.
The attachment tab height is 15 inches and the attachment tab width is 30-3/8 inches.
Required tools include: flat screwdriver, 7MM socket, torque wrench, 11MM socket, drill, 11MM wrench, Loctite Red, 1/4" drill bit, 13MM socket, 1-1/8" hole saw, 15MM socket, T15 Torx, 18MM socket, T20 Torx, 18MM wrench, T40 Torx, 19MM socket, and 19MM wrench.
The kit includes: 6 existing 10MM x 35MM large flanged bolts, 2 baseplate assemblies (driver and passenger side), 2 attachment tab assemblies with holes, 2 electrical brackets, 5 pieces of 1/4"-20 x 3/4" hex head bolts (Grade 5), 2 pieces of #10-32 1/2" round slotted head screws, 4 pieces of 1/2"-13 x 3-1/2" hex head bolts (Grade 5), 2 pieces of 1/4"-20 x 1-1/2" hex head bolts (Grade 5), 2 #10-32 hex nuts, 4 1/2"-13 hex nylon insert lock nuts, 5 1/4"-20 hex nylon nuts, 2 1/4" flat washers, 4 1/2" flat washers, 2 #10 lock washers, 2 class IV safety cables, 2 1/2" quicklinks, 2 8" nylon cable ties (black), and 2 black cap plug receivers.
Yes. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (most commonly Grade 5). Do not substitute homemade or non-typical parts.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The fascia, skid plate, belly pan, and bumper must be removed during installation. The tow hooks are also removed but not reinstalled. All other removed items will be reinstalled after the baseplate is installed. Place all removed components on a flat, sturdy surface.
The BX8869 Tail Light Wiring Kit is recommended for vehicles without LED lights, and the BX8848 Tail Light Wiring Kit is recommended for vehicles with LED lights.
Yes. Drilling is required. You must drill two holes using a 1/4" drill bit to mount the electrical bracket to the fascia. Additionally, a 1-1/8" hole saw is required for the tail light wiring kit installation. Some trimming may also be necessary to compensate for vehicle manufacturer tolerances.
The bumper may need to be reamed out to line up with the baseplate when reinstalling it. This is noted as a possibility in step 6 of the baseplate installation instructions.
Yes. Use a good quality paint to spray cut edges of the frame to prevent rusting.
According to the bolt torque specifications chart, 1/2"-13 Grade 5 bolts should be torqued to 78 foot-pounds.
According to the bolt torque specifications chart, 1/4"-20 Grade 5 bolts should be torqued to 10 foot-pounds.
According to the bolt torque specifications chart, 10MM Grade 8.8 bolts should be torqued to 31 foot-pounds.
Yes. Use a sufficient amount of Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for the manufacturer's towing specifications.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system. The weight rating of the two cables together will not qualify. Do not mount the cables against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables should be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame of the vehicle. The manual shows two recommended options: Option 1 uses a convenience link tab on the baseplate, and Option 2 uses a quicklink. The cables must be routed around the crossmember or frame of the vehicle. Be sure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use, if applicable.
Register your product online at www.blueox.com. It is crucial to register your product so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Coverage under the warranty is valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase. Visit http://blueox.com/warranty/ to register your warranty.
Blue Ox provides a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Automatic Equipment Manufacturing Company will repair or replace any parts found to be defective if returned to the factory, transportation prepaid. The warranty is non-transferable and does not cover normal wear and tear, paint, rust, incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accidents, or failure to follow guidelines in the instructional material.
Contact Blue Ox Technical Service Department at (402) 385-3051. You can speak with their technical service team about any questions regarding the performance of the product. Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products.
The BX1758 fits 2023-2026 Chevy Colorado (No Bison) and GMC Canyon (No Off-Road Bumper) models with ACC, Shutters, and Turbo. If your vehicle looks different, contact Blue Ox at (402) 385-3051.
Yes. You must drill two 1/4" holes for the electrical bracket and use a 1-1/8" hole saw for the tail light wiring kit. Some trimming may be necessary.
You need a torque wrench, drill with 1/4" and 1-1/8" bits, Loctite Red, and various sockets (7MM, 11MM, 13MM, 15MM, 18MM, 19MM), wrenches, and Torx drivers (T15, T20, T40).
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Torque 1/2"-13 Grade 5 bolts to 78 foot-pounds. Use Loctite Red on all bolt threads.
Remove the fascia, skid plate, belly pan, bumper, and tow hooks. The tow hooks are not reinstalled; all other components are reinstalled after baseplate installation.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the vehicle's frame and do not replace legally required safety cables for the towed vehicle.
The bumper may need to be reamed out to line up with the baseplate. This is a normal part of the installation process due to vehicle manufacturer tolerances.
Tighten the two 1/2" bolts on the side of the baseplate to remove the frame gap. Do this on both sides of the vehicle. This is performed in step 7 after the bumper is reinstalled.
