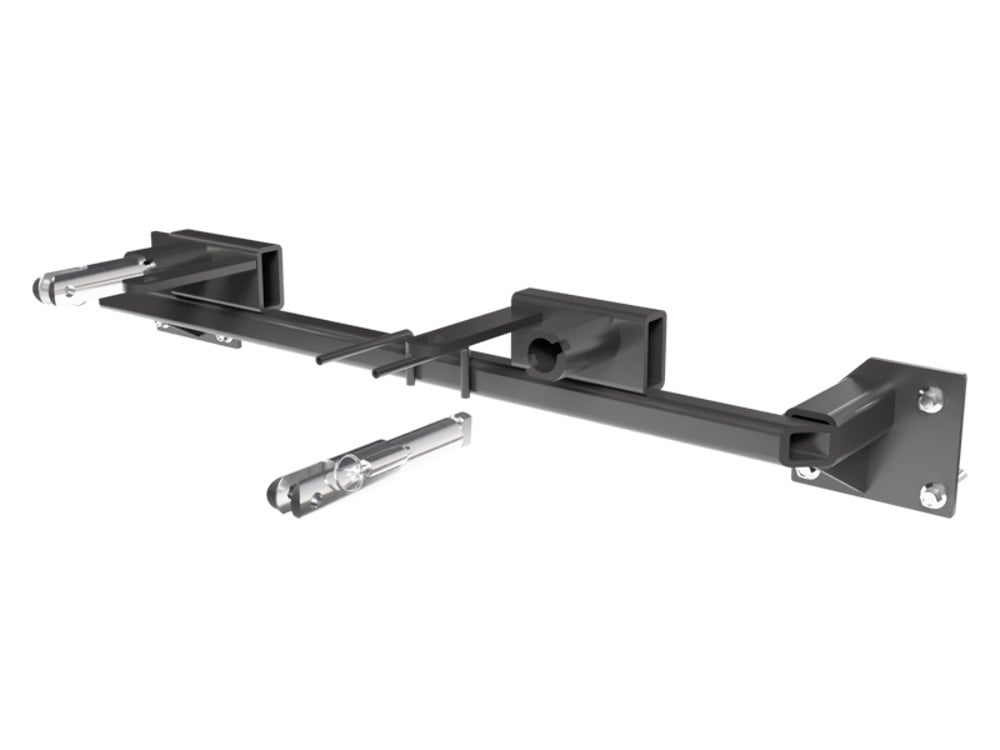

High-Strength Steel Material: The BX2410 Tow Bar Bracket boasts a strong and durable construction, made from high-quality steel, ensuring longevity and reliability throughout its use.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2410 Tow Bar Bracket is a top-tier automotive accessory designed to enhance your towing capabilities. Made from high-strength steel and featuring a black powder coat finish, this rugged bracket is not just built to last but also designed to stand up to the challenges of any towing job. A bolt-on mounting type ensures an easy and secure installation process, with each base plate custom-tailored to fit your specific towed vehicle. Purchase includes all necessary mounting hardware and step-by-step instructions, making the installation process a breeze for any DIY enthusiast.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2016 | Dodge Dart | Vehicles with Fog Lights Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer w/ 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2015 | Dodge Dart | Vehicles with Fog Lights Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer w/ 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Baseplate Has Non 24 in. Spaced Attachment Tabs Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE DART RALLYE 2405 (Part #FDRWBX2410) is designed to fit the 2013-2016 Dodge Dart.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE DART RALLYE 2405 (Part #FDRWBX2410) fits the following vehicles: 2013-2016 Dodge Dart. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE DART RALLYE 2405 (Part #FDRWBX2410) fits 2013-2016 Dodge Dart models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE DART RALLYE 2405 (Part #FDRWBX2410) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2410 baseplate is designed for 2013-2016 Dodge Dart SE/SXT/GT/Limited models. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox Technical Service at (402) 385-3051 before proceeding with installation.
The attachment tab height is 14 inches and the attachment tab width is 22 inches.
Required tools include: large vise grip, flat screwdriver, utility knife, torque wrench, drill, tape measure, Loctite Red, 8MM socket, 10MM socket, and 15MM socket.
The kit includes: BX2410 baseplate (1), attachment tab assembly with hole (2), #10-32 x 1/2" round slotted head screw (2), #12-14 x 1" self drilling screw, ZP (2), #10-32 hex nut (2), #10 lock washer, ZP (2), electrical bracket (1), Class III safety cables (2), 3/8" quicklink, ZP (2), and black cap plug receiver (2). The six existing bumper bolts on the vehicle are also used.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
The BX8848 4-Diode Wiring Kit is recommended for the 2013-2016 Dodge Dart when installing the BX2410 baseplate. The manual does not specify whether it is required or optional; contact Blue Ox at (402) 385-3051 for clarification on whether it is necessary for your specific installation.
The baseplate attaches using six existing holes and bolts on the vehicle. The manual does not explicitly state whether additional drilling is required. However, the manual notes that some trimming of plastic shrouding and shutter blades is required. Contact your installer or Blue Ox at (402) 385-3051 if you need clarification on whether drilling is necessary for your specific vehicle.
Two types of trimming are required: (1) Trim the plastic shrouding in front of the radiator on both sides of the vehicle approximately as shown in the manual for baseplate clearance; further trimming may be required until the baseplate clears the shroud. (2) Remove the second blade from the top of the shutter on both sides, then trim the remaining shutter blades as needed to fit around the attachment tabs and electrical rods.
No. The bumper braces are removed during installation and are not reinstalled. The bolts from the braces are set aside and used to attach the baseplate to the vehicle.
Use the torque chart provided in the manual based on bolt size and grade. For example: 6MM Grade 8.8 bolts = 6 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs. The six existing bumper bolts used to attach the baseplate are typically Grade 5; refer to the torque chart for the specific size. Always apply Loctite Red to all bolt threads before tightening.
The kit includes an electrical bracket (part 299-0685), two black cap plug receivers (part 290-0437), and provisions for a 4-pin and 6-pin connector and breakaway switch. The BX8848 4-Diode Wiring Kit is recommended for this vehicle. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2410 kit includes two Class III safety cables (part 226-0046) and two 3/8" quicklinks (part 229-0359). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not rub against hoses or moving parts. These cables are in addition to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The safety cables should be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame. The manual shows the recommended installation of the cables to the frame of the vehicle. Additional options may interfere with suggested mounting; in that case, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. It is the owner's responsibility to inspect the equipment before each towing trip.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Use good quality paint to spray cut edges of frame to prevent rusting. Remove the attachment tabs when not in use (if applicable). Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, remove the attachment tabs when not in use (if applicable).
If the front of your vehicle looks different than shown in the manual, contact Blue Ox Technical Service at (402) 385-3051 before proceeding with installation. They can confirm compatibility and provide guidance specific to your vehicle.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these requirements will void the manufacturer's warranty.
Register your product online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX2410 is designed for 2013-2016 Dodge Dart SE/SXT/GT/Limited. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
Trim plastic shrouding in front of the radiator on both sides for baseplate clearance. Remove the second blade from the top of the shutter on both sides, then trim remaining blades as needed to fit around attachment tabs and electrical rods.
Required tools: large vise grip, flat screwdriver, utility knife, torque wrench, drill, tape measure, Loctite Red, 8MM socket, 10MM socket, and 15MM socket.
Use the torque chart in the manual based on bolt size and grade. For example, 8MM Grade 8.8 = 16 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs. Always apply Loctite Red to threads before tightening.
Yes, two Class III safety cables and two 3/8" quicklinks are included. They must be connected from the baseplate to the vehicle's frame rail or cross member and are in addition to legally required safety cables.
Yes, Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
