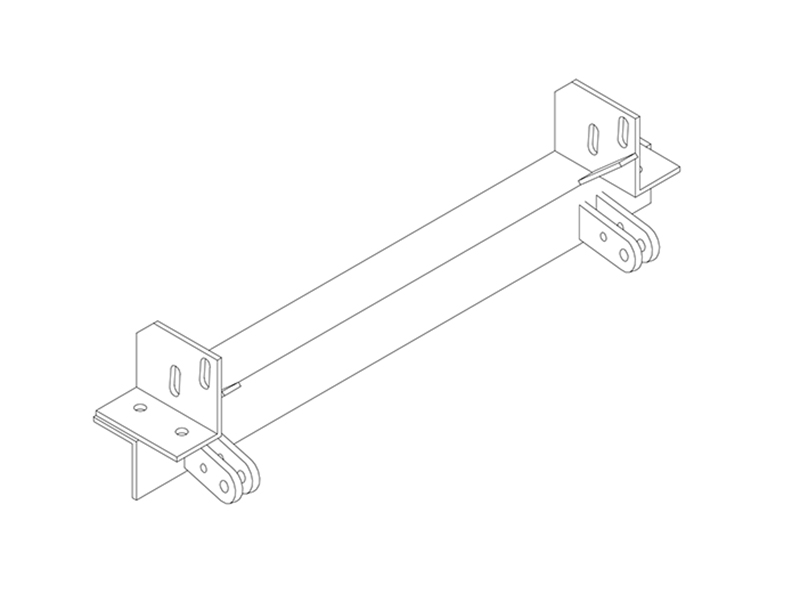

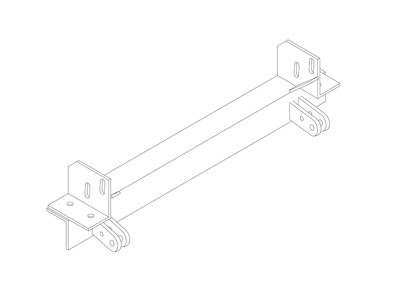

Custom Designed: Each Blue Ox BX2109 Tow Bar Bracket is custom made for each specific towed vehicle, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Make your towing experience effortless and safe with the Blue Ox BX2109 Tow Bar Bracket. Engineered to perfection, this base plate is expertly designed for each specific towed vehicle, ensuring a perfect fit and worry-free towing. Manufactured from high-quality steel, it promises reliable durability and long-lasting strength. The black powder-coat finish not only adds aesthetic appeal but also provides additional resistance against rust and corrosion. Its bolt-on mounting type ensures a secure attachment to your vehicle, and with all necessary mounting hardware included, installation is a breeze. With Blue Ox BX2109 Tow Bar Bracket, enhance your towing setup's performance and longevity.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1991 - 1994 | Ford Explorer | No Limited Comes with Standard Attachment Tabs Install Rating 2 Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Specific Dingy Towing Restrictions Apply Confirm the Towability and the Pre: towing Procedures of you Vehicle with the Owner's Manual or Contact the Vehicle's Manufacturer for Specific Towing Procedures |
| 1992 | Ford Ranger | 2WD/4WD Comes with Standard Attachment Tabs Install Rating 2 Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Fog Lights Must be Removed and Remain Off the Vehicle After Installation Specific Dingy Towing Restrictions Apply Confirm the Towability and the Pre: towing Procedures of you Vehicle with the Owner's Manual or Contact the Vehicle's Manufacturer for Specific Towing Procedures |
Yes, the BX2109 is designed for 1991-94 Ford Explorer models. It is also compatible with 1992 Ford Ranger Pickup in both 2WD and 4WD configurations. If you own a different model year or vehicle, this baseplate will not fit.
Yes, the BX2109 is compatible with 1992 Ford Ranger Pickup in both 2WD and 4WD versions. The baseplate is not listed for other Ranger model years.
Yes, bumper removal is required. The installation process involves removing the four bolts holding the bumper, cleaning the frame beams, installing the baseplate, drilling holes through the frame, and then reinstalling the bumper with notches cut in the plastic valence to allow the baseplate attachment tabs to protrude.
Yes, drilling is required. You must drill four 17/32" holes through the bottom of the frame beams—two holes on each side. These holes are drilled using the baseplate holes as guides and are necessary for the final bolt installation.
Yes, the plastic valence below the bumper must be notched to allow the baseplate attachment tabs to protrude. You will hold the bumper in position against the baseplate, mark a square around the attachment tabs, and cut out the notches using a jig saw. Start with a small square and enlarge as needed for the best appearance.
You will need: tape measure, 3/4" wrench, 1/2" wrench, 19mm wrench, drill with 17/32" drill bit, and jig saw. A wire brush or scraper is also recommended for cleaning the frame beams before installation.
The kit includes: one baseplate weldment (61-3364), two bent nut handles (61-3365), four 1/2-13 x 1 3/4" Grade 5 hex head bolts (201-0068), four 1/2-13 x 4" Grade 8 hex bolts (201-0457), six 1/2-13 hex lock nuts with nylon insert (202-0094), twelve 1/2" flat washers (203-0005), and two 1/2" lock washers (203-0012). Two 1/2" flat washers are provided to shim the baseplate if needed.
The manual recommends one or two people to hold the bumper while you mark the notch locations on the plastic valence. This step is easier with assistance, though it may be possible to do alone with temporary support.
1. Measure bumper height at three points and record. 2. Remove the four bumper bolts and set bumper aside. 3. Clean frame beams with wire brush. 4. Position baseplate between frame beams and temporarily bolt with four 1/2" x 4" bolts (tighten only enough to hold position). 5. Drill four 17/32" holes through frame beams using baseplate holes as guides. 6. Install four 1/2" x 1 3/4" Grade 5 bolts permanently. 7. Remove the temporary 1/2" x 4" bolts. 8. Hold bumper in position, mark notches around attachment tabs, and cut with jig saw. 9. Reinstall bumper using recorded measurements, insert mounting bolts, and tighten. 10. Install tow bar and safety cables per their instructions.
The four 1/2" x 4" Grade 8 bolts are used temporarily in Step 4 to hold the baseplate in position while you drill the frame holes. These are removed in Step 7. The four 1/2" x 1 3/4" Grade 5 bolts are the permanent fasteners installed in Step 6 through the drilled holes. Using the longer temporary bolts allows the baseplate to be positioned and adjusted before final drilling.
If the baseplate does not fit snugly, install 1/2" flat washers between the baseplate and the frame beam on one or both sides. Two washers are provided in the kit. If additional washers are needed, they can be purchased at any hardware store.
Before removing the bumper, measure the distance between the grille and the top of the bumper at each end and in the middle using a tape measure. Record these measurements. When reinstalling the bumper, use these measurements as a guide to position it at the same height. After snugging the bolts, visually check that the bumper is not crooked and adjust if necessary before final tightening.
Dimensional variations between vehicles may require filing a hole slightly to allow a bolt to clear. Use a file to carefully enlarge the hole as needed. This is a normal part of the installation process and does not indicate a problem with the baseplate.
Do not substitute other devices. Contact the manufacturer or your dealer for replacement parts. Using non-approved substitutes may compromise safety.
The BX2109 is a towing baseplate that mounts to the frame of your vehicle. It provides attachment points for a tow bar and safety cables, allowing you to tow another vehicle. The baseplate is installed between the frame beams and requires bumper removal and modification.
The BX2109 fits 1991-94 Ford Explorer and 1992 Ford Ranger Pickup (2WD & 4WD only). Other model years and vehicles are not compatible.
Yes. You must drill four 17/32" holes through the frame beams and cut notches in the plastic bumper valence using a jig saw. Bumper removal is also required.
Tape measure, 3/4" wrench, 1/2" wrench, 19mm wrench, drill with 17/32" bit, and jig saw. A wire brush is also recommended.
Yes, bumper removal is required. You will remove it, install the baseplate, drill frame holes, cut bumper notches, and reinstall the bumper.
One or two people are recommended to hold the bumper while you mark the notch locations. The rest of the installation can be done alone.
