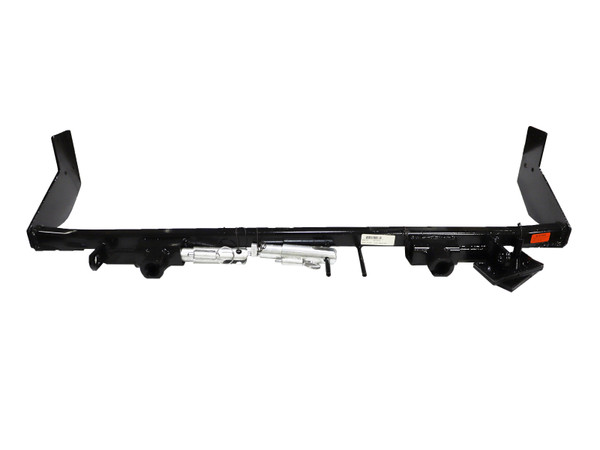

Custom Design: Each Blue Ox BX2171 Tow Bar Bracket is specifically designed for a perfect fit on the intended vehicle, ensuring optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2171 Tow Bar Bracket is a robust and reliable solution for towing needs. Custom designed for each specific vehicle, it ensures a perfect fit and superior functionality. Constructed from high-quality steel and finished with a tough powder coat, this bracket is built to withstand challenging conditions. The black color not only ensures a sleek appearance but also adds an extra layer of protection against rust and corrosion. Everything required for a hassle-free, do-it-yourself installation is included, making it a convenient choice for most users.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Ford Freestar | No Limited Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FREESTAR E13 (Part #FDRWBX2171) is designed to fit the 2004-2007 Ford Freestar.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FREESTAR E13 (Part #FDRWBX2171) fits 2004-2007 Ford Freestar models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FREESTAR E13 (Part #FDRWBX2171) fits the following vehicles: 2004-2007 Ford Freestar. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD FREESTAR E13 (Part #FDRWBX2171) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2171 is designed for 2004-07 Ford Freestar vehicles. The baseplate attachment tabs are 24 inches center to center with a height of 14 inches. The BX8869 is also available as an accessory for this vehicle.
Required tools are: 8MM socket, 7/16" socket, 9/16" socket, 9/32" drill bit, 13/32" drill bit, Phillips screw driver, utility knife, and hack saw or reciprocating saw. You will also need Loctite Red (threadlocker) for all bolts.
The headlight assembly, front fascia, horn bracket and windshield washer reservoir must be removed for baseplate installation. This involves removing push pins, clips, metric bolts, Phillips screws, and disconnecting electrical connectors and fluid hoses.
Yes, drilling is required. You must drill two holes into the frame webbing on the top edge using a 13/32" drill bit (both sides), and one hole into the upper frame webbing for the washer reservoir using a 9/32" drill bit. Trimming of the fascia and frame is also required.
You must cut and remove webbing flush with the side of the frame rail just behind the metal bumper using a hack saw or reciprocating saw on both sides. After baseplate installation, hold the fascia to its original position and trim as needed before reinstalling the horn bracket, fascia and headlight assemblies.
The kit includes: 1 base plate weldment, 2 spacer plate weldments, 4 bolt plates with 14" wire, 1 pipe (3/8" Sch 40 x 1 1/2"), 4 3/8-16 x 2 hex bolts (Grade 5), 2 3/8" flat washers, 8 3/8" lock washers, 8 3/8-16 hex nuts, 1 1/4-20 x 2 1/2" hex bolt (Grade 5), 4 1/4" flat washers, 1 1/4" lock washer, 1 1/4-20 hex nut, 2 #12-14 x 1" self-drilling screws, 2 #10-32 x 1/2" slot round head screws, 2 #10 lock washers, 2 #10-32 hex nuts, 2 4-way connector adapters, 2 attachment assemblies, 2 36" safety cables (Class III), 2 3/8" quicklinks, and 2 receiver cap plugs.
Insert the two bolt plates into the hole on the side of the frame rail to align with existing holes. Align the lower holes of the spacer plate, then slide the baseplate into place to align with the mating spacer plate holes and insert the bolt plates through the baseplate. While maintaining a level position with the removable attachment tabs, tighten the 3/8" hex nut, flat washer and lock washer on both sides. Use Loctite Red on all bolts before tightening and tighten according to the Torque Chart in the General Instruction Sheet.
Using the baseplate as a template, drill two holes into the webbing on the top edge of the frame with a 13/32" drill bit on both sides. Insert 3/8" hex bolts into the baseplate and drilled holes. Tighten the 3/8" hex nuts and lock washers according to the drawing on the last page on both sides. Use Loctite Red on all bolts before tightening and tighten all bolts according to the Torque Chart in the General Instruction Sheet.
Using a 9/32" drill bit, drill out the front mount hole for the washer reservoir located on the upper frame webbing just forward of the baseplate. Reinstall the two bolts just below the radiator reservoir for the washer reservoir. Insert a 1/4" hex bolt through a 1/4" flat washer, the forward washer reservoir hole, another 1/4" flat washer, spacer tube, drilled hole, 1/4" flat washer, then tighten the lock washer and hex nut. Use Loctite Red on all bolts before tightening and torque according to the torque chart in the General Instructions.
Hold the fascia to its original position and trim as needed. Reinstall the horn bracket, fascia and headlight assemblies. Be sure all electrical components and fluid hoses are plugged in properly. The dimensional variations between otherwise identical cars can be considerable, so minor adjustments may include filing a hole slightly, bending electrical rods, adding shims and/or bending endplates to compensate for manufacturer tolerances.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2171 kit includes 2 safety cables (36" Class III). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses or brake lines. These cables must be used in conjunction with, and are not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The installer should also watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame to ensure the baseplate is not installed against these components.
Yes, the attachment tabs should be removed when not in use.
No. Use only genuine factory replacement parts on the BX2171 baseplate. Do not substitute homemade or nontypical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from your Blue Ox dealer or distributor.
Yes, Loctite Red must be used on all bolts before tightening. This applies to the 3/8" hex bolts, 1/4" hex bolts, and all other fasteners used in the baseplate installation.
The BX2171 baseplate is designed for 2004-07 Ford Freestar vehicles.
Yes. You must drill two 13/32" holes in the top frame webbing and one 9/32" hole for the washer reservoir. Trimming of the fascia and frame is also required.
You will need 8MM and 7/16" sockets, 9/32" and 13/32" drill bits, Phillips screw driver, utility knife, hack saw or reciprocating saw, and Loctite Red threadlocker.
The headlight assembly, front fascia, horn bracket and windshield washer reservoir must be removed. This involves disconnecting electrical connectors and fluid hoses.
Yes, two 36" Class III safety cables are included. They are strongly recommended and must be connected from the baseplate to the frame rail or cross member. They must be used with, not as a replacement for, legally required towing safety cables.
Yes, Loctite Red must be applied to all bolts before tightening.
