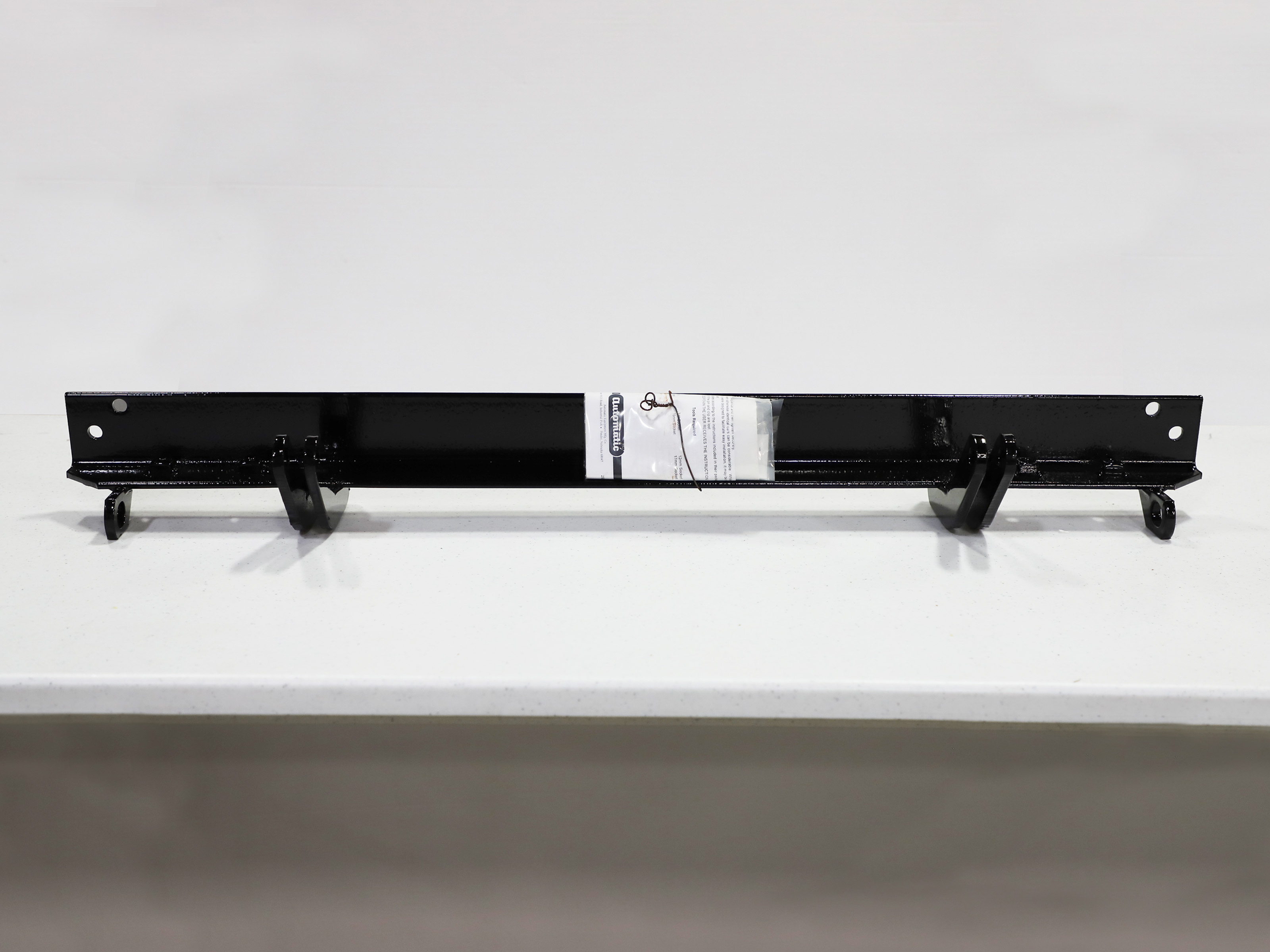

BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCORT E13Blue OxOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
1988 - 1990 Ford Escort
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Fit: The Blue Ox BX2107 Tow Bar Bracket is designed specifically for your vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Upgrade your towing experience with the Blue Ox BX2107 Tow Bar Bracket. This high-quality towing bracket is custom-designed for each specific vehicle, ensuring perfect fit and top-tier performance. Crafted from durable steel, the bracket is designed to last, providing reliable usage for years to come. It features a powder-coat finish for additional protection, giving it resistance against corrosion and other damaging elements. It comes with the necessary mounting hardware and instructions, making installation a breeze. Enhance your towing capabilities with the unmatched strength and durability of the Blue Ox BX2107 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 1990 | Ford Escort | Comes with Standard Attachment Tabs Install Rating 2 Vehicle May Accumulate Miles When Flat Towing. Consult Your Vehicle's Owner's Manual. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCORT E13 (Part #FDRWBX2107) is designed to fit the 1988-1990 Ford Escort.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCORT E13 (Part #FDRWBX2107) fits the following vehicles: 1988-1990 Ford Escort. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCORT E13 (Part #FDRWBX2107) fits 1988-1990 Ford Escort models. The 1990 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD ESCORT E13 (Part #FDRWBX2107) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2107 baseplate is designed for 1988 1/2 to 1990 Ford Escort models. If your Escort is within this model year range, the baseplate is compatible. Confirm your exact model year before purchasing.
The kit includes: one baseplate (61-3287), driver and passenger side upper brackets (61-3273, 61-3274), driver and passenger side lower brackets (61-3289, 61-3288), eight 1/2-13 x 1-1/2 hex head bolts (201-0051), four 1/2-13 hex nuts (202-0005), eight 1/2 lock washers (203-0012), eight 10mm flat washers (203-0103), four 10mm-1.5 x 35mm hex head bolts (201-0410), and four 10mm lock washers (203-0104). The tow bar and safety cables are not included and must be purchased separately.
You will need: 3/4" wrench, 3/4" socket, 12mm socket, 13mm socket, 15mm socket, and 17mm socket. You will also need Locktite or a similar threadlocker product for the bolts.
No, you do not need to remove the bumper. The baseplate mounts using the four existing bolts that secure the bumper shock absorbers to the chassis and the two front bolts from the stabilizer bar mounting brackets. You will remove these bolts to access the mounting points, but the bumper itself stays in place.
1. Remove the two bolts on each side holding the bumper shock absorbers to the car. 2. Remove the front bolt only from both stabilizer bar mounting brackets. 3. Position the upper brackets (which have U-shaped cutouts fitting around the bumper shock absorbers) and hand-start the new 10mm bolts with flat washers and lock washers, using Locktite on all bolts. Do not tighten yet. 4. Loosely assemble the baseplate to the upper brackets using four 1/2" bolts, lock washers and nuts. 5. Position the lower brackets and loosely install the bolts previously removed from the stabilizer bar brackets. 6. Loosely assemble the lower brackets to the baseplate using the remaining four 1/2" bolts. 7. When all bolts align, snug up in sequence and then tighten securely. 8. Install the tow bar and safety cables according to their instructions.
The upper brackets are right and left handed. When positioned on the car, the slotted flanges must be in front of the bumper shock bracket, and the wider slotted flange must be on the outboard side of the car. The U-shaped cutout on each bracket fits around the bumper shock absorber. Refer to the sketch on page 2 for visual guidance.
No drilling is required. The baseplate uses existing mounting points on your Escort: the bumper shock absorber bolts and the stabilizer bar mounting bracket bolts. However, due to dimensional variations between individual cars, you may need to file a hole slightly to allow a bolt to clear. The manual notes that while the baseplate holes were designed for easy installation, minor filing may be necessary.
The kit includes eight 1/2-13 x 1-1/2 hex head bolts (201-0051), four 1/2-13 hex nuts (202-0005), eight 1/2 lock washers (203-0012), eight 10mm flat washers (203-0103), four 10mm-1.5 x 35mm hex head bolts (201-0410), and four 10mm lock washers (203-0104). The 10mm bolts are used to attach the upper brackets to the bumper shock absorber mounting points, and the 1/2" bolts are used to assemble the baseplate to the brackets.
The manual instructs you to remove the original bolts and replace them with new 10mm-1.5 x 35mm hex head bolts (201-0410) provided in the kit. The original bolts should be inspected for reuse when removed from the stabilizer bar brackets, but the manual does not explicitly state whether the bumper shock absorber bolts can be reused. Consult the General Instruction Sheet or contact the manufacturer for clarification.
Yes. The manual specifies that Locktite or a similar threadlocker product must be used on all bolts during installation. This applies to both the 10mm bolts securing the upper brackets and the 1/2" bolts assembling the baseplate to the brackets.
The manual instructs you to hand-start all bolts and loosely assemble all components first. Once all bolts align, you should snug up the bolts in sequence and then tighten them securely. The manual does not specify the exact sequence pattern. Refer to the General Instruction Sheet or contact the manufacturer for the recommended tightening sequence.
The installation manual does not provide torque specifications. Refer to the General Instruction Sheet included with the baseplate or contact Automatic Equipment Mfg. Co. for the correct torque values for the 10mm and 1/2" bolts.
The BX2107 baseplate is designed to work with tow bars approved by Automatic Equipment Mfg. Company. Using the baseplate with any tow bar not approved by the manufacturer will invalidate the limited warranty. Consult the manufacturer or your dealer to confirm which tow bars are approved for your baseplate.
Do not substitute other devices if the pin and clip are lost. Contact the manufacturer or your dealer to obtain replacement pin and clip components. Using substitutes may compromise the safety and function of the baseplate.
Yes. After the baseplate is installed, you must install the tow bar and safety cables according to the instructions included in their packages. The tow bar and safety cables are not included with the baseplate kit and must be purchased separately.
Yes, if your vehicle is a 1988 1/2 to 1990 Ford Escort. The BX2107 is designed specifically for this model year range.
You will need: 3/4" wrench, 3/4" socket, 12mm socket, 13mm socket, 15mm socket, 17mm socket, and Locktite or similar threadlocker.
No. The baseplate mounts using existing bolts from the bumper shock absorbers and stabilizer bar brackets. You remove these bolts to access the mounting points, but the bumper stays in place.
No drilling is required. The baseplate uses existing mounting points. Minor filing of a hole may be necessary due to dimensional variations between individual cars, but no drilling is needed.
The kit includes the baseplate, upper and lower brackets (driver and passenger sides), eight 1/2" bolts with lock washers and nuts, four 10mm bolts with lock washers and flat washers, and all necessary fasteners. Tow bar and safety cables are sold separately.
Yes. Locktite or a similar threadlocker must be used on all bolts during installation.
Only tow bars approved by Automatic Equipment Mfg. Company. Using an unapproved tow bar voids the warranty. Check with the manufacturer or dealer for approved options.
