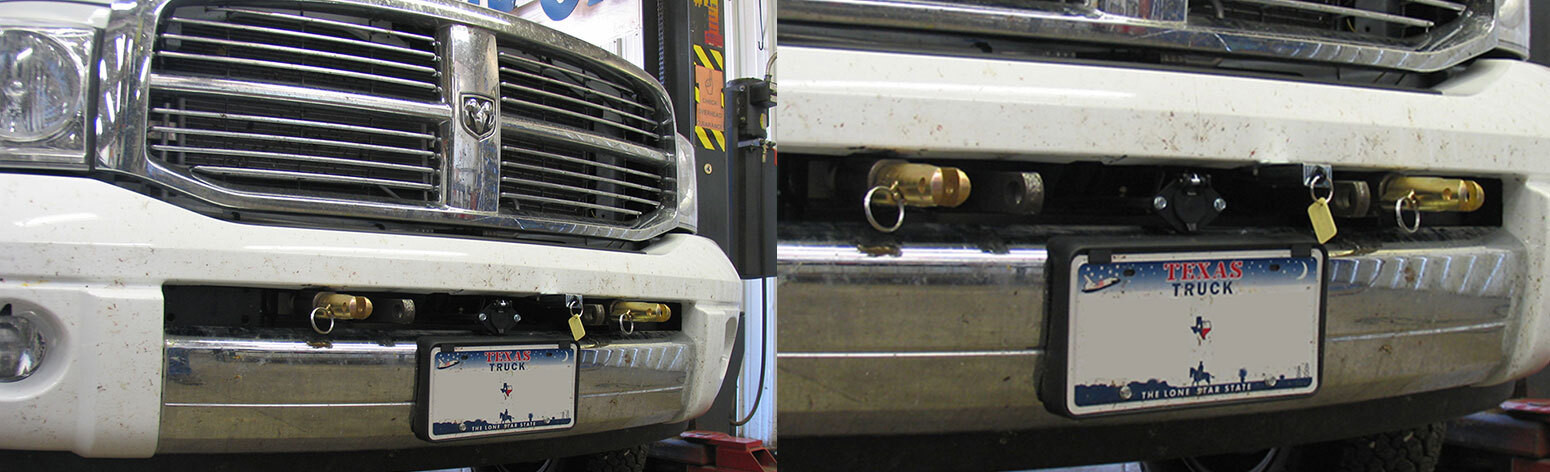

Custom Fit: The BX2417 Tow Bar Bracket is specifically designed to fit each individual vehicle, ensuring an optimal fit and improved towing performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2417 Tow Bar Bracket is a top-of-the-line enhancement for your towing needs. Custom-designed for each specific towed vehicle, this product ensures a perfect fit and enhanced towing safety. Made from high-grade steel with a black powder coat finish, the bracket is designed to withstand the rigors of the road while maintaining its sleek look. The bolt-on mounting type makes installation a breeze, even for the DIY enthusiast. To further simplify the process, all necessary mounting hardware and easy-to-follow instructions are included in the package.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Ram 1500 | No Classic Also Rebel Vehicles with EcoDiesel Comes with Removable Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
No. The BX2417 is designed for 2019-2024 Ram 1500 (including Rebel) and 2020-2024 Ram 1500 EcoDiesel (including Rebel), but explicitly excludes Classic models. If you have a Classic model, contact Blue Ox at (402) 385-3051 for the correct baseplate.
Yes. The BX2417 is compatible with 2020-2024 Ram 1500 EcoDiesel models, including Rebel trim, as long as your vehicle is not a Classic model.
The attachment tab height is 17 inches and the attachment tab width is 38.5 inches.
Required tools include: large vise grip, flat screwdriver, utility knife, torque wrench, drill, reciprocating saw, Loctite Red, 1/2" drill bit, 5/16" nut driver, 1-1/4" hole saw, 8MM socket, 18MM socket, 18MM wrench, 21MM socket, 1/4" socket, 1/4" wrench, 7/16" socket, 7/16" wrench, 3/4" socket, and 3/4" wrench.
Yes. A torque wrench is required. All bolts must be tightened according to the torque specifications provided in the manual using Loctite Red on all bolt threads.
Yes. The fascia/bumper must be removed and reinstalled as part of the installation process. The manual notes that some drilling and trimming is required, and all removed components should be placed on a flat, sturdy surface for reinstallation after the baseplate is installed.
The manual does not specify whether the battery must be disconnected. Contact Blue Ox Technical Service at (402) 385-3051 for guidance on this step.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
Yes. Drilling is required. The installation involves drilling two holes on the underside and front inside of the baseplate using a 1/2" drill bit on both sides of the vehicle. The manual also notes that some trimming is required.
Yes. A reciprocating saw is used to remove an indicated area on the back side of the fascia on both sides to allow room for the baseplate. The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting.
Only if your truck has tow hooks. Trucks with tow hooks require removal of the front and back tow hook bolts; the tow hooks will not be reinstalled. Trucks without tow hooks require removal of the tow hook covers instead. The manual provides separate instructions for each configuration.
The torque specification depends on the bolt grade. For Grade 5 bolts, torque to 78 foot-pounds. For Grade 8 bolts, torque to 119 foot-pounds. The parts list indicates that the 1/2"-13 x 1-1/2" hex head bolts (part 201-0051) are Grade 5, so use 78 foot-pounds. Always apply Loctite Red to all bolt threads before tightening.
The torque specification depends on the bolt grade. For Grade 8.8 metric bolts, torque to 89 foot-pounds. For Grade 10.9 metric bolts, torque to 117 foot-pounds. The parts list indicates that the 14MM-2MM x 50MM hex head bolts (part 201-0813) are Grade 10.9, so use 117 foot-pounds. Always apply Loctite Red to all bolt threads before tightening.
The baseplate includes a 4-pin connector and a 6-pin connector. The electrical plug attaches to the driver side baseplate using two 1/4" screws. A breakaway switch can optionally be attached to the passenger side baseplate. The manual recommends the BX8848 Tail Light Wiring Kit for this vehicle. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle but not listed as required. Contact Blue Ox at (402) 385-3051 to confirm whether it is necessary for your specific application.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your vehicle's GVWR and towing specifications.
Yes. Permanent baseplate safety cables are strongly recommended and are included with the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not be mounted against wires, hoses, or brake lines. These permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
No. If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. The manual recommends removing the attachment tabs when not in use, if applicable.
The hardware kit includes: 2 existing 14MM-2.0 x 50MM bolts, 4 whiz nuts with 10" wire, 2 baseplate assemblies (driver and passenger side), 2 attachment tab assemblies, 1 1/4"-20 x 3/4" hex head bolt, 4 1/2"-13 x 1-1/2" hex head bolts, 2 #10-32 1/2" round slotted head screws, 2 14MM-2MM x 50MM hex head bolts, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 1 1/4"-20 hex nylon nut, 4 1/2" lock washers, 2 #10 lock washers, 2 14MM lock washers, 1 4-way bracket, 2 class IV safety cables, 2 1/2" quicklinks, and 2 black cap plug receivers.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5. Failing to follow these instructions will void the manufacturer's warranty. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Register your product online at www.blueox.com. It is crucial to register your product so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. You can also register your warranty at http://blueox.com/warranty/. The customer warranty card must be returned within 30 days of purchase for coverage to be valid.
Yes, if your vehicle is a 2019-2024 Ram 1500 (including Rebel) or 2020-2024 Ram 1500 EcoDiesel (including Rebel), but not if it is a Classic model. Contact Blue Ox at (402) 385-3051 if you have a Classic.
Yes. You will drill two 1/2" holes on each side of the vehicle using a 1/2" drill bit, and use a reciprocating saw to trim the fascia. A torque wrench, drill, and reciprocating saw are required tools.
You will need a torque wrench, drill with 1/2" and 1-1/4" bits, reciprocating saw, socket set (8MM, 18MM, 21MM, 1/4", 3/4"), wrenches, Loctite Red, and basic hand tools. Professional installation by a Blue Ox Dealer is recommended.
Yes. The fascia/bumper must be removed at the start and reinstalled after the baseplate is mounted. This requires removing bolts from the wheel well and bumper, and unplugging electrical connectors.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your GVWR and towing specifications.
Torque Grade 5 bolts to 78 foot-pounds and Grade 8 bolts to 119 foot-pounds. The BX2417 uses Grade 5 bolts, so use 78 foot-pounds. Always apply Loctite Red to all bolt threads before tightening.
The baseplate includes 4-pin and 6-pin connectors. You will attach the electrical plug to the driver side baseplate using two 1/4" screws and optionally attach a breakaway switch to the passenger side. Ensure all connections are plugged in and functioning before reinstalling the fascia. The BX8848 Tail Light Wiring Kit is recommended.
Do not use the baseplate if it is damaged or missing parts. If the baseplate is in an accident, it must be replaced. Do not use it again, as an accident can cause unseen damage and using it again could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 for replacement parts or a replacement baseplate.
Ensure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. If connections are not working after installation, check that the 4-pin and 6-pin connectors are fully seated and that the electrical plug attached to the driver side baseplate is secure. Verify that all connections were properly plugged in during installation as specified in step 12.
