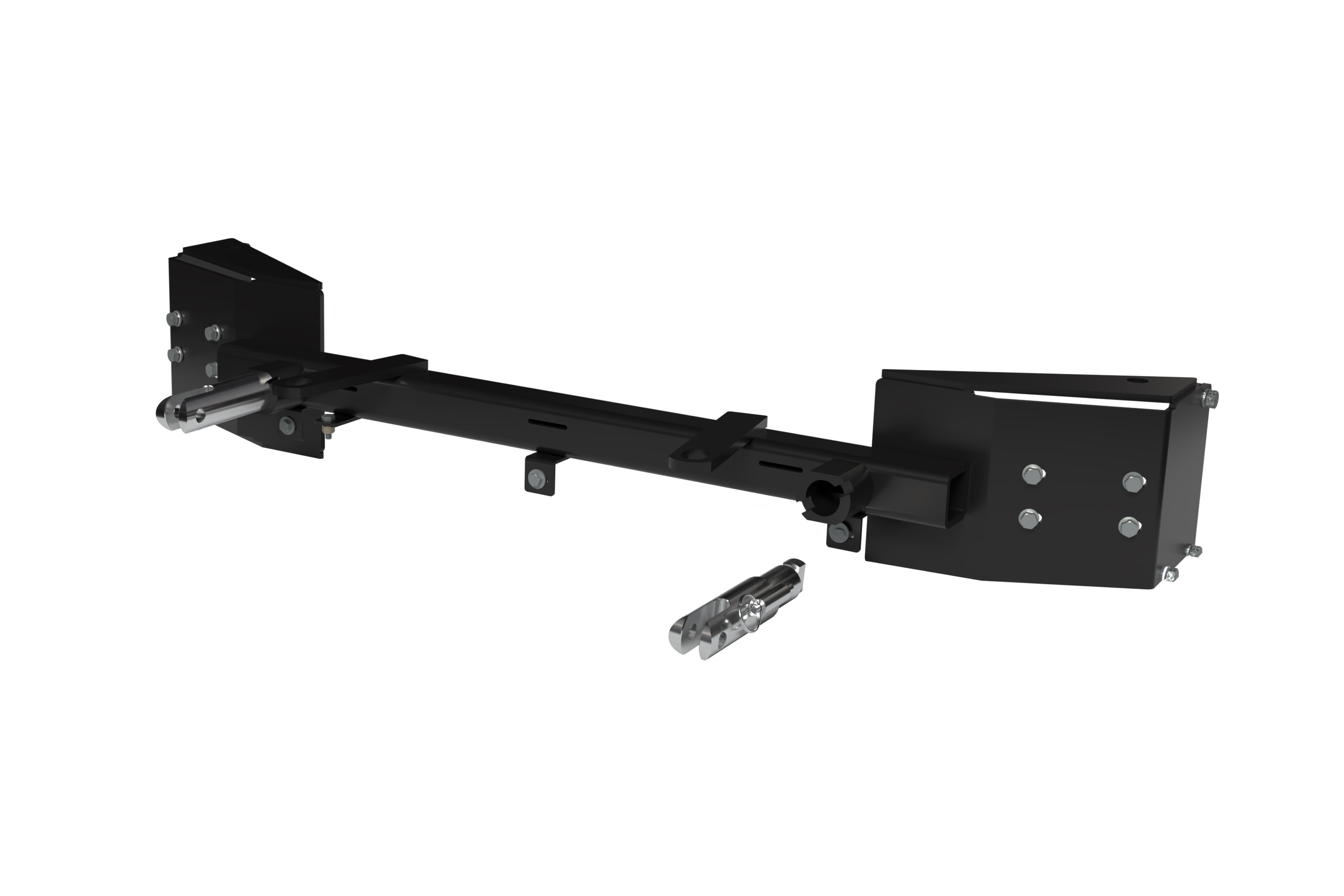

Custom Design: Each Blue Ox BX1732 Tow Bar Bracket is expertly designed to fit a specific towed vehicle, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1732 Tow Bar Bracket is a premium towing solution meticulously designed for your specific vehicle needs. Crafted from high-quality steel, this tow bar bracket promises durability and long-lasting performance. Its black powder coat finish not only enhances its aesthetic appeal, but also provides an added layer of protection against rust and corrosion. A bolt-on mounting type ensures a secure and sturdy connection, providing you with peace of mind while towing. Furthermore, this product comes with all the necessary mounting hardware and a comprehensive installation guide, making the installation process a breeze for DIY enthusiasts.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2018 | Chevrolet Cruze | Comes with Removable Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
The BX1732 is a towing baseplate manufactured by Blue Ox, designed specifically for 2017-18 Chevy Cruze Turbo Diesel vehicles. It is installed at the front of the vehicle to provide attachment points for a tow bar. The baseplate includes attachment tabs (19" height, 24" width) and permanent safety cables.
Yes, the BX1732 is designed for 2017-18 Chevy Cruze Turbo Diesel vehicles. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
The baseplate is computer tested to your vehicle's GVWR. You must not exceed your vehicle's GVWR when towing, as exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
The kit includes: 6× 3/8" Whiz Nuts with 14" wire, 1× BX1732 Baseplate, 2× Attachment Tab Assemblies, 4× 1/4"-20 × 3/4" Grade 5 bolts, 2× #10-32 1/2" screws, 6× 3/8"-16 × 1-1/2" Grade 5 bolts, 8× 8MM-1.25 × 30MM Grade 8.8 bolts, 2× #12-14 × 1" self-drilling screws, 2× #10-32 hex nuts, 4× 1/4"-20 nylon lock nuts, 6× 1/4" flat washers, 8× 5/16" flat washers, 6× 3/8" lock washers, 2× #10 lock washers, 8× 8MM lock washers, 1× electrical bracket, 2× Class III safety cables, 2× 3/8" quicklinks, and 2× black cap plug receivers.
Required tools: utility knife, torque wrench, drill, T15 Torx, 7MM socket, 10MM socket, 13MM socket, 7/16" socket, 9/16" socket, 5/16" nut driver, 3/8" drill bit, 1/4" drill bit, 7/16" wrench, 9/16" wrench, and Loctite Red.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The fascia must be removed and reinstalled during installation. Some drilling and trimming is required. Place all removed components on a flat, sturdy surface for reinstallation after baseplate installation. Note that dimensional variations between vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. A hole must be drilled according to the tail light wiring kit instructions.
Two drilling operations are required: (1) A hole must be drilled according to the BX8869 Tail Light Wiring Kit instructions. (2) Three holes must be drilled on each side of the vehicle using a 3/8" drill bit for the side plate bolts. Additionally, the middle hole on the shutter piece may need to be drilled out with a 1/4" drill bit. Be careful not to hit any wires while drilling.
Trimming is required in three areas: (1) Using a utility knife, trim the indicated areas on each side of the grill to allow room for the baseplate. (2) Remove the plastic piece from the back side of the fascia by releasing four clips. (3) Using a utility knife, remove the plastic piece as indicated on both sides of the vehicle. (4) After baseplate installation, hold the fascia as close to its original position, mark and trim the fascia around the convenience links and attachment tabs.
Yes. The trimming of the grill areas, removal of the plastic piece from the fascia, and removal of the foam piece are permanent modifications. The bumper is removed and replaced by the baseplate and will not be reinstalled. However, the fascia is reinstalled after baseplate installation.
Use the torque chart provided in the manual. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs. For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs. For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
The attachment tabs are 19" in height and 24" in width.
1. Using a 7MM socket, remove four bolts from the top of the fascia cover. 2. Using a T15 Torx, remove two screws from the edge of the wheel well in front of the tire on each side, pull the cover back, and remove one bolt from under the cover using a 7MM socket. 3. Using a 7MM socket, remove six bolts (white) from the underside and one push pin (gray) from the center. 4. Pull the plastic piece down and remove one bolt using a 7MM socket. 5. Pull the corners of the fascia away from the vehicle, disconnect electrical connections, and set the fascia aside.
Removal: Using a 10MM socket, remove three bolts holding the support brackets, then remove and set aside the brackets for later reinstallation. Reinstallation: After the baseplate is installed, place the bottom of the three front support brackets into slots on the baseplate and reinstall the existing bolts at the top. Apply Loctite Red on all bolt threads and tighten to the appropriate torque.
Using a 13MM socket, remove four bolts from the bumper on both sides of the vehicle. Unsnap the wire loom from the bumper and remove the bumper. The bumper will not be reinstalled; it is replaced by the baseplate.
Removal: Using a 7MM socket, remove three bolts from the shutter housing and let it hang loose. Reinstallation: After the baseplate is in place, lift the shutter housing back into place and attach it to the baseplate using three 1/4" bolts with flat washer and nylon lock nut. Note that the middle hole may need to be drilled out with a 1/4" drill bit on the shutter piece. Apply Loctite Red and tighten to the appropriate torque.
Slide the baseplate into place and start eight 8MM bolts (four on each side) with flat washer and lock washer. Apply Loctite Red to all bolt threads and tighten fully to the appropriate torque according to the torque chart (8MM Grade 8.8 = 16 ft-lbs).
Using a 3/8" drill bit, drill out three holes on each side for the side plate. Be careful not to hit any wires while drilling. Insert three 3/8" bolts with lock washer and 3/8" whiz nut with wire on each side. Apply Loctite Red and tighten to the appropriate torque (3/8" Grade 5 = 33 ft-lbs).
Failure to read and follow these instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death. If the baseplate is in an accident, it must be replaced. Do not use it again, as an accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses or brake lines. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle. These cables are supplementary to and not a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. Use a good quality paint to spray cut edges of frame to prevent rusting.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
Hold the fascia as close to its original position, mark and trim the fascia around the convenience links and attachment tabs. Then reinstall the fascia and fascia cover. Ensure all electrical connections are functioning properly. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. These permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle.
Contact Blue Ox Technical Service Department at (402) 385-3051. You can speak with their technical service team about any questions regarding the performance of the product. Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products. Additionally, visit www.blueox.com for the latest version of installation instructions and to find Blue Ox Dealers.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The product is warranted to be free from defect in material and workmanship under normal use and service for three years from the date of delivery. During this period, defective parts will be repaired or replaced if returned to the factory, transportation prepaid. The warranty is non-transferable and requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX1732 is designed for 2017-18 Chevy Cruze Turbo Diesel vehicles. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before installing.
The baseplate is computer tested to your vehicle's GVWR. You must not exceed your vehicle's GVWR when towing. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Required tools include: utility knife, torque wrench, drill, T15 Torx, 7MM/10MM/13MM/7/16"/9/16" sockets, 5/16" nut driver, 3/8"/1/4" drill bits, 7/16"/9/16" wrenches, and Loctite Red.
Yes. A hole must be drilled for the tail light wiring kit, and three holes on each side must be drilled with a 3/8" drill bit for the side plate bolts. The middle hole on the shutter piece may also need to be drilled with a 1/4" drill bit. Be careful not to hit wires while drilling.
Yes. Using a utility knife, trim the grill areas on each side, remove the plastic piece from the fascia back, and remove plastic pieces on both sides. After installation, trim the fascia around the convenience links and attachment tabs.
The eight 8MM Grade 8.8 bolts that secure the baseplate should be tightened to 16 ft-lbs according to the torque chart. Apply Loctite Red to all bolt threads before tightening.
Yes. Two permanent baseplate safety cables are included and must be installed. They attach from the baseplate to the vehicle frame and must not rub against hoses, wires or brake lines. These cables are supplementary to and not a replacement for legally required safety cables.
Yes. Blue Ox recommends installation by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. A hole must be drilled according to the kit's instructions.
Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
Before each towing trip, inspect the baseplate for cracked welds, missing or worn parts and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications.
Do not proceed with installation. Contact Blue Ox at (402) 385-3051 before installing the baseplate. The manual states that if the front of your vehicle looks different, you should verify compatibility with the manufacturer.
No. If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The manual warns to be careful not to hit any wires while drilling the three holes on each side for the side plate bolts. If a wire is damaged, stop immediately and do not continue installation. Contact Blue Ox at (402) 385-3051 for guidance on wire repair and safe completion of installation.
The manual notes that the middle hole may need to be drilled out with a 1/4" drill bit on the shutter piece. If the hole does not align, use a 1/4" drill bit to enlarge or create the hole as needed to allow the 1/4" bolt to pass through.
