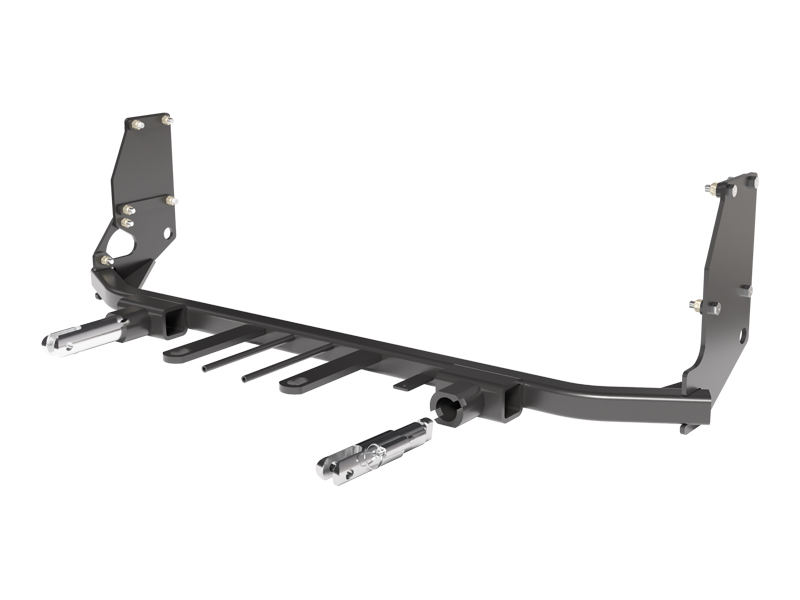

1. Custom Design: Each Blue Ox BX1727 Tow Bar Bracket is meticulously designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Get ready for the long haul with the Blue Ox BX1727 Tow Bar Bracket. Crafted from robust steel with a sleek black powder coat finish, this bracket is designed to withstand any towing task you throw at it. Customized for each specific vehicle, it ensures a perfect fit and superior performance every time. The bracket comes with all necessary hardware and easy-to-follow instructions, allowing for effortless do-it-yourself installation. The bolt-on mounting type ensures a secure fit, promising a smooth and safe towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2016 - 2018 | Chevrolet Cruze | Sedan | Sedan or Hatchback No Turbo Diesel Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY CRUZE LS (Part #FDRWBX1727) fits 2016-2018 Chevrolet Cruze models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY CRUZE LS (Part #FDRWBX1727) fits the following vehicles: 2016-2018 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY CRUZE LS (Part #FDRWBX1727) is designed to fit the 2016-2018 Chevrolet Cruze.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY CRUZE LS (Part #FDRWBX1727) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1727 is a tow baseplate manufactured by Blue Ox designed specifically for 2016-18 Chevy Cruze L / LS models with gasoline engines (no turbo diesel). It is used to connect a tow bar to the front of the vehicle for towing purposes. The baseplate must be installed by a Blue Ox dealer or qualified installer familiar with baseplate fit work.
No. The BX1727 is designed for 2016-18 Chevy Cruze L / LS models with gasoline engines only. It is not compatible with turbo diesel versions. If your vehicle has a turbo diesel engine, contact Blue Ox at (402) 385-3051 to confirm the correct baseplate for your vehicle.
If the front of your vehicle looks different from the photos in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation. Dimensional variations between otherwise identical vehicles can be considerable, and the manual notes that the baseplate may need slight tailoring to compensate for manufacturer tolerances. Confirming fitment with the manufacturer is essential.
The BX1727 kit includes: one baseplate (61-7803), two attachment tab assemblies (62-3468), one flat plate (102-7714), two flat plates with holes (102-7715), one 1/4"-20 x 3/4" hex head bolt Grade 5 (201-0050), two #10-32 1/2" round slotted head screws (201-0192), ten 3/8"-16 x 1-1/4" hex head bolts Grade 5 (201-0368), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), ten 3/8"-16 hex nylon insert lock nuts (202-0090), one 1/4"-20 hex nylon nut (202-0102), two #10 lock washers (203-0054), one 4-way bracket (299-0685), two class III safety cables (226-0046), two 3/8" quicklinks (229-0359), and two black cap plug receivers (290-0437).
Required tools are: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, reciprocating saw, tape measure, 3/8" drill bit, 7MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, T15 Torx, and 5/16" nut driver. You will also need Loctite Red to apply to all bolt threads before tightening.
Yes. The fascia and windshield washer fluid reservoir must be removed during baseplate installation and then reinstalled after the baseplate is secured. The manual notes that all removed components should be placed on a flat, sturdy surface and will be reinstalled unless otherwise noted. Handling of cosmetic parts may require protective covers, rags, or specialty tools to prevent damage.
Blue Ox recommends that towing products be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. The manual does not explicitly prohibit non-dealer installation, but emphasizes that proper fit work and adherence to all instructions is required to maintain warranty coverage.
Yes. Drilling is required. The installation involves drilling out holes using a 3/8" drill bit to mount the baseplate to the frame rails on both sides of the vehicle. The manual specifies drilling the uppermost hole first on each side, then drilling the remaining three holes on each side. The manual also notes that some drilling is required for the recommended BX8869 Tail Light Wiring Kit.
Yes. Trimming is required. A reciprocating saw is used to trim marked areas on the bumper plastic shielding. Additionally, the fascia must be marked and trimmed around the convenience links and attachment tabs before reinstallation. The manual warns to be aware of objects behind the cutting surface when using a reciprocating saw.
The installation involves drilling and trimming, which will expose bare metal on the frame and bumper plastic. The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting. You should plan to touch up any exposed metal areas after installation.
The manual provides torque specifications for inch and metric bolts by grade. For the 3/8"-16 Grade 5 hex head bolts used in the BX1727 kit, the torque specification is 33 foot-pounds. For metric equivalents: 10MM Grade 8.8 is 31 foot-pounds, and 10MM Grade 10.9 is 40 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening. The manual emphasizes tightening all bolts to the appropriate torque unless otherwise specified.
The BX1727 attachment tab height is 11-1/2" and the attachment tab width is 24".
The BX8869 Tail Light Wiring Kit is recommended for the 2016-18 Chevy Cruze L / LS. The manual notes that a hole should be drilled according to the tail light wiring kit instructions. However, the manual does not explicitly state whether the kit is required or optional. Contact Blue Ox at (402) 385-3051 to confirm whether the kit is necessary for your specific installation.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. The manual emphasizes this as a critical step to avoid electrical issues after the fascia is reinstalled.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your specific GVWR and towing specifications. Do not tow a weight that exceeds your vehicle's rated capacity.
Yes. The BX1727 kit includes two class III safety cables (part number 226-0046) and two 3/8" quicklinks (part number 229-0359). These permanent baseplate safety cables must be attached from the baseplate to the frame rail or cross member of the vehicle's frame. The cables are strongly recommended and serve to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The safety cables must not be mounted against wires, hoses, or brake lines.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual provides two recommended installation options: Option 1 shows cables routed around the crossmember or frame with a quicklink attached to the baseplate convenience link tab. Option 2 shows an alternative arrangement for baseplates without convenience link tabs. The cables must not rub against any hoses or moving parts, and must not be mounted against wires, hoses, or brake lines. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the General Information sheet.
No. The permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle. Both sets of cables are necessary for safe towing.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure that Loctite Red has been used on all bolts and that they are tightened to the recommended specifications. It is the owner's responsibility to perform these inspections and maintain the equipment in proper working condition.
Yes. The manual recommends removing the attachment tabs when not in use. This helps protect the tabs and the vehicle's appearance when the baseplate is not actively being used for towing.
The BX1727 is covered by a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate warranty coverage, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty is non-transferable and does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using a damaged baseplate again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. Contact Blue Ox or your dealer for a replacement.
Yes. It is crucial to register your baseplate online at www.blueox.com. Registration ensures that you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Registration is also required to activate your three-year limited warranty.
Contact Blue Ox technical service at (402) 385-3051. You can speak with their technical service team about any questions regarding the performance of your product. You can also visit www.blueox.com for the latest version of the installation instructions and to find Blue Ox dealers in your area. Blue Ox also offers factory service for a nominal fee to ensure your towing system is in proper working condition.
The BX1727 fits 2016-18 Chevy Cruze L / LS models with gasoline engines only (no turbo diesel). If your vehicle has a different engine type or the front looks different from the manual photos, contact Blue Ox at (402) 385-3051 to confirm fitment.
You will need: large vise grip, flat and Phillips screwdrivers, utility knife, torque wrench, drill with 3/8" bit, reciprocating saw, tape measure, 7MM/7/16"/9/16" sockets and wrenches, T15 Torx, 5/16" nut driver, and Loctite Red. Professional installation by a Blue Ox dealer is recommended.
Yes. You must drill holes using a 3/8" drill bit to mount the baseplate to the frame rails, and use a reciprocating saw to trim the bumper plastic shielding and fascia. The manual recommends using good quality paint on cut frame edges to prevent rusting.
The 3/8"-16 Grade 5 bolts used in the kit should be torqued to 33 foot-pounds. Apply Loctite Red to all bolt threads before tightening. Refer to the torque chart in the manual for other bolt sizes and grades.
The baseplate is rated to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your specific GVWR and towing capacity.
Yes. Two class III safety cables and two 3/8" quicklinks are included. They must be attached from the baseplate to the vehicle's frame rail or cross member and must not rub against hoses or moving parts. These cables supplement, not replace, legally required safety cables.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the correct torque with Loctite Red applied. Verify all electrical connections are secure before each towing trip.
Three years from the date of delivery to the original purchaser. Register your product at www.blueox.com within 30 days of purchase and keep your original invoice to activate warranty coverage. The warranty does not cover improper installation, misuse, or normal wear and tear.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the baseplate does not fit properly, contact Blue Ox technical service at (402) 385-3051 before proceeding. Do not force the baseplate into position, as this could cause damage or improper installation.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If accessories are not functioning after reinstallation, remove the fascia and check that all electrical connectors are fully seated and properly connected. Verify that no wires were pinched or damaged during installation. If the baseplate was improperly installed against a wire or hose, it could cause electrical shorts. Contact Blue Ox at (402) 385-3051 if the problem persists.
The permanent baseplate safety cables must not rub against any hoses or moving parts. If the cables are rubbing, reposition them to route away from hoses, brake lines, and moving components. The cables must be secured to a solid piece of the frame. If repositioning is not possible due to space constraints, contact Blue Ox at (402) 385-3051 for alternative routing guidance. Rubbing cables can wear through and fail, compromising the safety function of the cables.
